Výroba a dodávka
Výrobní doba 15-30 dní

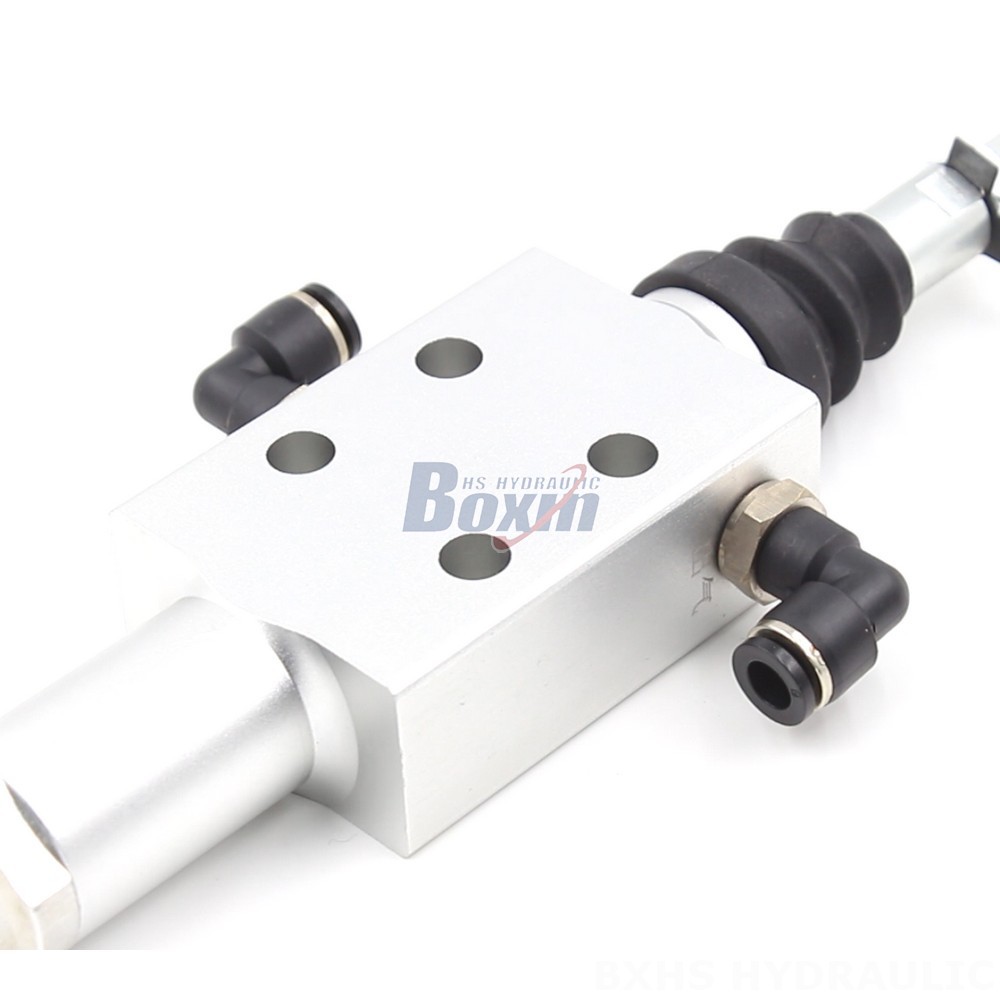

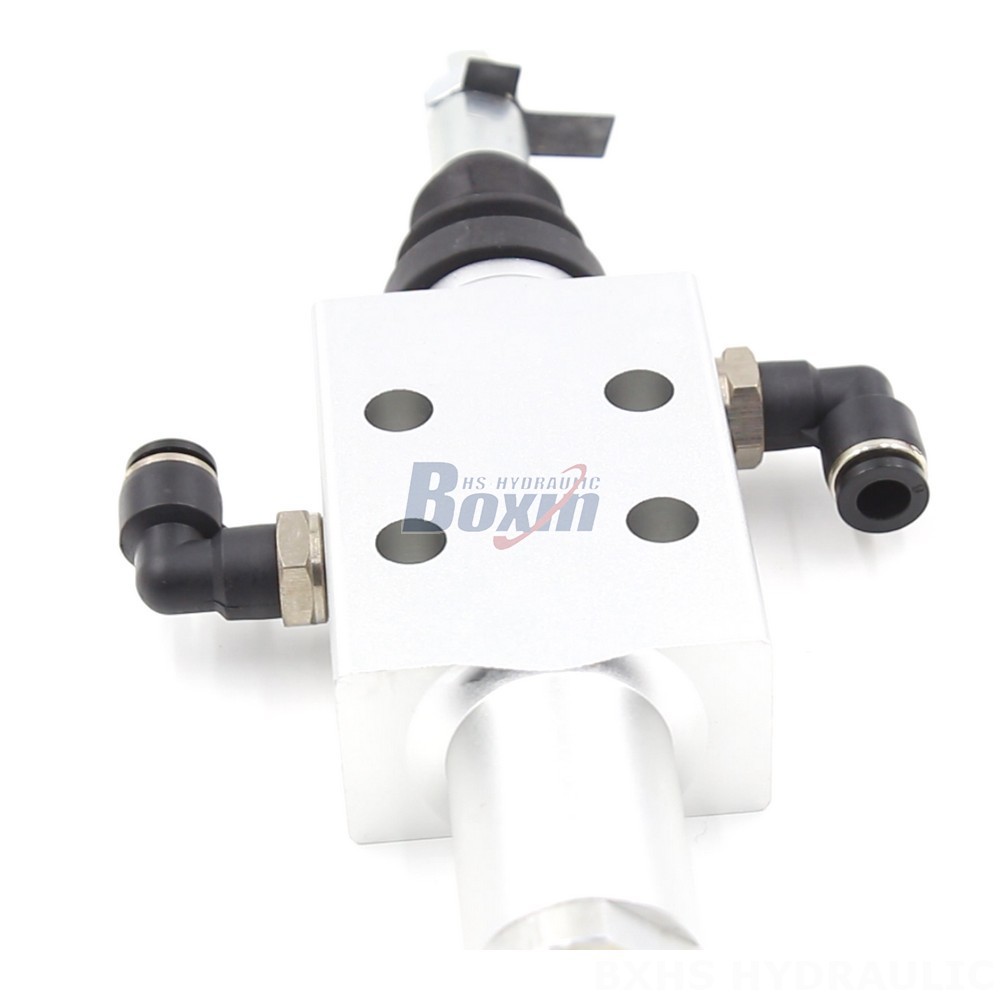

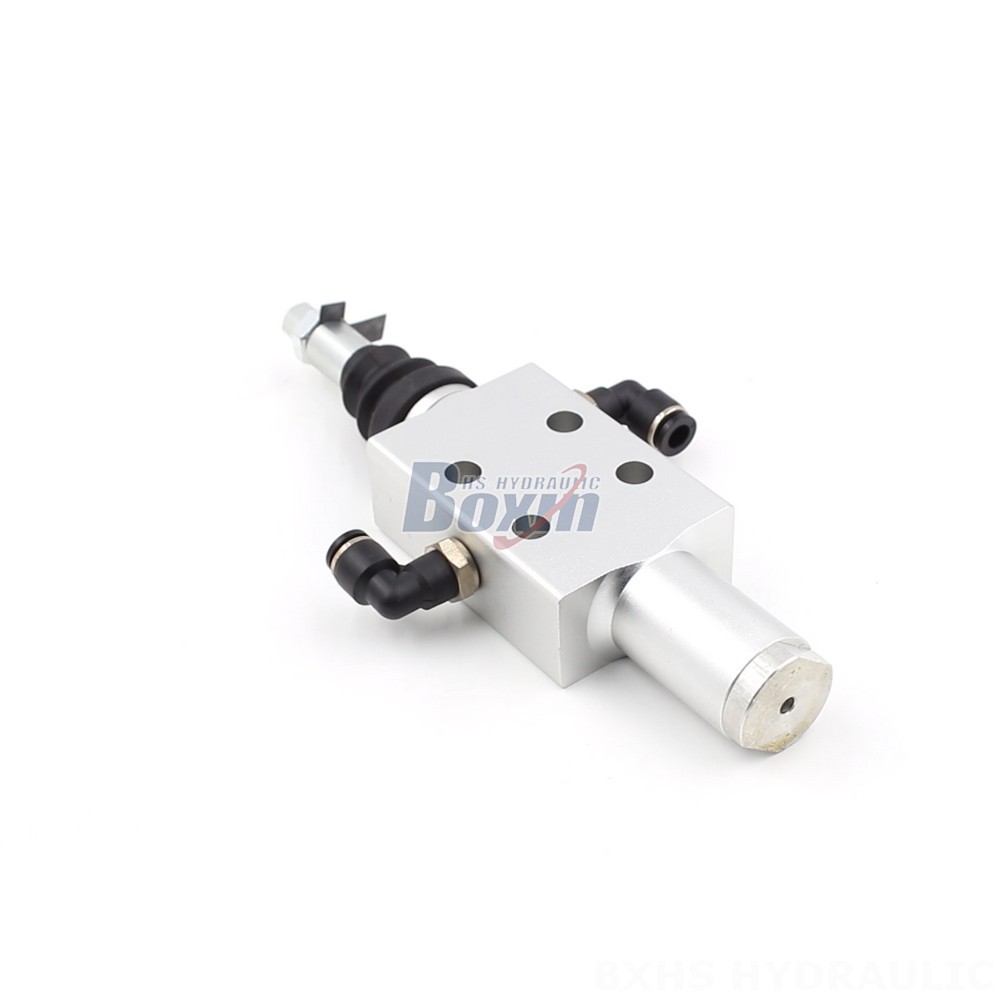

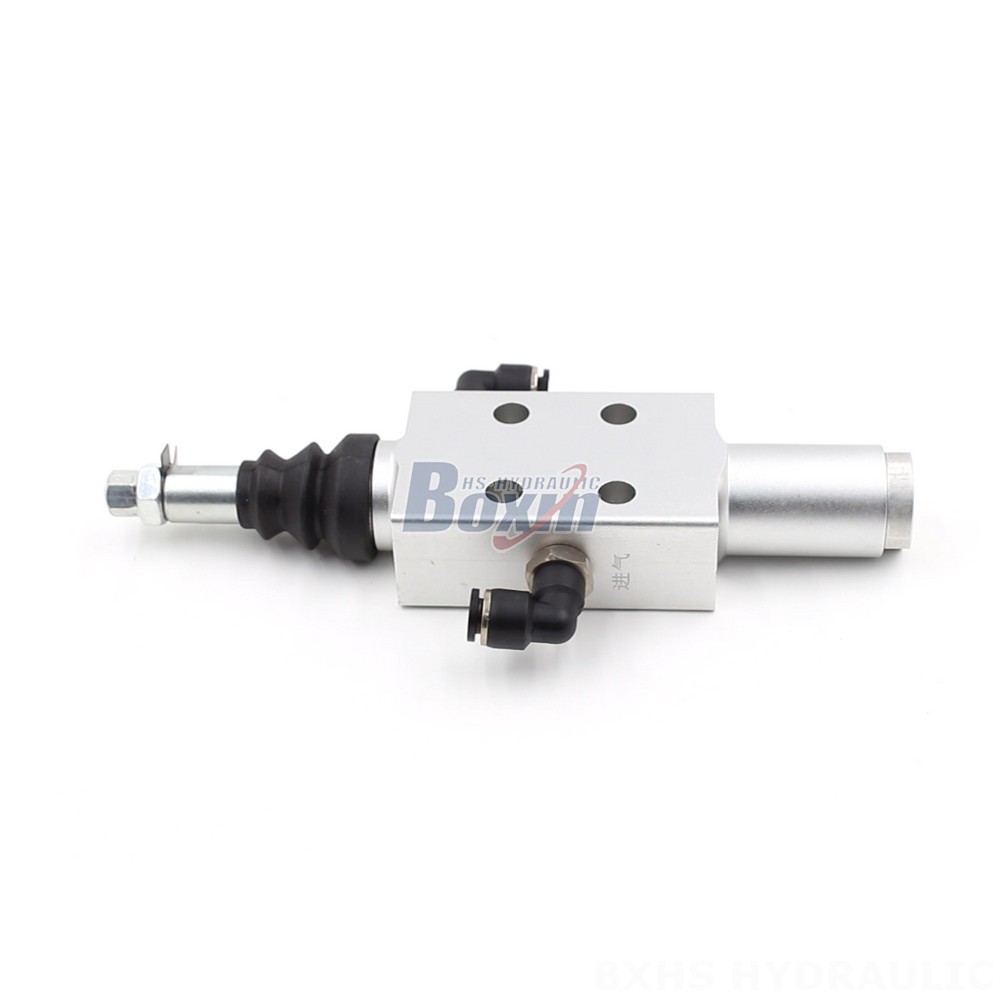

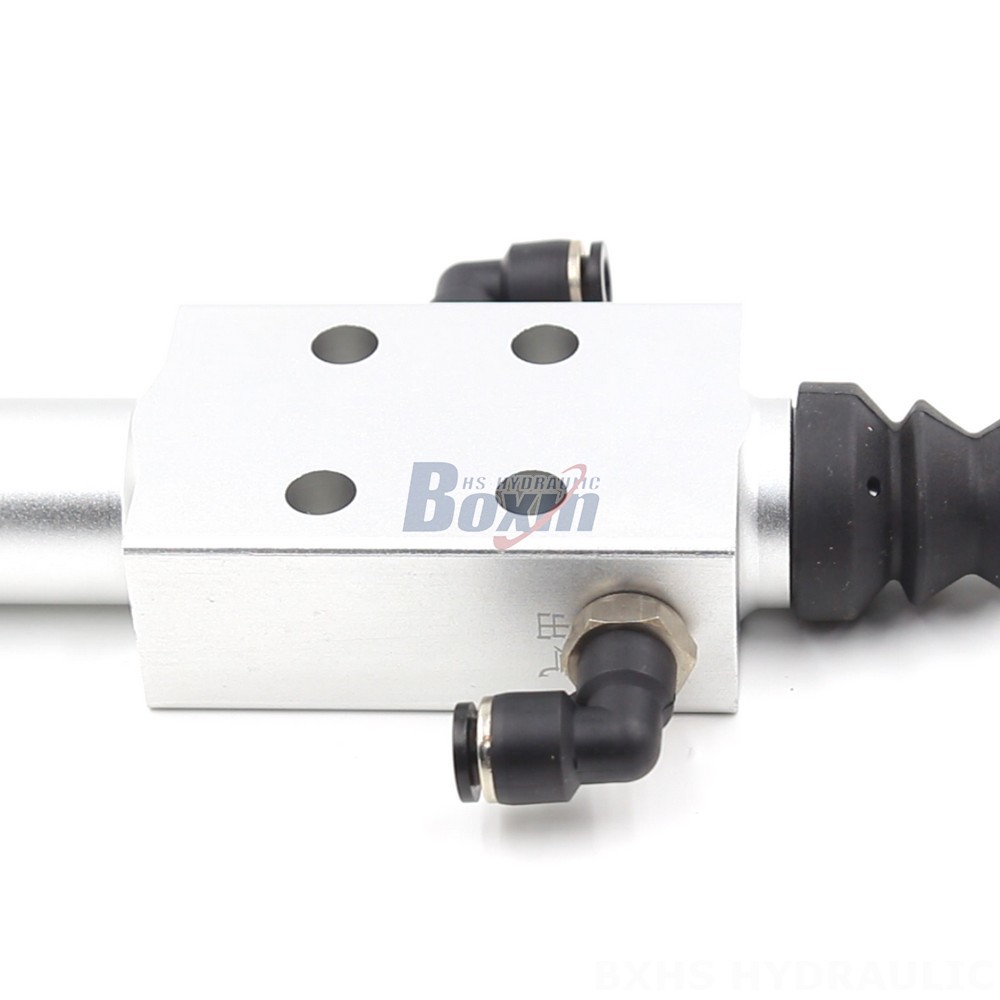

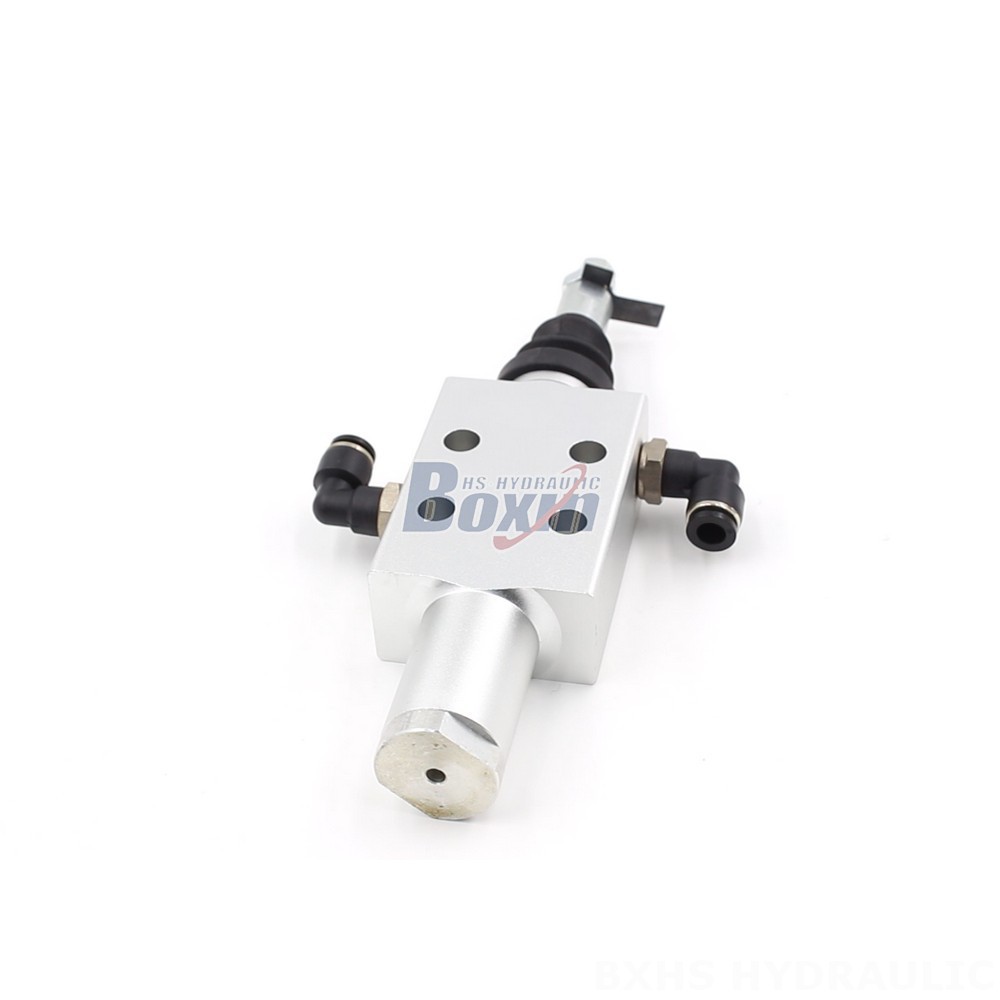

The XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is a reliable and efficient solution for various applications, including construction, material handling, and agriculture. It features a monoblock design, 1 spool, and a maximum pressure of 200 bar (2900 psi).
| Série XQF Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Pneumatický |
| Šoupátko | 1 cívka |
| Rozsah okolní teploty | -40 °C až +60 °C (-40 °F až +140 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1 |
| Rozsah provozní viskozity | 12 - 400 mm²/s (12 cSt až 400 cSt) |
| Jmenovitý průtok | 50 l/min (13,2 US gpm) |
| Maximální tlak | 200 bar (2900 psi) |
| Vstupní port | G1/4 |
| Výstupní port | G1/4 |
| Velikost portu | G1/4 |
This high-performance XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is designed for demanding applications in construction, material handling, and agriculture. Featuring a robust monoblock structure, it offers exceptional reliability and efficiency. Its pneumatic control provides precise and responsive operation. With a single spool configuration and a maximum pressure rating of 200 bar (2900 psi), this valve is capable of handling various hydraulic functions. Its wide operating viscosity range (12-400 mm²/s) ensures optimal performance across diverse environments. The valve is also built to withstand extreme temperatures, operating flawlessly between -40°C to +60°C (-40°F to +140°F). The XQF Series is designed for compatibility with various equipment, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
