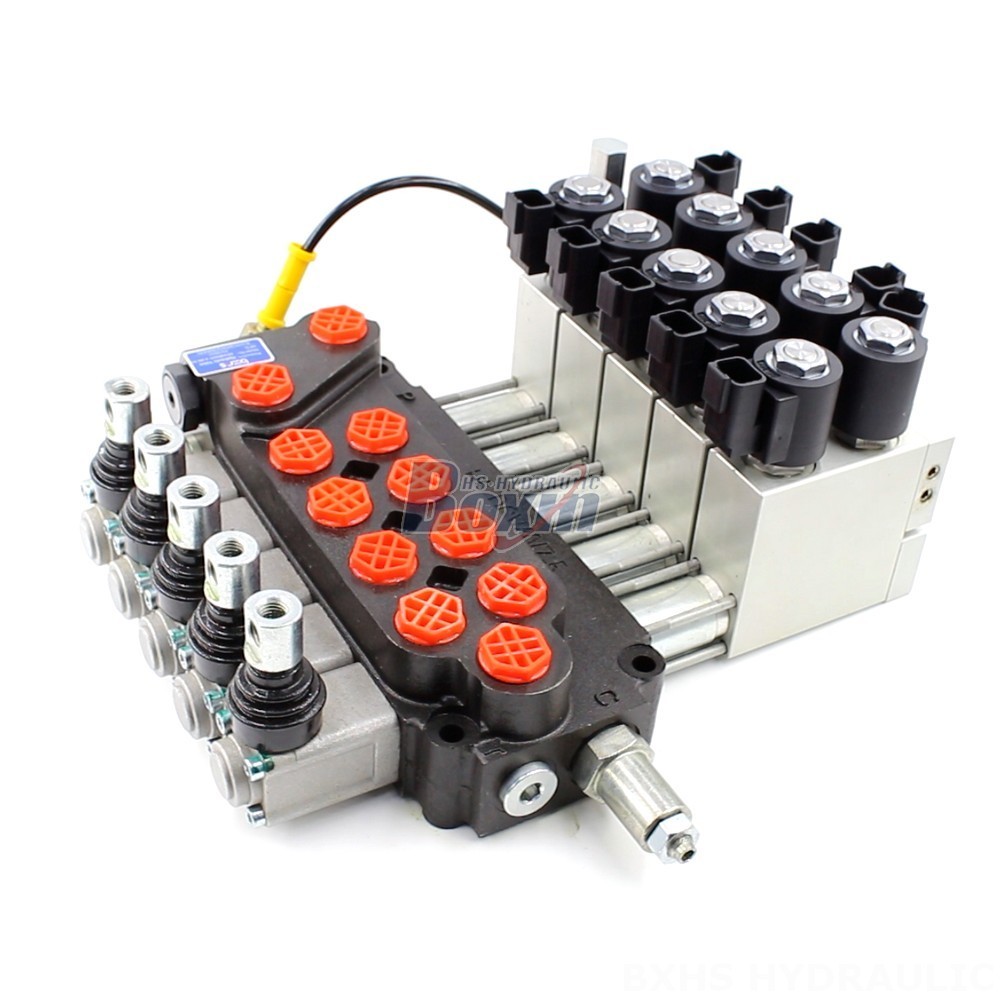

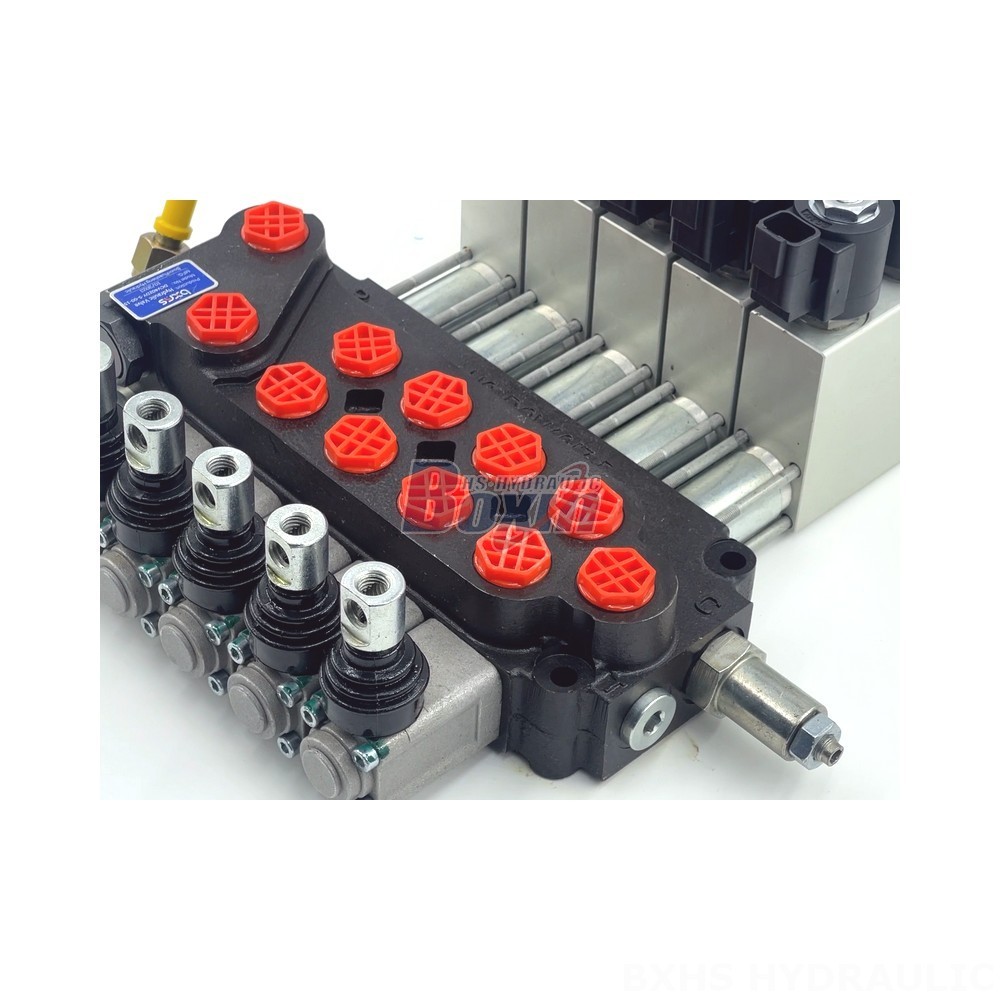

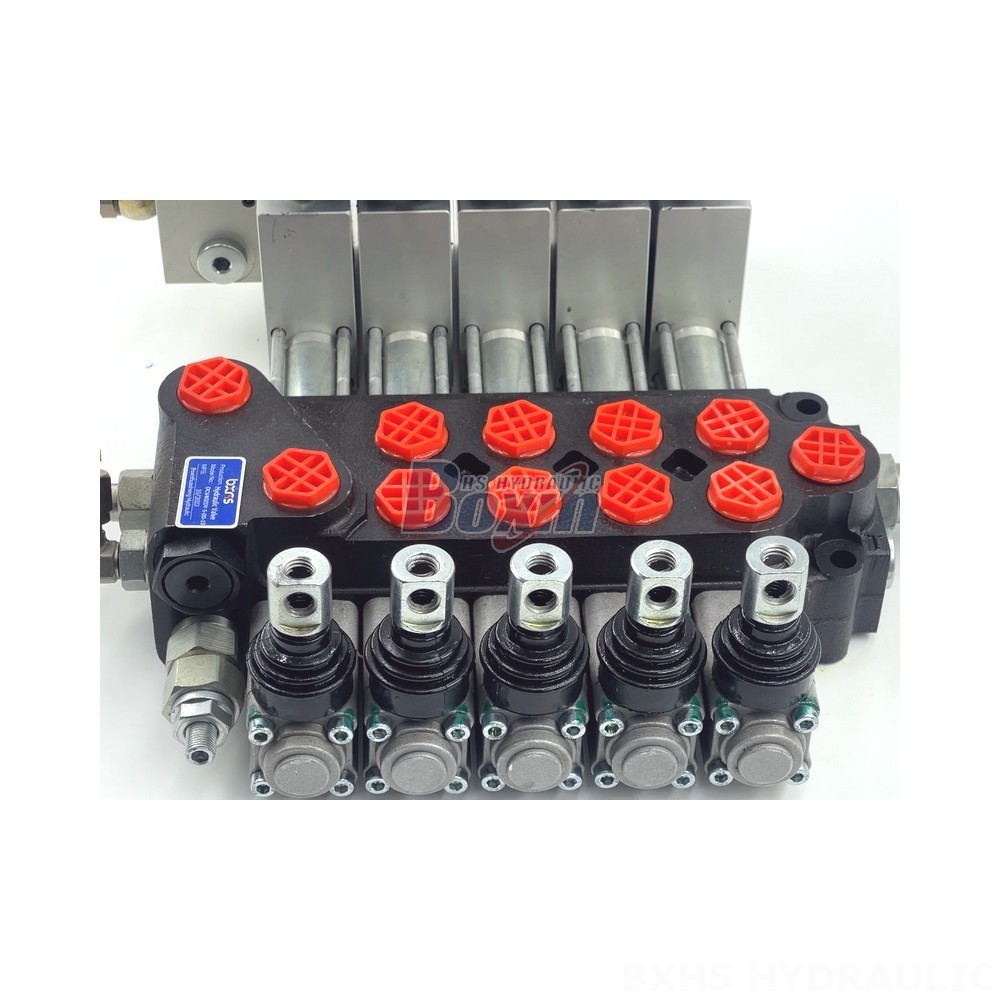

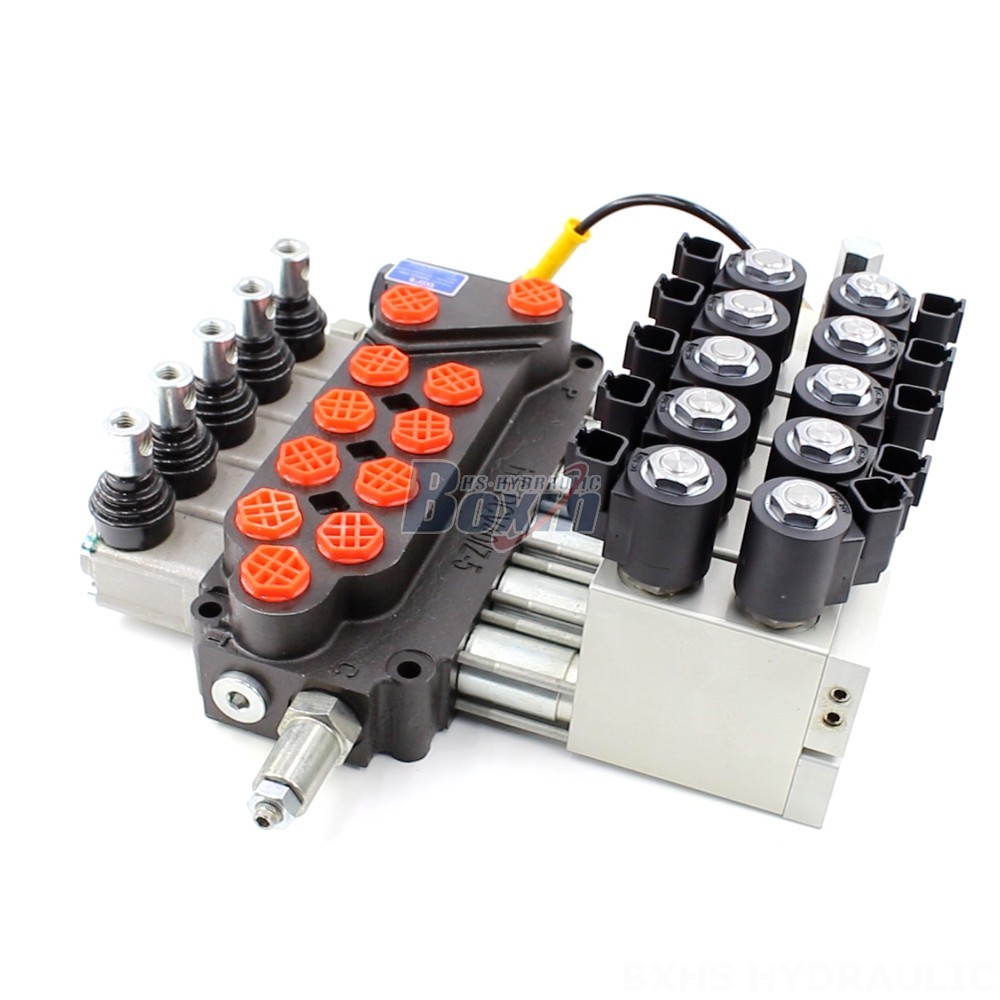

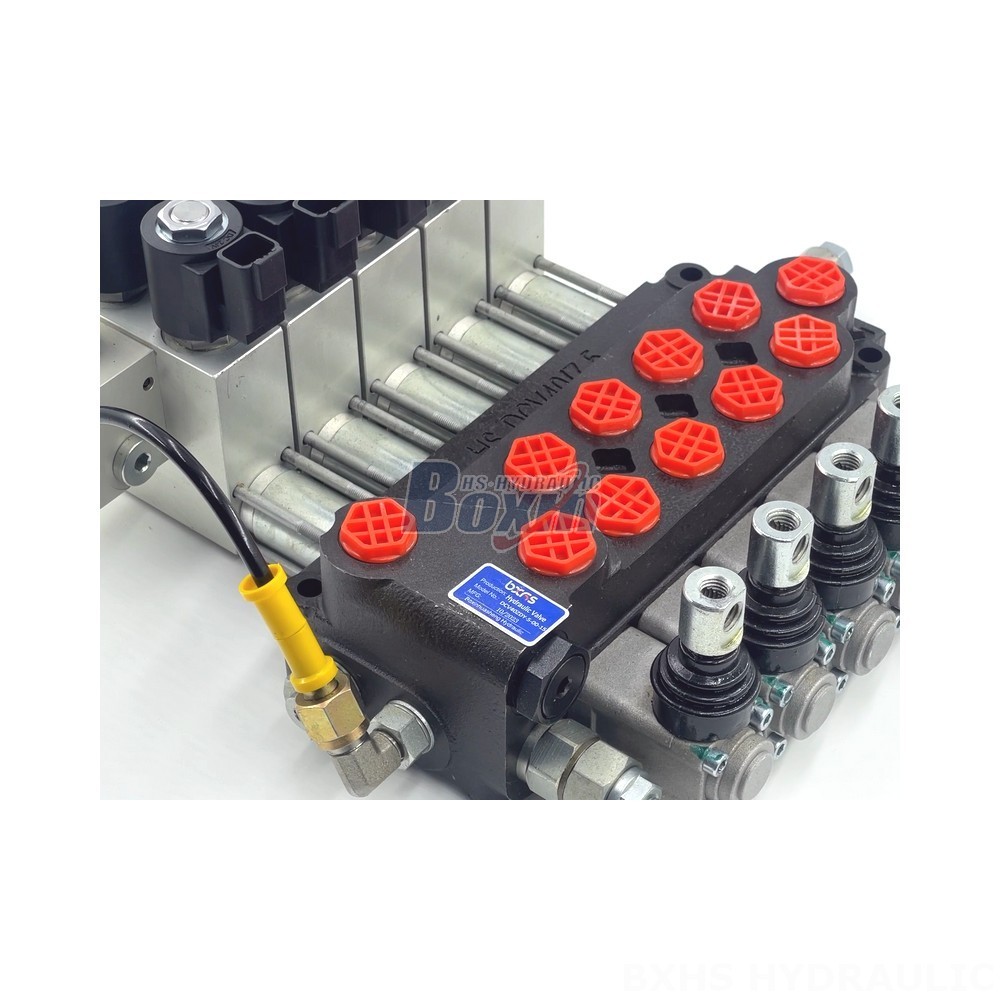

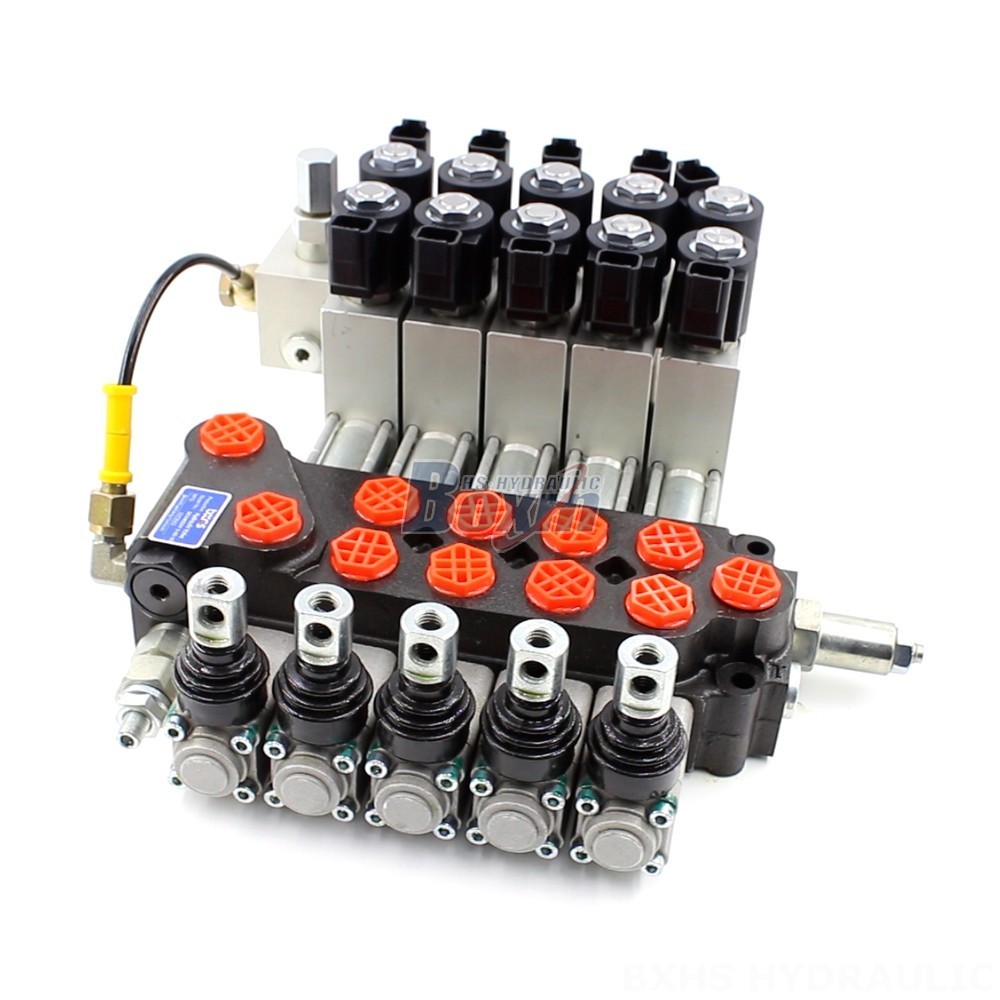

The DCV40Z Series is a 5-spool, electro-hydraulic, monoblock directional control valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 40 L/min and a maximum pressure of 350 bar, making it ideal for a wide range of equipment such as telehandlers, forklifts, cranes, stackers, aerial platforms, and more.
| Řada DCV40Z Ventil ovládání opěrných noh Parametry | |
|---|---|
| Metoda řízení | Ruční, Elektrohydraulický, Joystick, Ruční a joystick |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 350 bar (5100 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The DCV40Z Series 5-spool monoblock directional valve is a high-performance hydraulic component designed for demanding applications in various industries. It features an electro-hydraulic control system, 5 sections, and a rated flow of 40 L/min (10.5 US gpm). The valve can withstand a maximum pressure of 350 bar (5100 psi) and operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for durability and reliability, it operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The DCV40Z series is suitable for a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. Its versatility makes it ideal for use in equipment such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. This product is available for wholesale, OEM, and custom orders.
