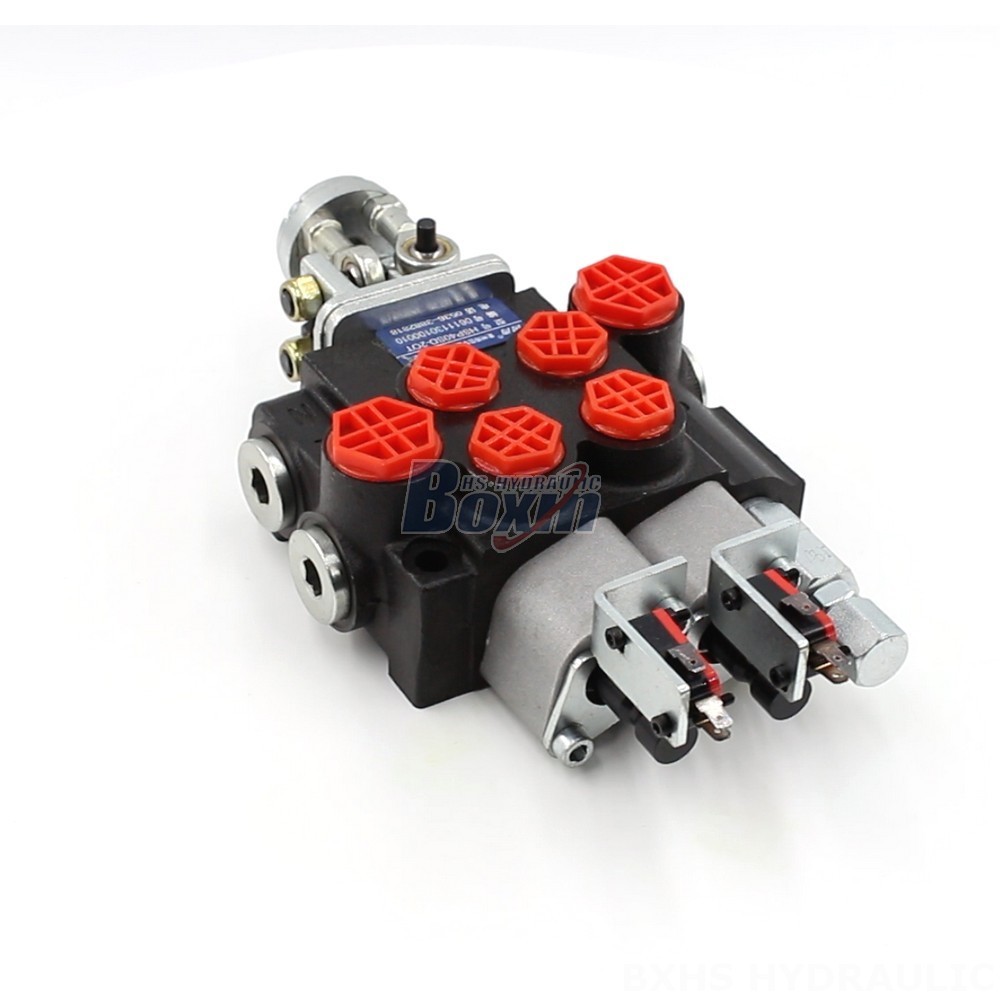

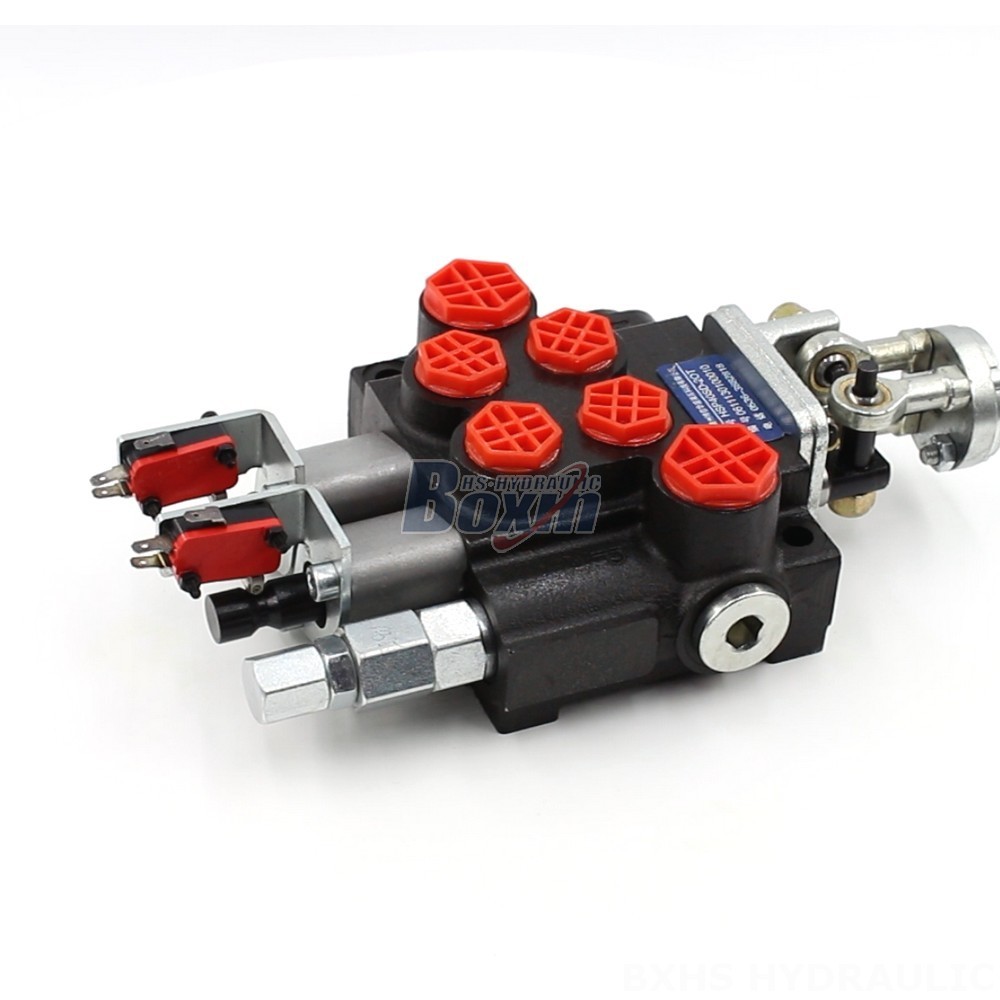

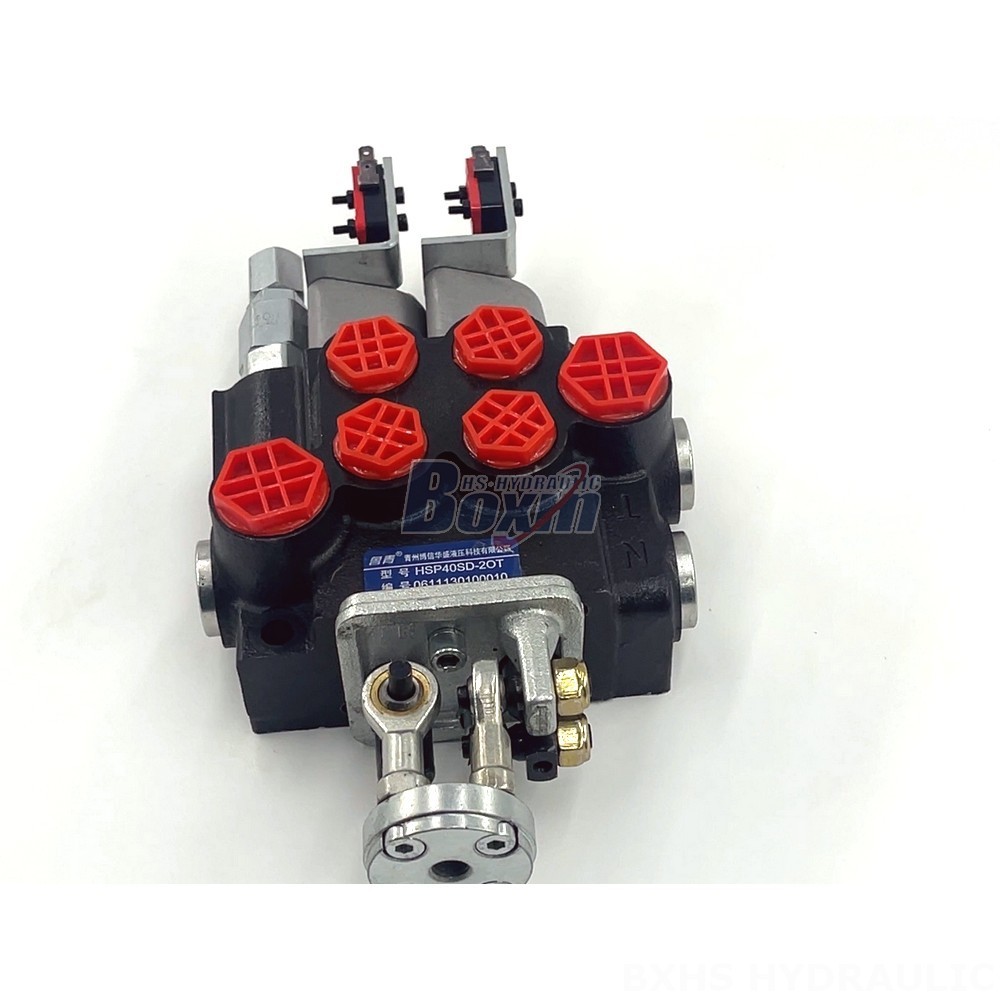

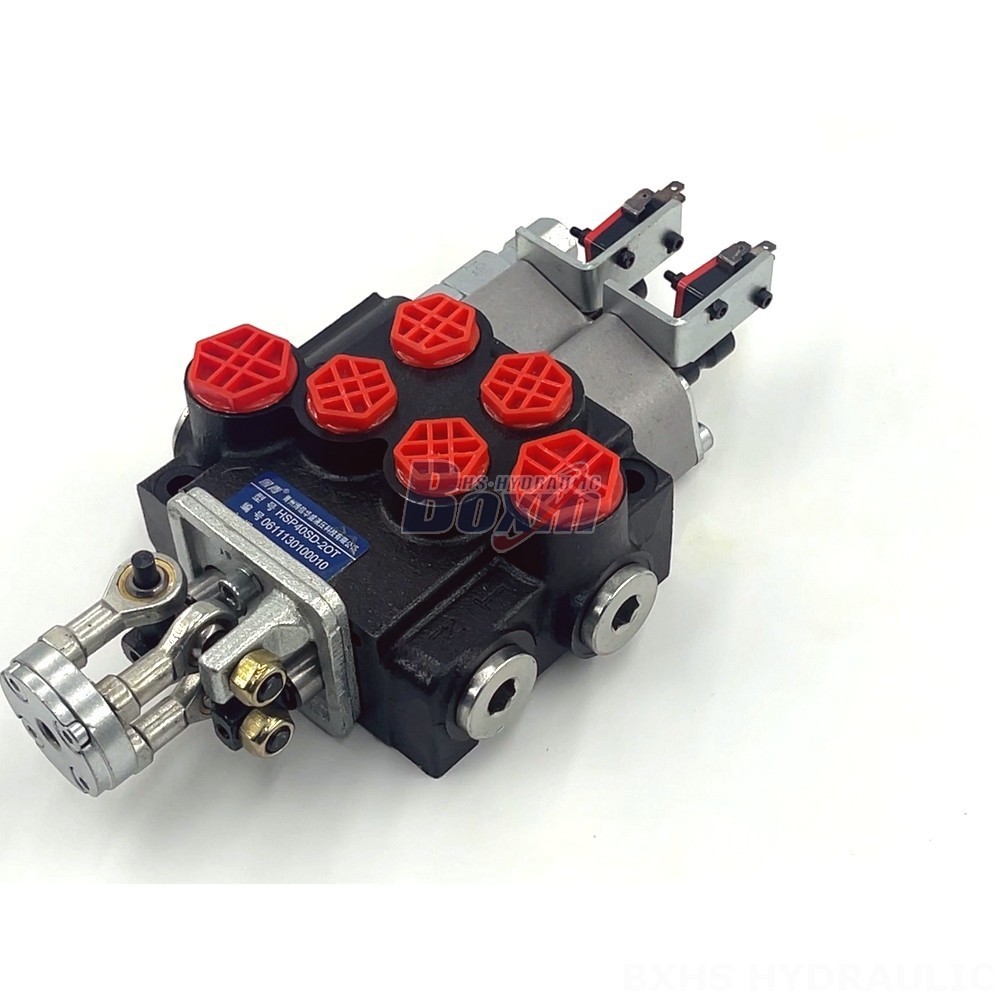

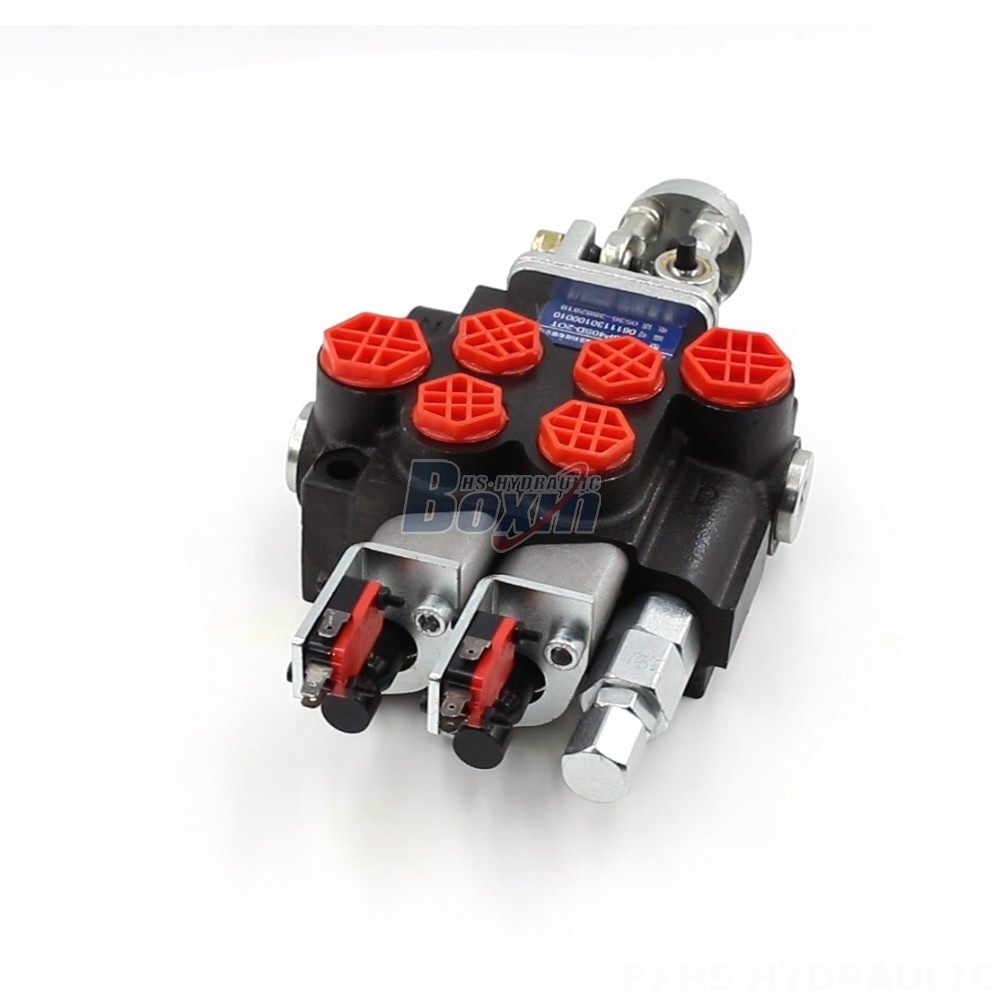

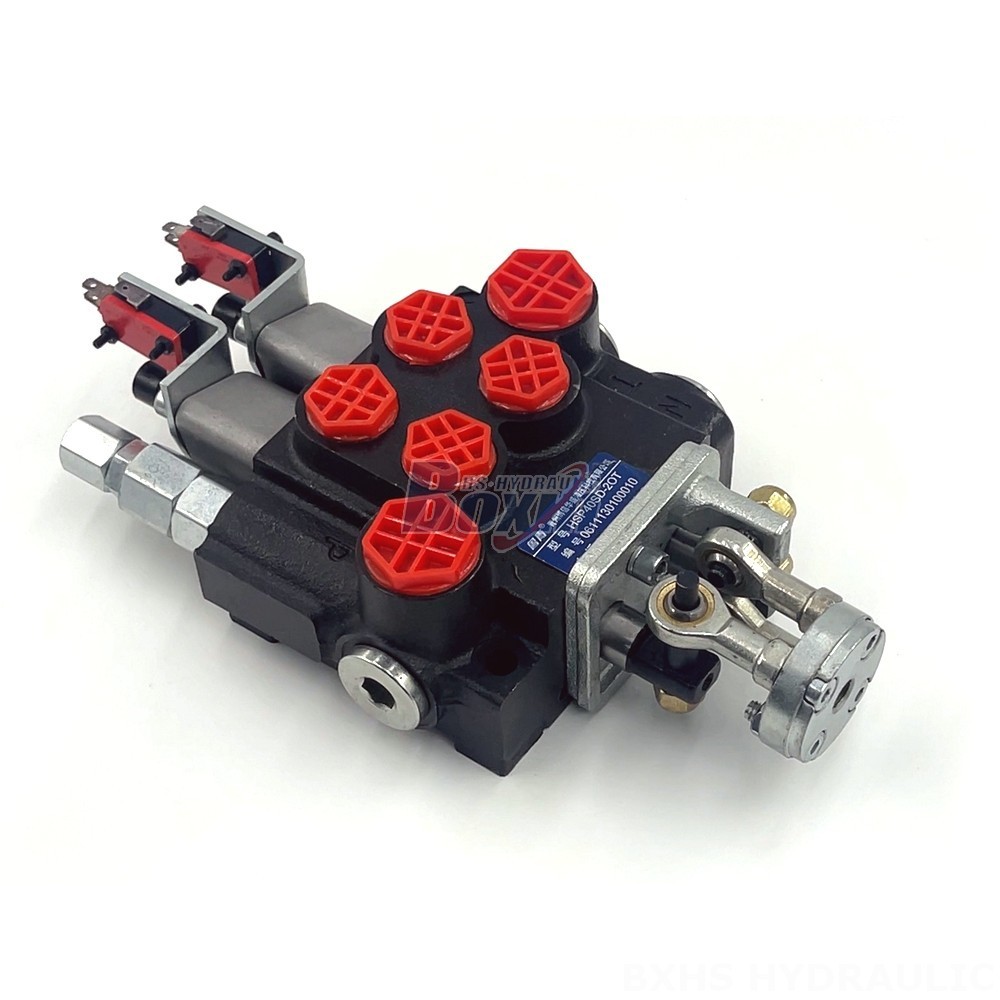

Advanced Hydraulic Control: P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve is engineered for demanding applications in material handling, construction, agriculture, and industrial vehicles. With its precise joystick control, robust monoblock design, and exceptional performance, this valve ensures reliable and efficient operation in harsh environments.
| Série P40 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve**
**Control Method:** Joystick
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P40 Series
This valve is specifically designed to meet the rigorous demands of applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, and more. Its compact size and lightweight design make it ideal for integration into space-constrained machinery, while its durable construction ensures longevity and reliability.
Key highlights of the P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve include:
* Joystick control for precise and intuitive operation
* Monoblock design for increased durability and reduced leakage
* High flow capacity of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi)
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Suitable for use in harsh environments with an ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* Applications in material handling, construction, agriculture, and industrial vehicles
