The CBHST1-UNI-63 Hydraulic Gear Pump from our company offers a displacement of 63 cc/rev, rated pressure of 23 MPa (3335 psi), and a maximum speed of 2500 r/min. It features a bidirectional swashplate structure, cast iron construction, and UNI-3 mounting holes. This pump is widely applicable in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles.
| Řada CBHST1-UNI Hydraulické čerpadlo s ozubenými koly Parametry | |
|---|---|
| Zdvihový objem | 32 cm³/ot., 40 cm³/ot., 50 cm³/ot., 63 cm³/ot., 80 cm³/ot., 100 cm³/ot., 34 cm³/ot., 43 cm³/ot. |
| Jmenovitý tlak | 23 MP (3335 psi) |
| Maximální tlak | 25 MP (3625 psi) |
| Jmenovité otáčky | 2000 ot./min. |
| Maximální otáčky | 2500 ot./min. |
| Směr otáčení | Obousměrný |
| Konstrukce | Vnější zubové čerpadlo |
| Materiál | Litina |
| Typ hřídele | H: Obdélníková drážka, X: Evolutová drážka |
| Verze příruby | UNI-3 Montážní otvory |

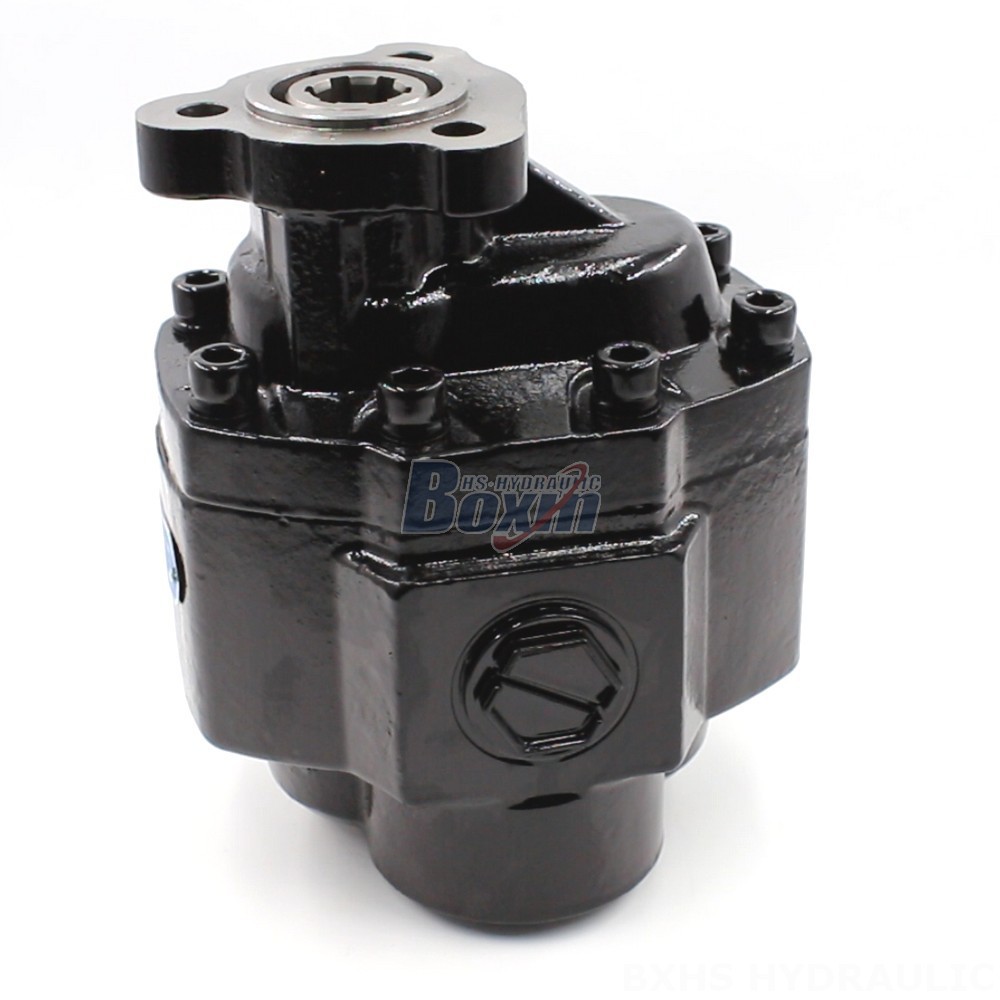

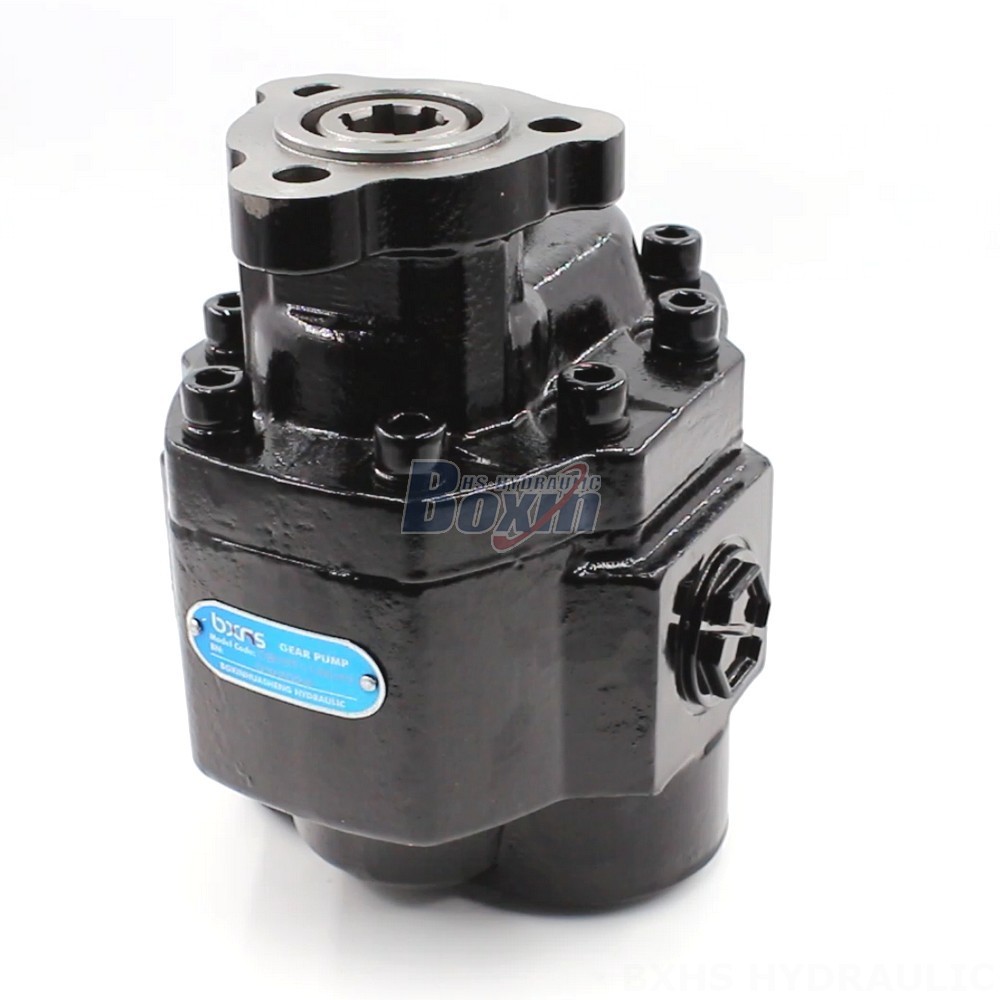

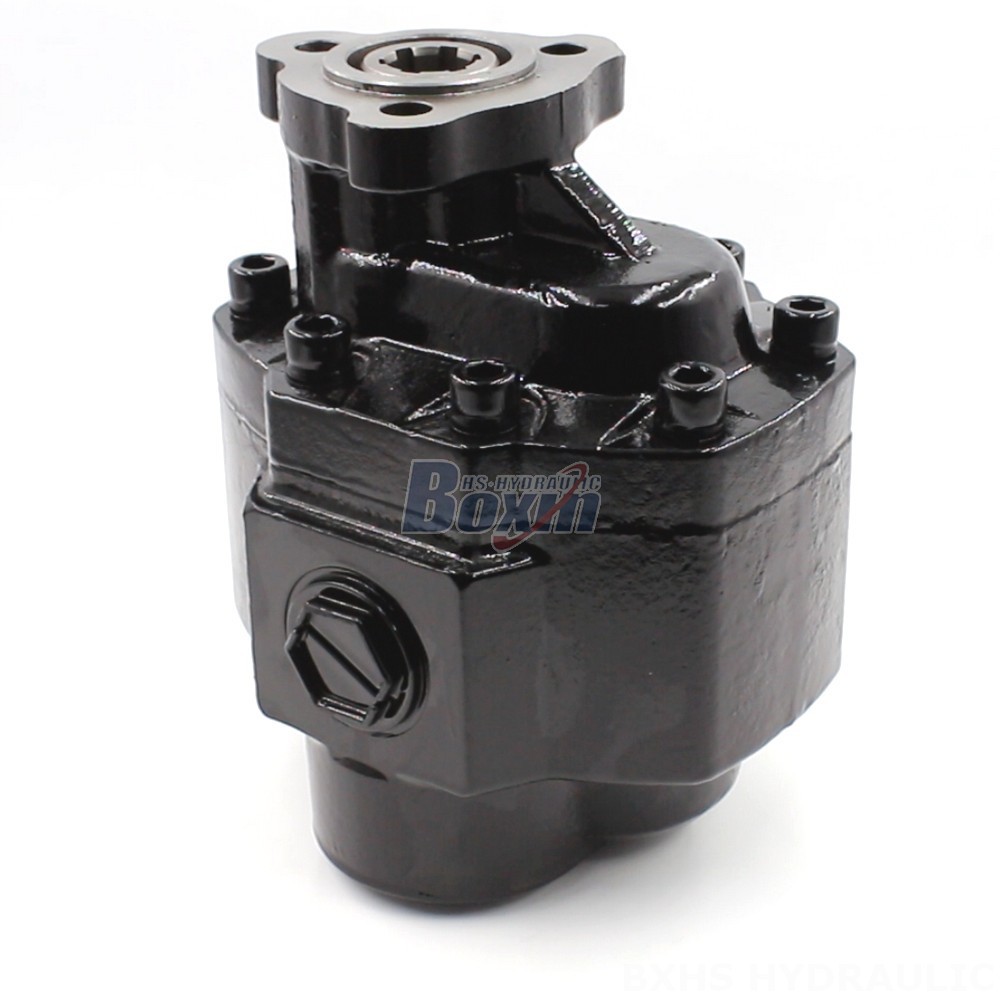

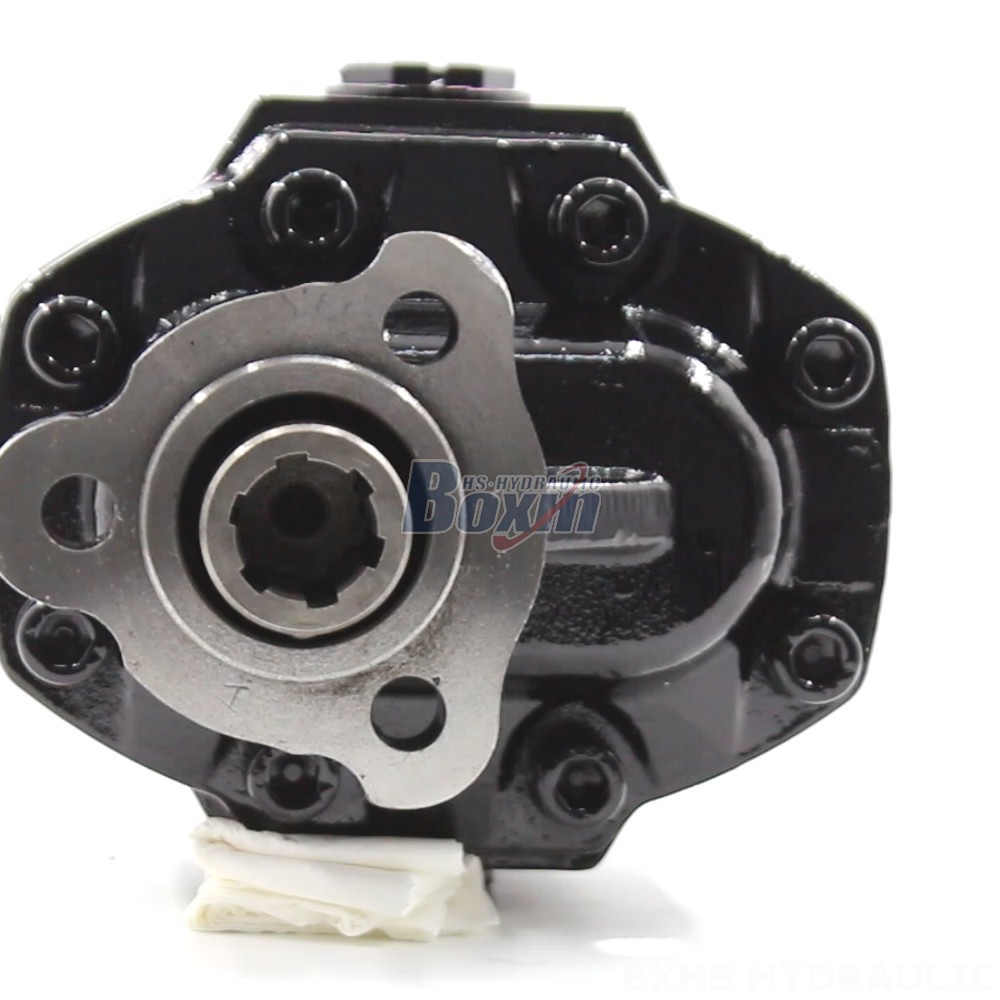

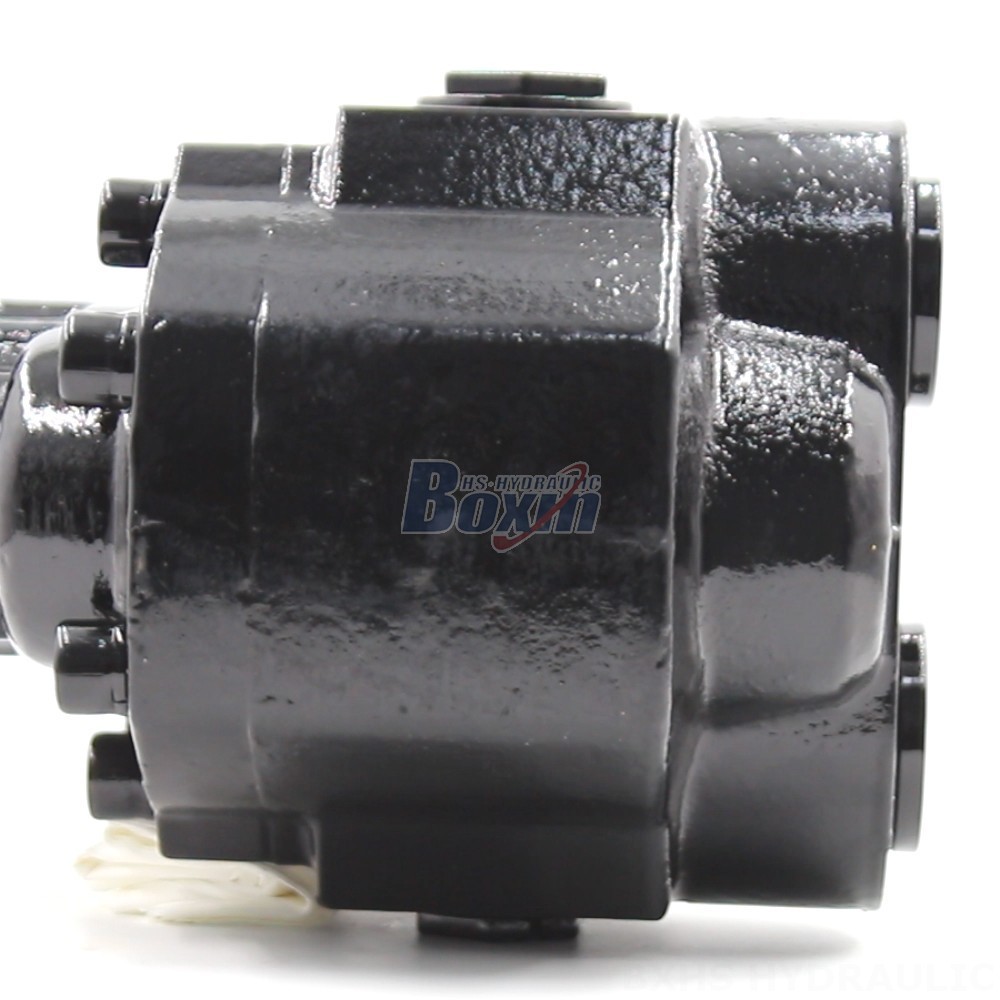

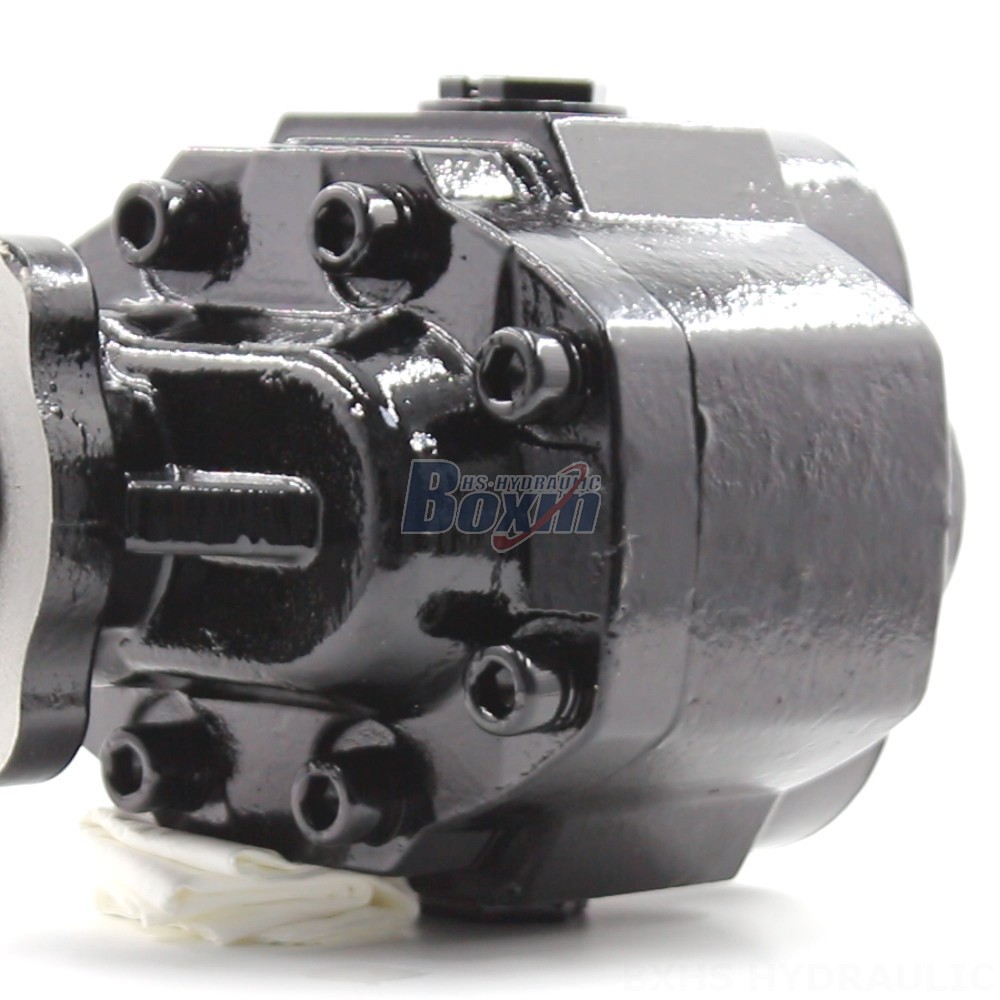

**CBHST1-UNI-63 Hydraulic Gear Pump**
**Product Description:**
The CBHST1-UNI-63 Hydraulic Gear Pump is a versatile and reliable component designed for a wide range of hydraulic applications. With a displacement of 63 cc/rev, it delivers high flow rates and pressures to meet the demands of demanding hydraulic systems. The pump's rated pressure of 23 MPa (3335 psi) ensures durability and can withstand high-pressure operations.
**Key Features:**
* Displacement: 63 cc/rev
* Rated Pressure: 23 MPa (3335 psi)
* Maximum Speed: 2500 r/min
* Rotation: Bi-directional
* Structure: Swashplate
* Material: Cast Iron
* Flange Version: UNI-3 Mounting Holes
* Shaft Type: Rectangle Spline
**Applications:**
The CBHST1-UNI-63 Hydraulic Gear Pump is widely used in various industries, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
This pump is compatible with a wide range of hydraulic equipment and machines, including:
* Telehandlers
* Forklifts
* All-Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
**Benefits:**
* High efficiency and reliability
* Compact design for easy installation
* Durable cast iron construction
* Versatile mounting options
* Extensive compatibility with hydraulic systems
