Výroba a dodávka
Výrobní doba 15-30 dní

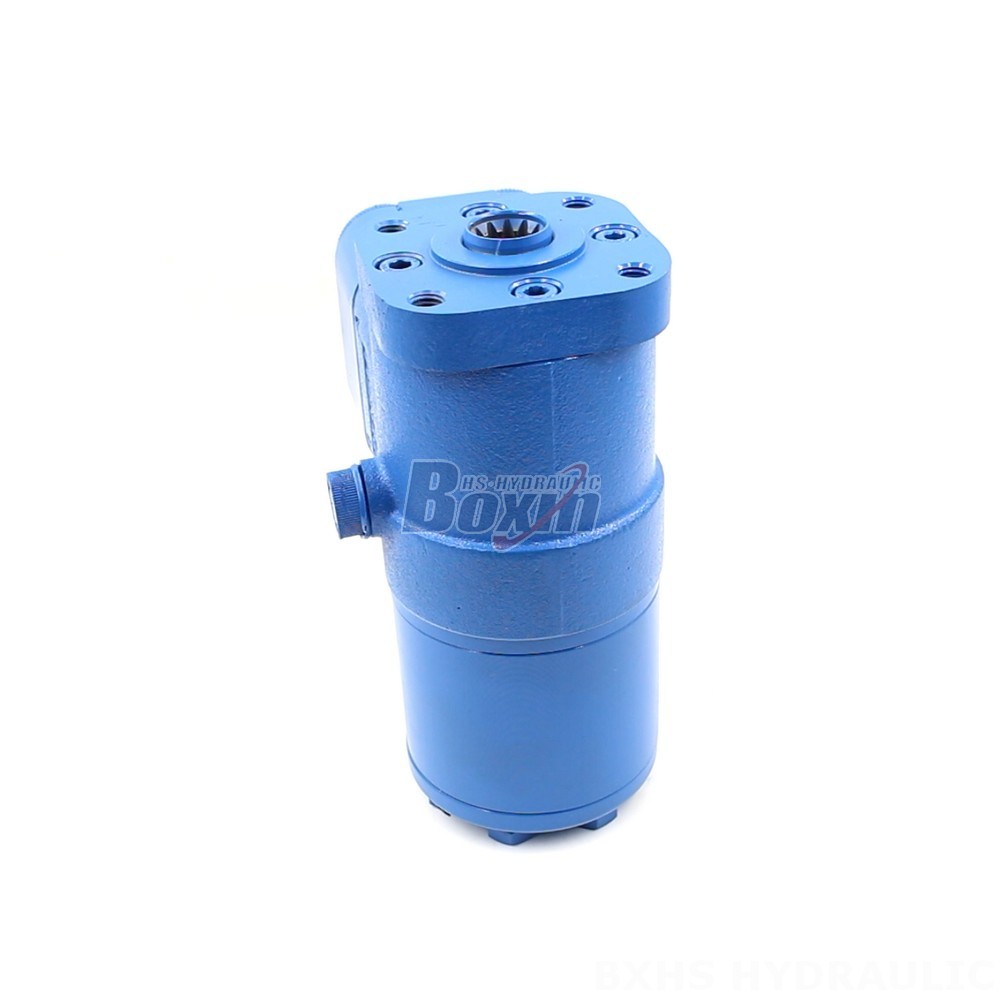

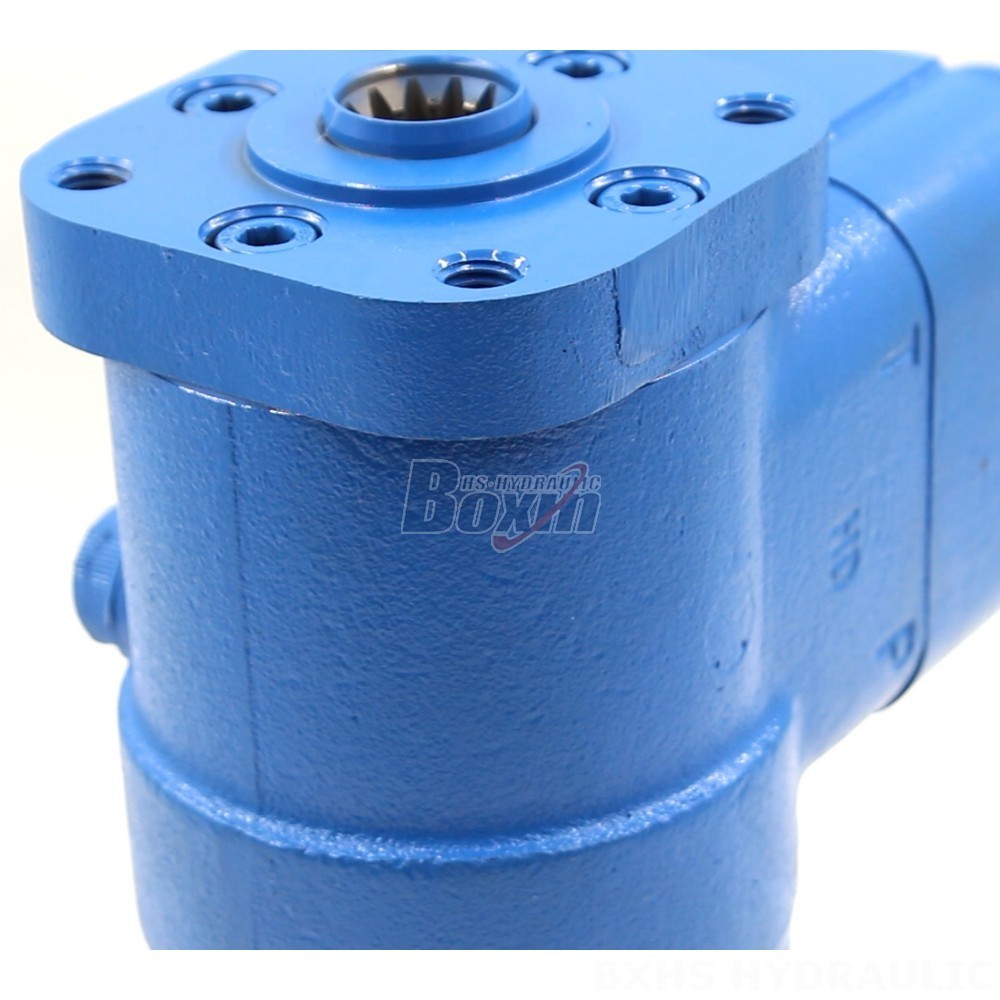

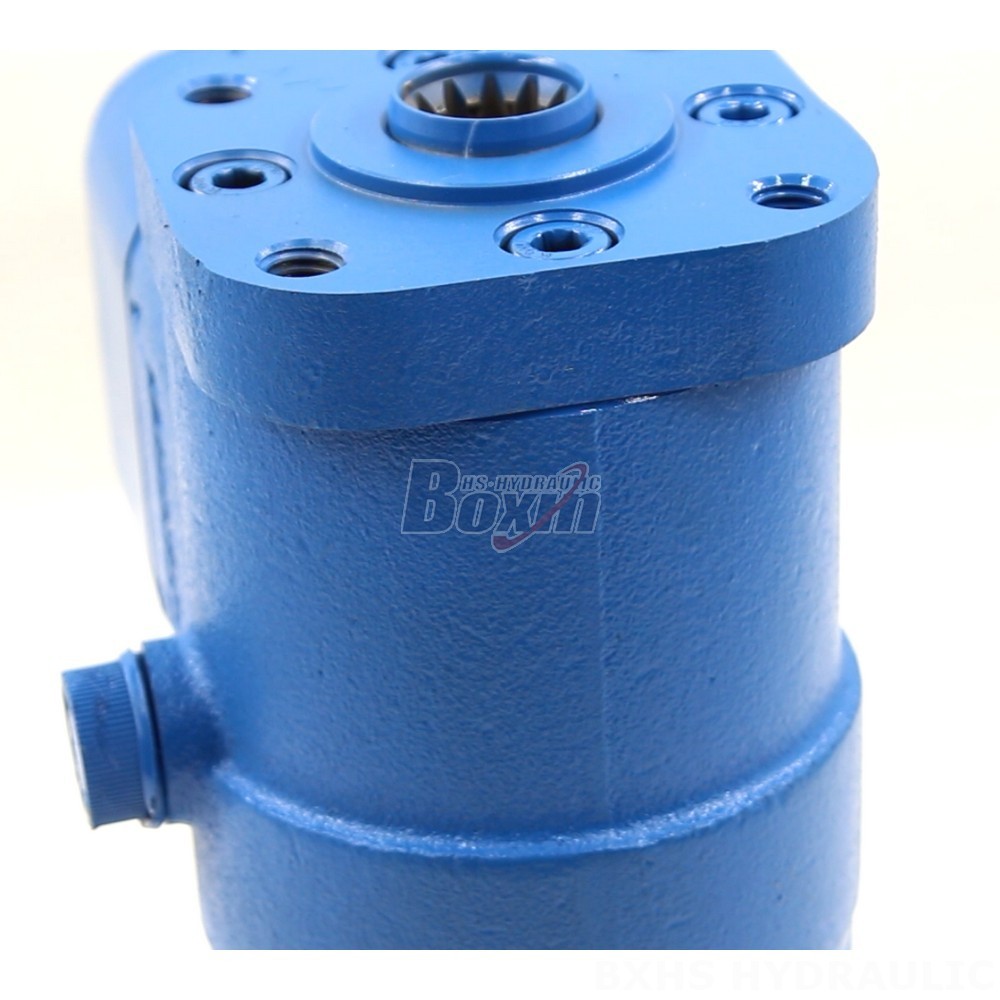

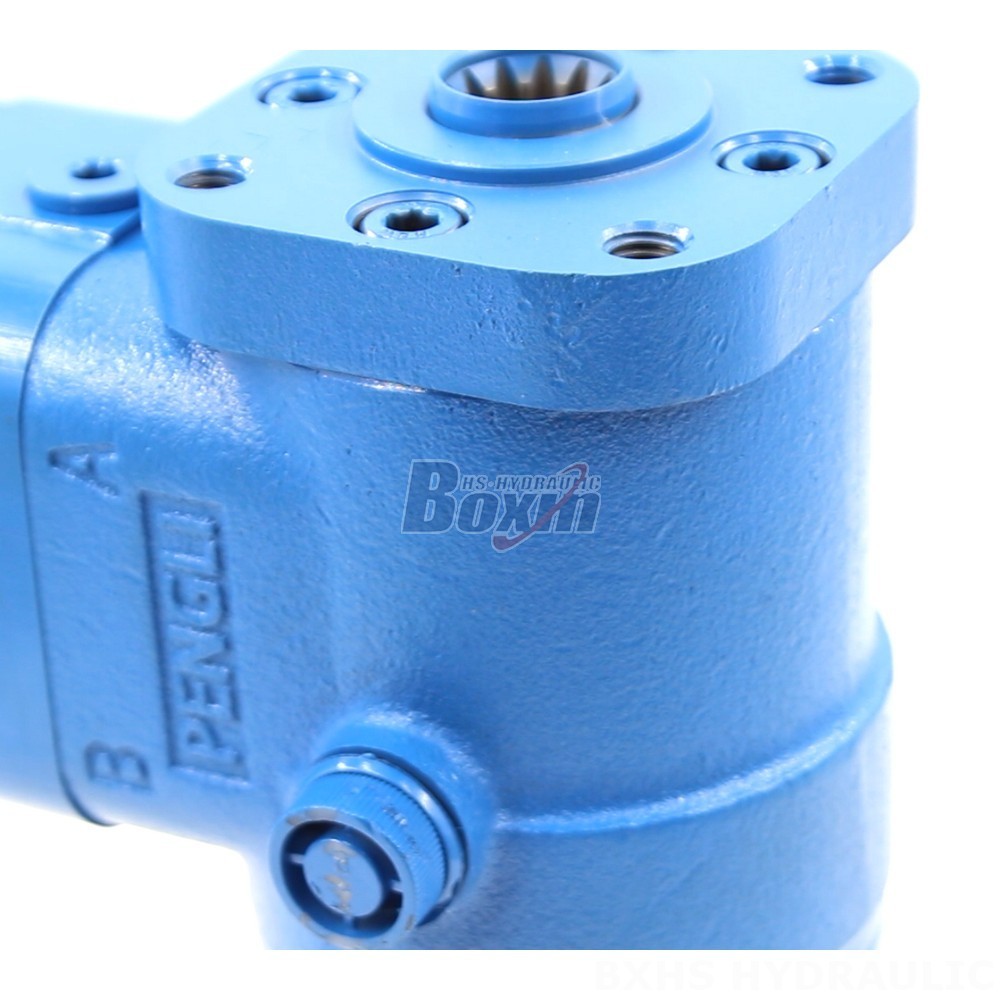

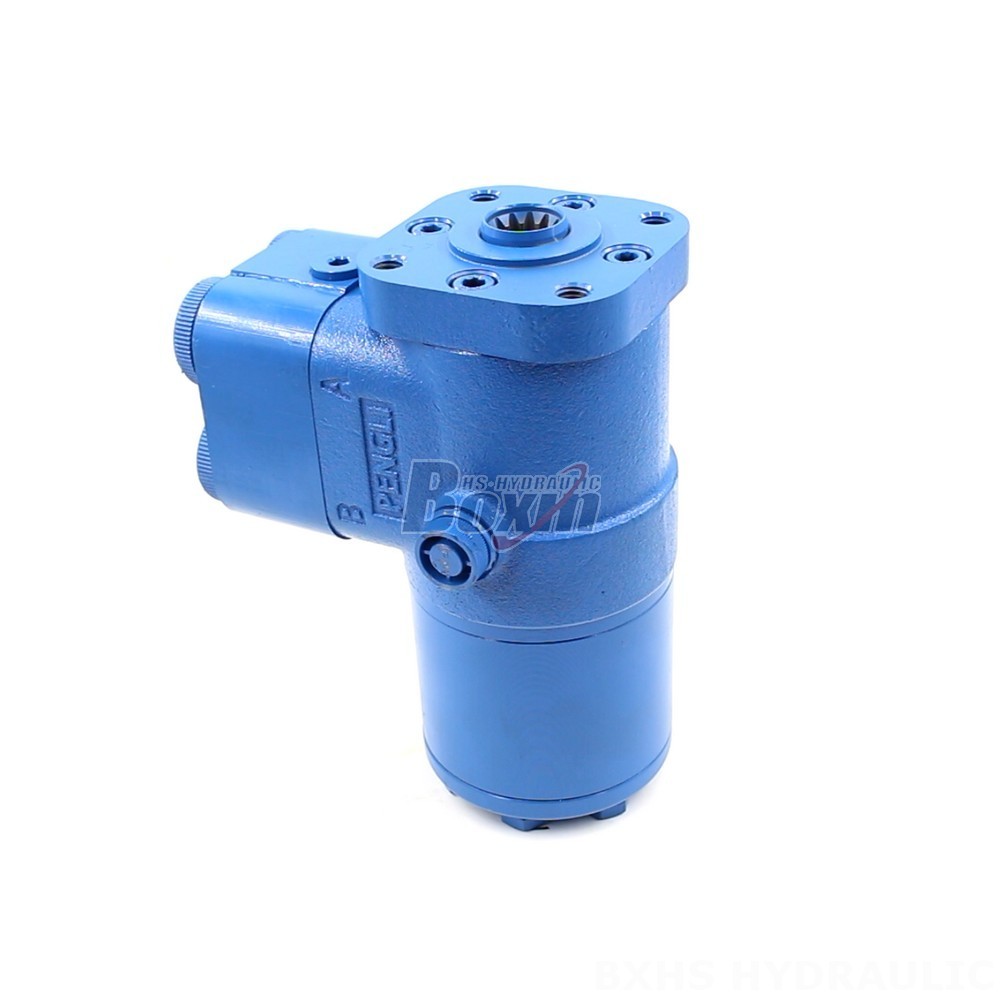

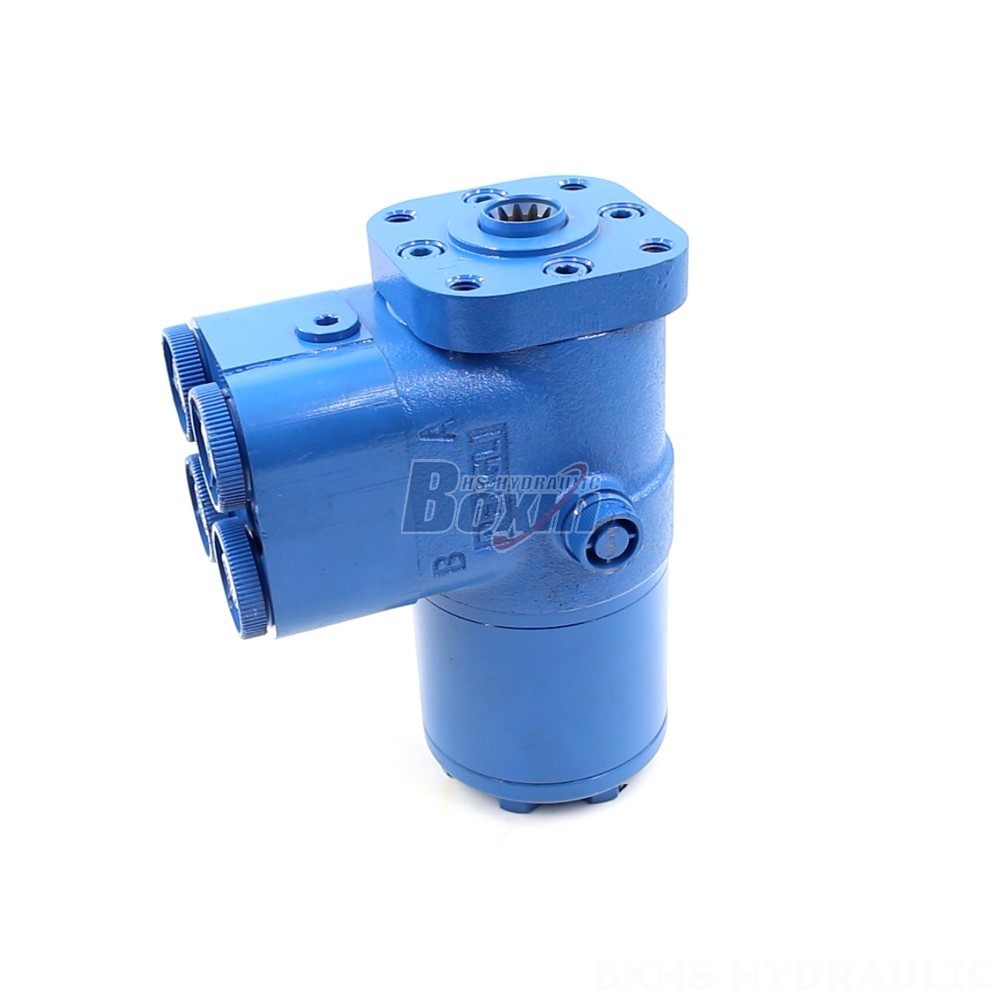

High-quality BZZ5-E100B hydraulic steering unit (100 ml/r displacement, 16 MPa max pressure) for material handling, construction, agriculture, and industrial vehicles. Cast iron construction. OEM, ODM, and wholesale opportunities available.
| Řada BZZ5 Řídicí jednotka Parametry | |
|---|---|
| Zdvihový objem | 50 ml/ot., 63 ml/ot., 100 ml/ot., 80 ml/ot., 125 ml/ot., 160 ml/ot., 200 ml/ot., 250 ml/ot., 280 ml/ot., 315 ml/ot., 400 ml/ot., 500 ml/ot., 630 ml/ot., 800 ml/ot., 1000 ml/ot. |
| Ventilový blok | Přizpůsobitelný |
| Materiál | Litina |
| Jmenovitý průtok | 5 l/min, 6 l/min, 4 l/min, 7,5 l/min, 9,5 l/min, 12 l/min, 15 l/min, 19 l/min, 21 l/min, 24 l/min, 30 l/min, 38 l/min, 48 l/min, 60 l/min, 75 l/min |
| Max. nepřetržitý zpětný tlak | 1,6 MPa |
| Max. vstupní tlak | 16 MPa |
We are a hydraulic product manufacturer offering global distribution of the BZZ5-E100B hydraulic steering unit. This robust unit features a 100 ml/r displacement, a maximum input pressure of 16 MPa, and a maximum continuous back pressure of 1.6 MPa. Its rated flow is 7.5 L/min. The unit is constructed from durable cast iron for long-lasting performance. The valve block is customizable to meet specific application needs. It's ideal for a wide range of applications, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors and front-end loaders, mini-excavators, backhoe loaders, harvesters, and balers.
**Collaborate with Us:** We are seeking distributors, wholesalers, dealers, and trading companies worldwide to partner with us. We offer a full range of services, including manufacturing, OEM (Original Equipment Manufacturing), ODM (Original Design Manufacturing), private labeling, and wholesale options. As a factory-direct supplier, we ensure competitive pricing and high-quality products. Contact us today to discuss partnership opportunities and explore the potential of our BZZ5-E100B hydraulic steering unit. We provide factory wholesale prices and offer flexible customization options to meet your specific requirements. Let's work together to grow your business!
