The DCV40Z Electro-hydraulic Directional Valve is a high-performance valve designed for demanding applications in various industries, including material handling, construction, earth moving, agriculture, and industrial vehicles. With its compact size, high flow capacity of 40 L/min, and maximum pressure of 350 bar, this valve offers precise control and reliable operation.
| Řada DCV40Z Ventil ovládání opěrných noh Parametry | |
|---|---|
| Metoda řízení | Ruční, Elektrohydraulický, Joystick, Ruční a joystick |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 350 bar (5100 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

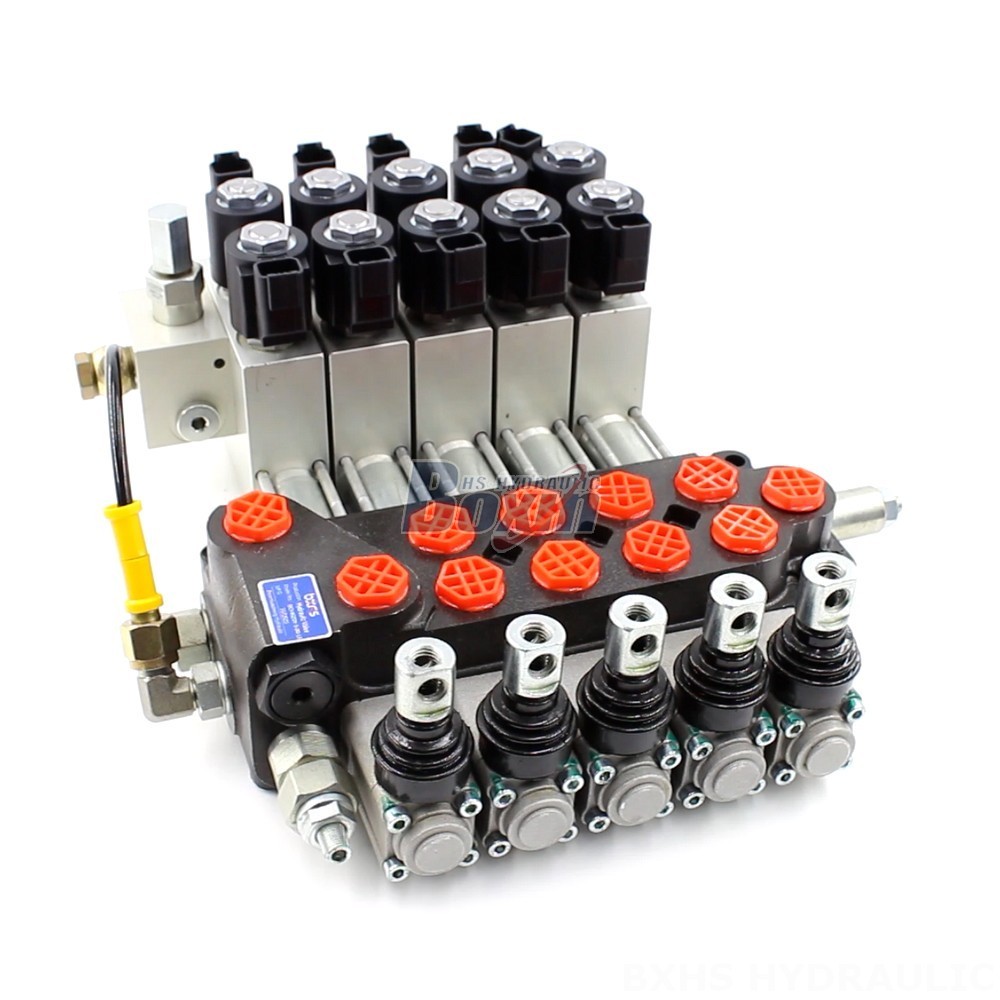

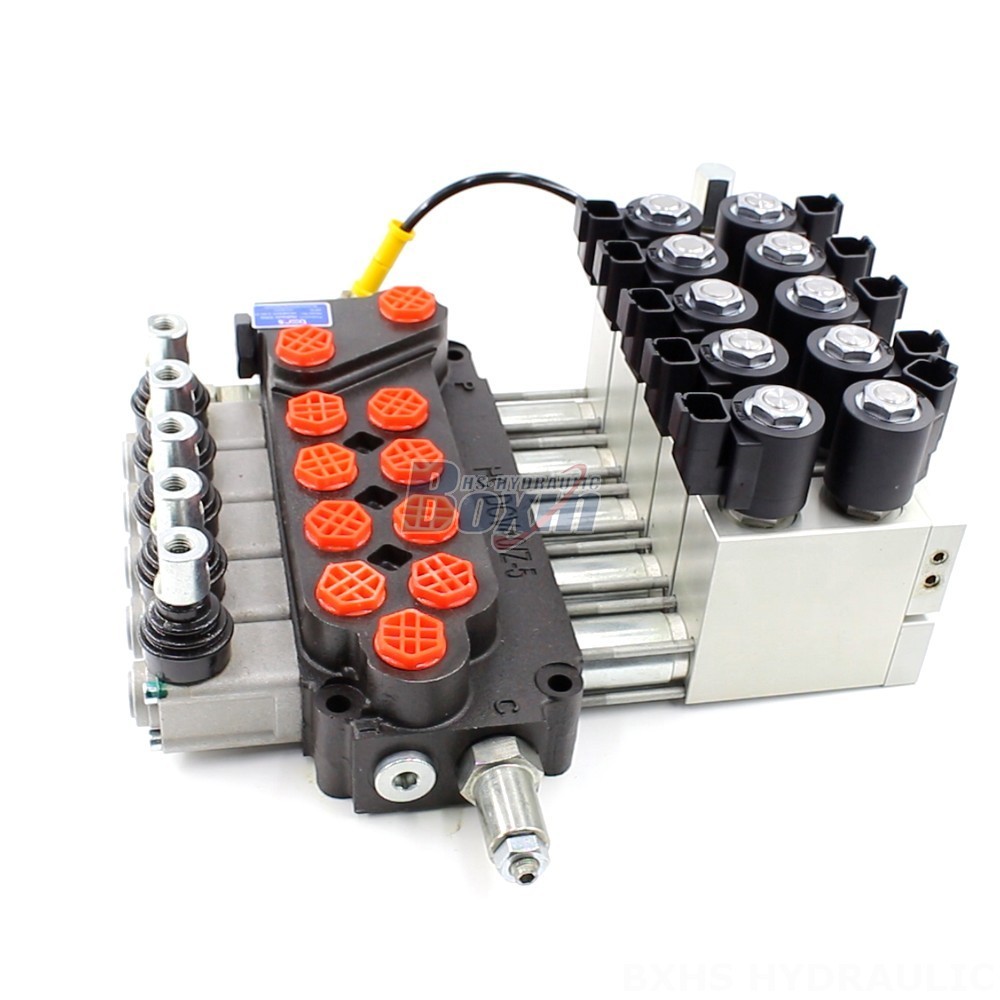

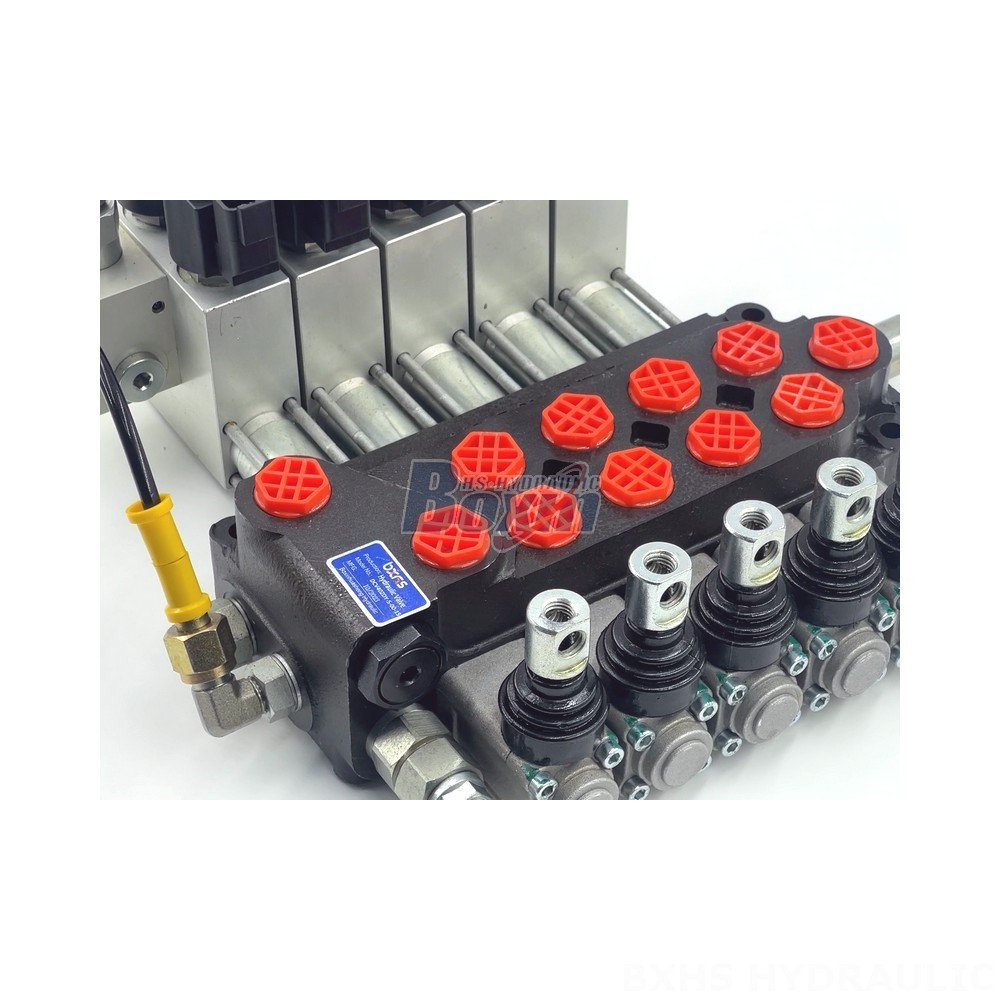

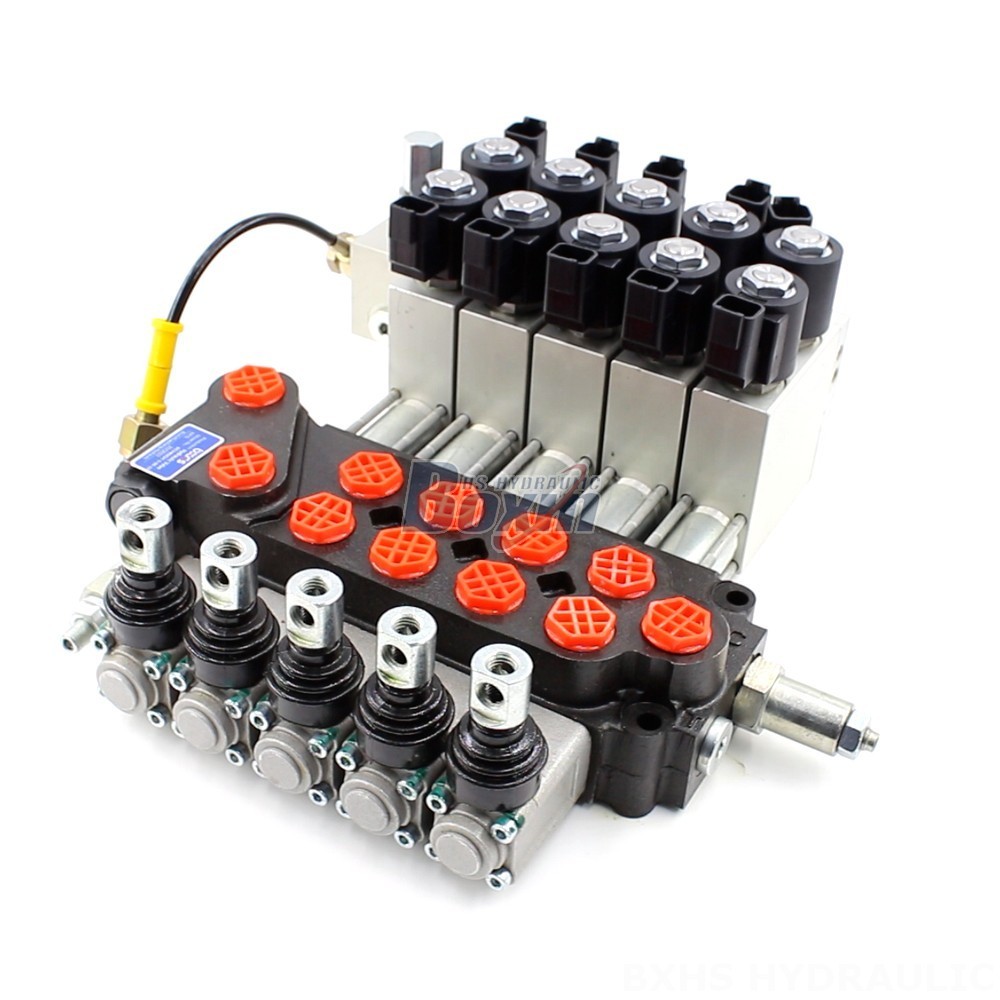

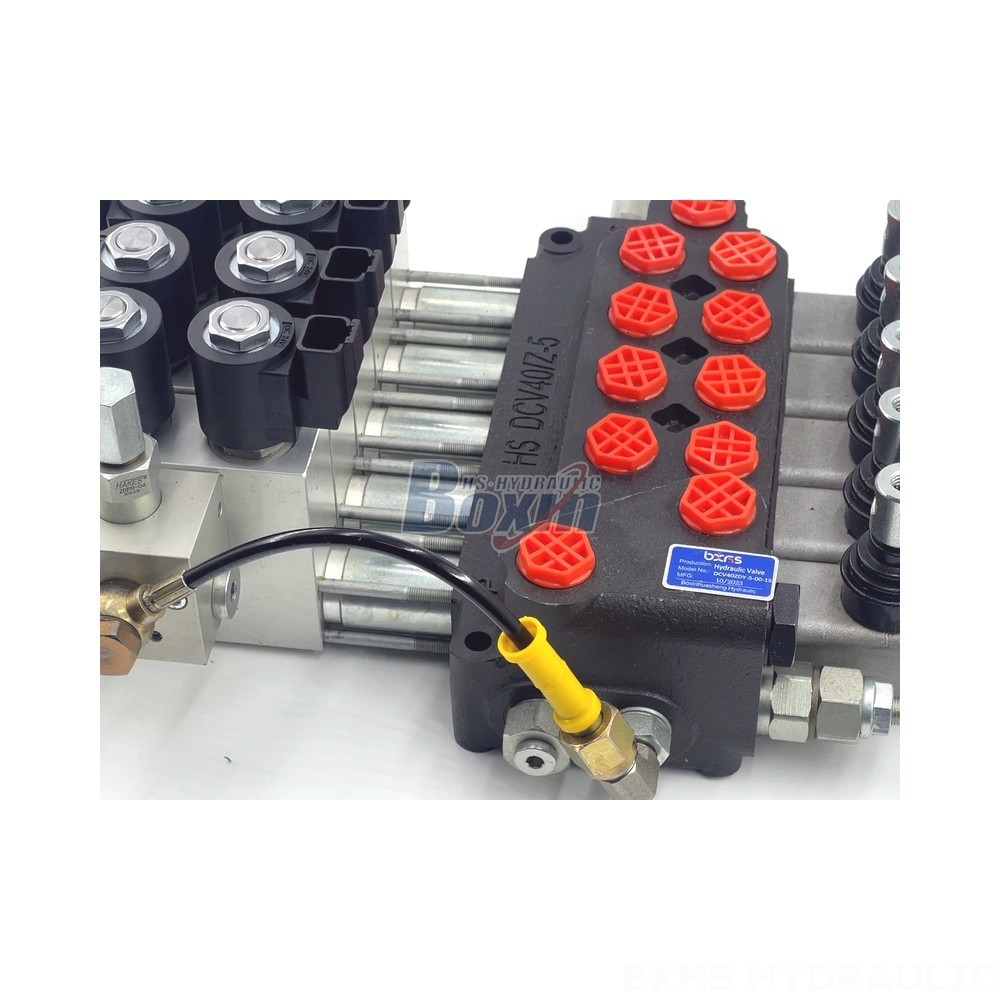

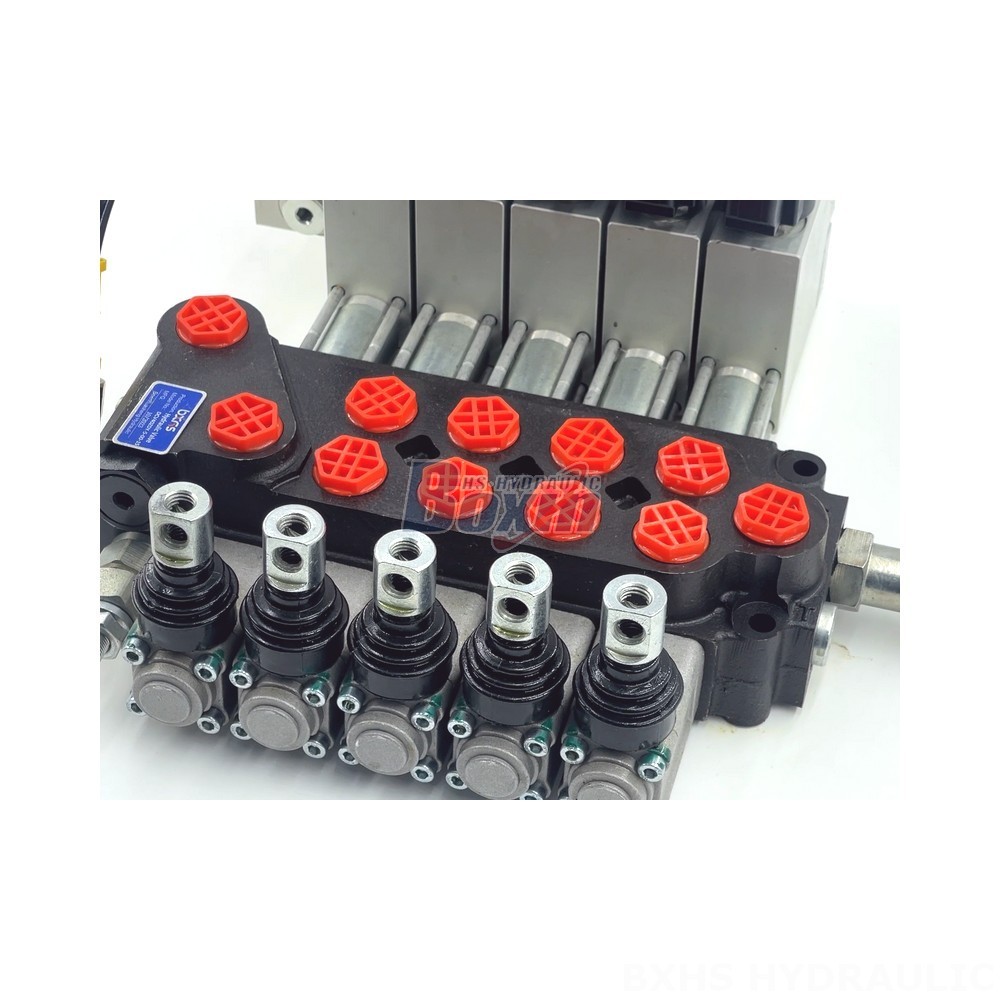

**DCV40Z Electro-hydraulic Directional Valve**
**Control Method:** Electro-hydraulic
**Section:** 5 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 5 Spool
**Series:** DCV40Z Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, WHEEL LOADER
The DCV40Z Electro-hydraulic Directional Valve is constructed with high-quality materials to ensure durability and longevity. Its compact design allows for easy installation in space-constrained applications. The valve's advanced electro-hydraulic control system provides precise and responsive operation, making it suitable for applications where precise control of fluid flow is critical.
With its high flow capacity and pressure rating, the DCV40Z Electro-hydraulic Directional Valve is ideal for applications such as hydraulic cylinders, motors, and other hydraulic actuators. Its wide operating viscosity range makes it suitable for use with various hydraulic fluids, including mineral oils and biodegradable oils.
The DCV40Z Electro-hydraulic Directional Valve is a versatile and reliable solution for hydraulic systems in various industries. Its combination of performance, durability, and compact design makes it an excellent choice for demanding applications.
