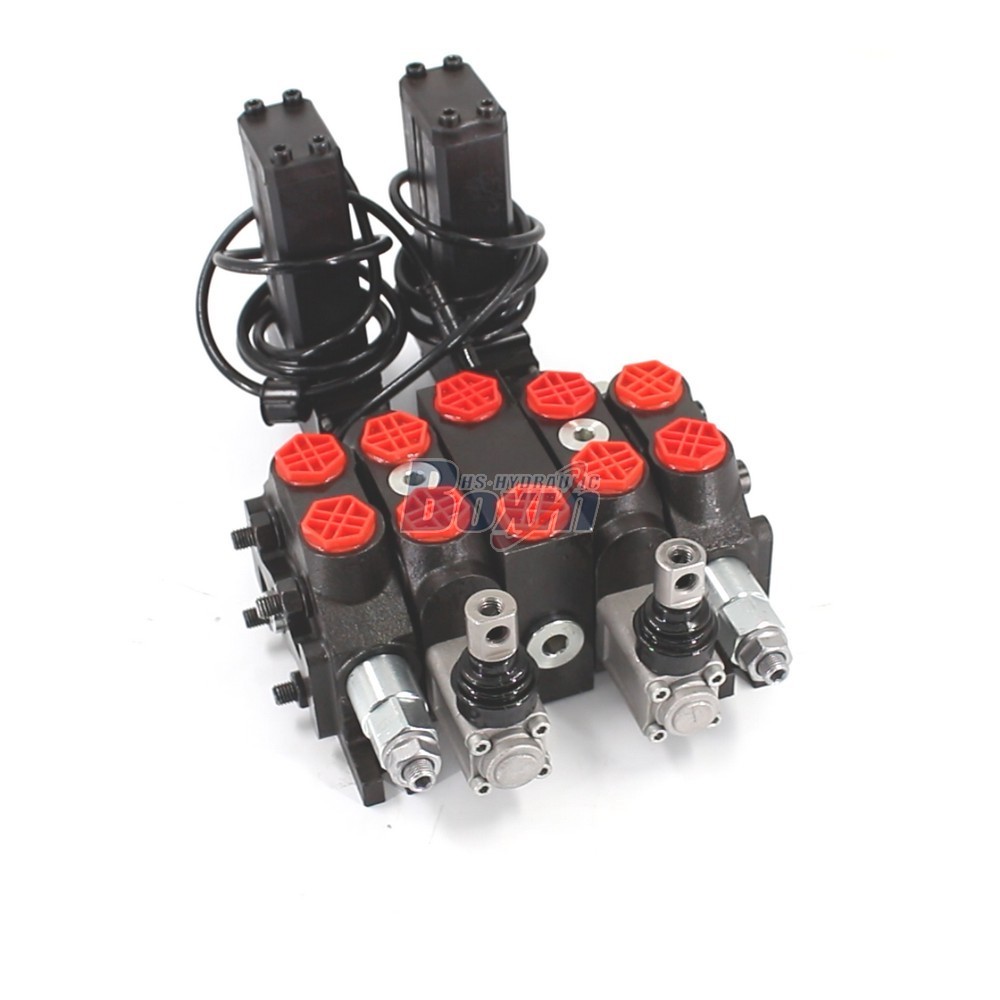

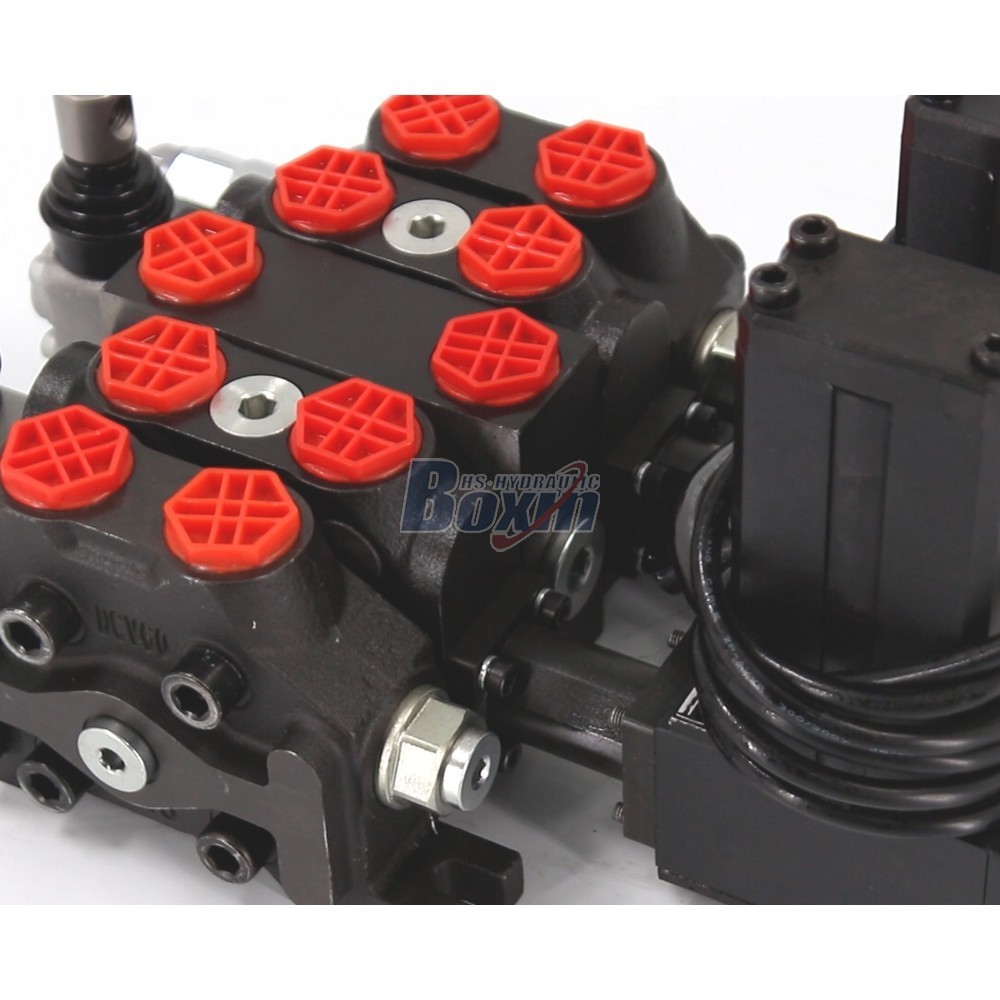

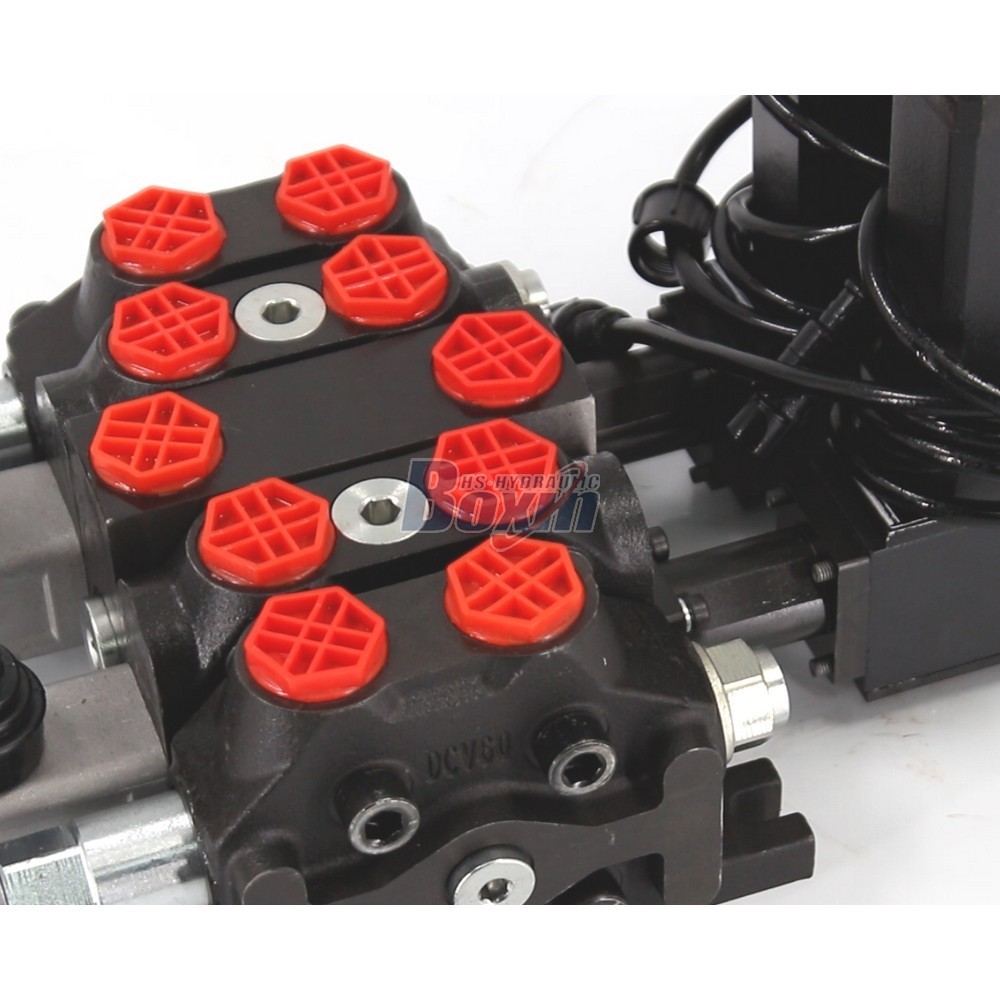

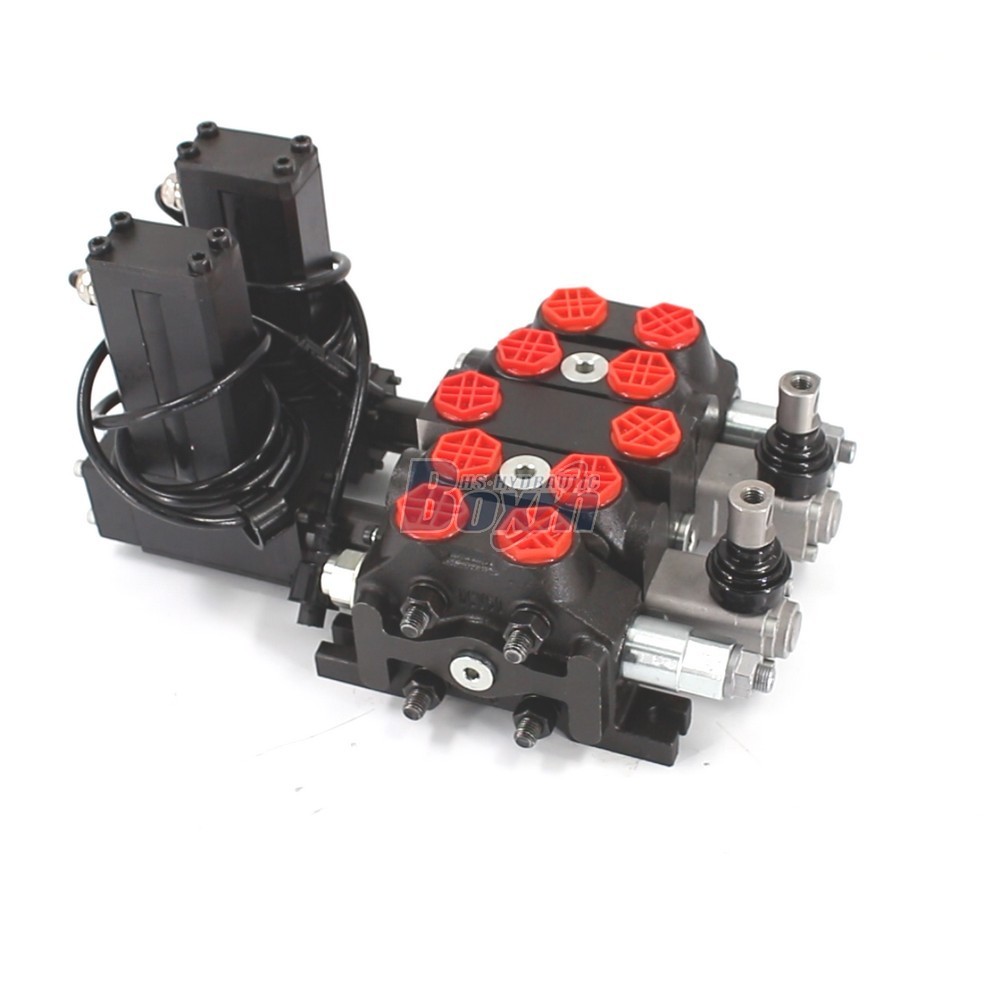

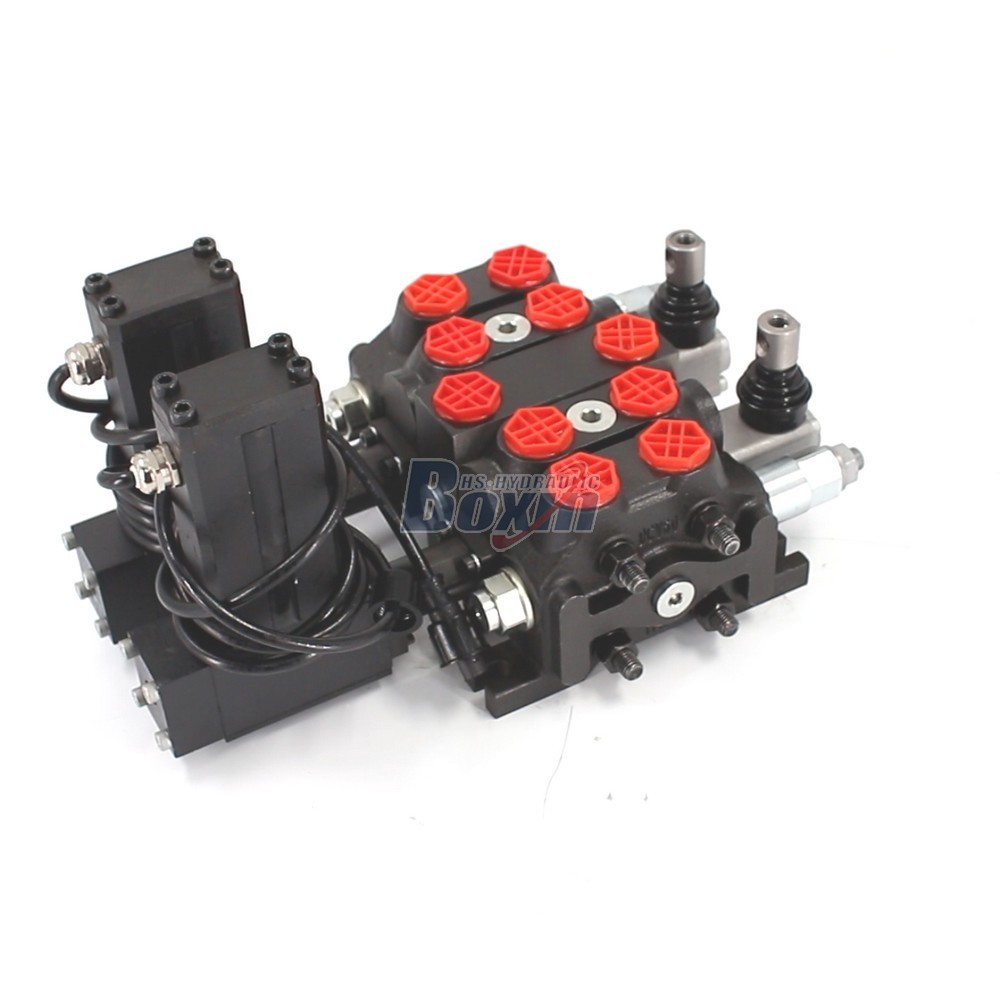

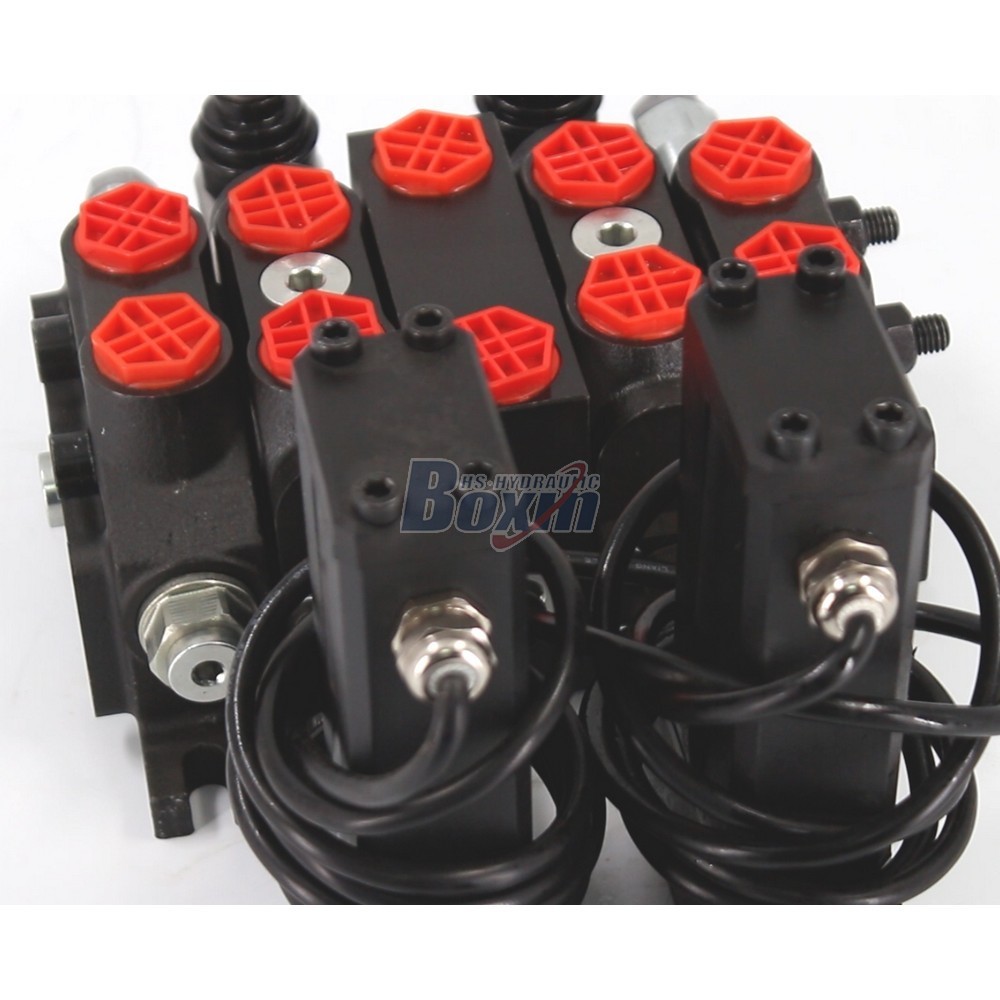

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

Metoda řízení:Elektromotor

Šoupátko:2 cívky

Jmenovitý průtok:60 l/min (15,8 US gpm)

Maximální tlak:315 bar (4600 psi)

Vstupní port:G1/2

Výstupní port:G1/2

Velikost portu:G1/2

Značka:BXHS

Typ produktu:Sekční směrový ventil

Produktová řada:Řada DCV60 Sekční směrový ventil

Velikost balení:22.5*34.05*18.85

Hrubá hmotnost:20.50 kg

Dostupnost: Skladem

107 Zobrazení hledají tento produkt

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor drawing image

High-performance DCV60 series 2-spool sectional directional valve featuring electric motor control, designed for precise flow management up to 60 L/min and pressures up to 315 bar in demanding mobile and industrial applications.

Řada DCV60 Sekční směrový ventil Parametry
Metoda řízení Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoid a manuál, Solenoidový a joystick, Ruční a joystick, Elektromotor
Šoupátko 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek, 8 cívek, 9 cívek, 10 cívek, 11 cívek, 12 cívek
Rozsah okolní teploty -40 °C až +80 °C (-40 °F až +176 °F)
Typ konstrukce Sekční ventil
Sekce Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7, Sekce 8, Sekce 9, Sekce 10, Sekce 11, Sekce 12
Rozsah provozní viskozity 15 - 75 mm²/s (15 cSt až 75 cSt)
Jmenovitý průtok 60 l/min (15,8 US gpm)
Maximální tlak 315 bar (4600 psi), 350 bar (5100 psi)
Vstupní port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Výstupní port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Velikost portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a leading large-scale hydraulic manufacturer, we provide the DCV60 Series 2 Spool Sectional Directional Valve, specifically engineered for precision and durability. This electric motor-controlled valve supports a rated flow of 60 L/min (15.8 US gpm) and handles maximum pressures up to 315 bar (4600 psi), making it suitable for tractors, forklifts, skid steer loaders, and mini-excavators. We offer comprehensive manufacturing solutions including OEM, private labeling, and custom engineering to meet specific regional requirements. Our factory supply chain is optimized for bulk wholesale, ensuring competitive pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need specialized configurations for agricultural harvesters or heavy-duty construction earth-moving equipment, our factory-direct wholesale model provides the reliability and technical support your business requires.
