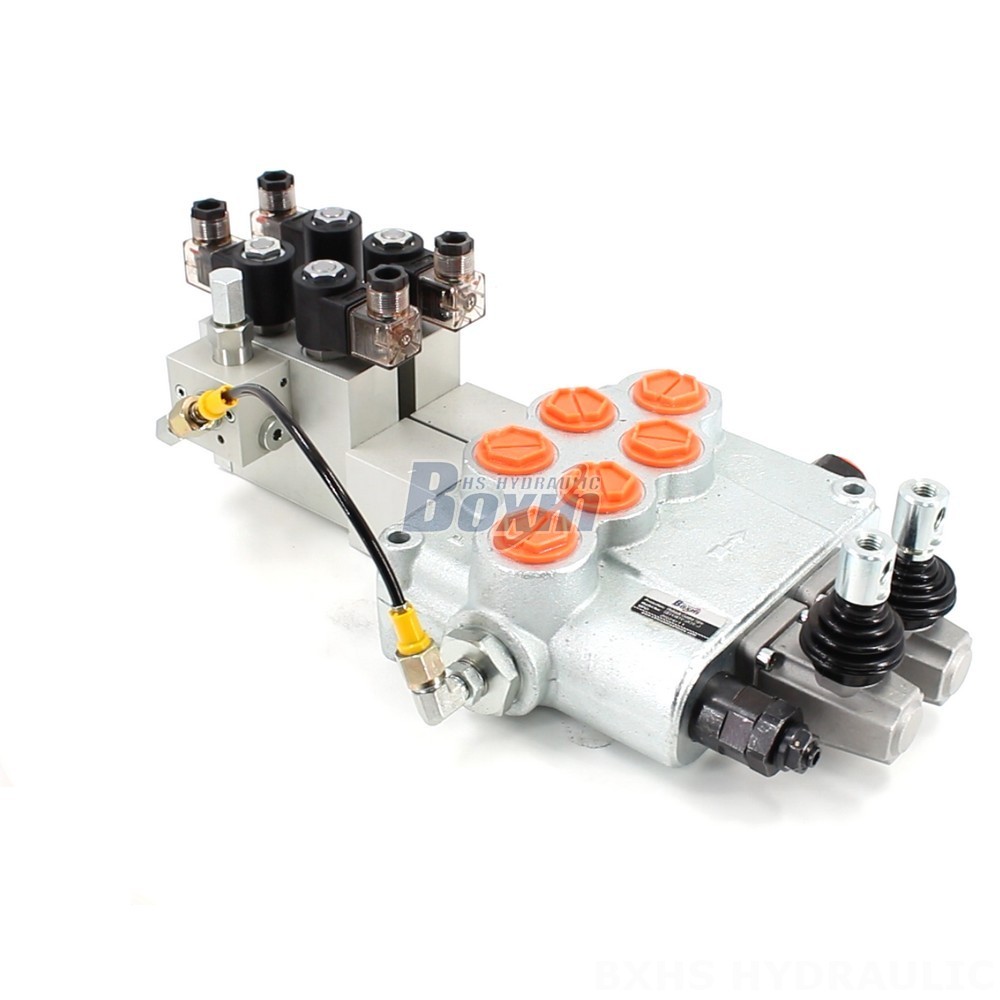

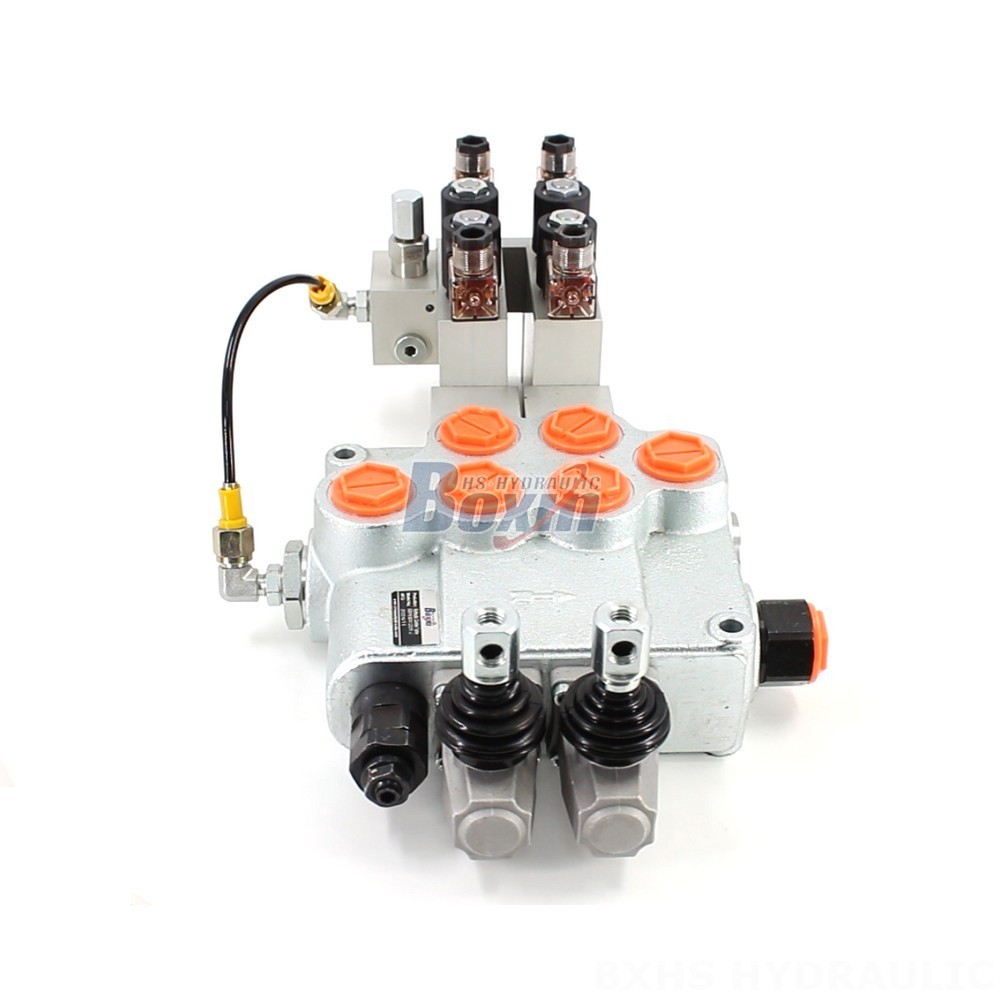

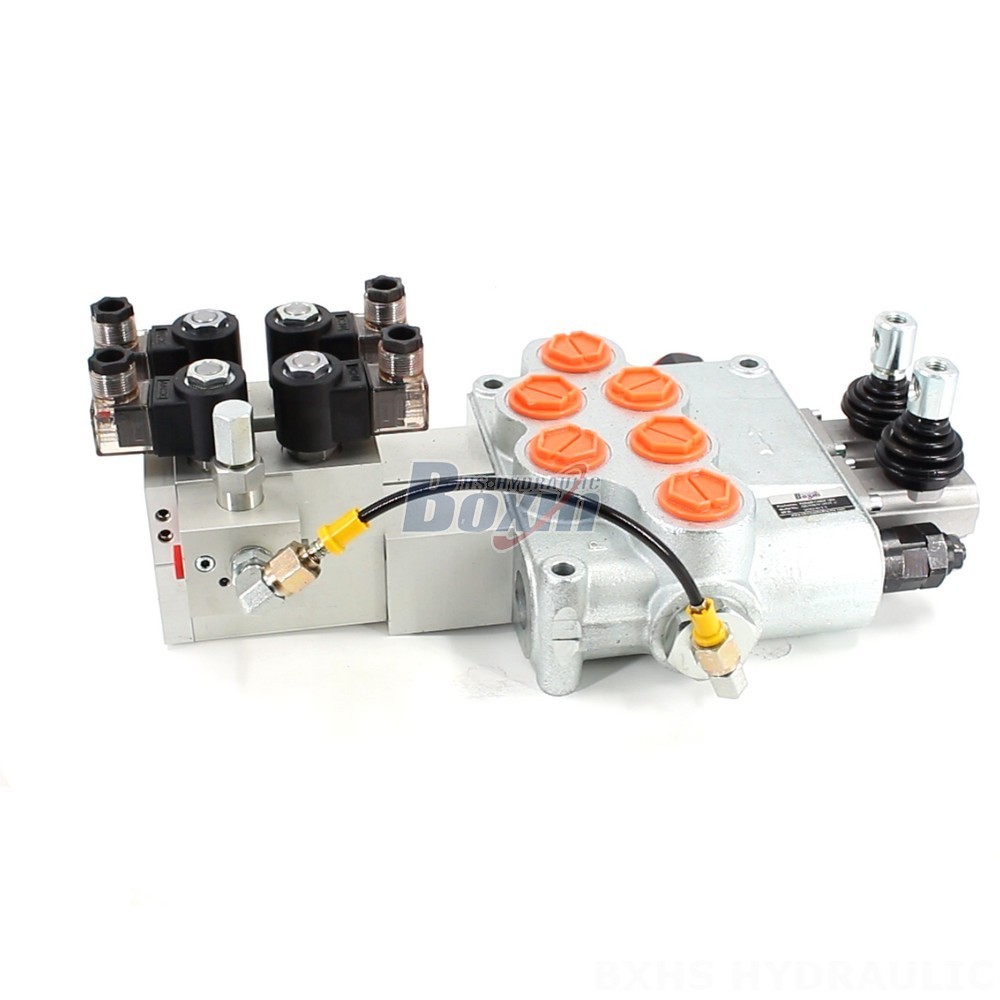

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Metoda řízení:Elektrohydraulický

Šoupátko:2 cívky

Jmenovitý průtok:160 l/min (42,2 US gpm)

Maximální tlak:315 bar (4600 psi)

Vstupní port:G1

Výstupní port:G1

Velikost portu:G1

Značka:BXHS

Typ produktu:Monoblokový směrový ventil

Produktová řada:Řada SD18 Monoblokový směrový ventil

Velikost balení:21*47*32

Hrubá hmotnost:22.50 kg

Dostupnost: Skladem

490 Zobrazení hledají tento produkt

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves drawing image

Direct from factory, the SD18 electric 2-spool monoblock directional valve offers high performance (160 L/min, 315 bar) and wide operating temperature range (-40°C to +80°C). Ideal for construction, industrial vehicles, and agriculture applications.

Řada SD18 Monoblokový směrový ventil Parametry
Metoda řízení Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Hydraulický, Hydraulické a manuální, Kabel, Joystick
Šoupátko 1 cívka, 2 cívky, 3 cívky, 4 cívky
Jmenovitý průtok 160 l/min (42,2 US gpm)
Maximální tlak 305 bar (4400 psi)
Vstupní port G1/2, G1, SAE 16
Výstupní port G1, SAE 16
Velikost portu G1, SAE 16
Sekce Sekce 1, Sekce 2, Sekce 3, Sekce 4
Typ konstrukce Blokový ventil
Rozsah okolní teploty -40 °C až +80 °C (-40 °F až +176 °F)
Rozsah provozní viskozity 12 - 400 mm²/s (12 cSt až 400 cSt)

We are a leading manufacturer of high-quality hydraulic products, supplying globally. Our SD18 Series Electric 2-Spool Monoblock Directional Valves are designed for demanding applications in construction and earthmoving, industrial vehicles, and agriculture. These robust valves boast a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 315 bar (4600 psi), ensuring reliable performance even under extreme conditions.

**Key Features:**
* **Electric Control:** Precise and efficient operation.
* **Monoblock Structure:** Compact design and high durability.
* **High Flow Rate:** 160 L/min (42.2 US gpm).
* **High Pressure Capability:** 315 bar (4600 psi).
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F).
* **Suitable for:** Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders, Wheel Loaders, Backhoe Loaders, Tractors, Front-End Loaders, Harvesters, and Telehandlers.

**Our Services:**
We offer comprehensive services including manufacturing, OEM (Original Equipment Manufacturing), private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. As a **manufacturer**, we provide **factory direct** pricing and superior quality. Benefit from our **factory wholesale** options and competitive pricing. Contact us today to explore collaboration opportunities and discuss your specific needs. Experience the advantage of working directly with the **factory supplier**.
