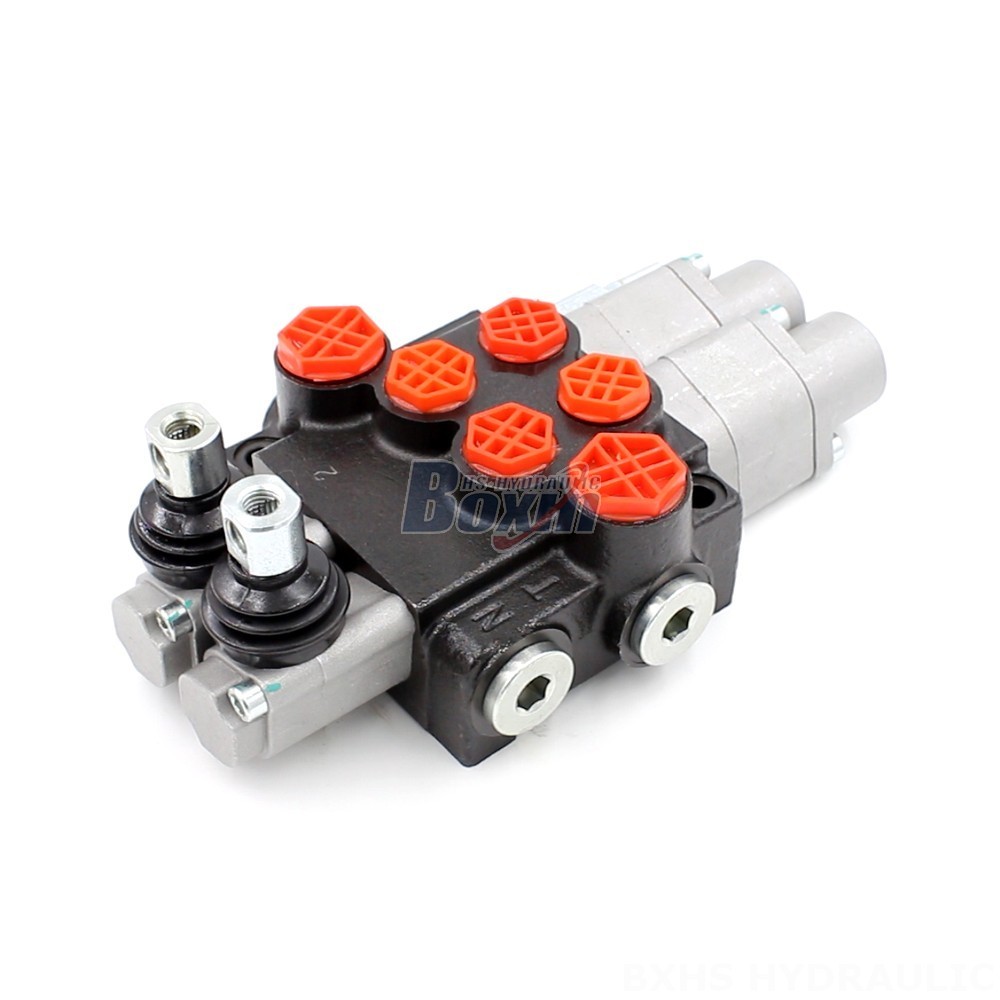

The P40-G12-G38-2QTW is a 2-section, monoblock hydraulic directional control valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features manual control and is suitable for a wide range of applications in material handling, construction, and agriculture.
| Série P40 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This high-performance hydraulic directional control valve from our P40 series is a reliable and efficient solution for various applications. It features a compact design with a 2-section, monoblock structure, delivering smooth and precise control. The valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding operations. It also offers a wide operating viscosity range and exceptional temperature resistance. With its manual control mechanism, it provides intuitive and easy operation. This valve is perfect for various applications, including material handling, construction, and agriculture. It is compatible with a range of machinery, such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
