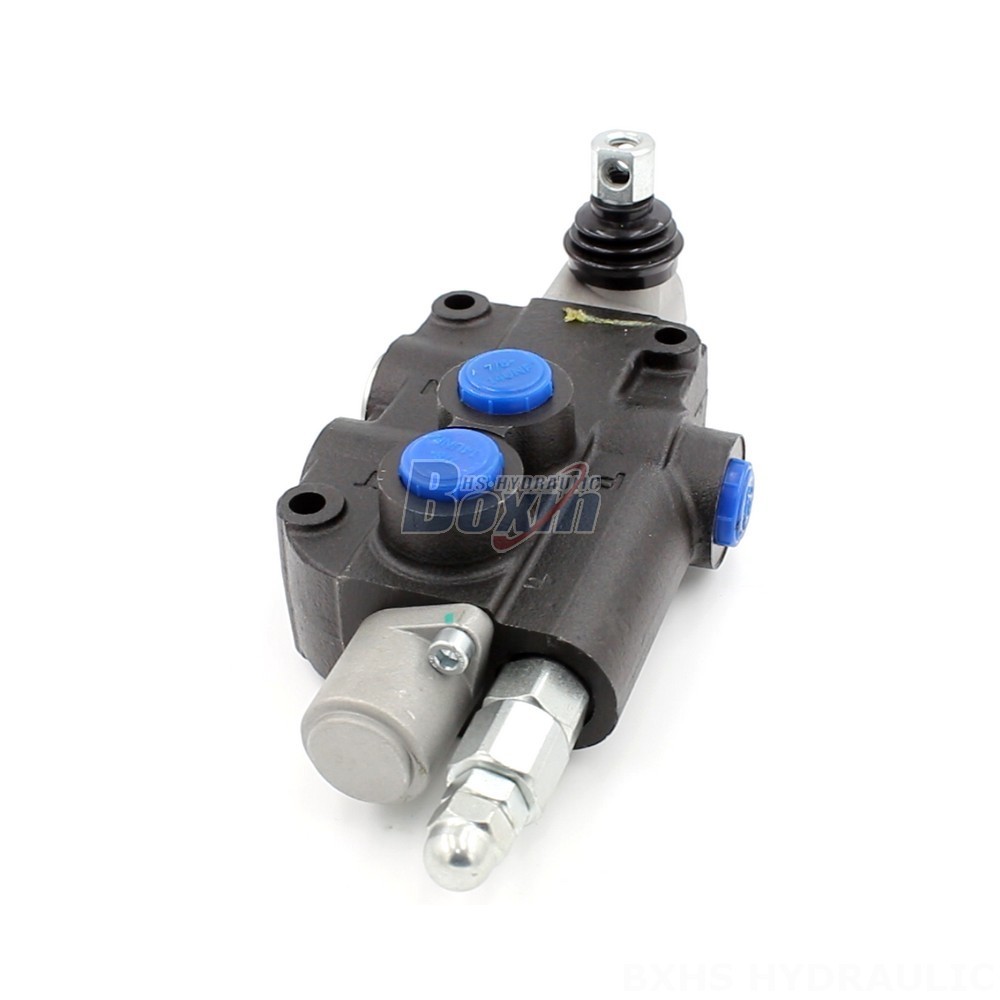

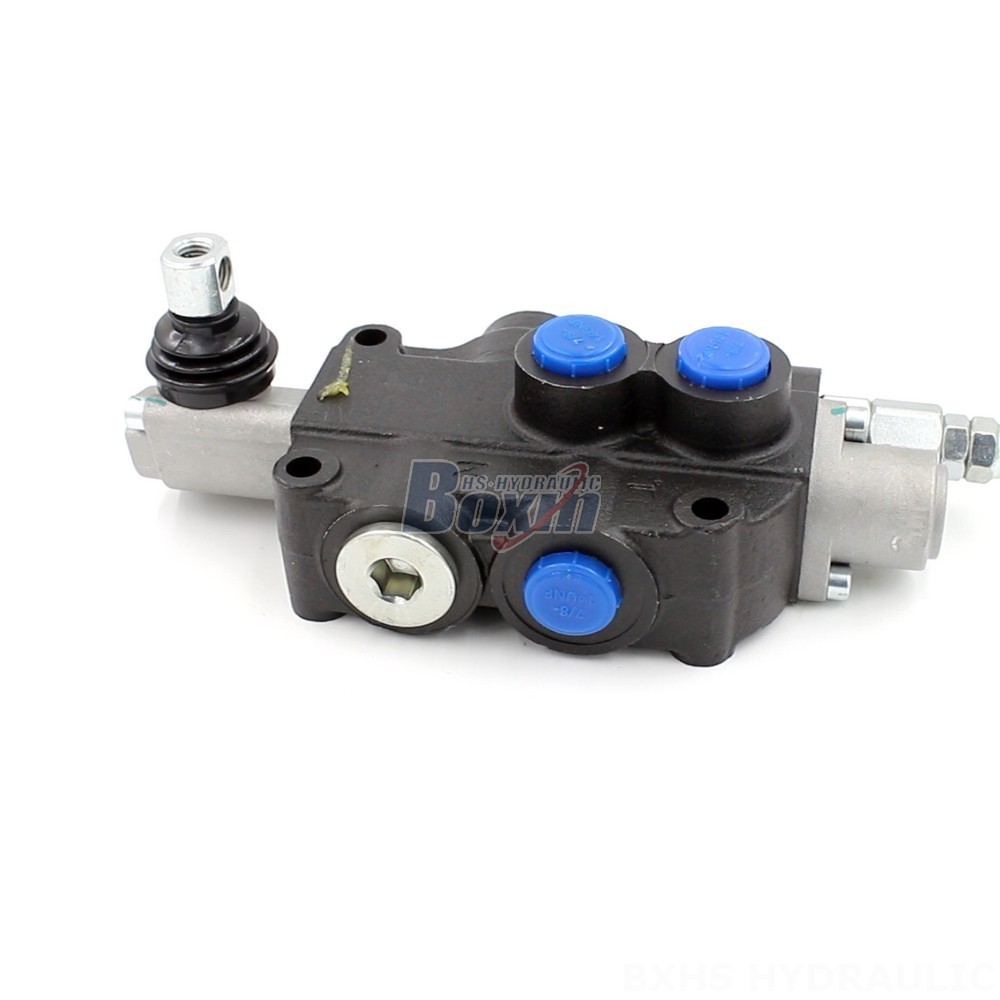

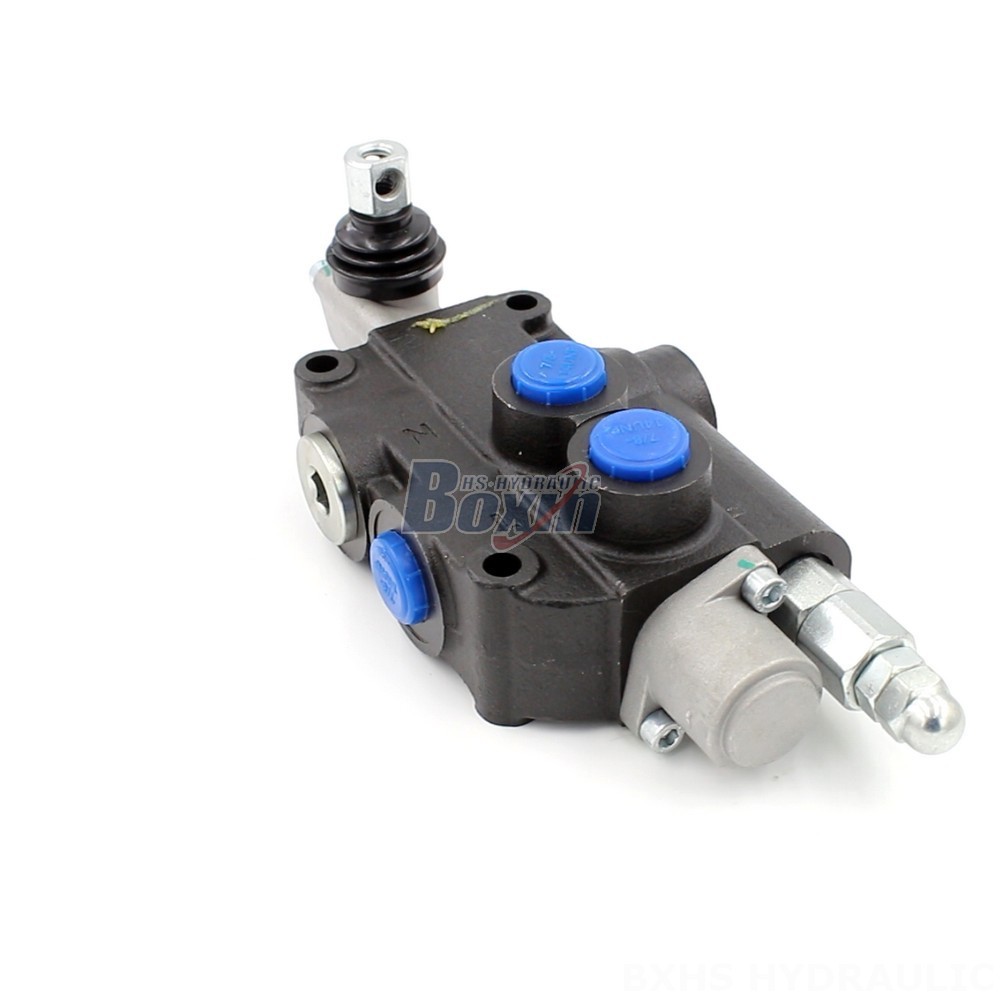

Introducing our exclusive factory-priced P80-U78-1OT Hydraulic Directional Valve, the ultimate solution for your hydraulic system needs. Manufactured with the highest standards of precision and reliability, this valve features a robust monoblock design, manual control, and exceptional performance capabilities.
| Řada P80 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Ruční a joystick |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 80 l/min (21,2 US gpm) |
| Maximální tlak | 315 bar (4600 psi) |
| Vstupní port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Výstupní port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Velikost portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our P80-U78-1OT Hydraulic Directional Valve is meticulously engineered to deliver exceptional performance in demanding applications. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), it ensures efficient and reliable operation in a wide range of hydraulic systems. The valve's operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) make it suitable for diverse operating conditions.
As a leading hydraulic products manufacturer, we offer exclusive factory pricing on our P80-U78-1OT Hydraulic Directional Valve. By sourcing directly from our state-of-the-art production facilities, you can enjoy significant cost savings while ensuring the highest quality standards. Our commitment to excellence extends beyond manufacturing; we also provide comprehensive support, including technical assistance and after-sales services, to ensure your complete satisfaction.
