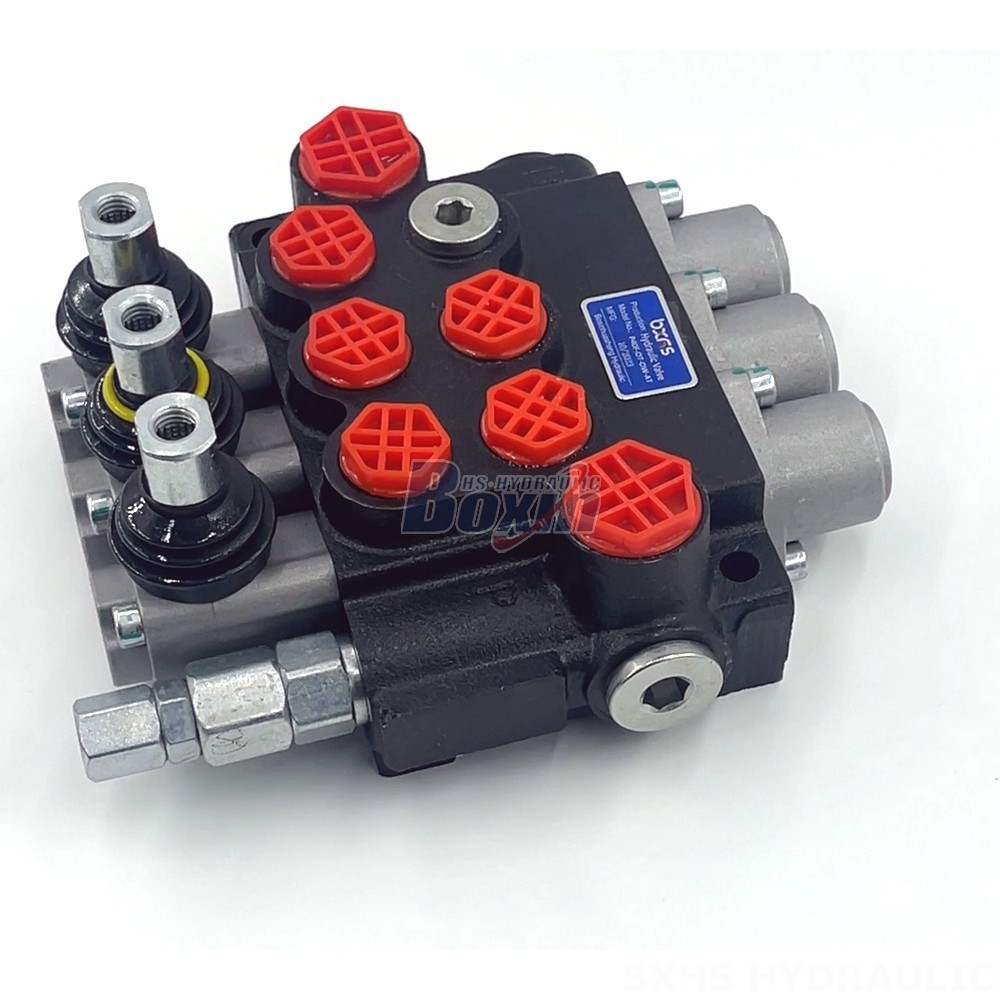

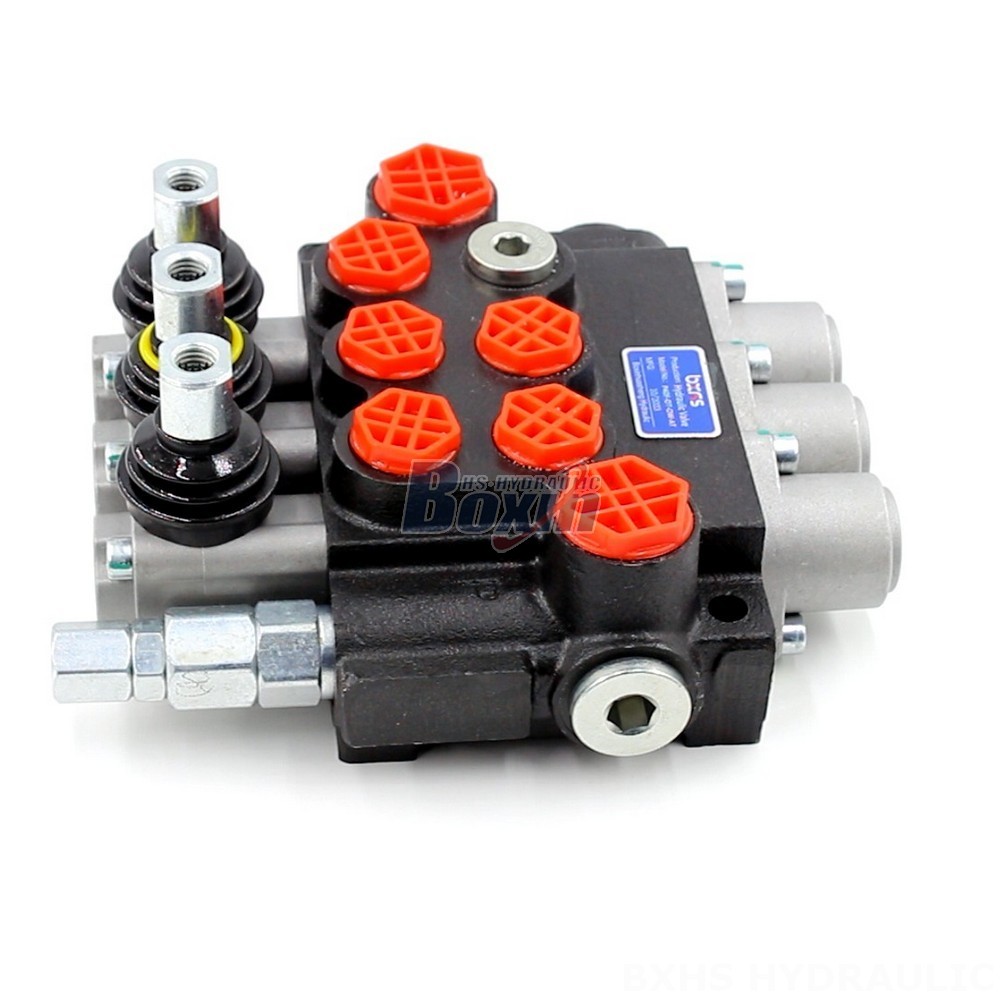

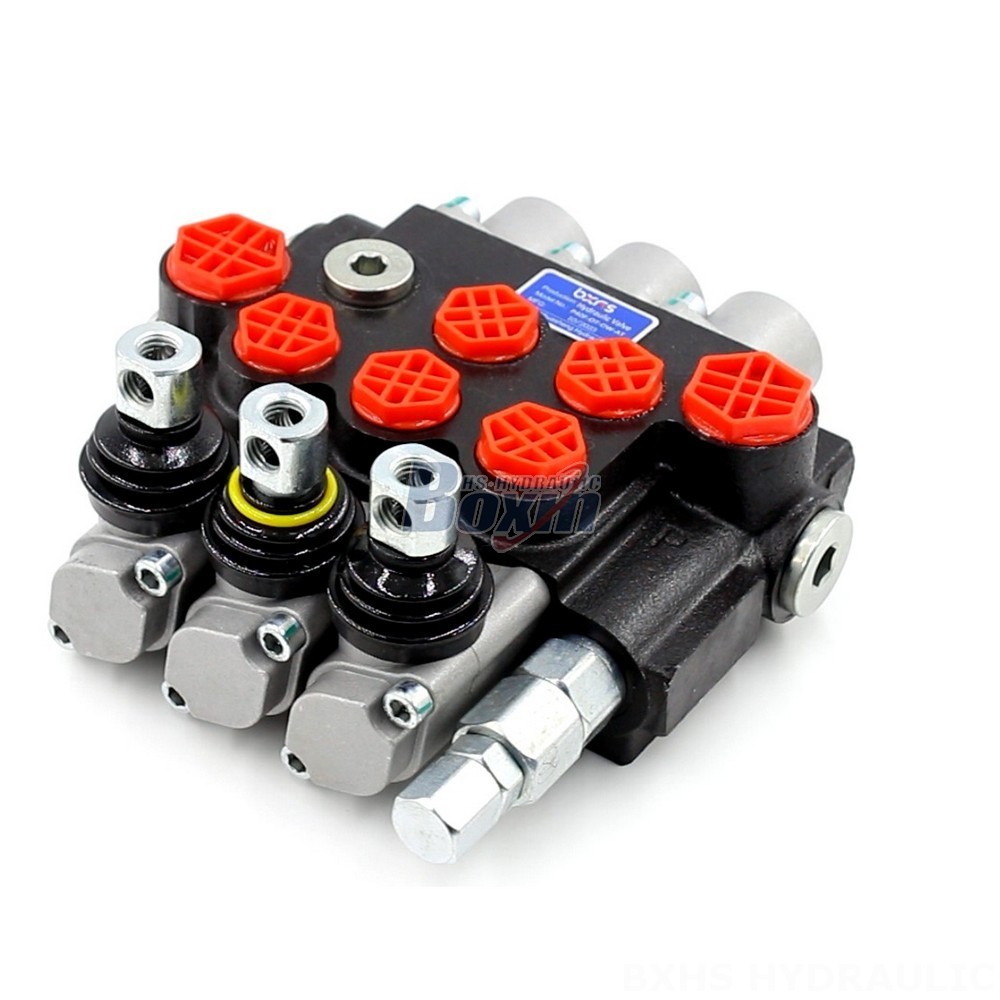

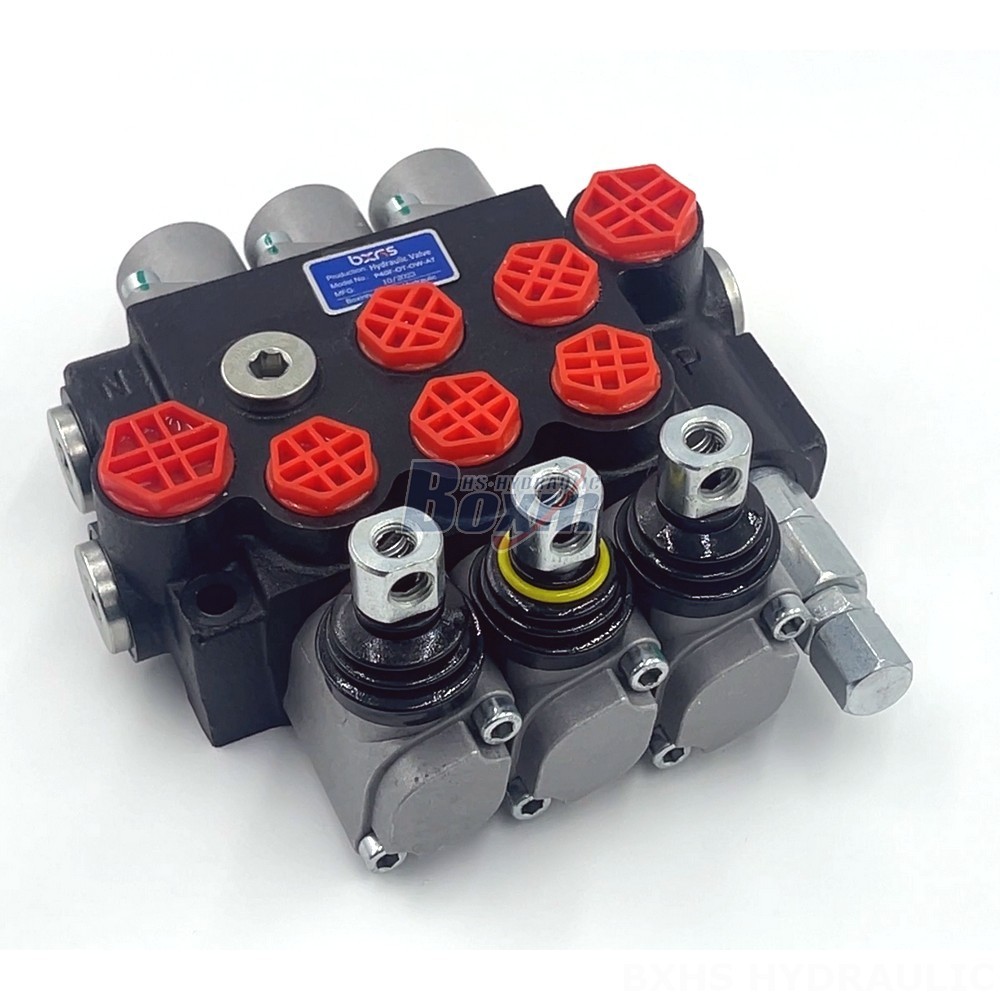

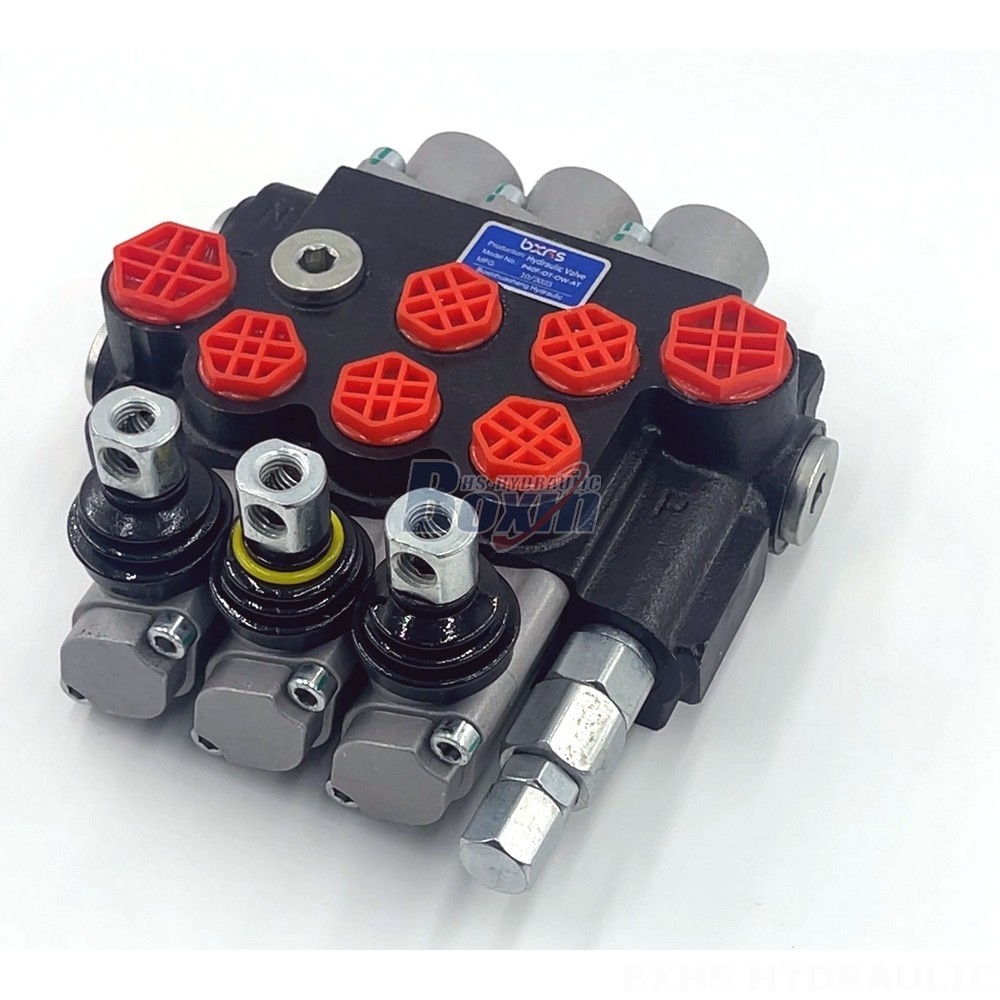

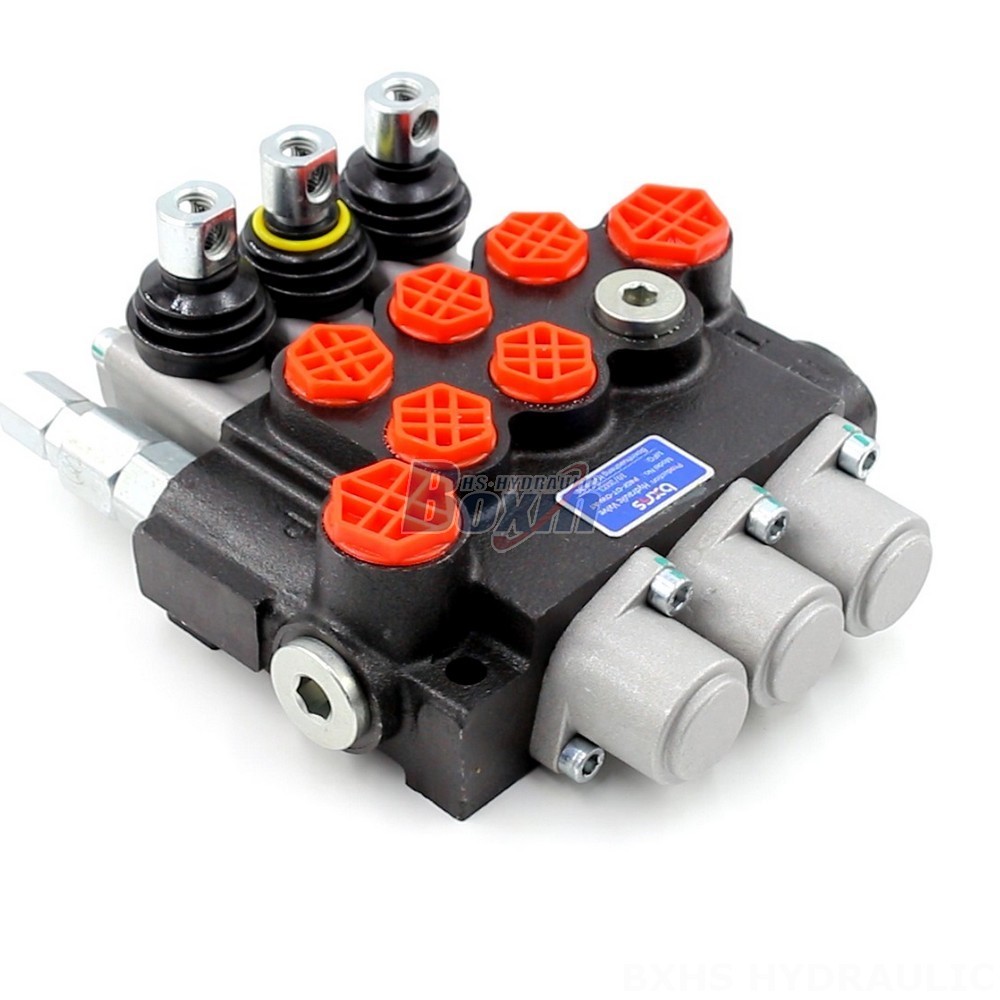

This hydraulic control valve is designed for use in tractor front end loaders and other material handling, construction, and agricultural equipment. It features a 3-section monoblock design with a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is suitable for a variety of applications, including telehandlers, forklifts, all terrain cranes, and more.
| Série P40 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This high-quality hydraulic control valve is specifically designed for tractor front end loader applications. It features a 3-section monoblock valve construction, providing a compact and reliable solution for controlling hydraulic functions. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers robust performance for demanding operations. The valve is manually controlled, allowing for precise and intuitive operation. This P40 Series valve is suitable for a wide range of equipment used in material handling, construction, earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
