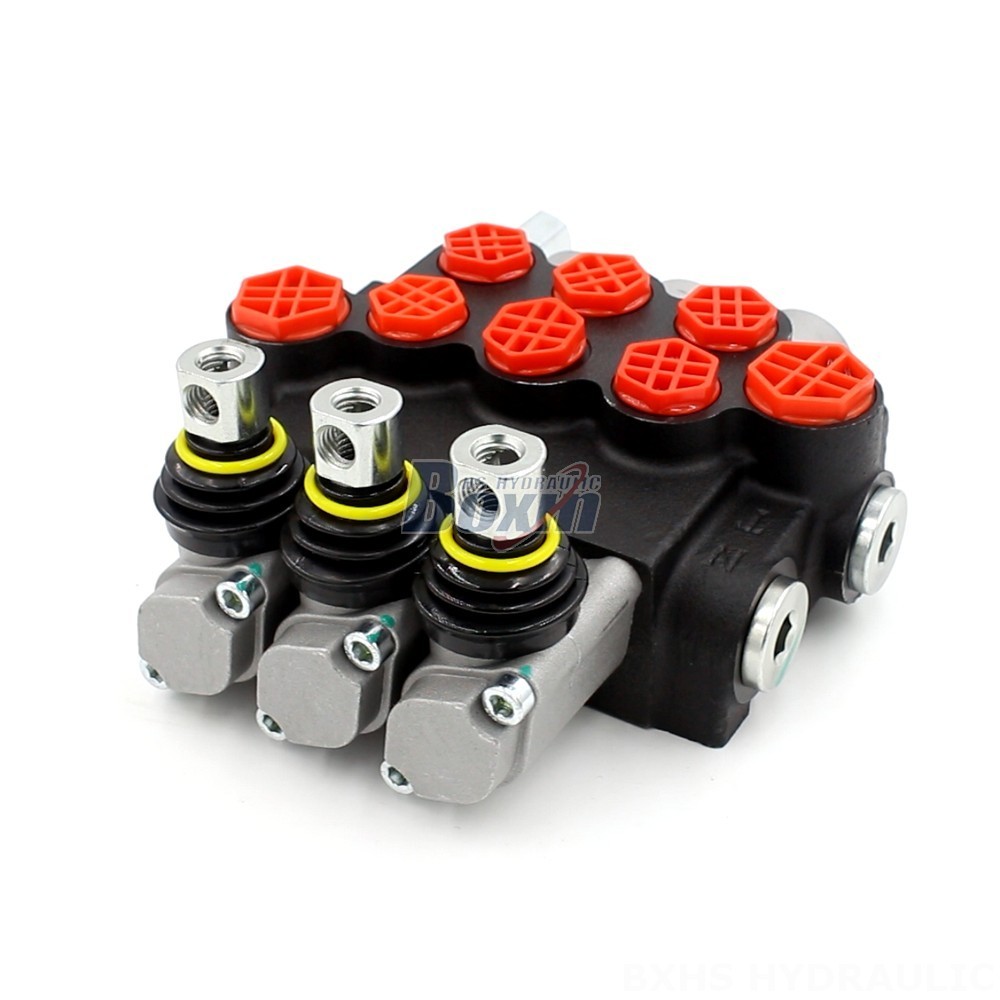

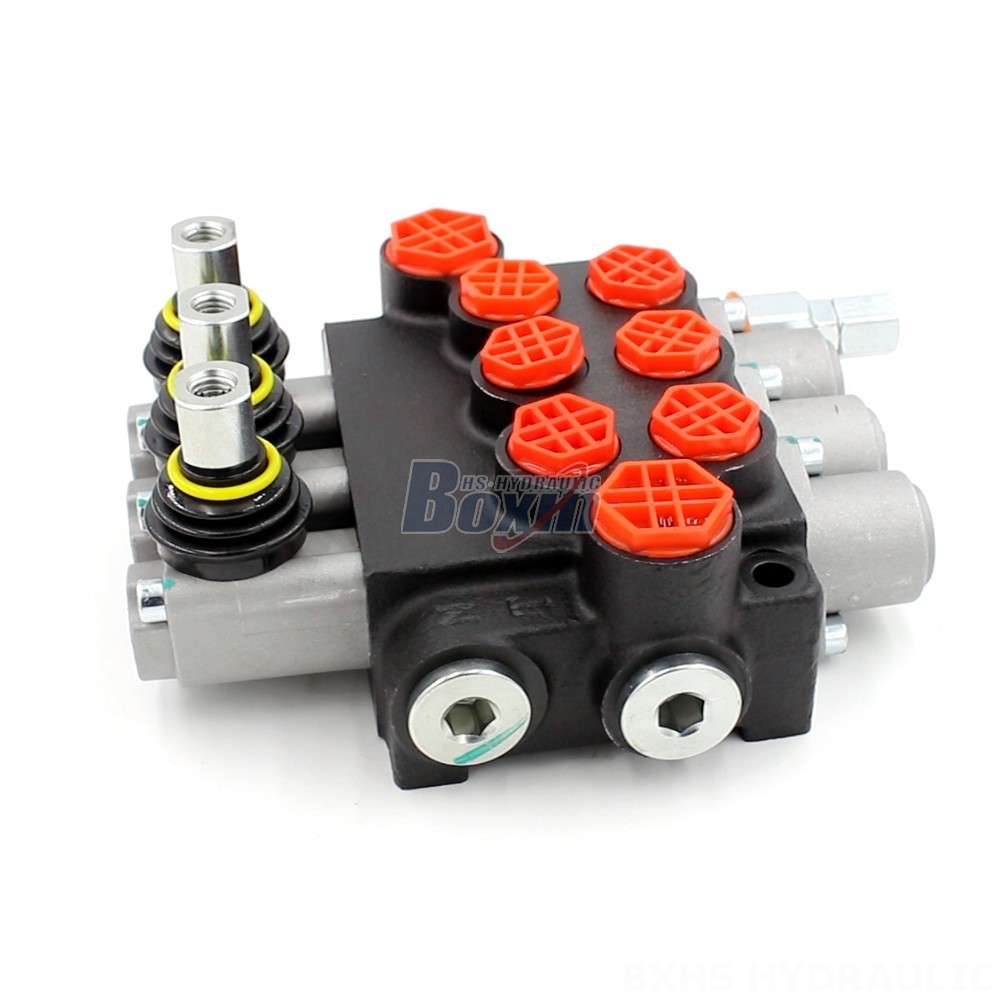

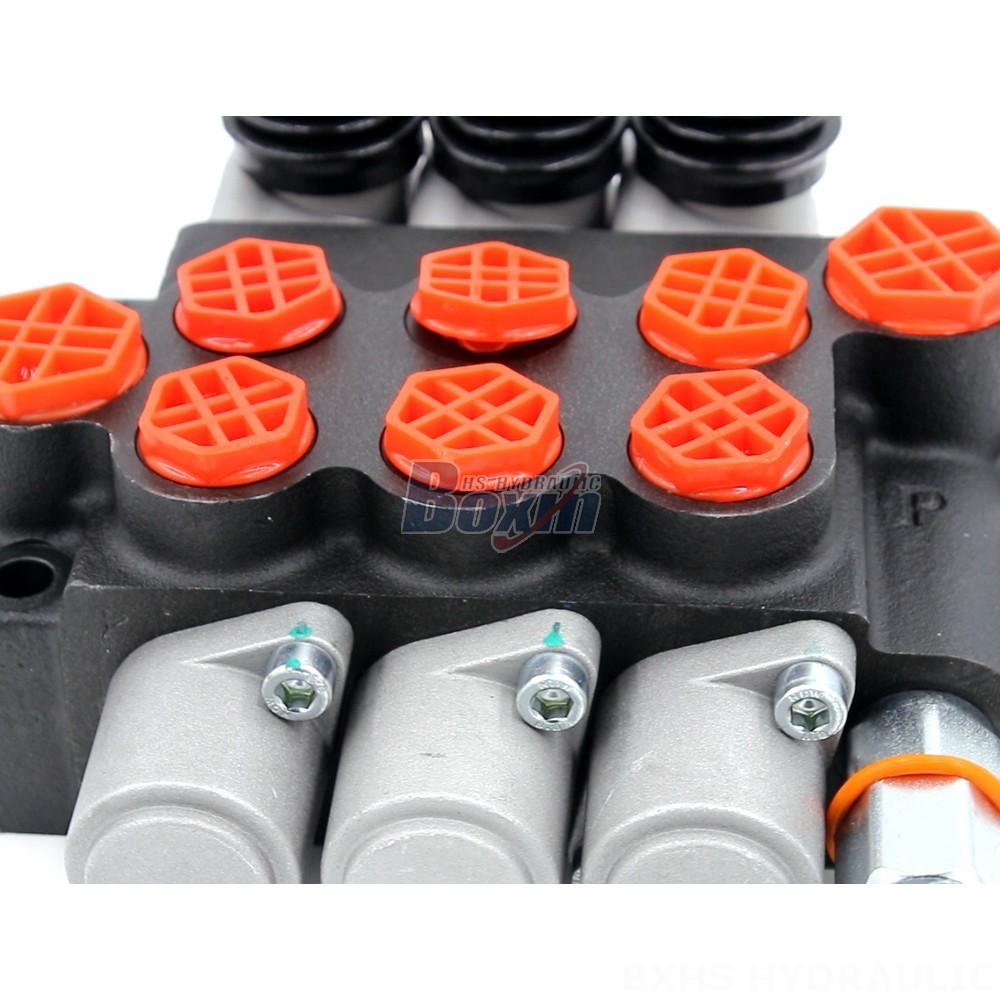

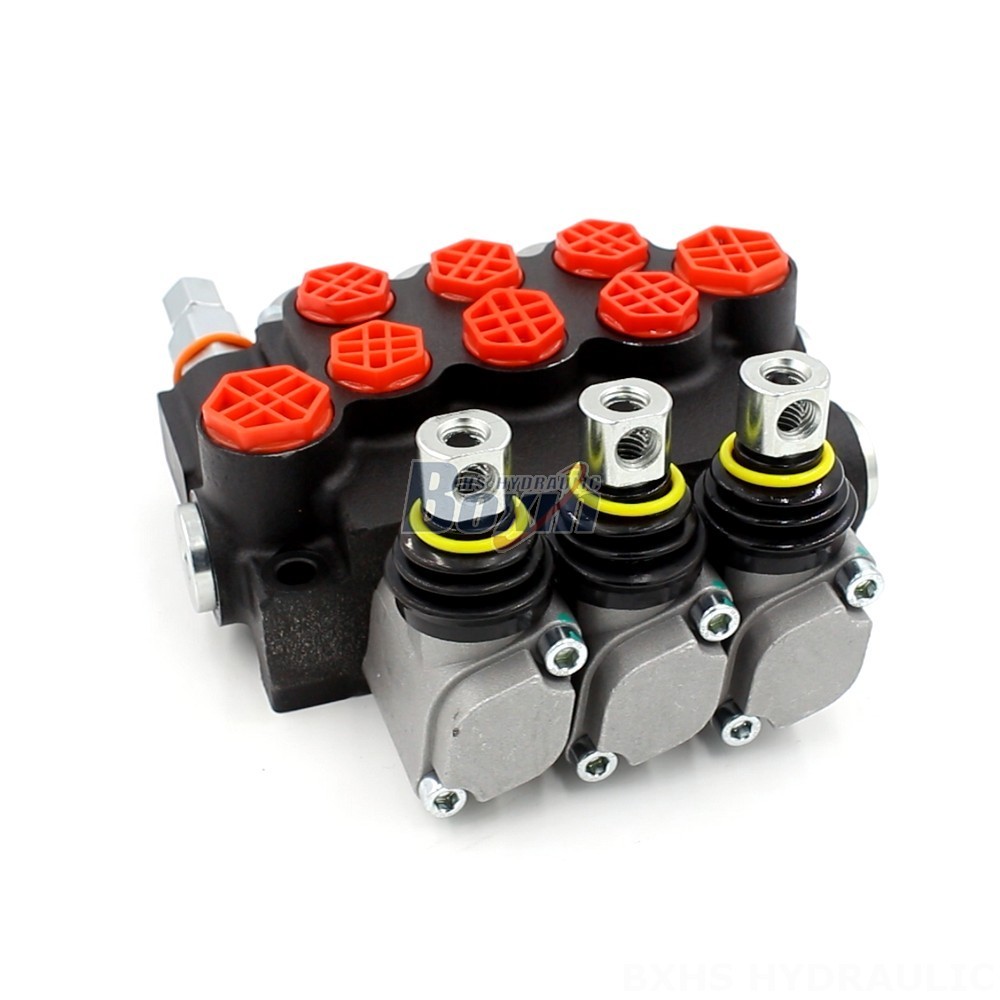

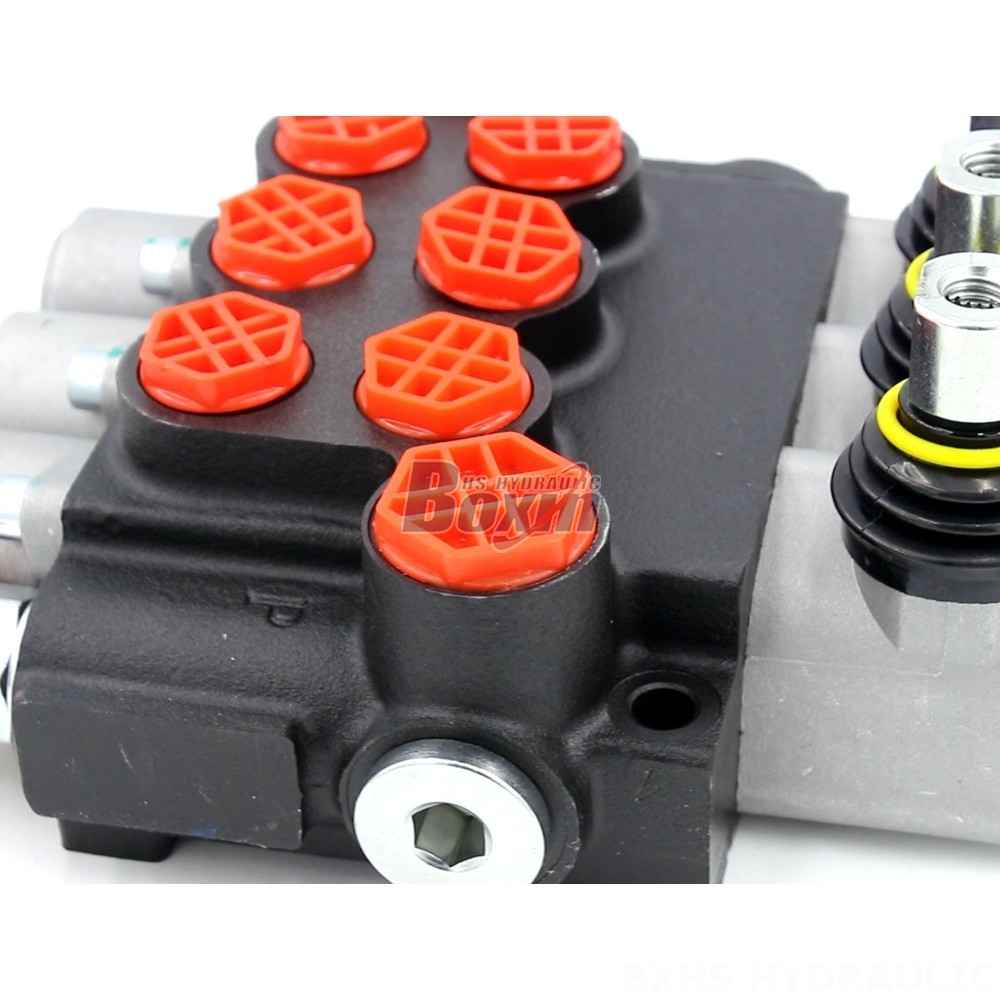

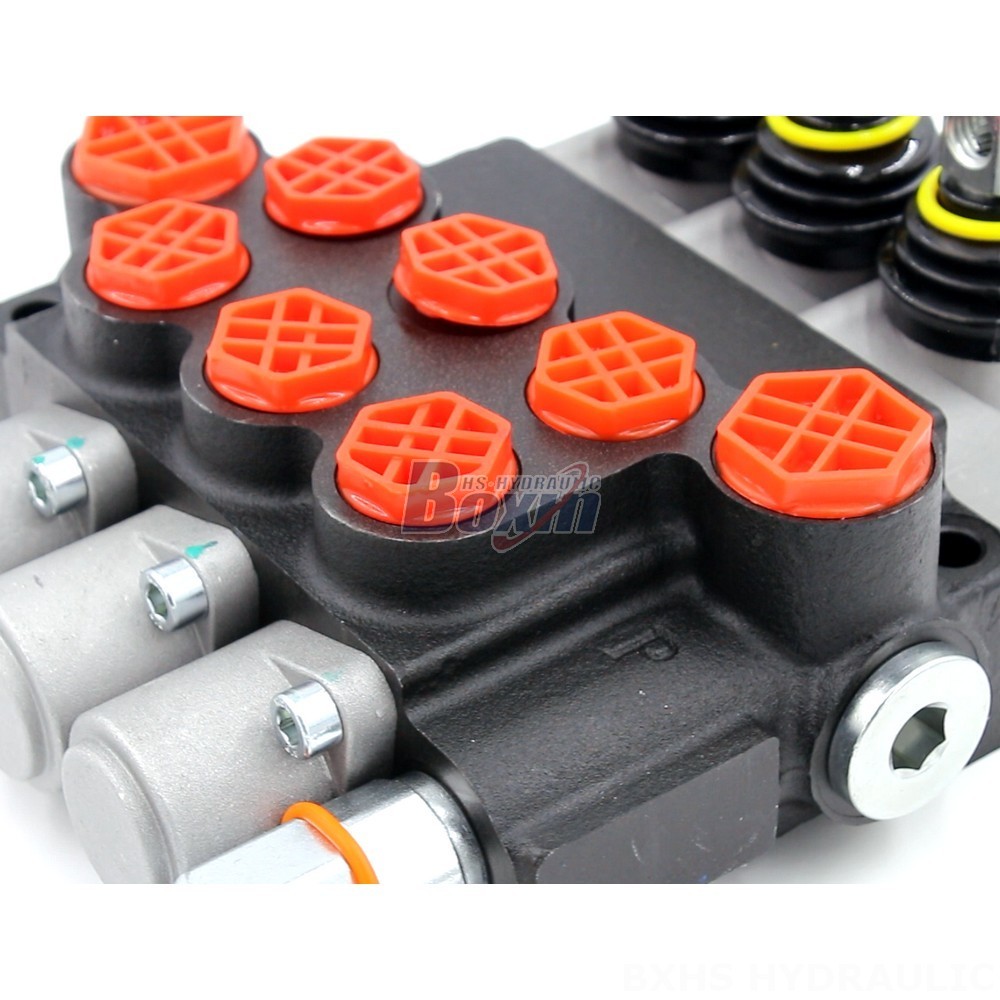

The Hydraulic Directional Control Valve: P40-G12-G38-OW is a high-quality valve designed for use in a variety of applications. It features manual control, a 3-section design, and a monoblock valve structure. The valve has a rated flow of 40 L/min and a maximum pressure of 250 bar. It can be used in a wide range of operating viscosities and ambient temperatures. The valve is also available in a variety of spool configurations to meet the specific needs of your application.
| Série P40 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Hydraulic Directional Control Valve: P40-G12-G38-OW**
The Hydraulic Directional Control Valve: P40-G12-G38-OW is a high-performance valve designed for use in a wide range of applications. It features:
* **Manual control** for precise operation
* **3-section design** for versatility
* **Monoblock valve structure** for durability
* **Rated flow of 40 L/min** for high efficiency
* **Maximum pressure of 250 bar** for demanding applications
* **Operating viscosity range of 15 - 75 mm²/s** for compatibility with a variety of fluids
* **Ambient temperature range of -40°C to +80°C** for use in extreme environments
* **3 spool configurations** to meet the specific needs of your application
The Hydraulic Directional Control Valve: P40-G12-G38-OW is the perfect choice for a variety of applications, including:
* **Material handling**
* **Construction and earth moving**
* **Agriculture**
* **Industrial vehicles**
If you are looking for a high-quality, reliable hydraulic directional control valve, the P40-G12-G38-OW is the perfect choice.
