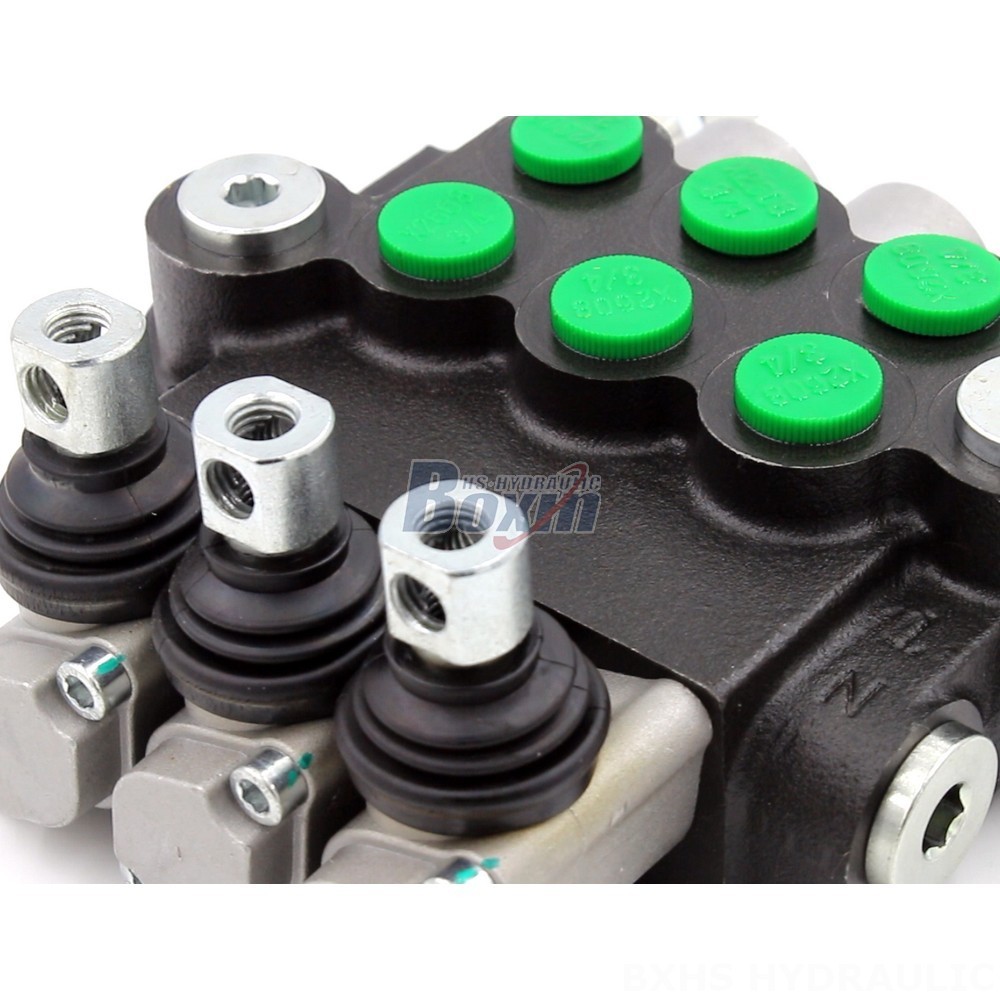

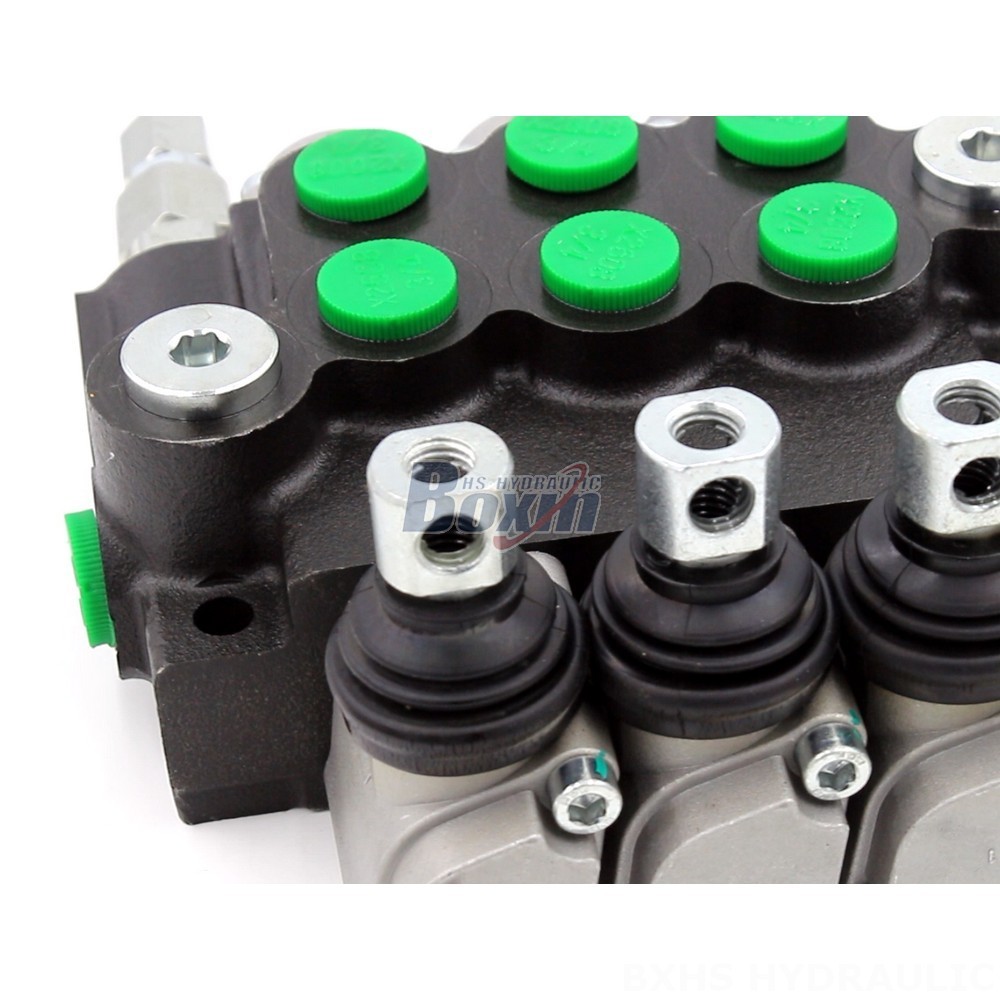

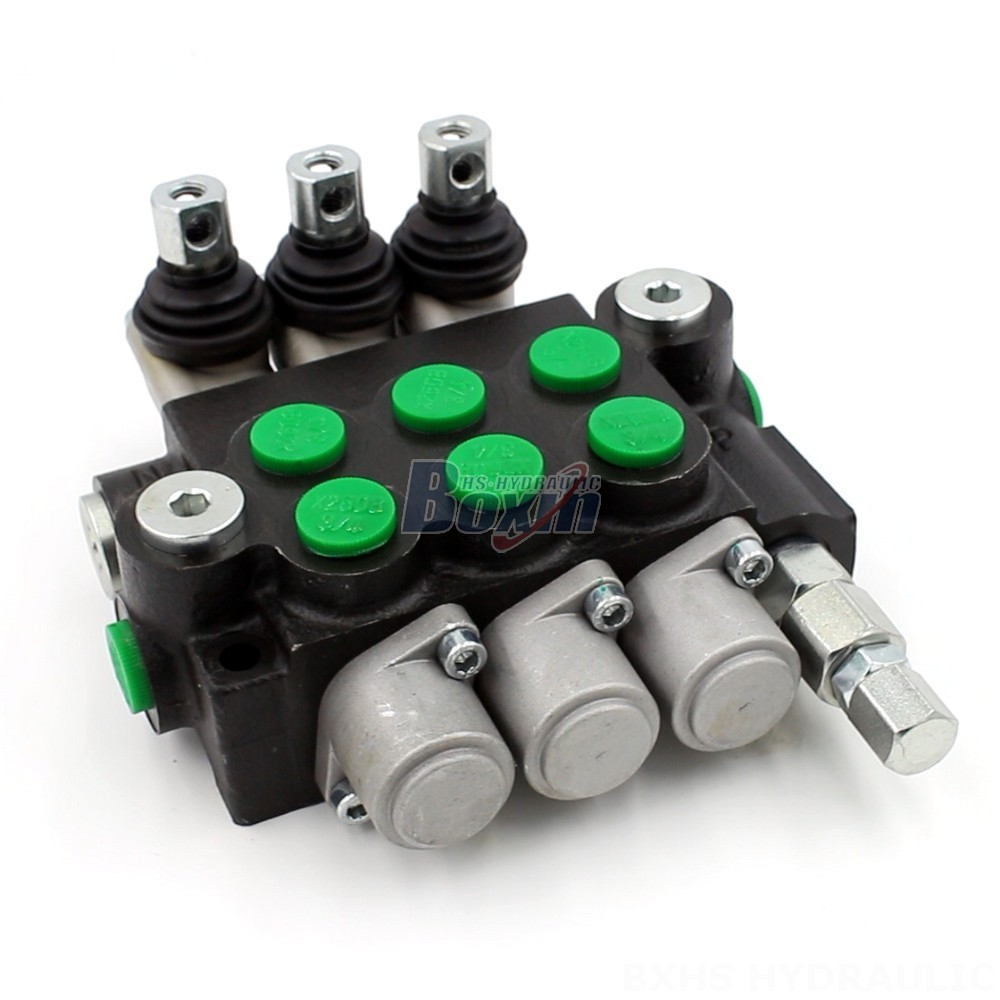

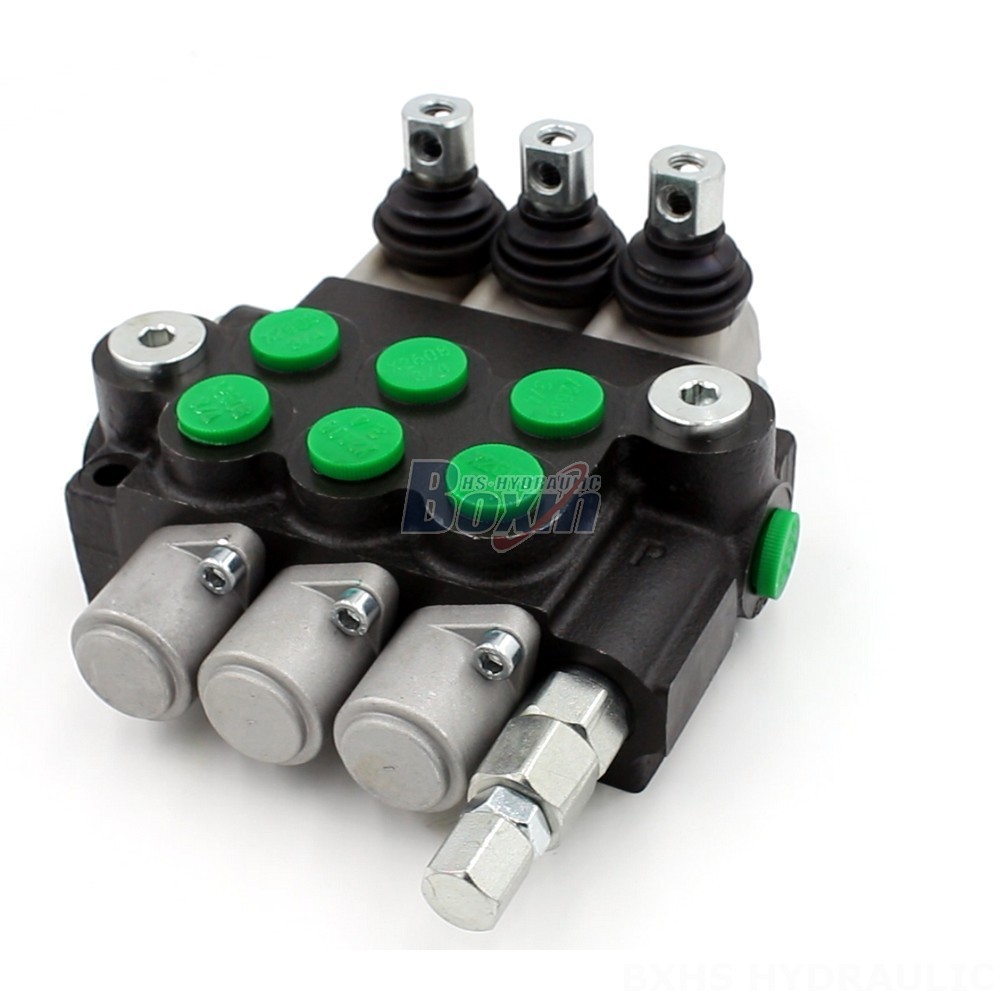

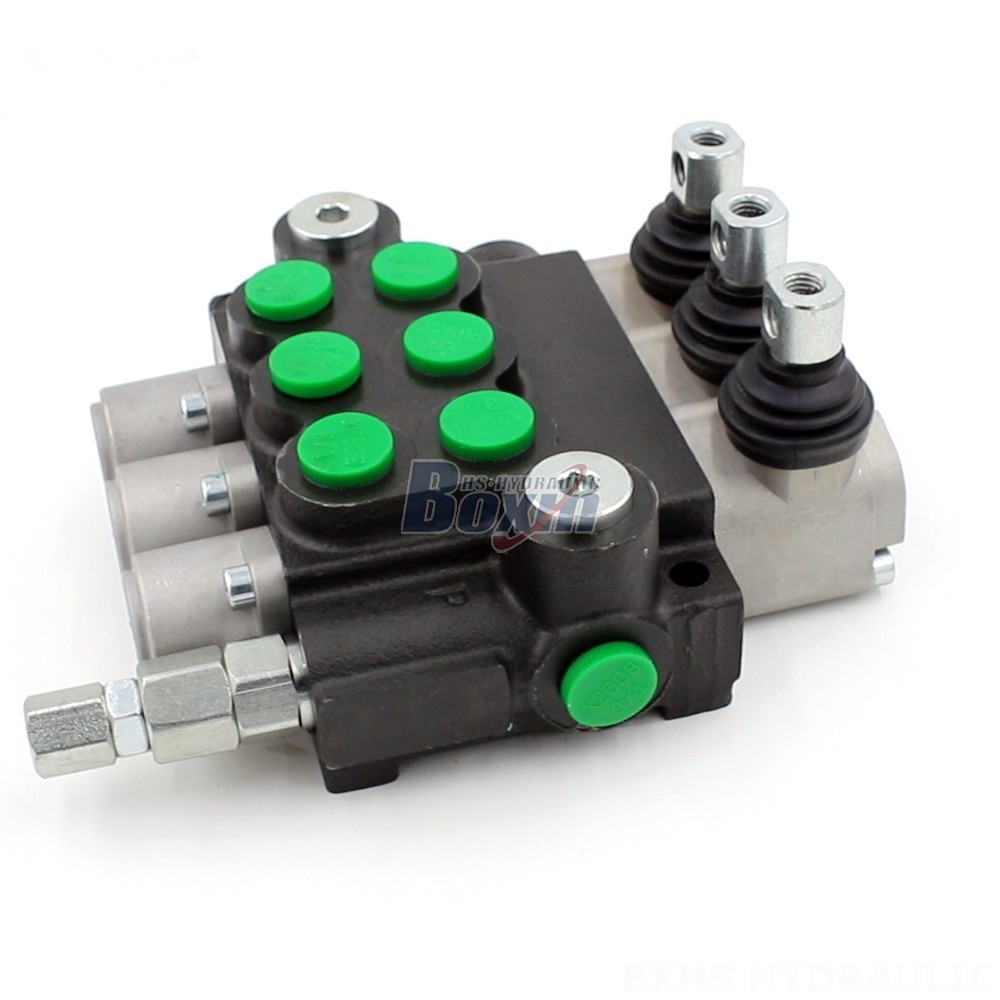

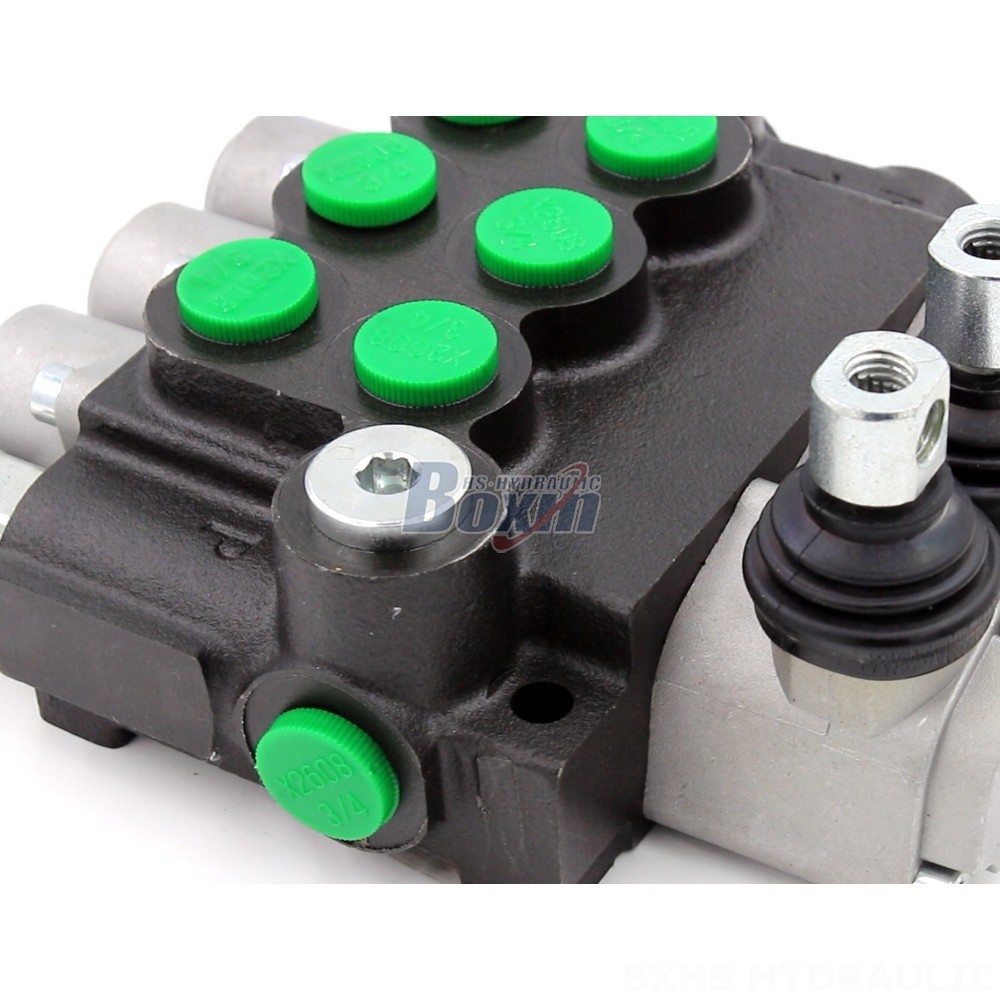

The P40-U34-OT hydraulic directional valve is a manually operated, 3-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Série P40 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34-OT hydraulic directional valve is a high-quality, durable valve that is designed to meet the demands of the most challenging applications. It is constructed from high-strength materials and features a precision-machined spool for smooth, reliable operation. The valve is also equipped with a variety of features that make it easy to install and maintain, including:
- Manual control for precise operation
- 3-section design for versatility
- Monoblock construction for strength and durability
- 40 L/min rated flow for high performance
- 250 bar maximum pressure for demanding applications
- 15 - 75 mm²/s operating viscosity range for compatibility with a wide range of fluids
- -40°C to +80°C ambient temperature range for use in a variety of environments
- 3 spool for increased control
- P40 series for compatibility with other P40 series valves
- Suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
- Compatible with a variety of models, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
