Výroba a dodávka
Výrobní doba 15-30 dní

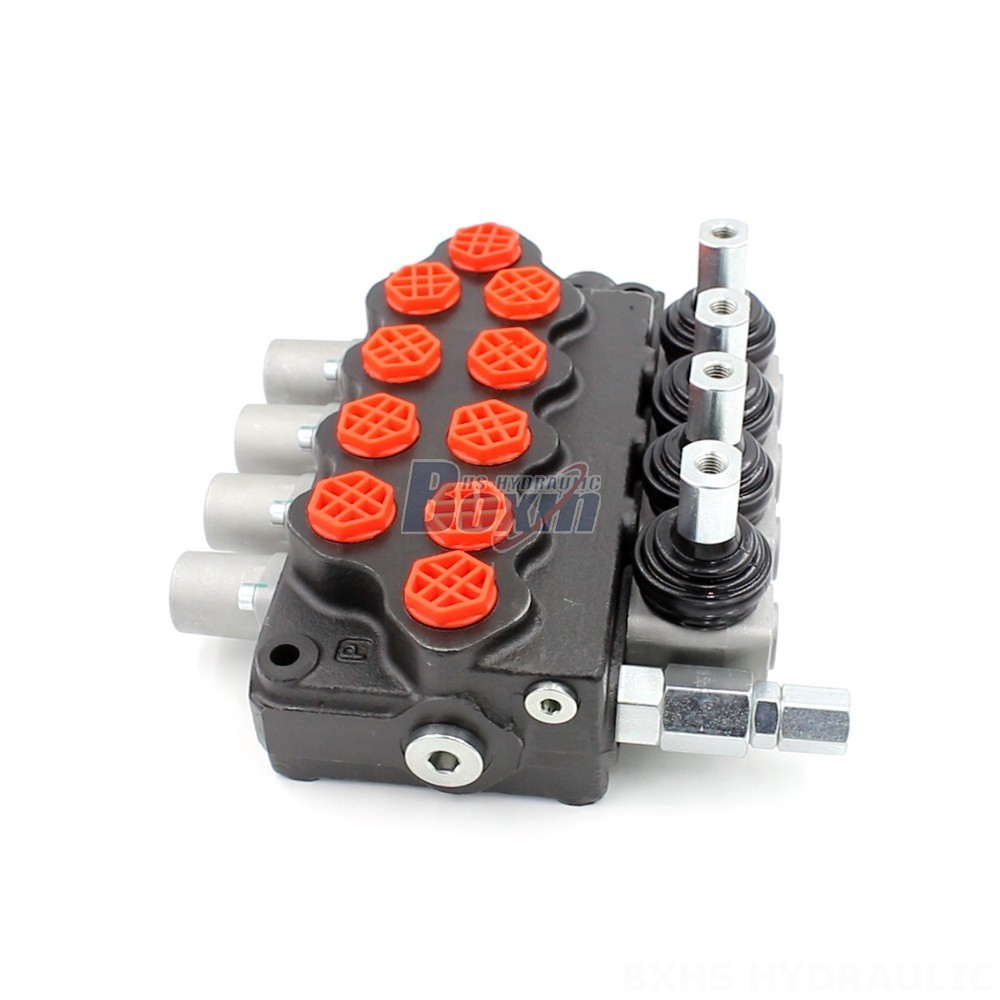

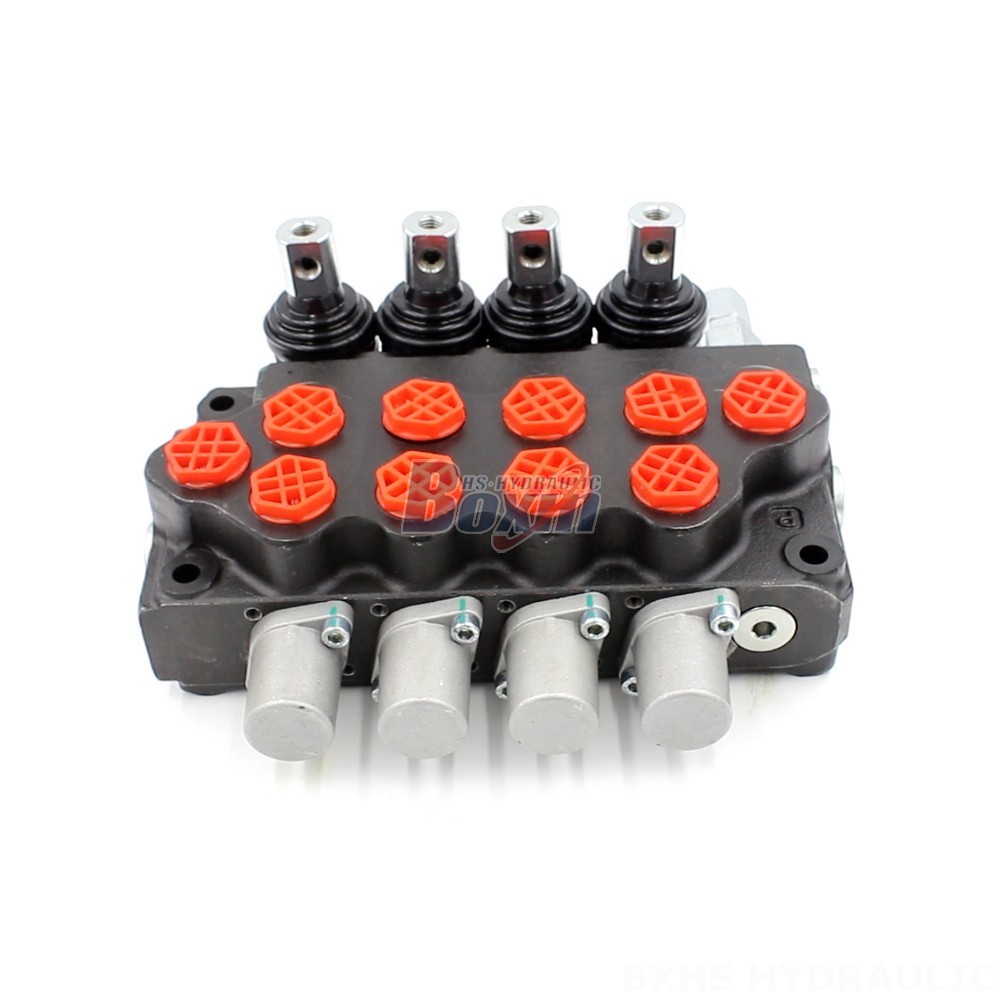

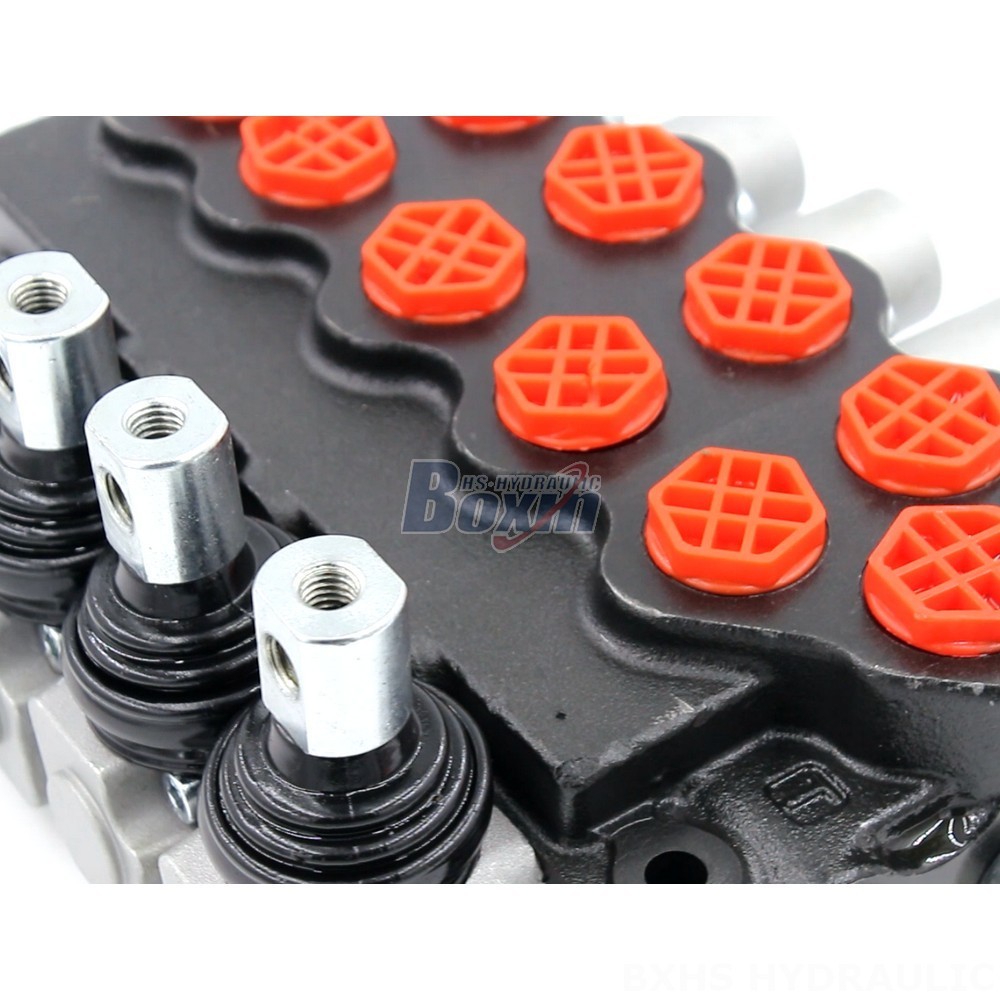

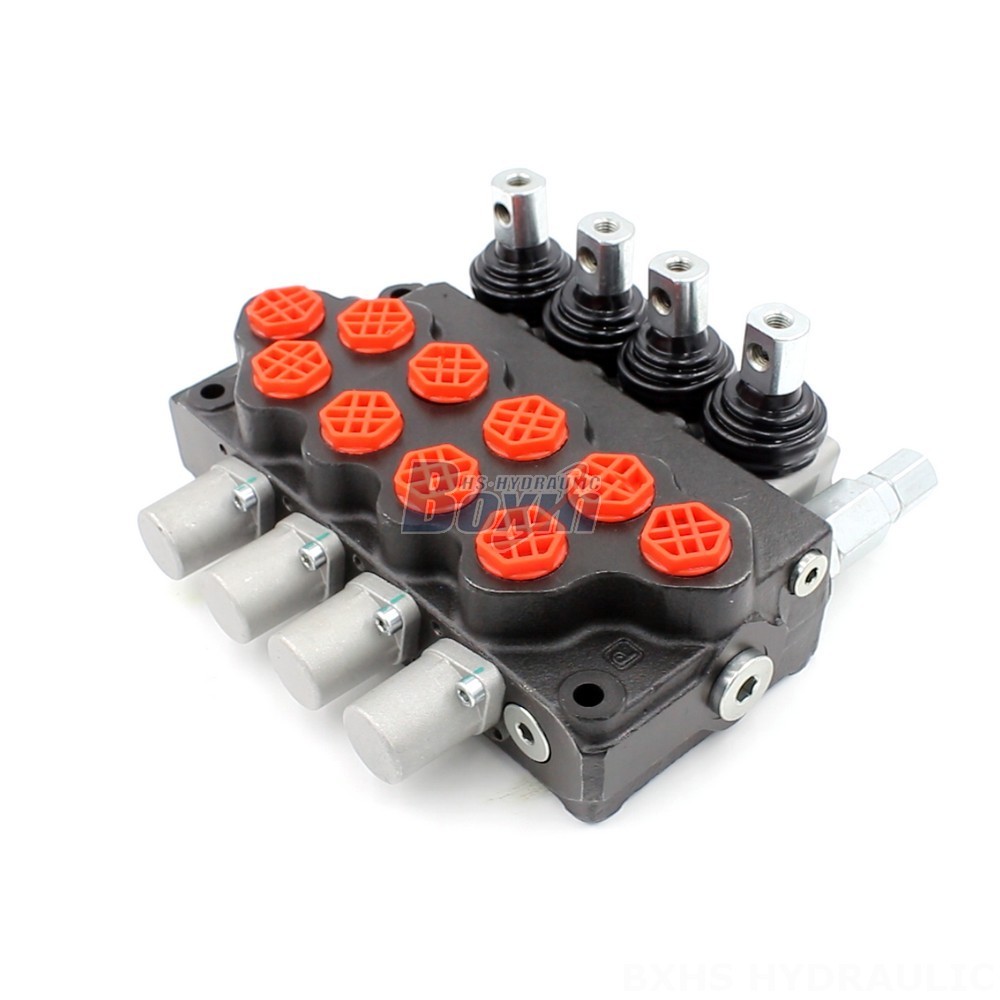

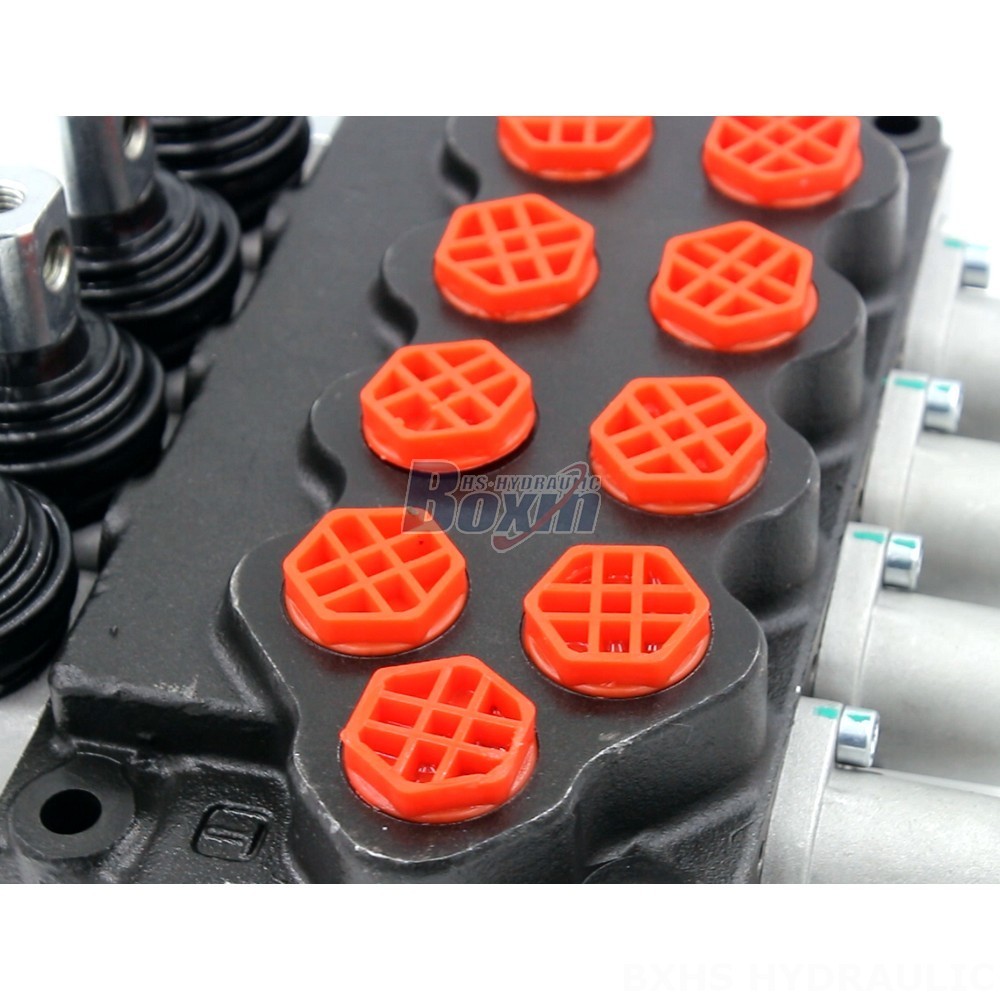

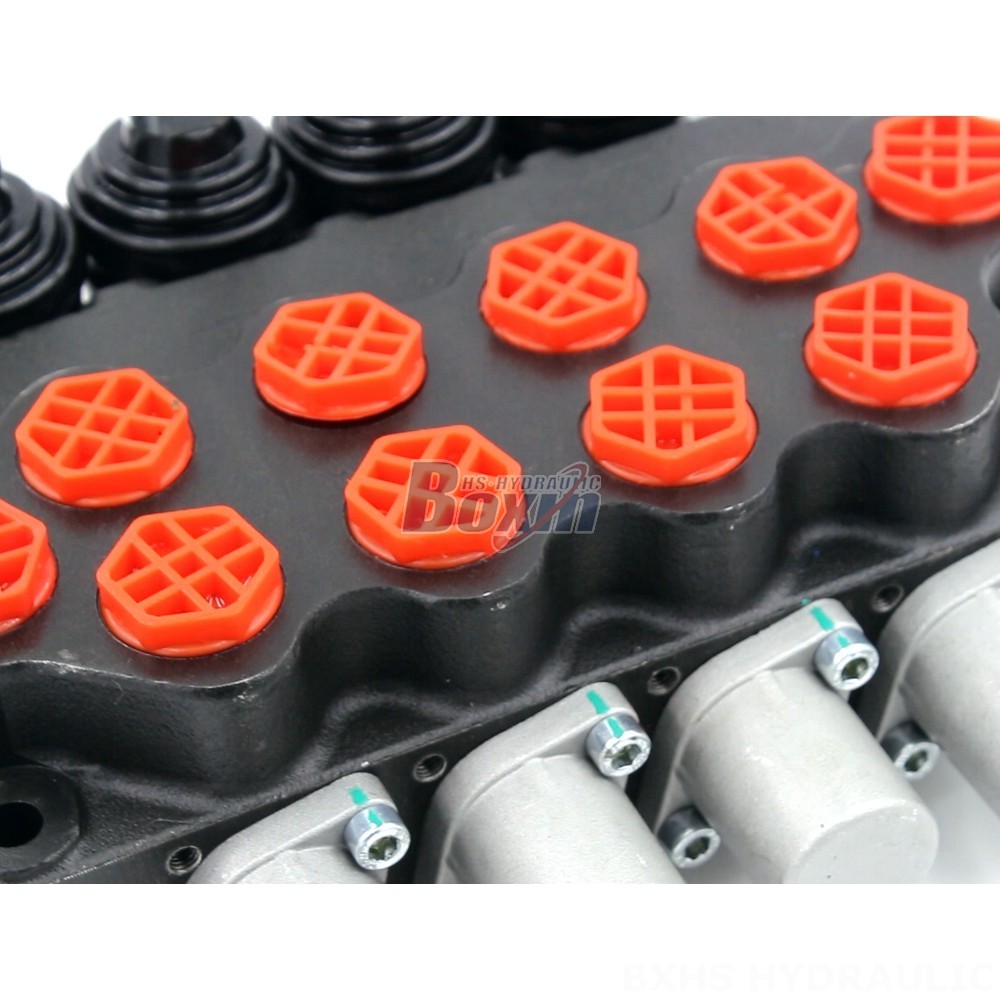

The SD5-G38 Hydraulic Two Way Valve is a high-performance, manual control valve designed for use in a variety of construction, material handling, and agricultural applications. This monoblock valve features a 4-section design, a 40 L/min rated flow, and a maximum pressure of 305 bar. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
| Řada SD5 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +60 °C (-40 °F až +140 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 305 bar (4400 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Výstupní port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Velikost portu | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5-G38 Hydraulic Two Way Valve is a robust and reliable valve that is ideal for demanding applications. It is manufactured from high-quality materials and is designed to withstand a wide range of operating conditions. The valve features a manual control method, a 4-section design, and a monoblock structure. It has a rated flow of 40 L/min and a maximum pressure of 305 bar. The operating viscosity range is 15-75 mm²/s and the ambient temperature range is -40°C to +60°C. This valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. We offer wholesale and customization options for this product.
