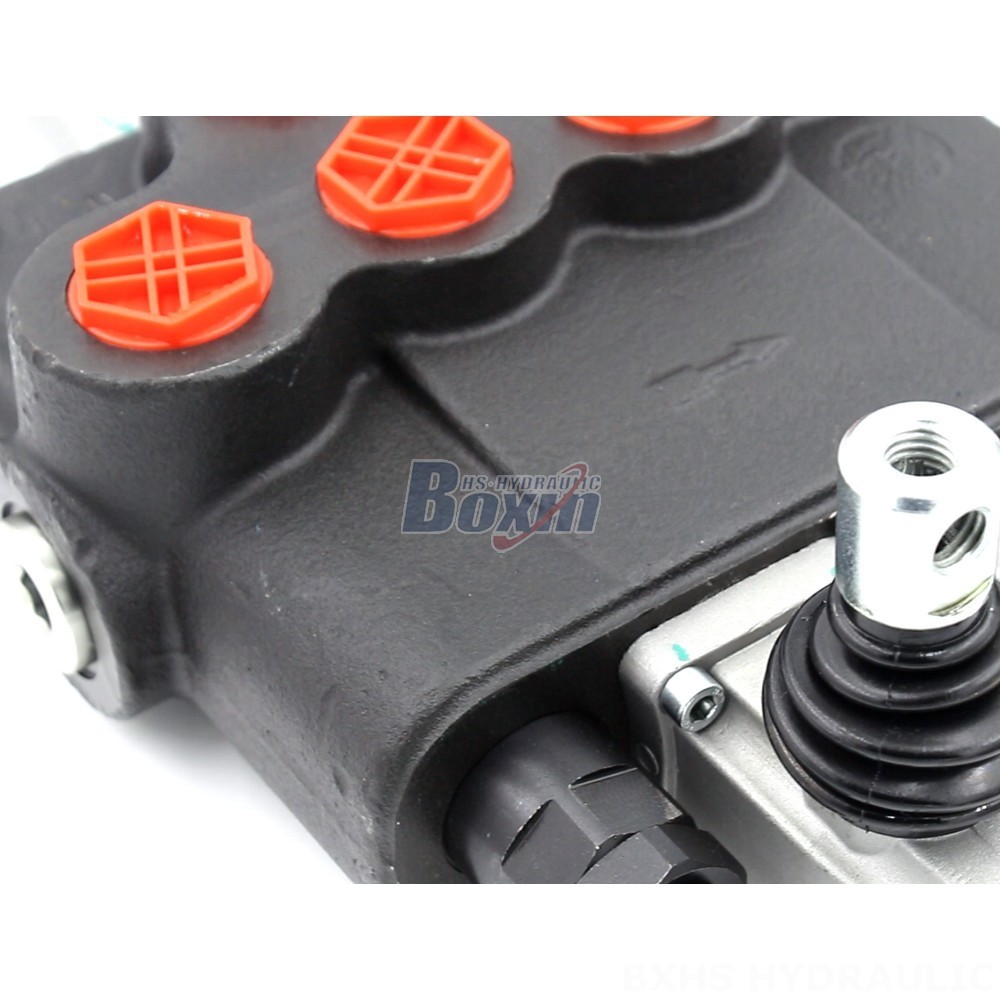

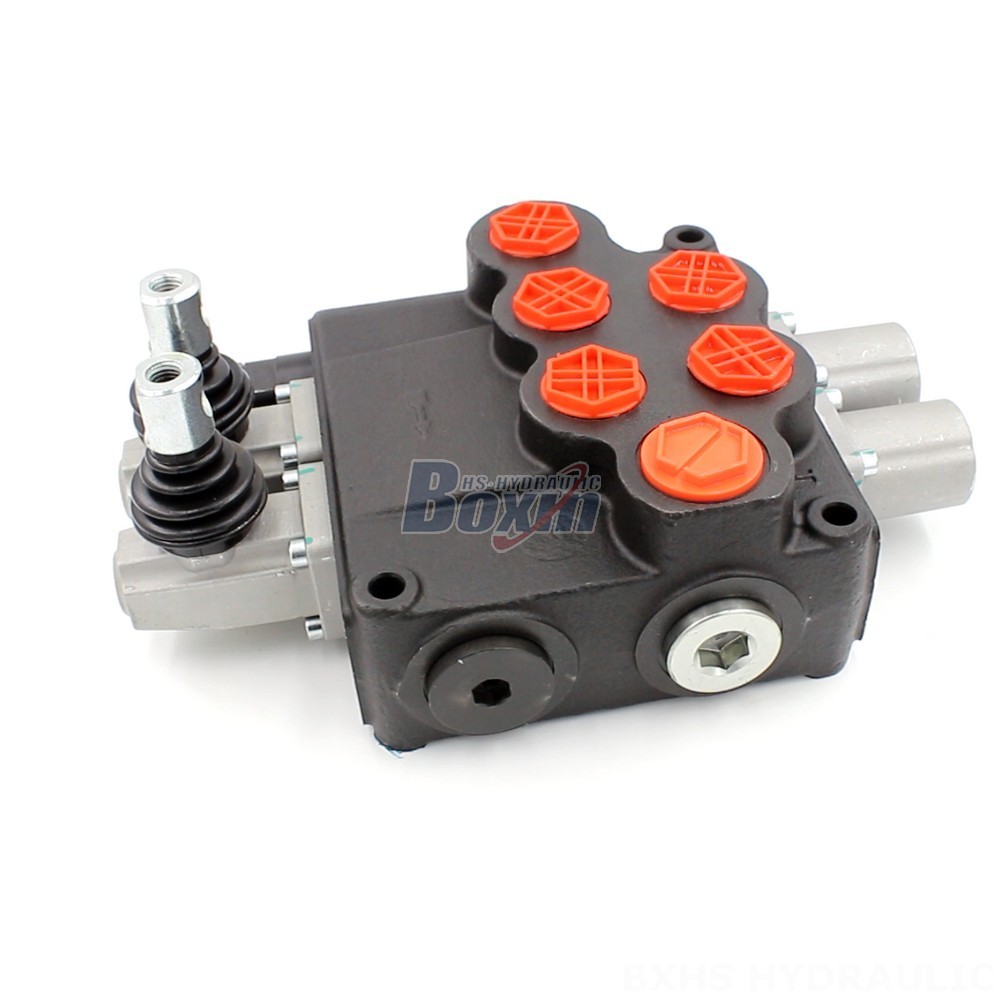

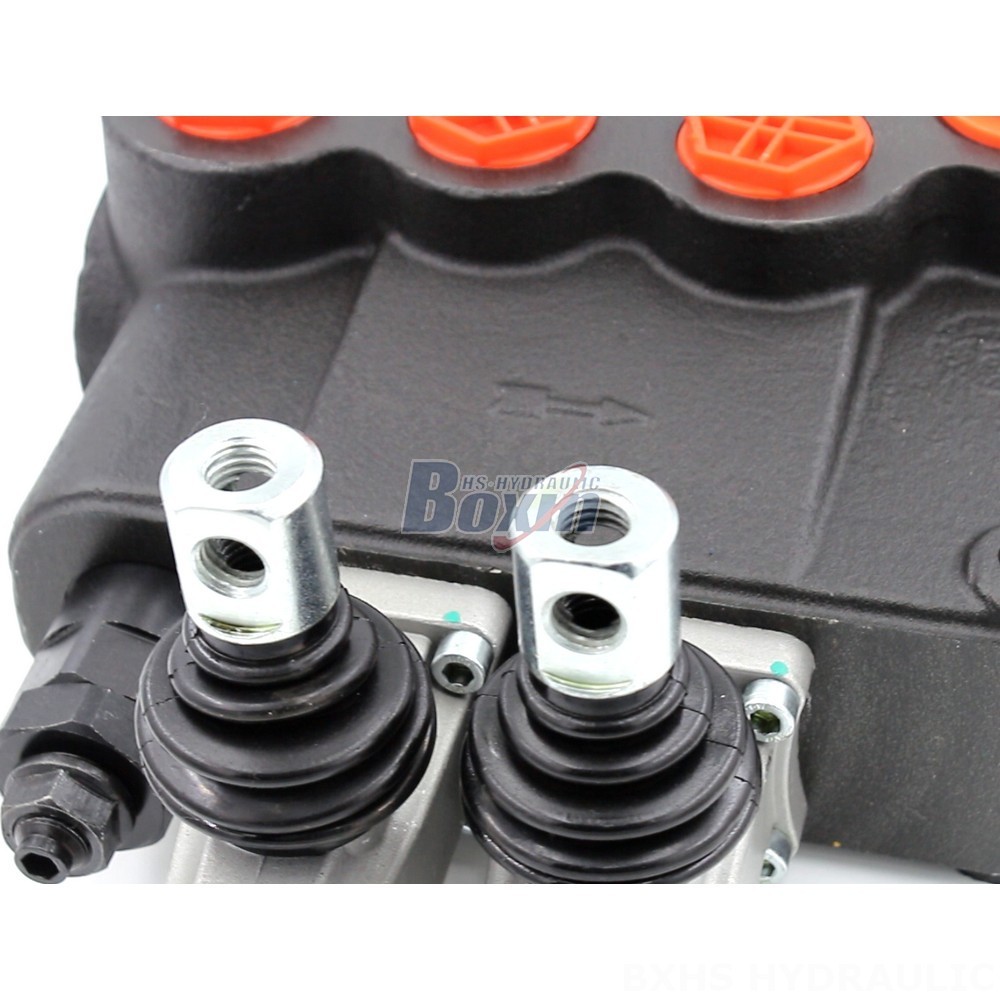

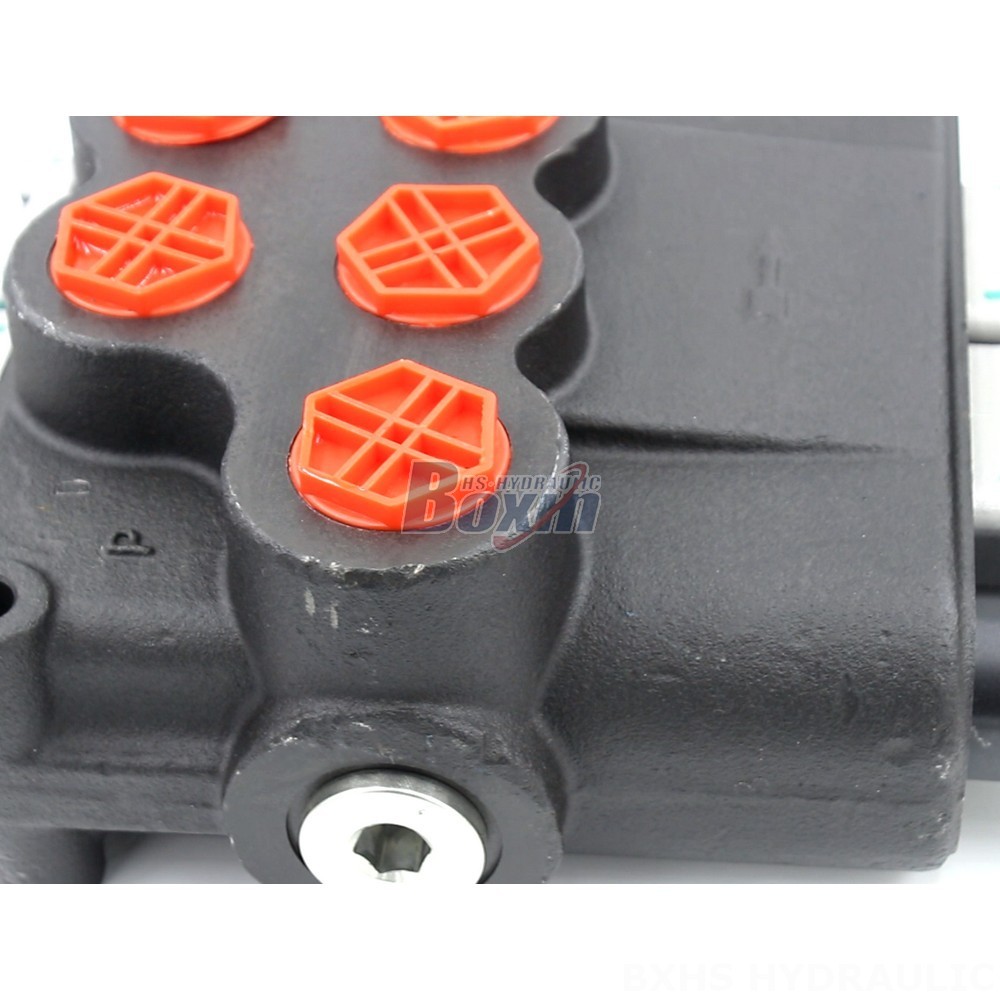

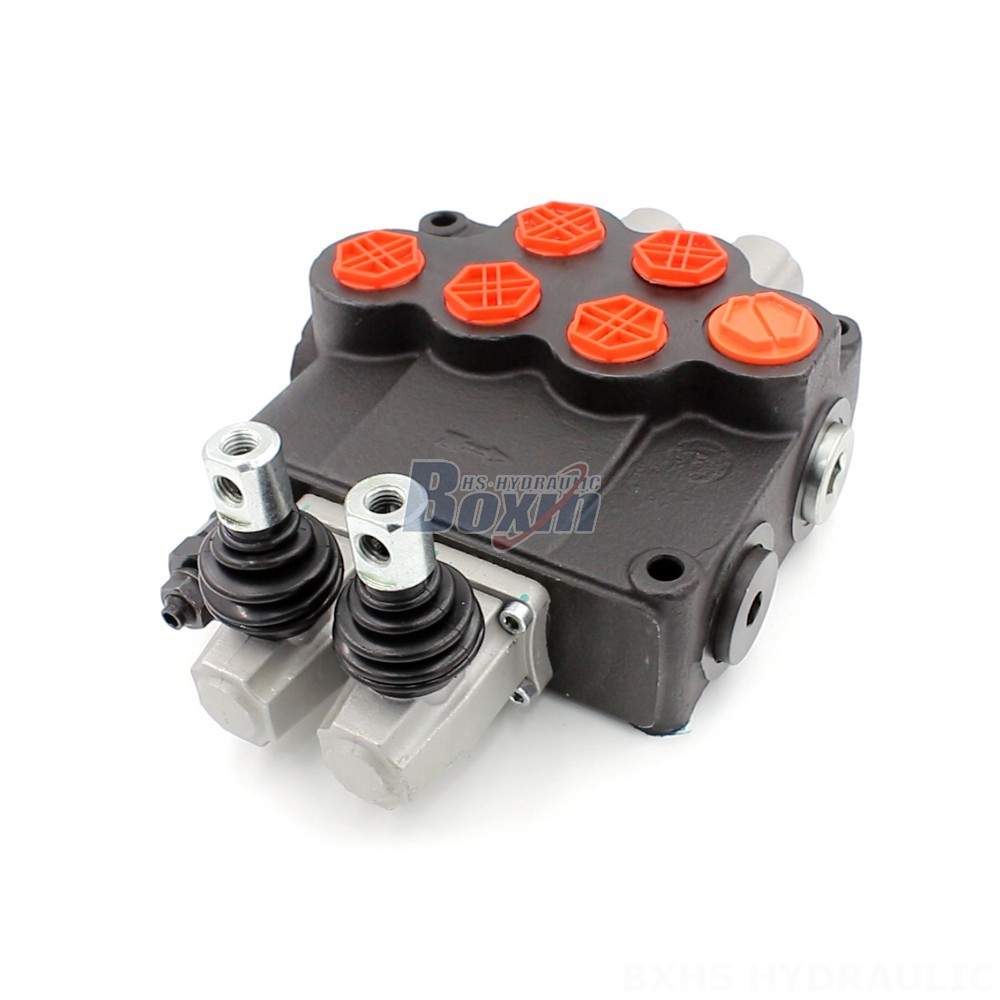

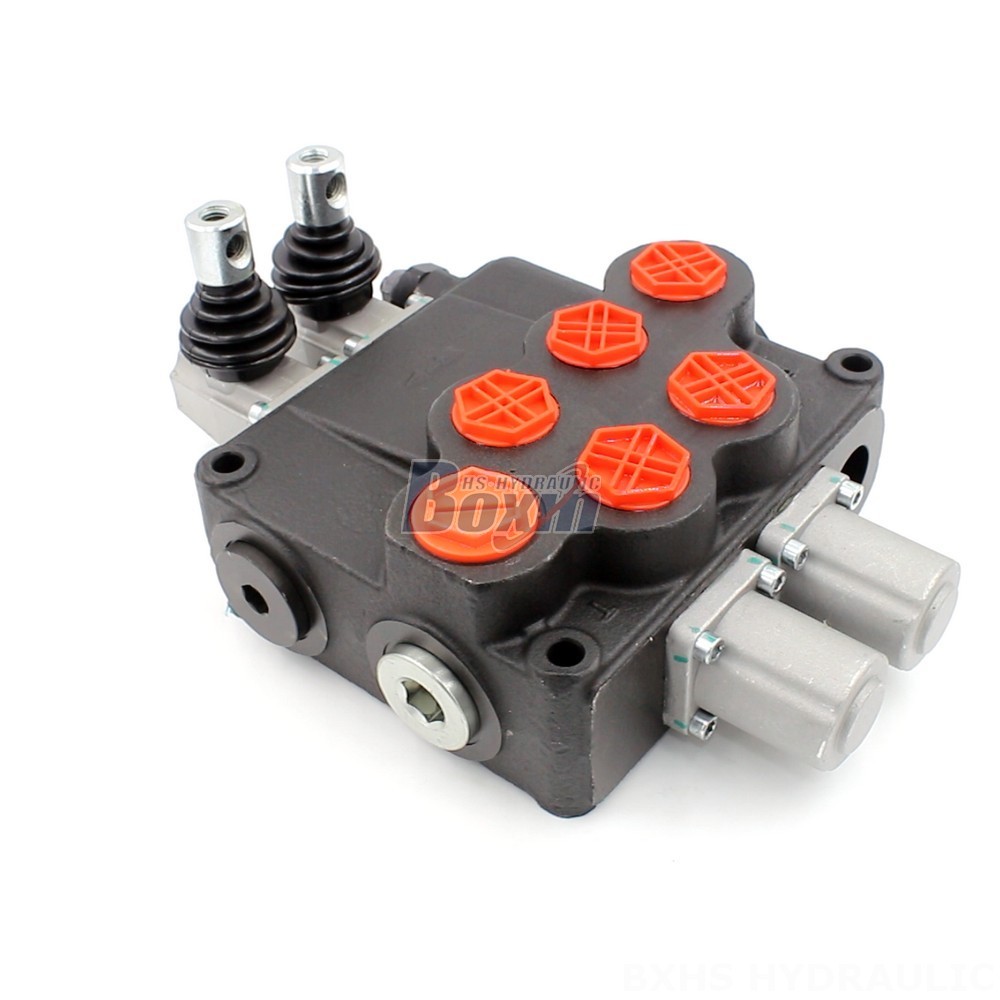

The P120 Series is a heavy-duty, manual, monoblock directional control valve designed for use in construction and material handling equipment. It offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications.
| Série P120 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Kabel, Joystick, Ruční a joystick |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky |
| Jmenovitý průtok | 120 l/min (31,7 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Výstupní port | G1, SAE 16, 1 NPT, M36×2 |
| Velikost portu | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4 |
| Typ konstrukce | Blokový ventil |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
The P120 Series is a 2-section, manual, monoblock directional control valve manufactured for use in demanding applications such as construction equipment, material handling, agriculture, and industrial vehicles. It features a robust design with a rated flow of 120 L/min and a maximum pressure of 250 bar. The valve is equipped with 2 spools and is designed for use with hydraulic fluids within an operating viscosity range of 15 - 75 mm²/s. The valve operates reliably in ambient temperatures ranging from -40°C to +80°C. This series is specifically designed for applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The P120 Series is available as an OEM or ODM solution, allowing for customization to meet specific application requirements.
