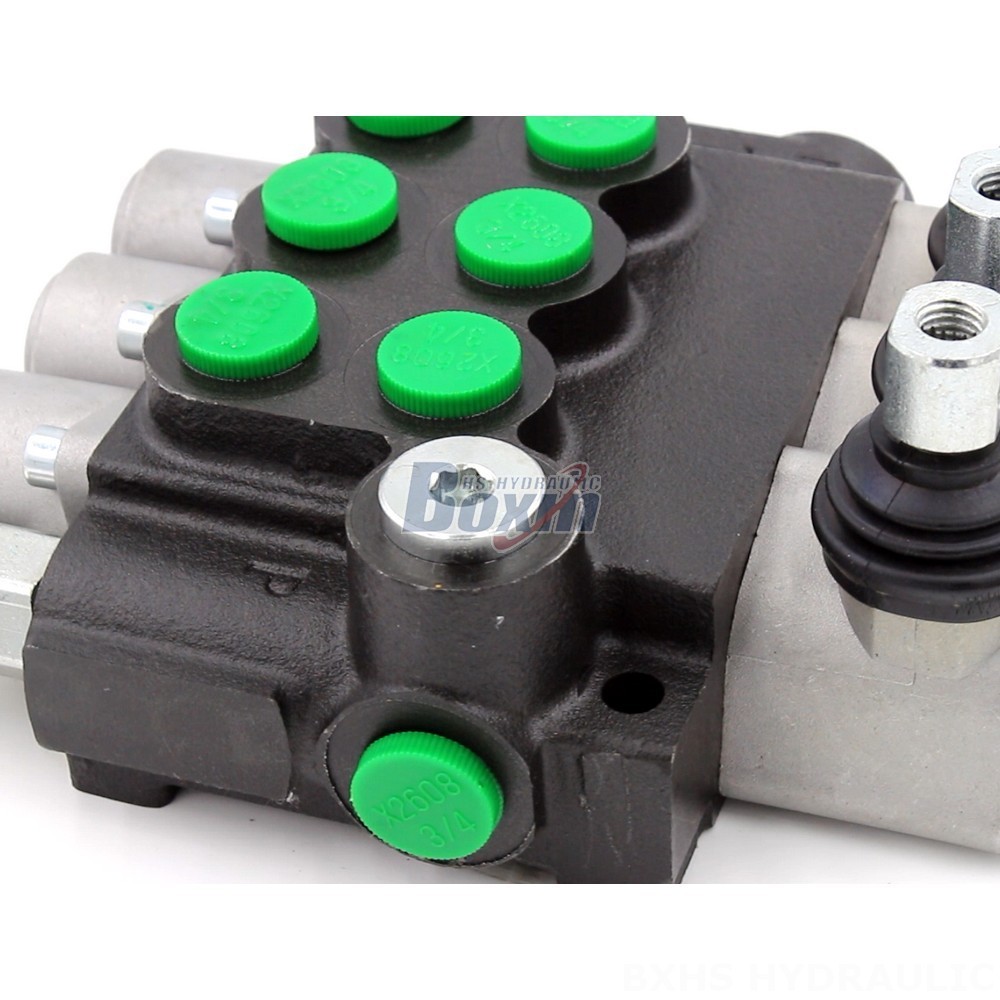

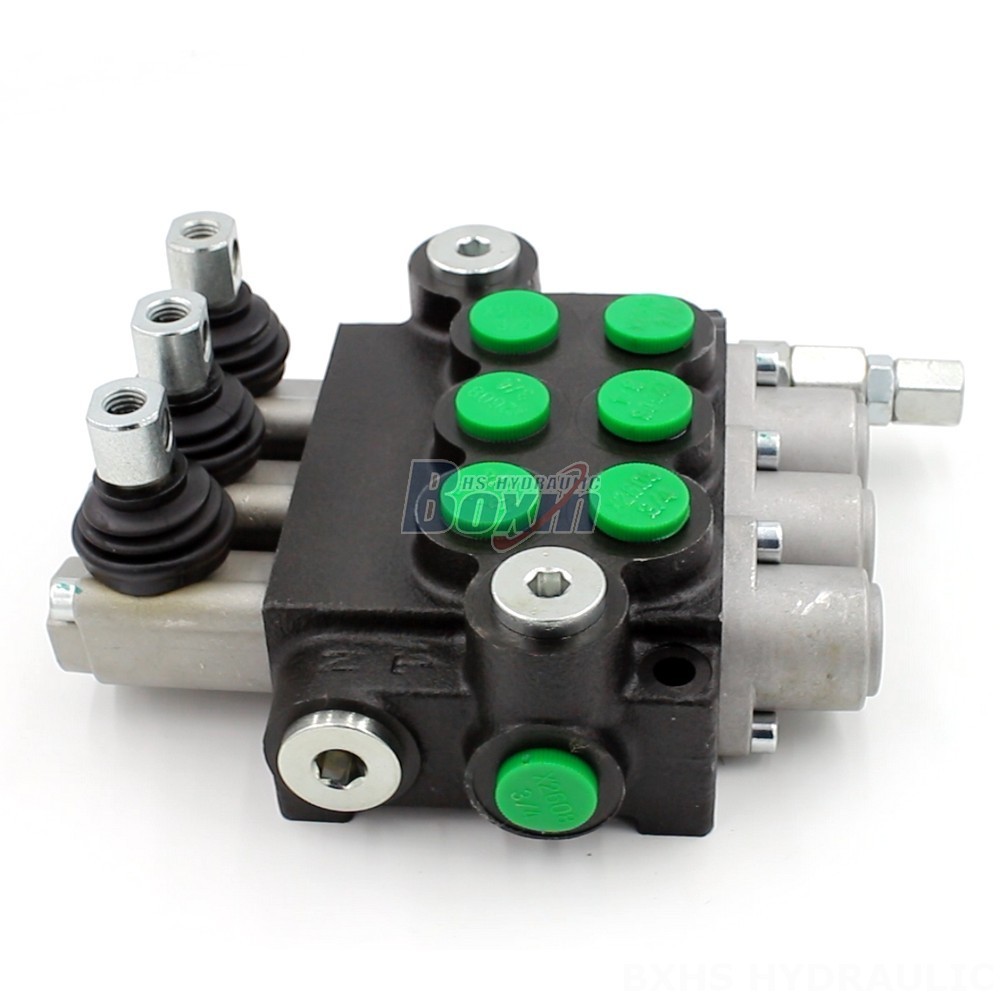

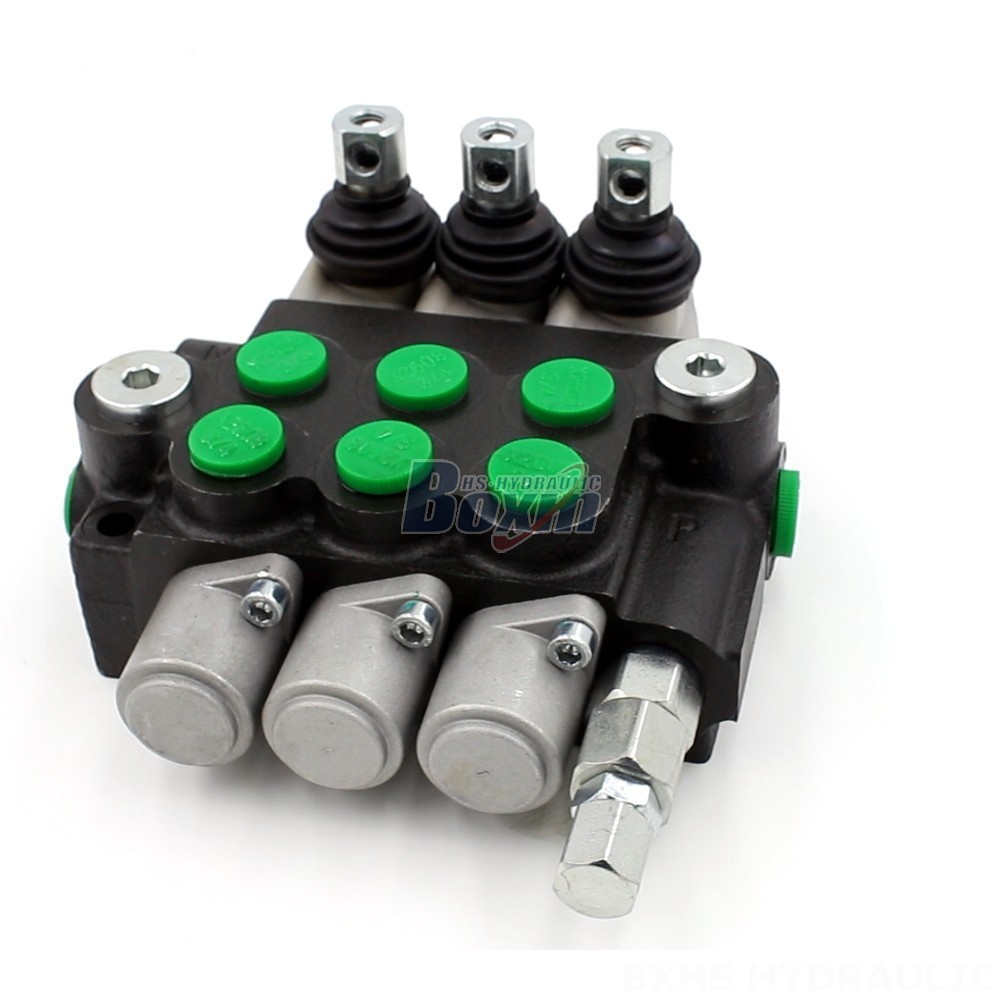

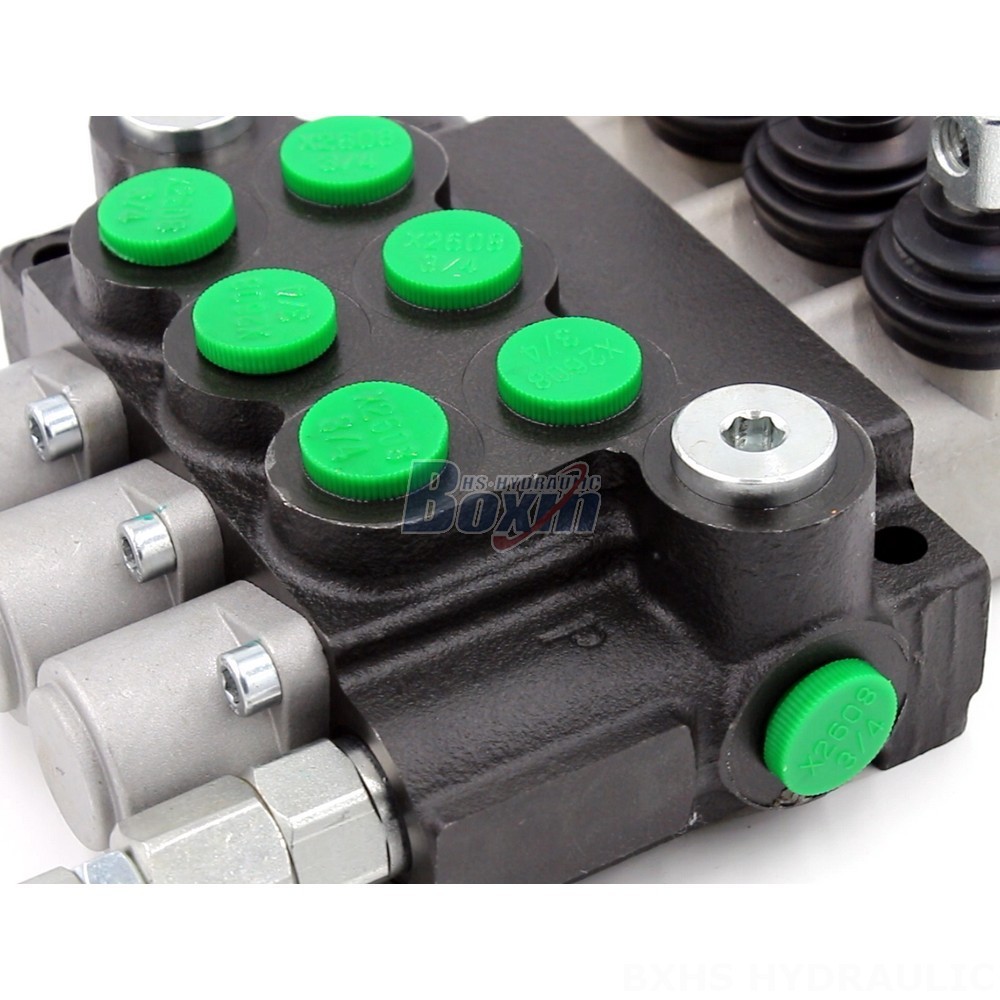

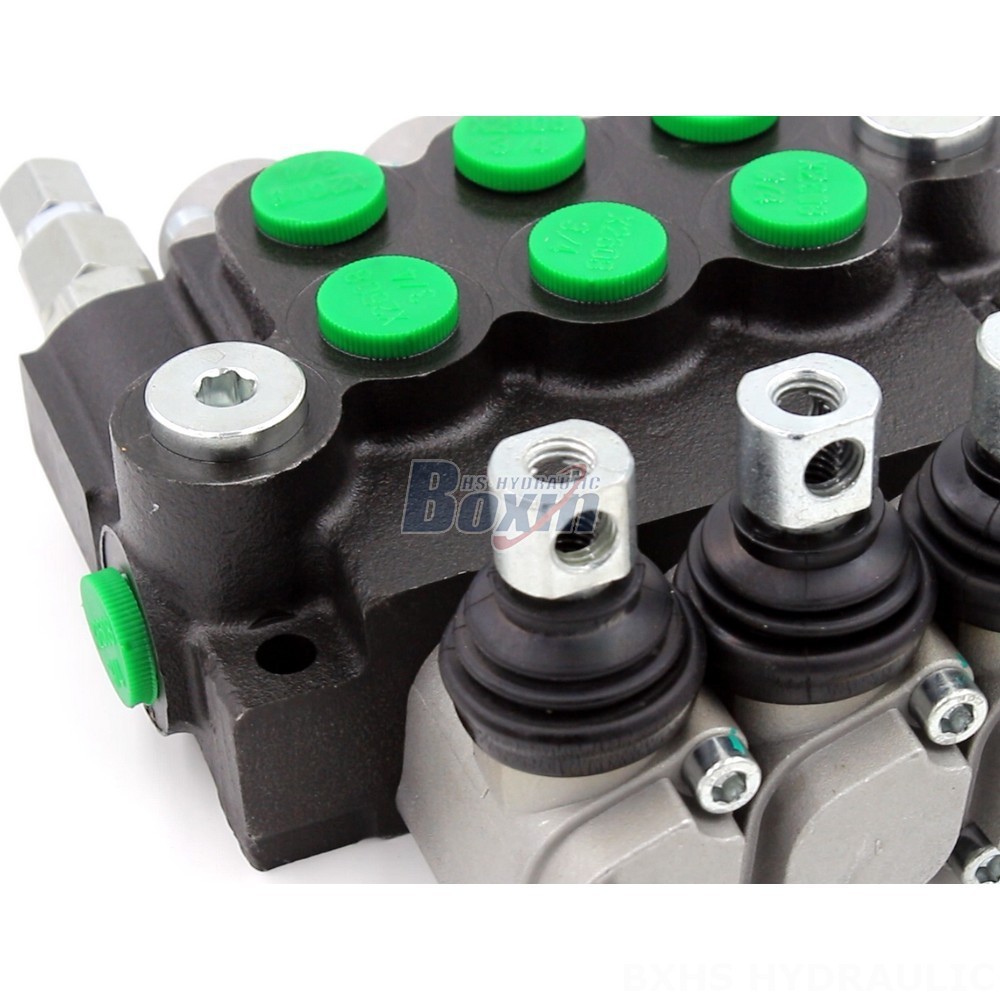

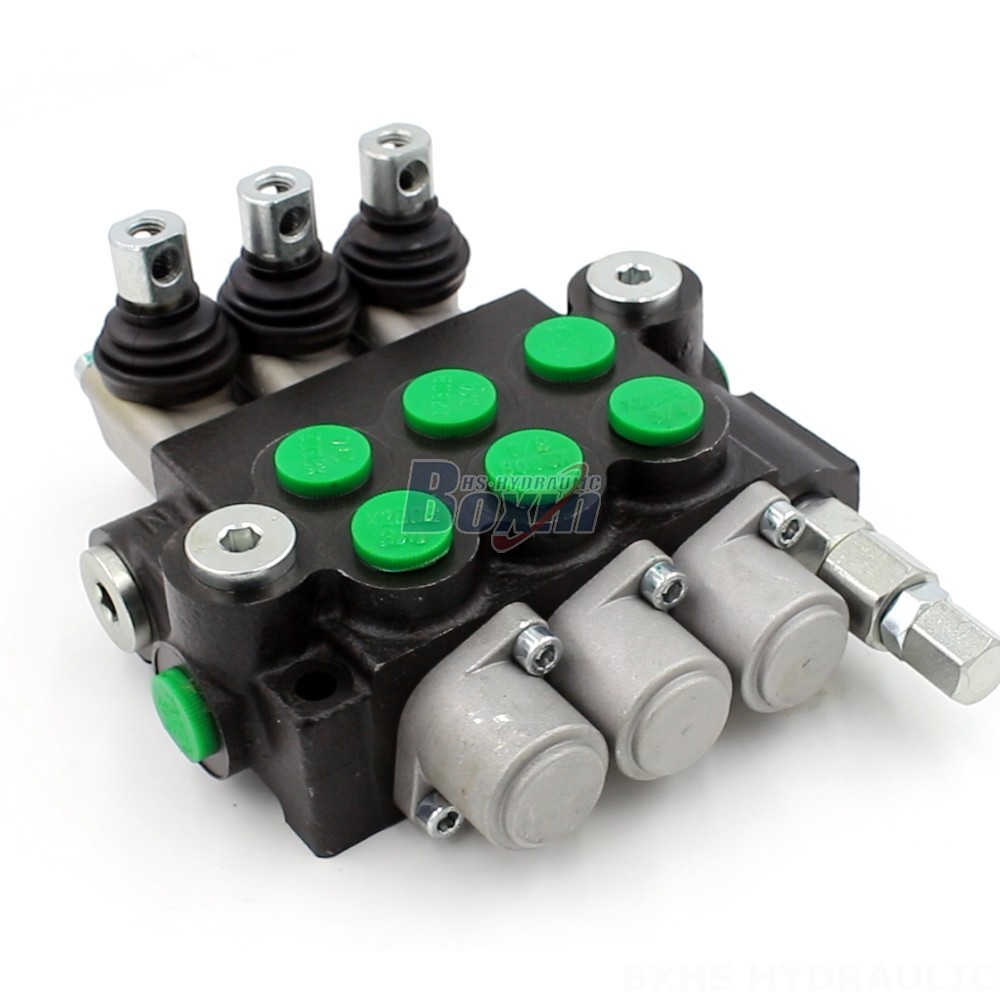

The P40-U34-OT Monoblock Directional Valve is a hydraulic control component with three spools, designed for use in a wide range of industrial applications, including construction machinery, material handling equipment, agriculture, and industrial vehicles.
| Série P40 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Product Details:**
The P40-U34-OT Monoblock Directional Valve features a robust monoblock construction, ensuring high structural integrity and durability. It offers a rated flow capacity of 40 L/min (10.5 US gpm) and can withstand a maximum operating pressure of 250 bar (3600 psi). The valve operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and is compatible with hydraulic fluids with viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt).
This directional valve provides precise control over the flow of hydraulic fluid, enabling the actuation and operation of hydraulic systems. It is commonly used in applications requiring precise control of hydraulic cylinders, motors, and other actuators to achieve desired movements and functions.
**Key Features:**
* Monoblock design for superior strength and reliability
* Three spool configuration for versatile flow control
* High flow capacity of 40 L/min (10.5 US gpm)
* Maximum operating pressure of 250 bar (3600 psi)
* Wide ambient temperature range (-40°C to +80°C)
* Compatible with various hydraulic fluids (15 to 75 mm²/s viscosity range)
* Suitable for a broad spectrum of industrial applications
**Applications:**
* Construction Machinery (e.g., excavators, cranes, loaders)
* Material Handling Equipment (e.g., forklifts, telehandlers)
* Agriculture Machinery (e.g., tractors, harvesters)
* Industrial Vehicles (e.g., aerial platforms, skid steer loaders)
The P40-U34-OT Monoblock Directional Valve is an essential component for hydraulic systems in demanding industrial environments, ensuring precise control, reliability, and durability.
