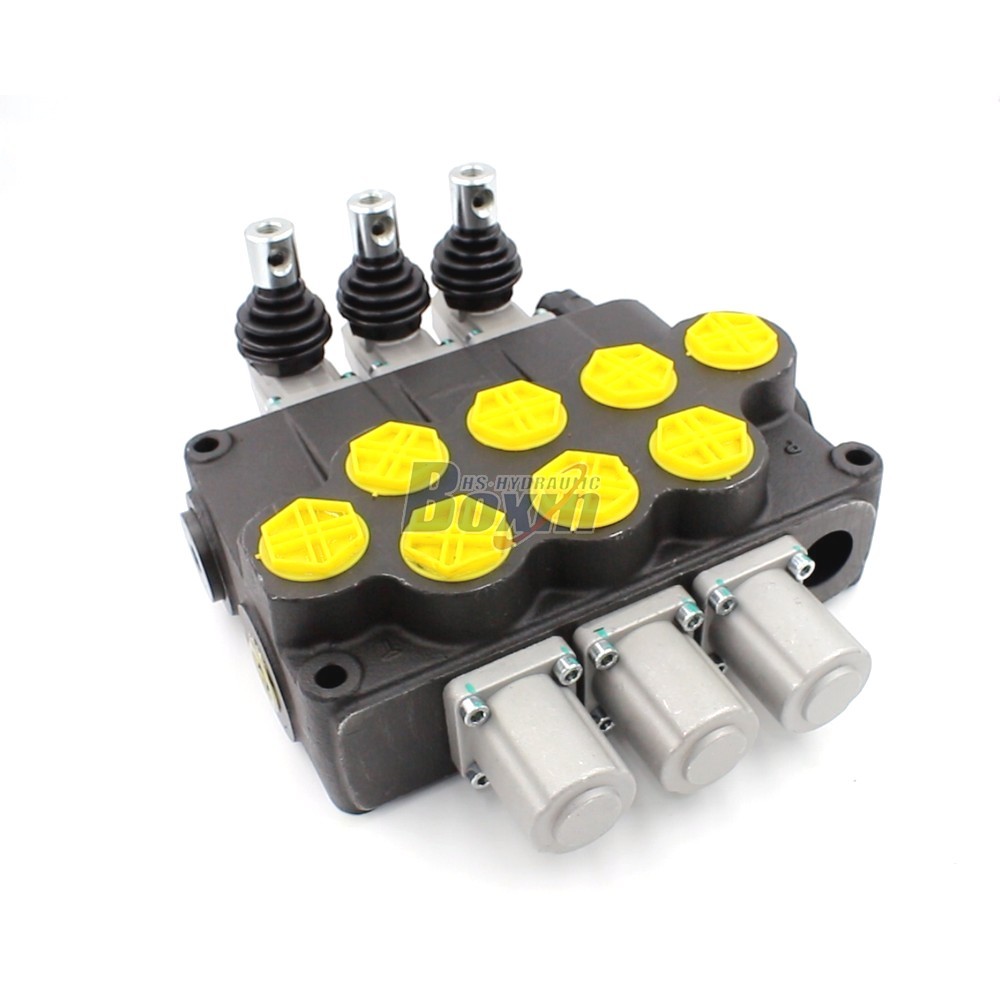

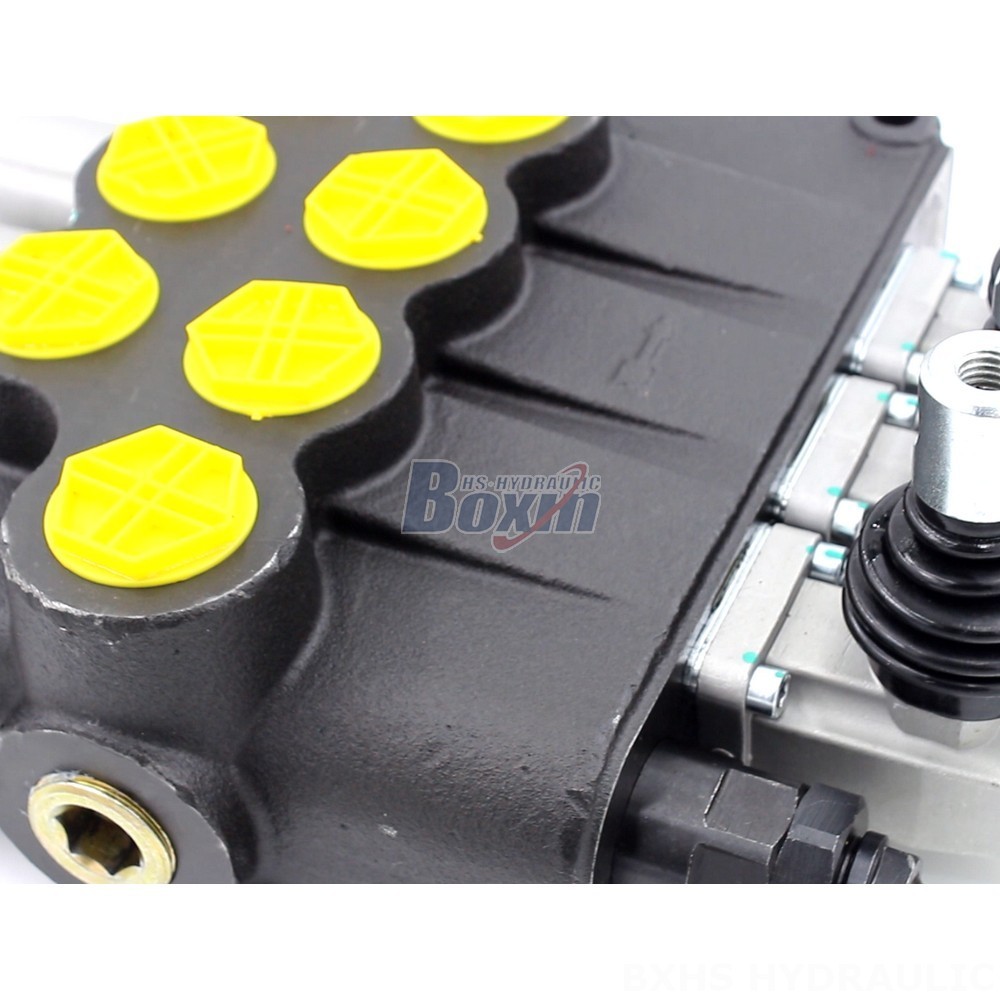

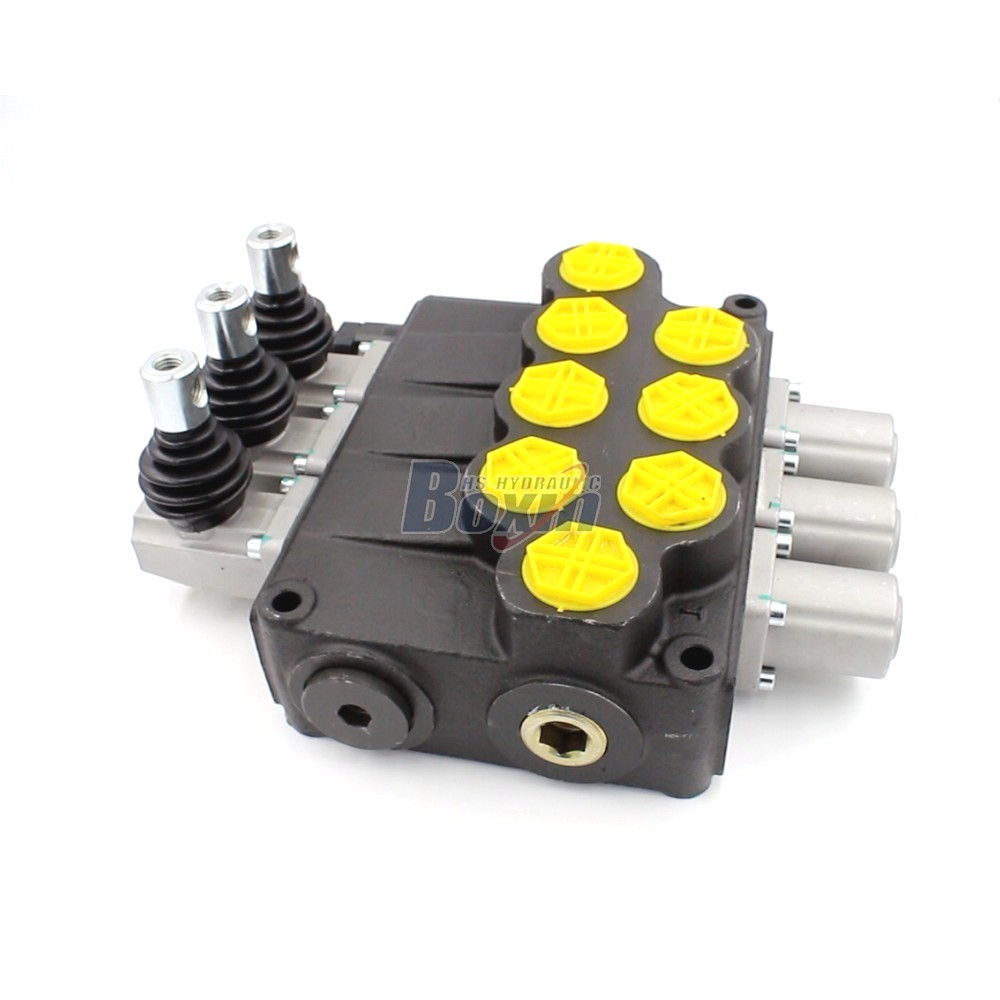

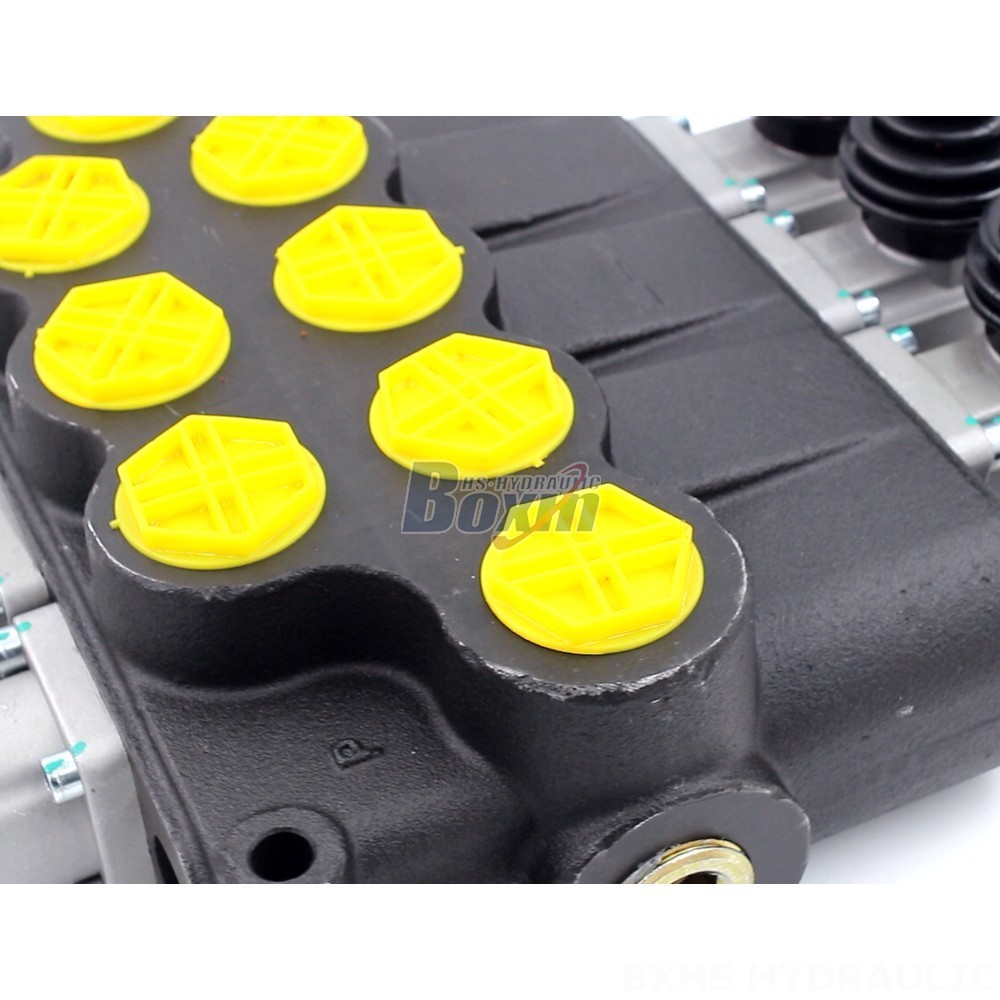

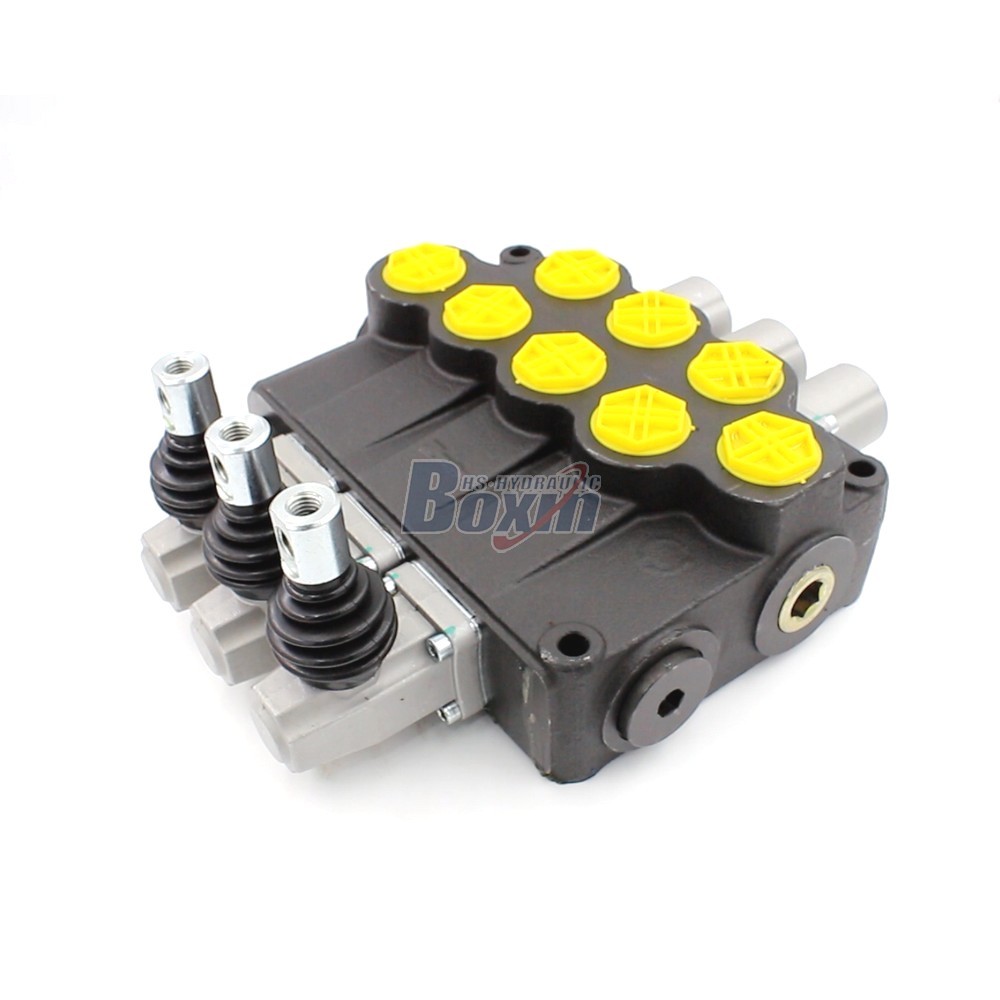

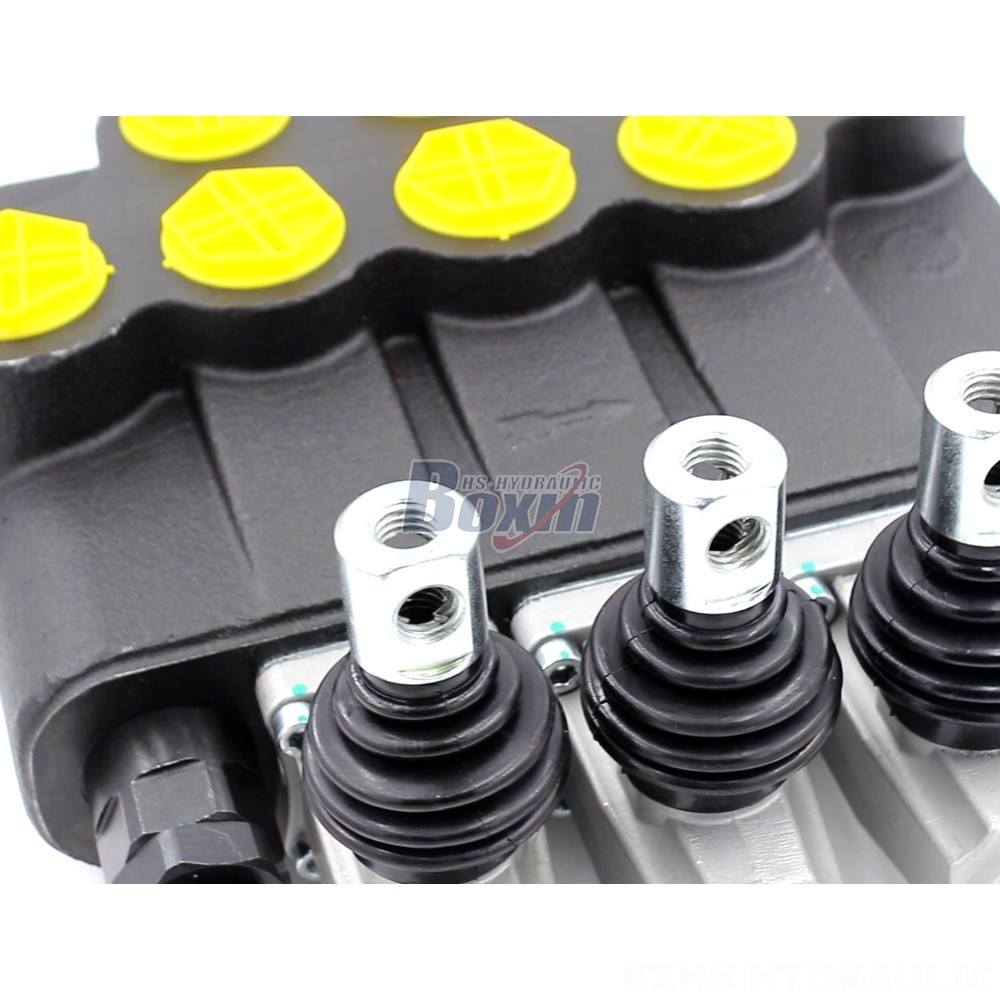

The P120-G1-OT 3 Spool Hydraulic Directional Valve is a high-performance, manually operated valve designed for demanding applications in various industries. With a rated flow of 120 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation in a wide range of hydraulic systems.
| Série P120 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Kabel, Joystick, Ruční a joystick |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky |
| Jmenovitý průtok | 120 l/min (31,7 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Výstupní port | G1, SAE 16, 1 NPT, M36×2 |
| Velikost portu | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4 |
| Typ konstrukce | Blokový ventil |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
**Key Features:**
- Manual control for precise and responsive operation
- Monoblock construction for durability and compact design
- 3 spool design for versatile flow control
- Rated flow of 120 L/min (31.7 US gpm) for high-flow applications
- Maximum pressure of 250 bar (3600 psi) for demanding conditions
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme environments
**Applications:**
- Material handling equipment, such as forklifts and telehandlers
- Construction machinery, including excavators, skid steer loaders, and wheel loaders
- Agricultural machinery, such as tractors and harvesters
- Industrial vehicles, including aerial platforms and motor graders
