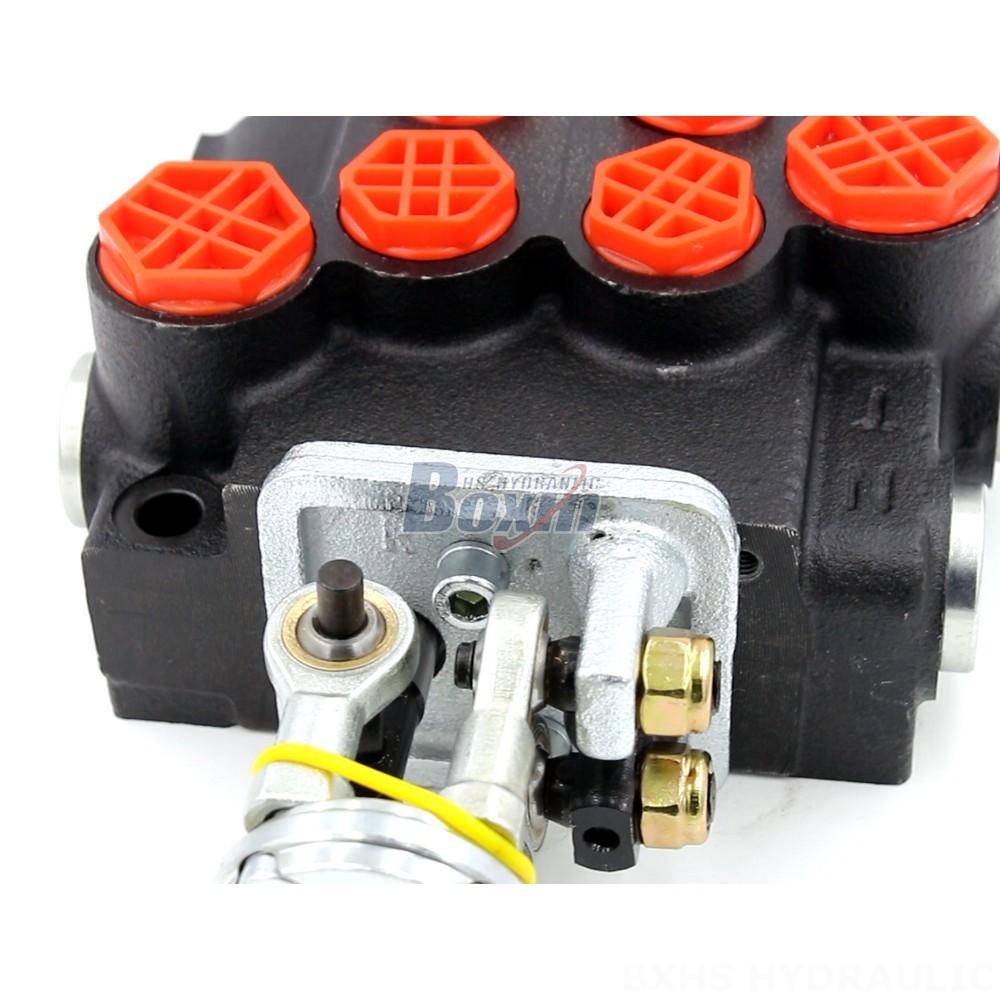

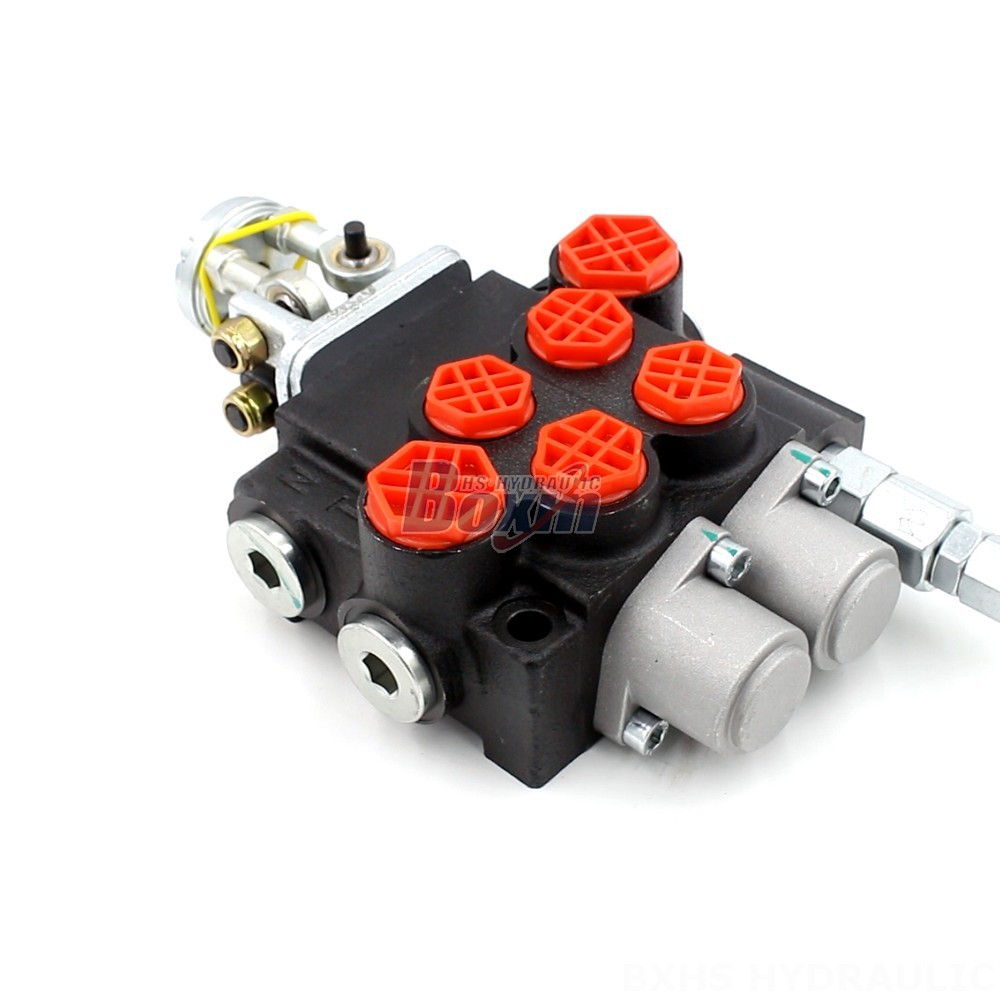

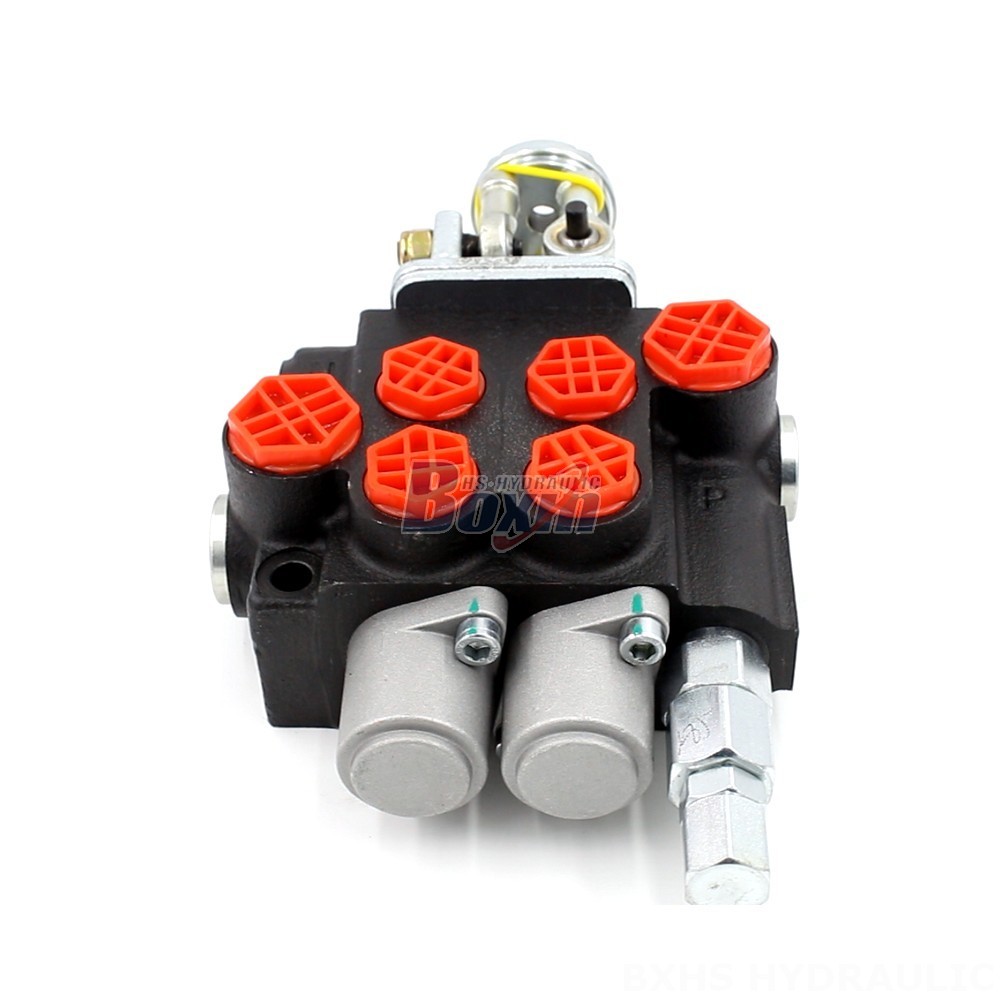

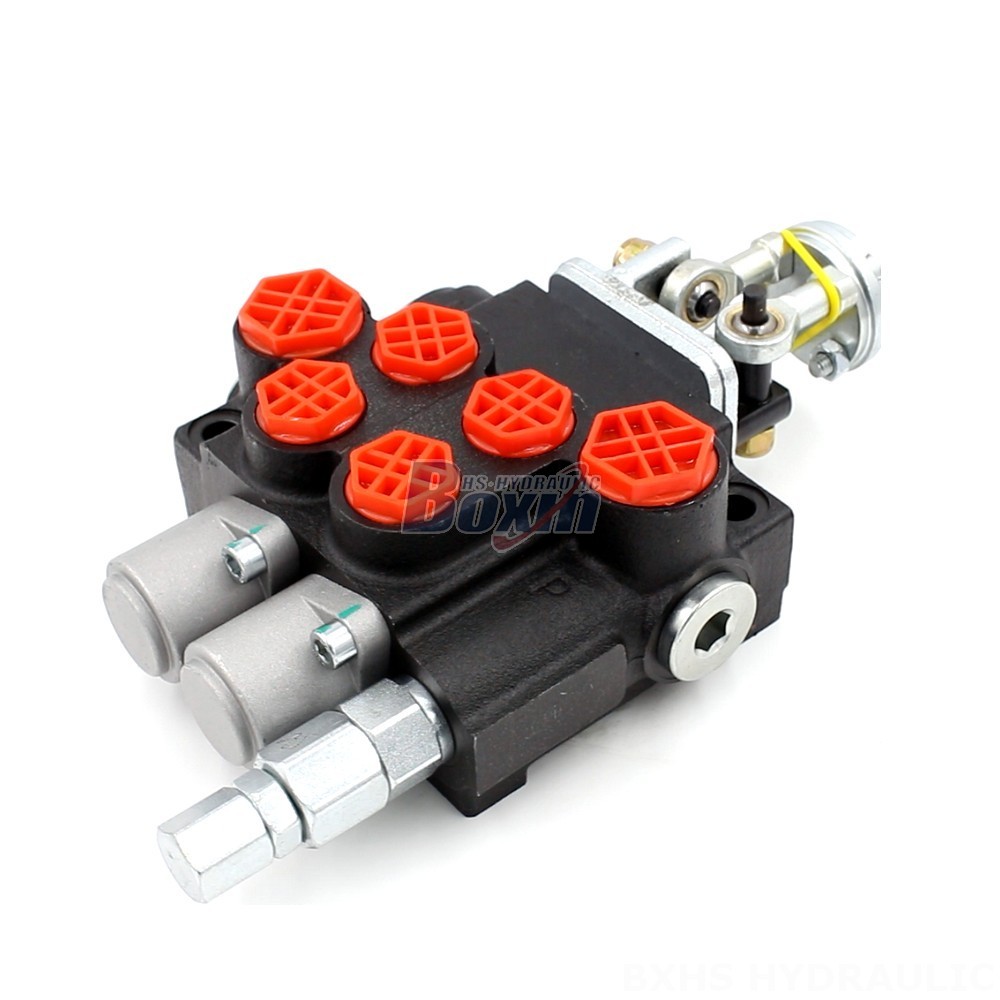

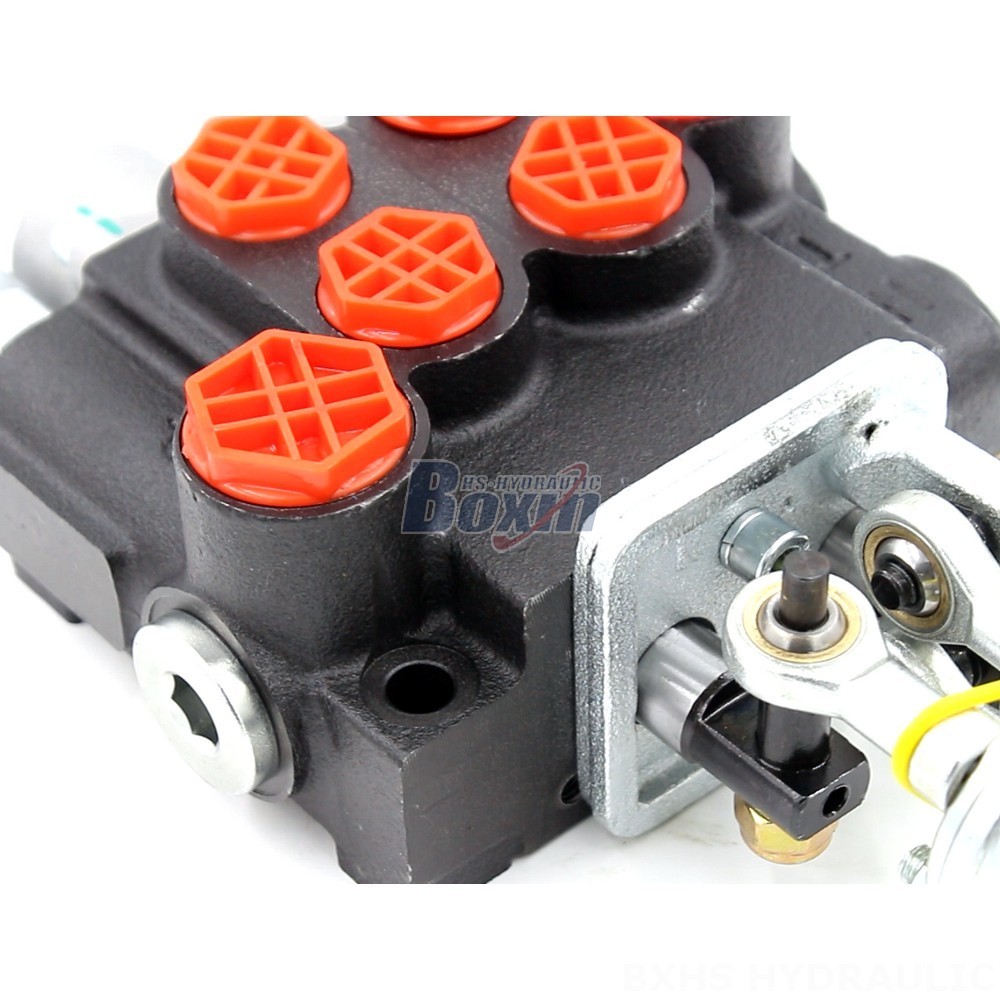

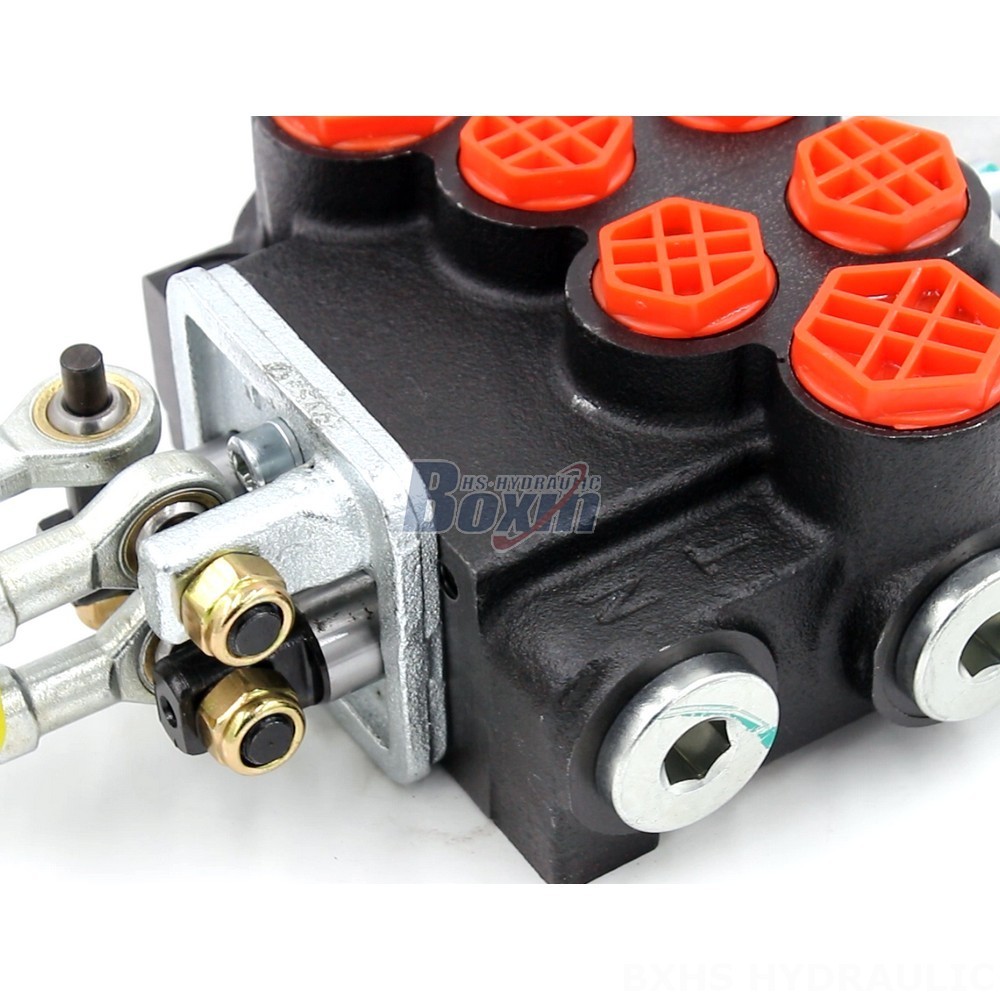

The P40-2OT is a 4 Spool Hydraulic Valve Monoblock in the P40 Series, designed for a variety of applications in construction, material handling, agriculture and industrial vehicles. This valve features 2 sections, a rated flow of 40 L/min and a maximum pressure of 250 bar. It's available with manual or joystick control and is customizable to meet your specific needs.
| Série P40 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-2OT is a high-performance 4 Spool Hydraulic Valve Monoblock designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a compact and robust design, offering superior reliability and durability. This valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of hydraulic systems. The P40-2OT comes with 2 sections and a choice of manual or joystick control, providing flexibility in operation. The valve features a Monoblock structure, ensuring leak-free performance and long service life. It can handle a wide range of operating viscosities, from 15 to 75 mm²/s, and is designed to withstand temperatures ranging from -40°C to +80°C. This valve is fully customizable, allowing you to specify the spool configuration, control method, and other features to meet your specific requirements. The P40-2OT is suitable for use in various vehicles and equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
