P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

Metoda řízení:Ruční

Šoupátko:4 cívky

Jmenovitý průtok:40 l/min (10,5 US gpm)

Maximální tlak:250 bar (3600 psi)

Vstupní port:G1/2

Výstupní port:G1/2

Velikost portu:G3/8

Značka:BXHS

Typ produktu:Monoblokový směrový ventil

Produktová řada:Série P40 Monoblokový směrový ventil

Velikost balení:24*23*13

Hrubá hmotnost:8.20 kg

Dostupnost: Skladem

1431 Zobrazení hledají tento produkt

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications drawing image

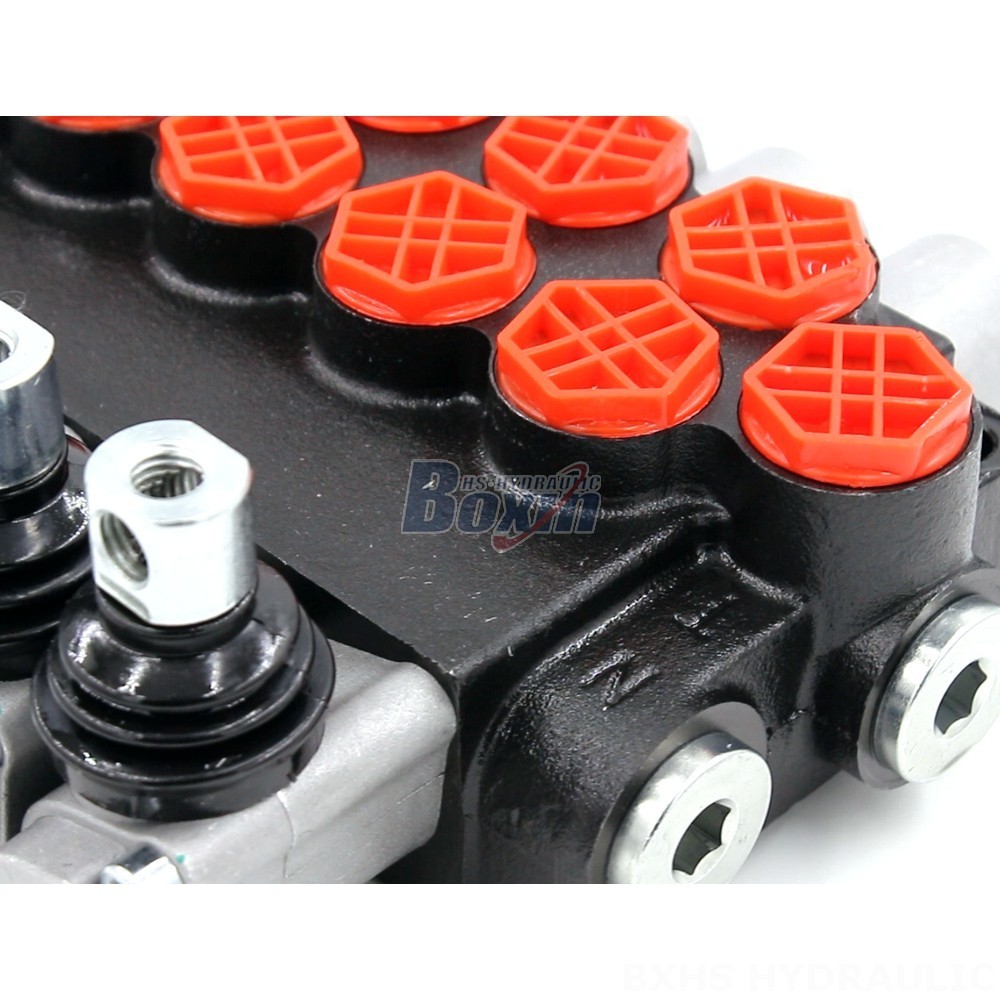

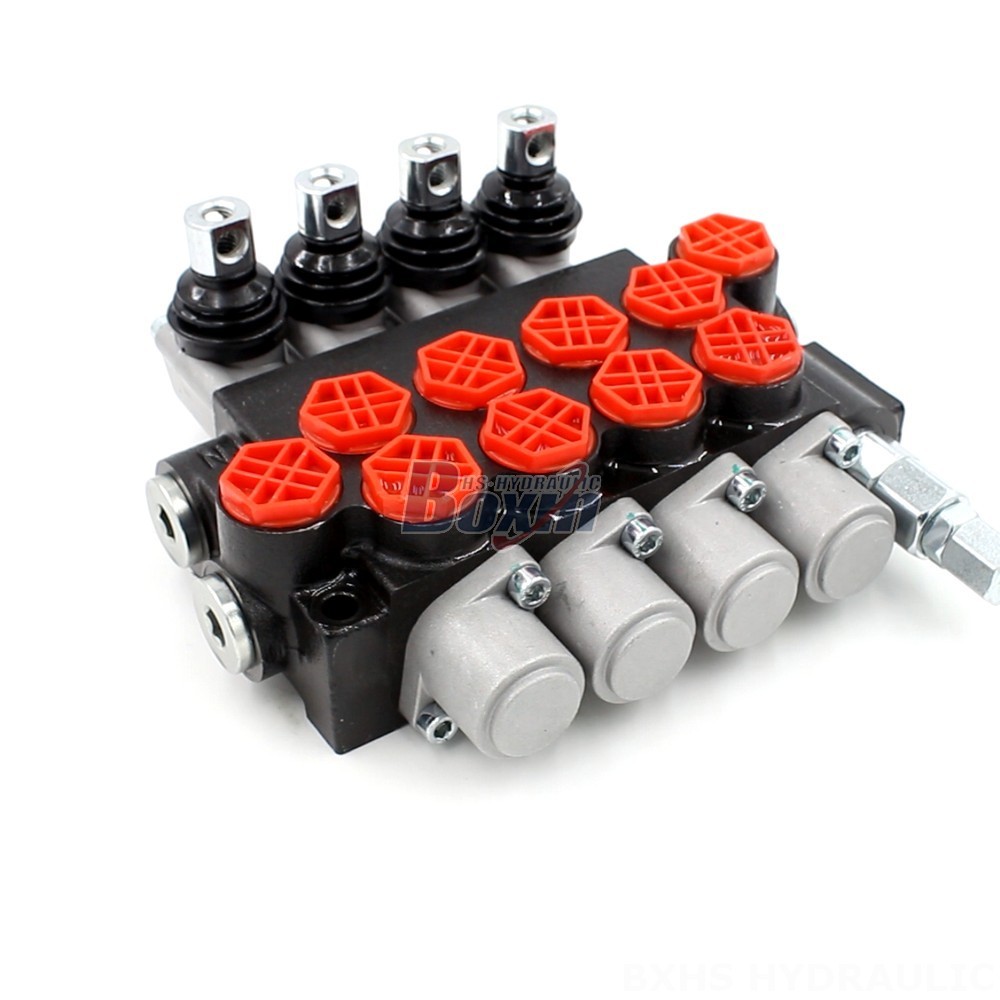

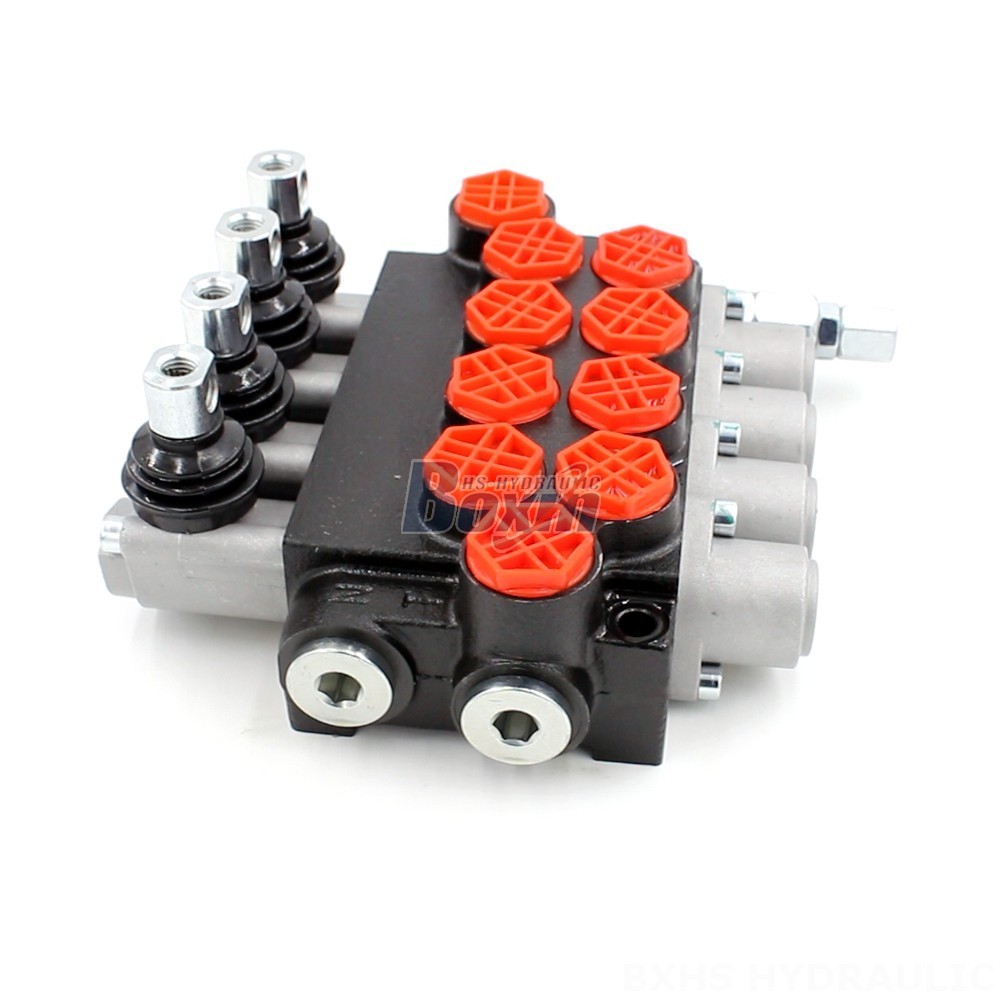

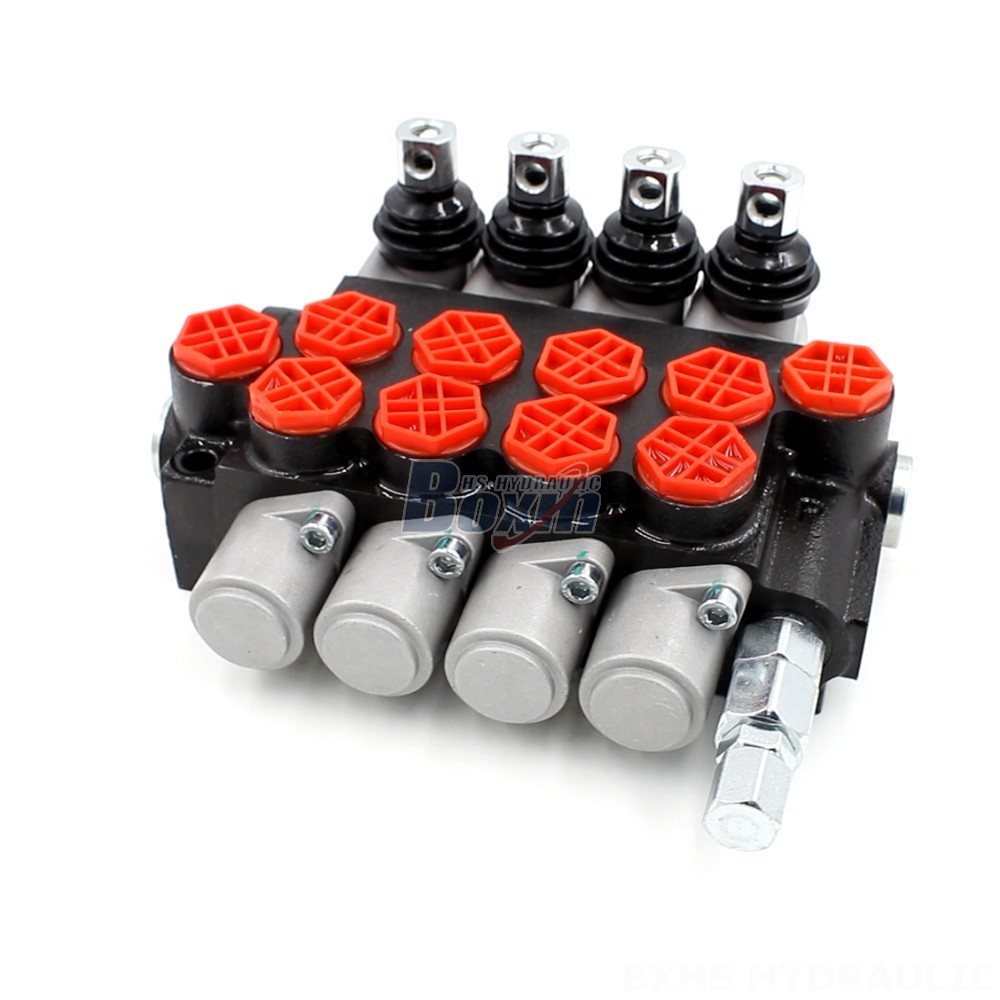

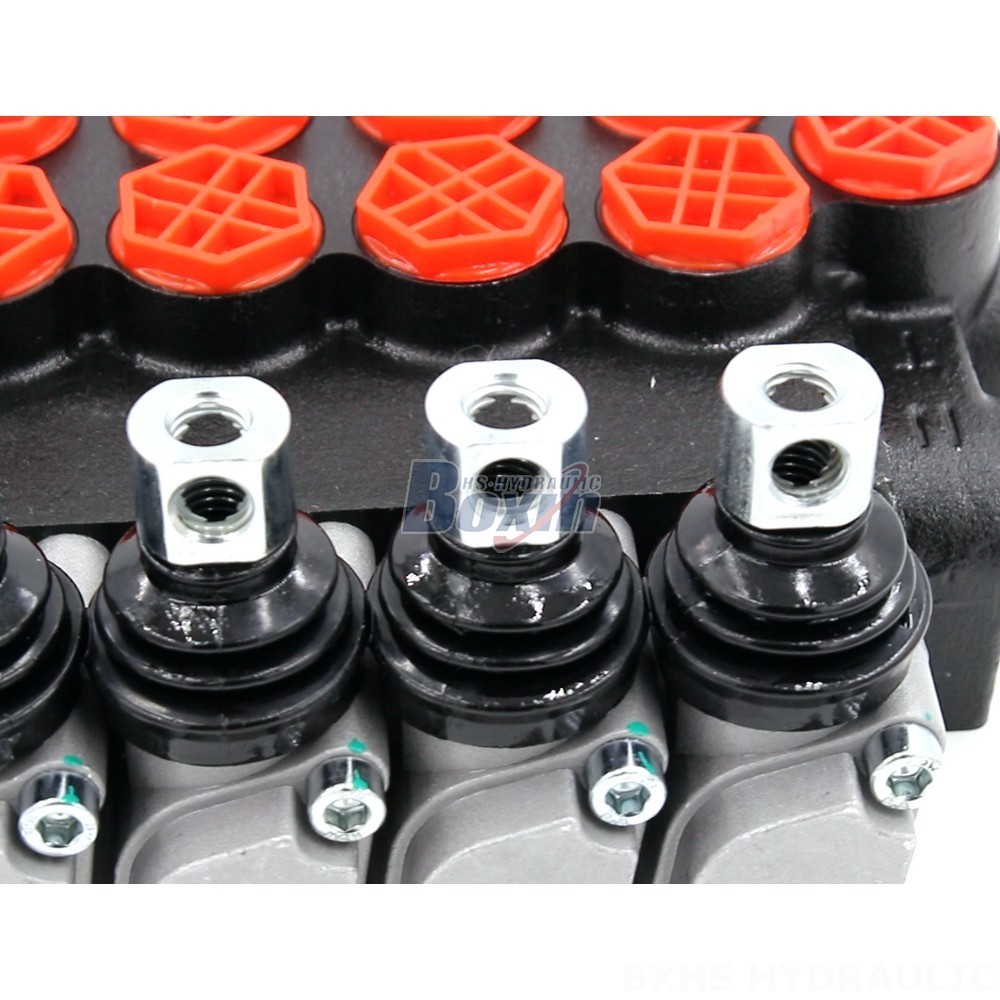

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a high-performance, 4-section, manual control valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of mobile hydraulic systems.

Série P40 Monoblokový směrový ventil Parametry
Metoda řízení Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel
Šoupátko 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek
Rozsah okolní teploty -40 °C až +80 °C (-40 °F až +176 °F)
Typ konstrukce Blokový ventil
Sekce Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7
Rozsah provozní viskozity 15 - 75 mm²/s (15 cSt až 75 cSt)
Jmenovitý průtok 40 l/min (10,5 US gpm)
Maximální tlak 250 bar (3600 psi)
Vstupní port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Výstupní port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Velikost portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications. Its monoblock construction provides a compact and durable design, while its manual control method offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-flow, high-pressure applications. Its operating viscosity range of 15 - 75 mm²/s ensures optimal performance in a variety of operating conditions. The valve is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its versatile design and robust construction make it an ideal choice for various mobile hydraulic systems in construction, material handling, agriculture, and industrial vehicles.
