P40-G12-G38 Directional Valve | Distributorship Opportunities

Metoda řízení:Ruční

Šoupátko:3 cívky

Jmenovitý průtok:40 l/min (10,5 US gpm)

Maximální tlak:250 bar (3600 psi)

Vstupní port:G1/2

Výstupní port:G1/2

Velikost portu:G3/8

Značka:BXHS

Typ produktu:Monoblokový směrový ventil

Produktová řada:Série P40 Monoblokový směrový ventil

Velikost balení:24*21*13

Hrubá hmotnost:7.00 kg

Dostupnost: Skladem

969 Zobrazení hledají tento produkt

P40-G12-G38 Directional Valve | Distributorship Opportunities

P40-G12-G38 Directional Valve | Distributorship Opportunities

P40-G12-G38 Directional Valve | Distributorship Opportunities drawing image

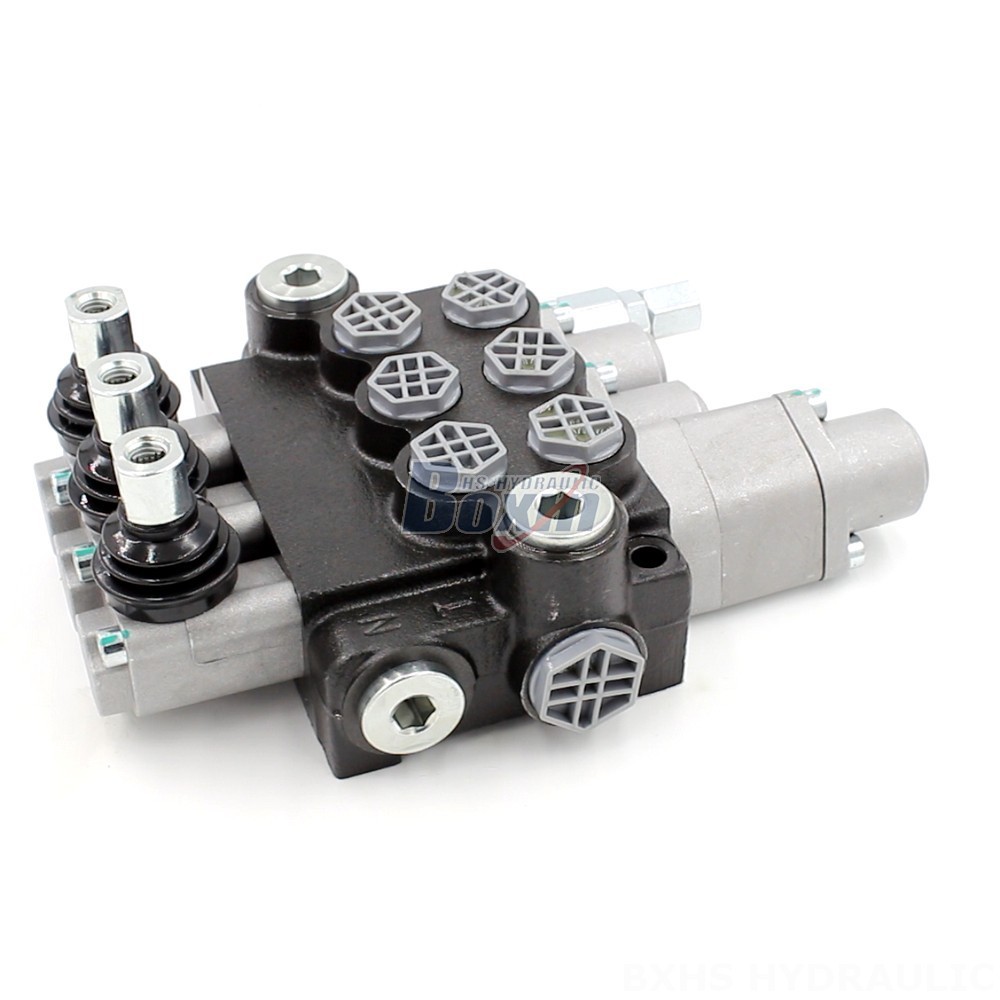

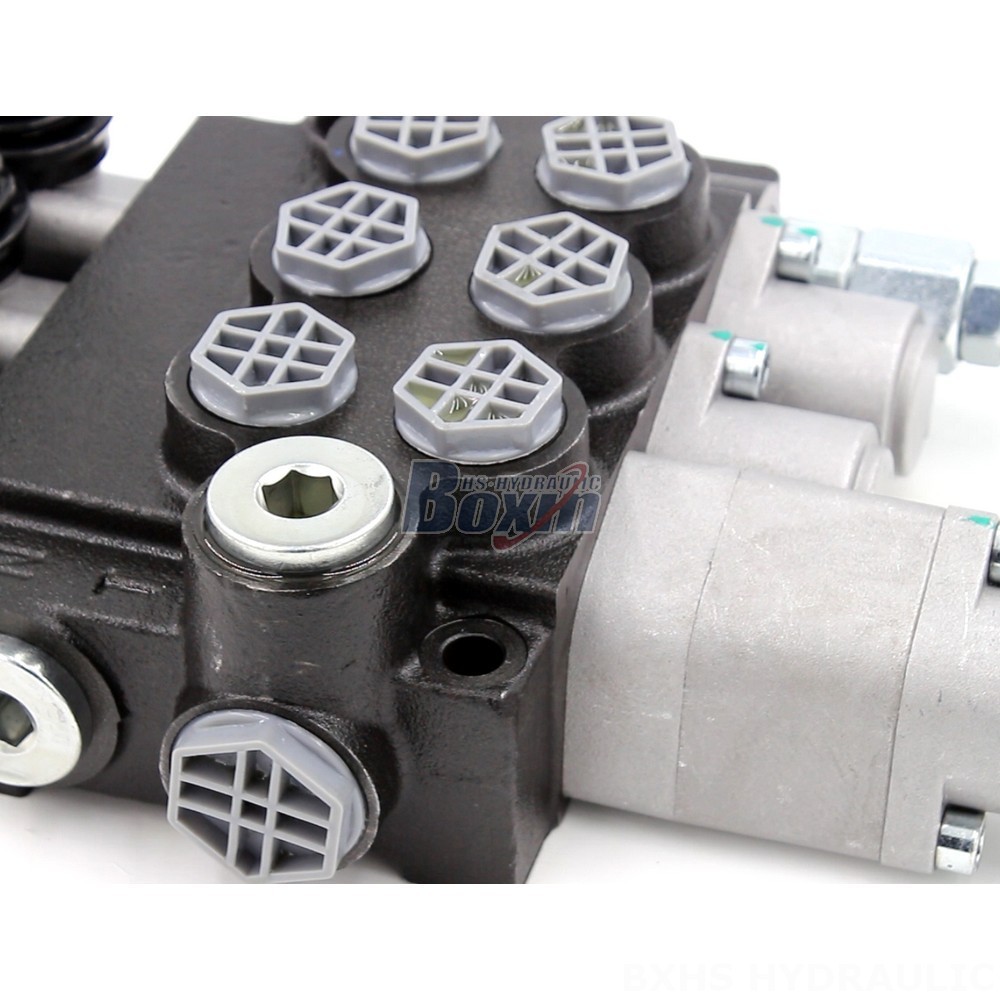

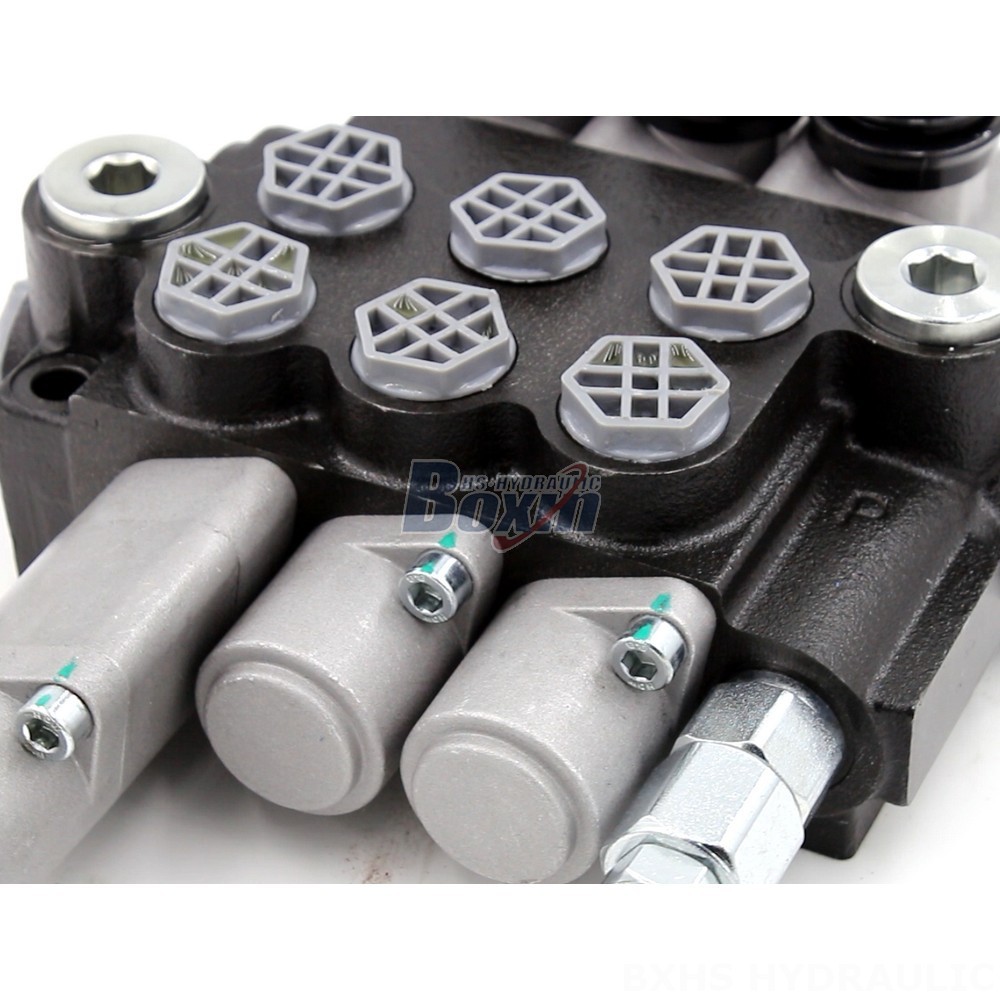

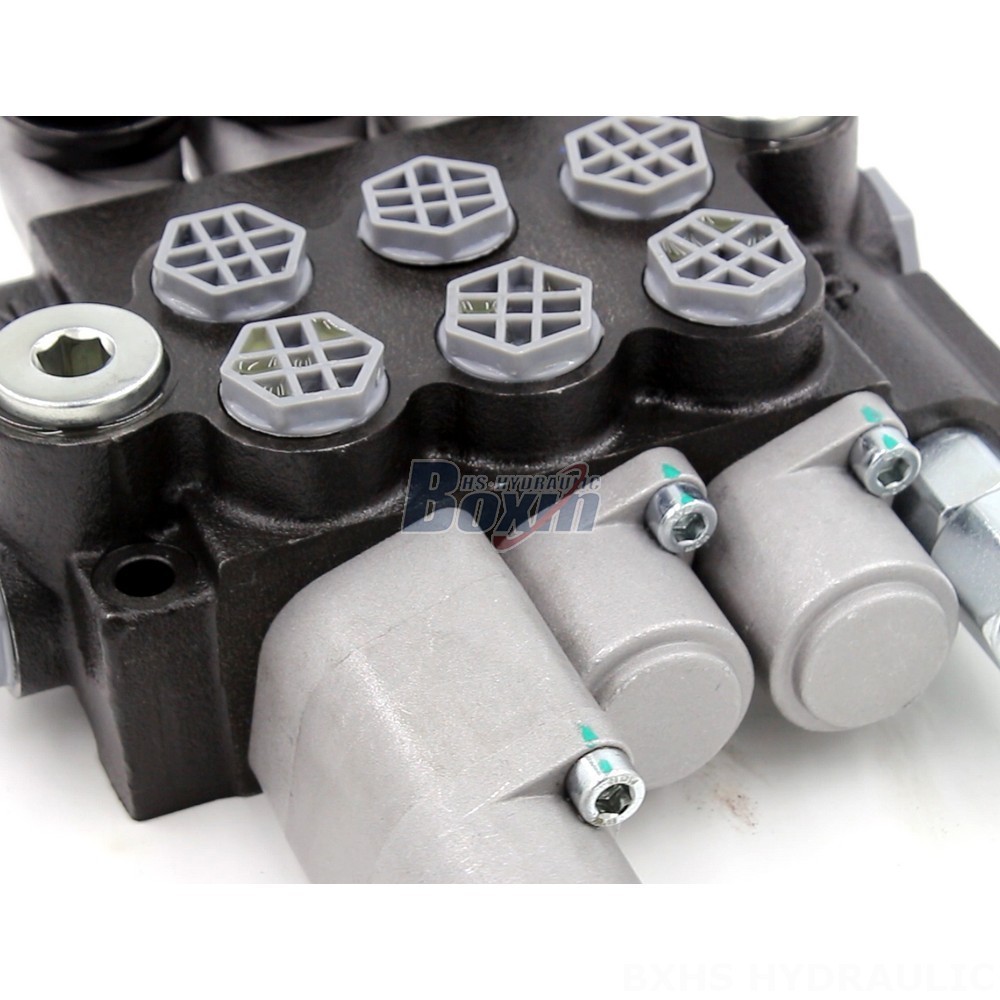

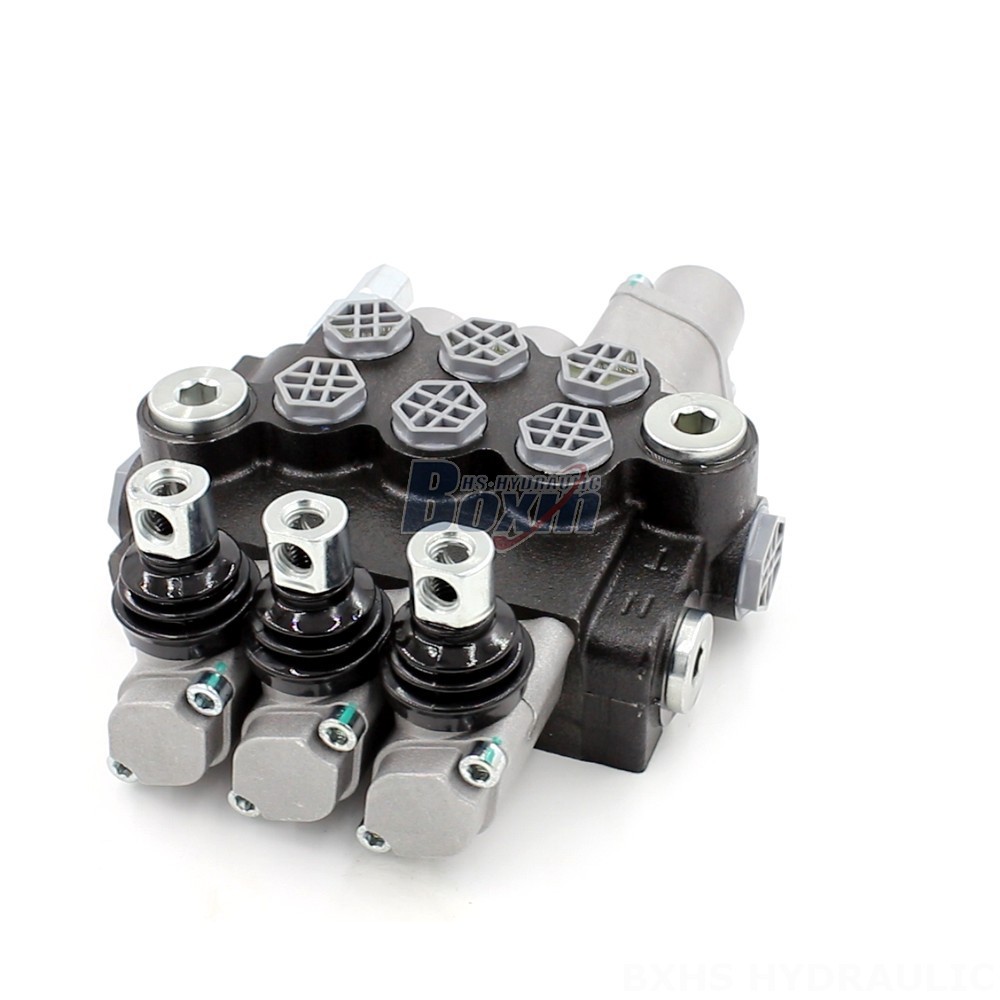

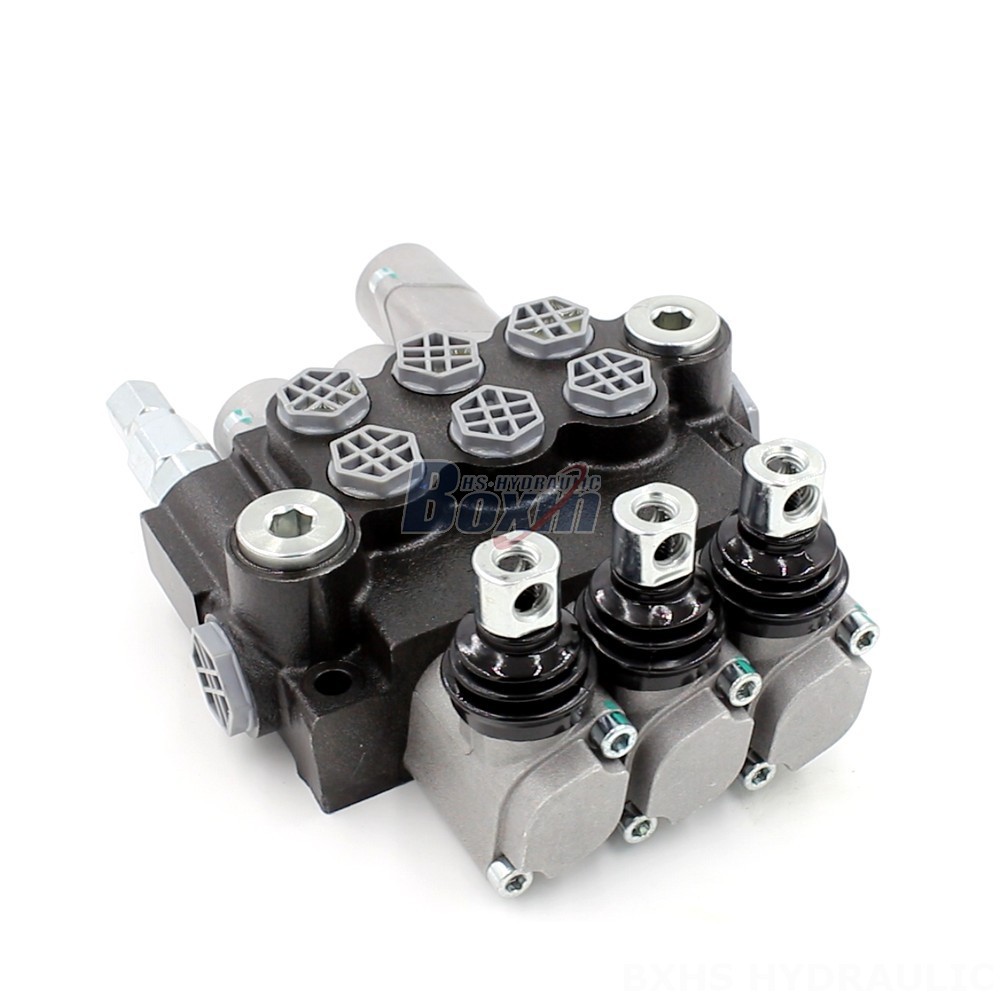

The P40-G12-G38 3 Way Directional Control Valve is a reliable and versatile hydraulic valve designed for use in a wide range of construction, industrial and agricultural applications. This monoblock valve features a manual control method and a rated flow of 40 L/min, making it ideal for operating various equipment like telehandlers, forklifts, cranes, and excavators.

Série P40 Monoblokový směrový ventil Parametry
Metoda řízení Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel
Šoupátko 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek
Rozsah okolní teploty -40 °C až +80 °C (-40 °F až +176 °F)
Typ konstrukce Blokový ventil
Sekce Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7
Rozsah provozní viskozity 15 - 75 mm²/s (15 cSt až 75 cSt)
Jmenovitý průtok 40 l/min (10,5 US gpm)
Maximální tlak 250 bar (3600 psi)
Vstupní port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Výstupní port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Velikost portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38 3 Way Directional Control Valve is a high-performance hydraulic valve designed for demanding applications. It features a 3-section, monoblock design with a manual control method. The valve is rated for a flow rate of 40 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosity ranges of 15 - 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. The P40 series valve is ideal for use in construction equipment, material handling applications, industrial vehicles, and agriculture. Its robust design and reliable performance make it suitable for various heavy-duty applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
