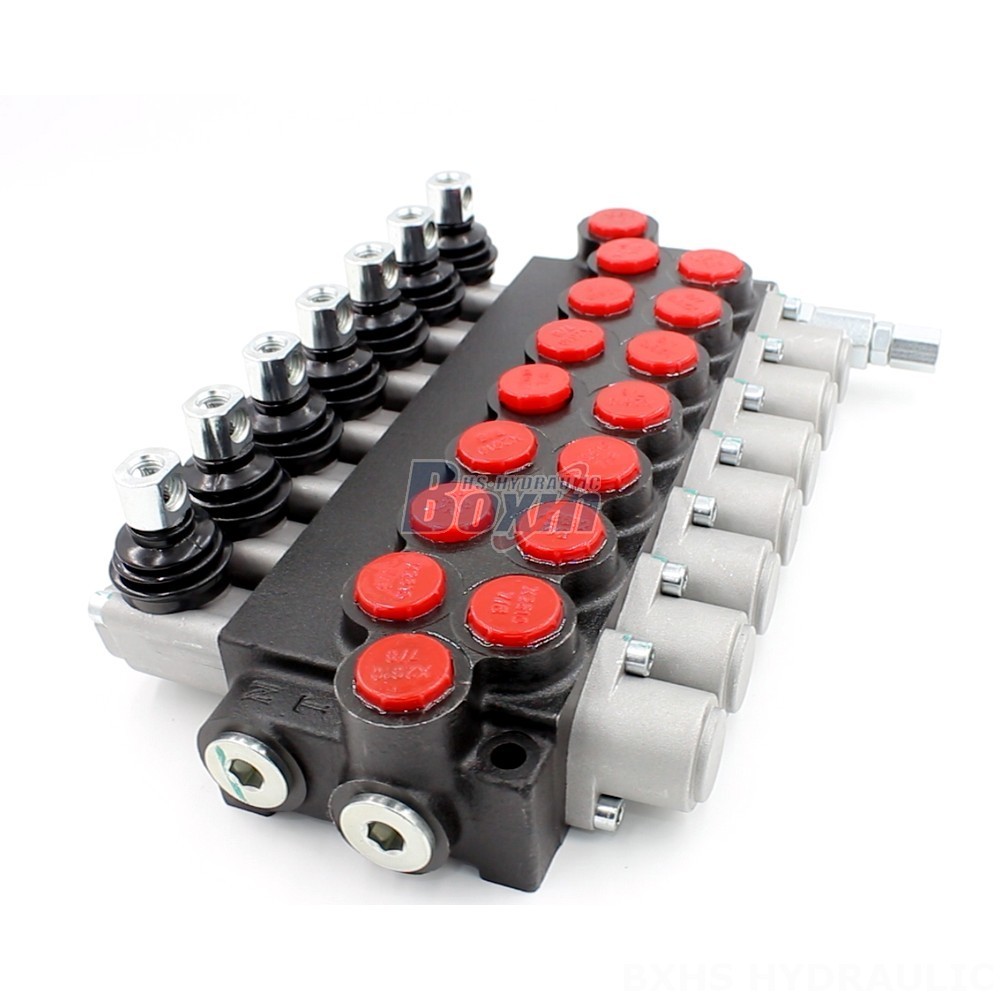

The P120 P40-U78 7-Spool Directional Control Valve is a high-performance hydraulic valve designed for a wide range of applications, including construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock design, 7 spools, and a rated flow of 40 L/min. With its high pressure rating and wide operating temperature range, this valve is ideal for demanding applications.
| Série P40 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Solenoid a kabel |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 40 l/min (10,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Výstupní port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Velikost portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P120 P40-U78 7-Spool Directional Control Valve is a high-performance hydraulic valve designed for demanding applications in industries like construction, agriculture, and industrial vehicles. It features a robust monoblock design, 7 spools, and a rated flow of 40 L/min (10.5 US gpm), providing reliable operation under pressure. It is equipped with a manual control system for simple and intuitive operation. The valve is designed to handle high pressures up to 250 bar (3600 psi) and operate within a wide temperature range from -40°C to +80°C (-40°F to +176°F), ensuring optimal performance in various environments. This valve is compatible with a range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, and skid steer loaders. This valve's versatile design and high performance make it a reliable and efficient choice for various applications in construction, agriculture, and industrial sectors.
