Výroba a dodávka
Výrobní doba 15-30 dní
Inovace pohání vývoj. Technologie tvoří budoucnost
1317 Zobrazení hledají tento produkt

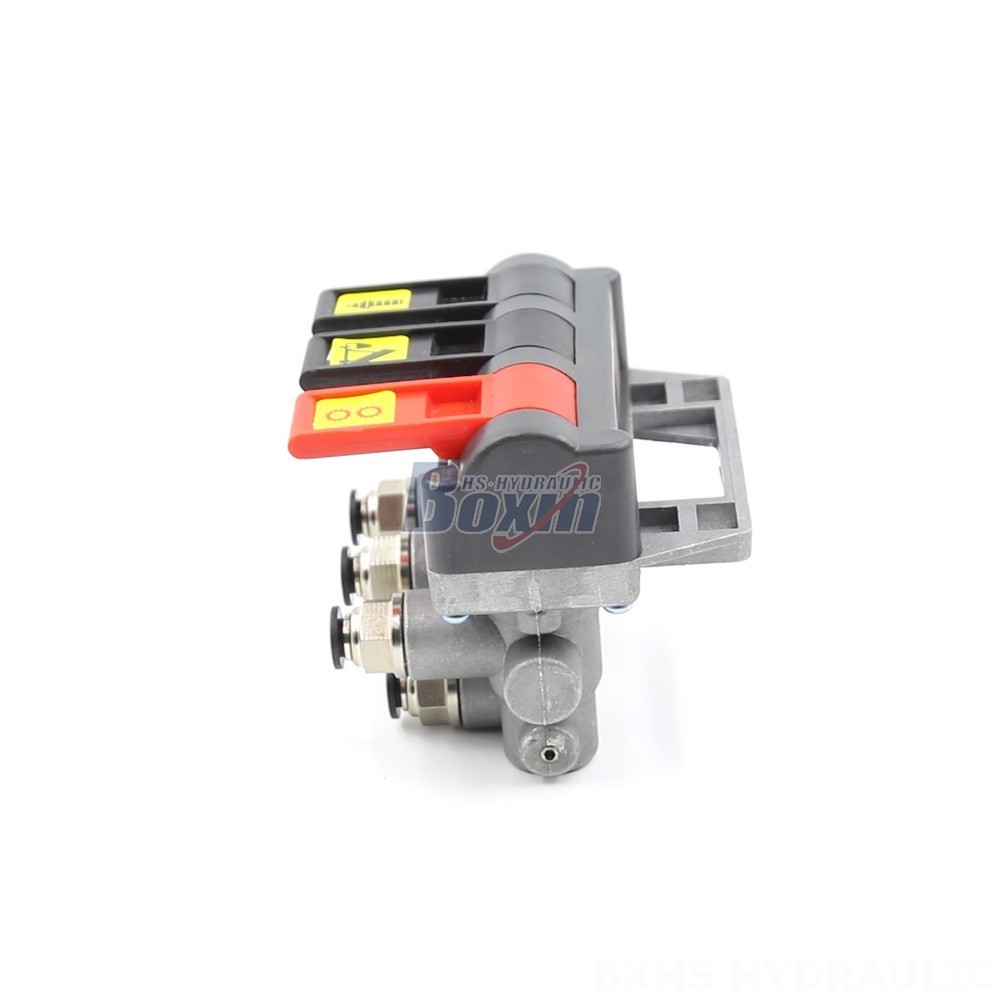

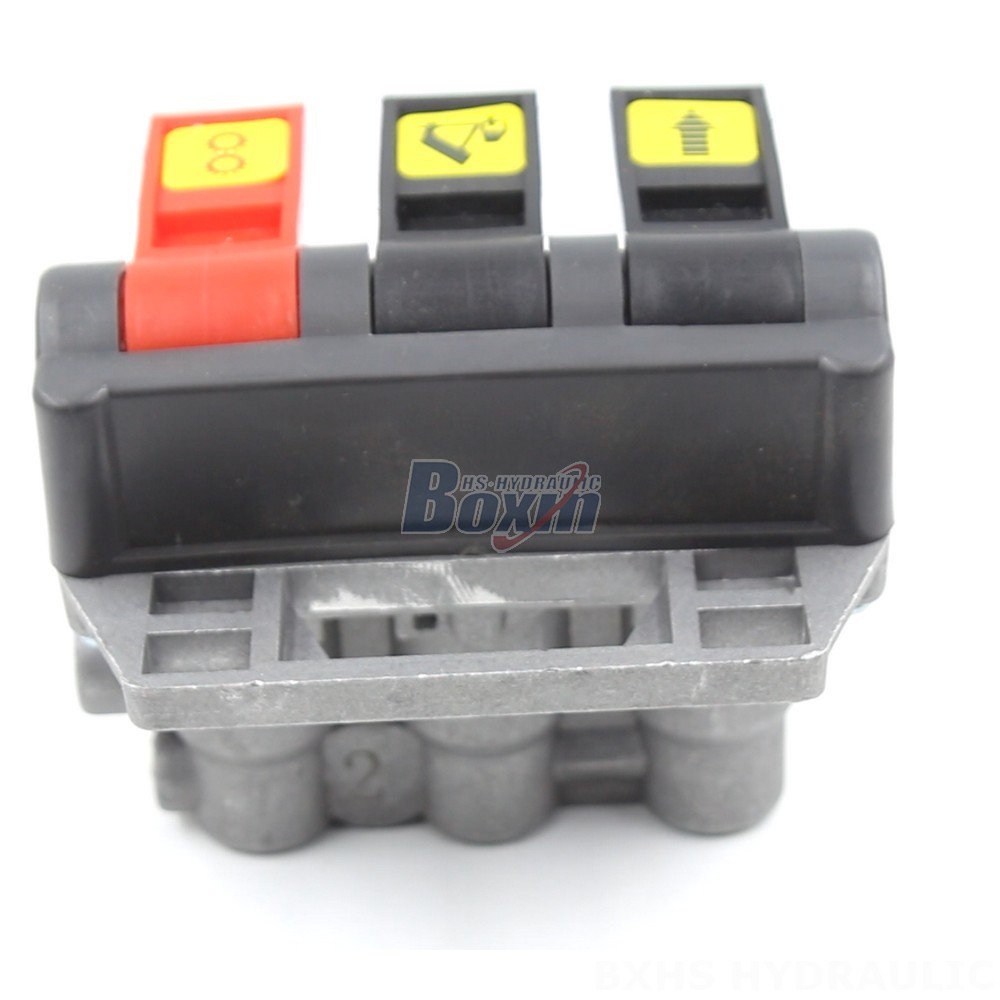

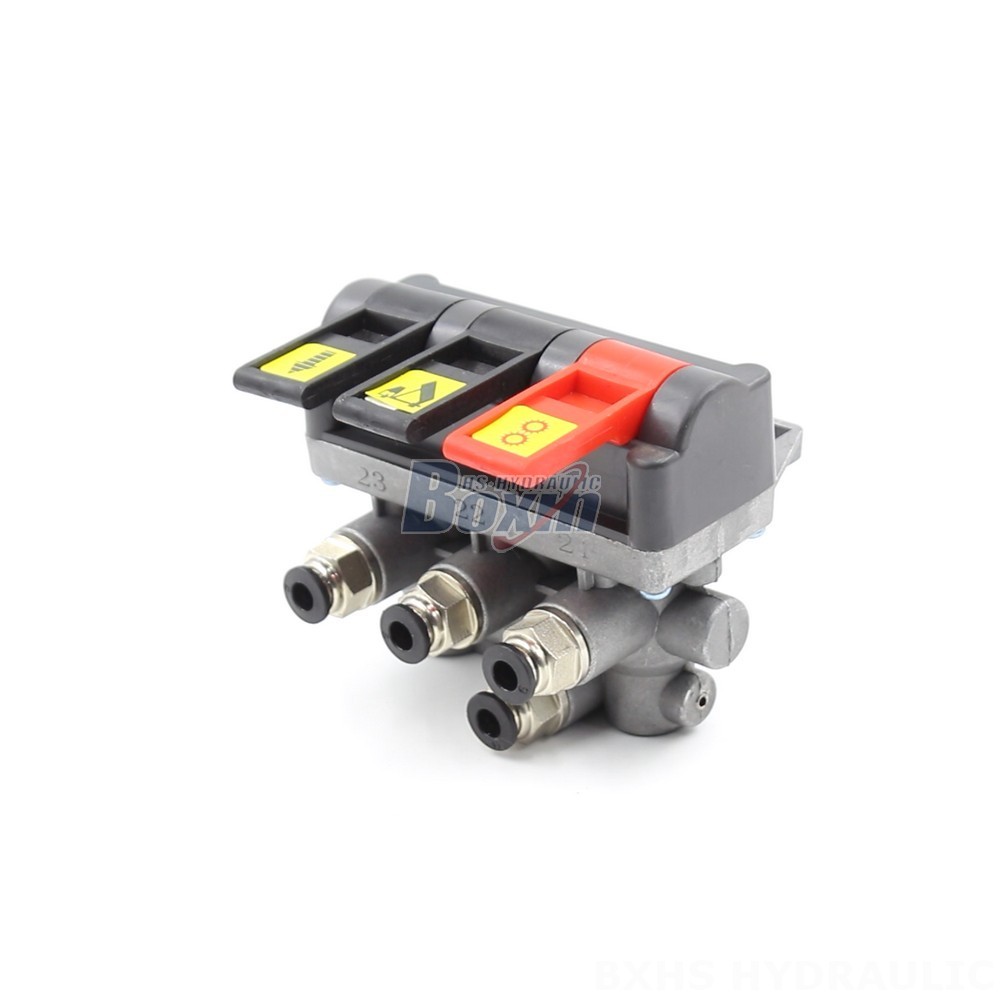

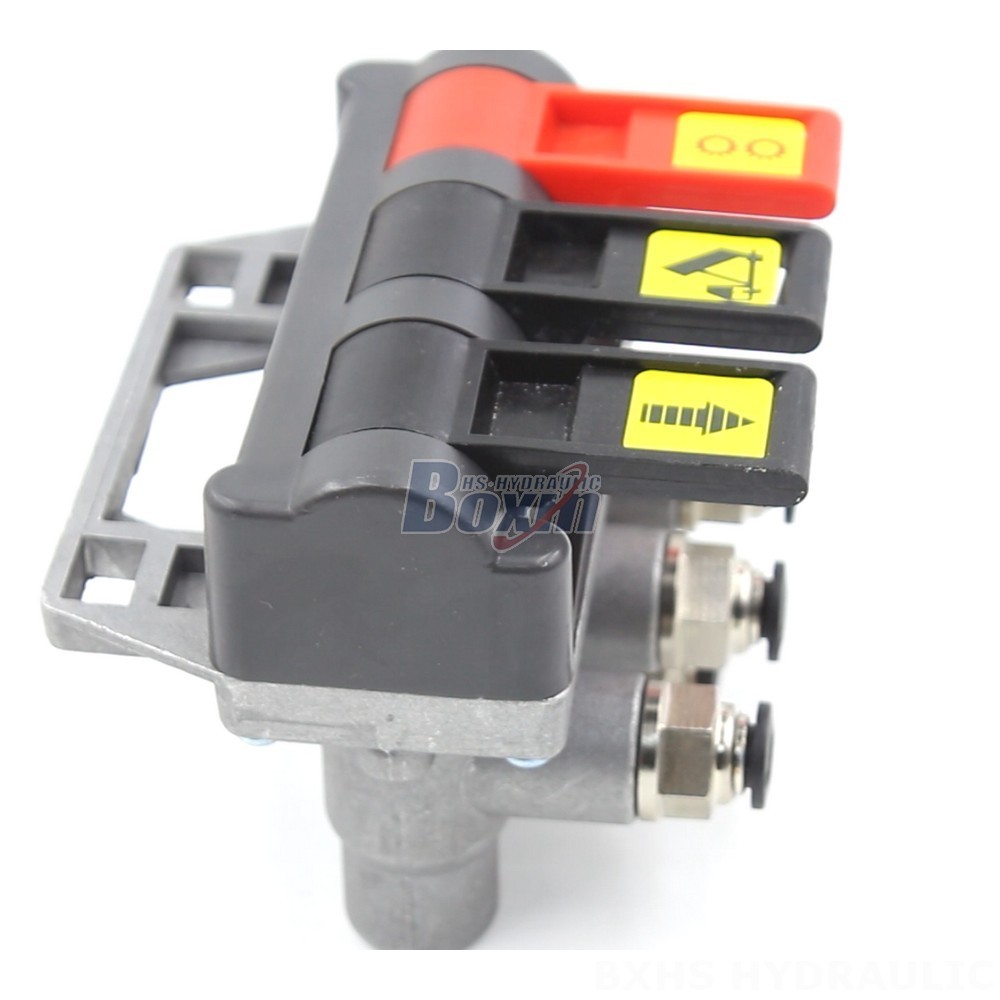

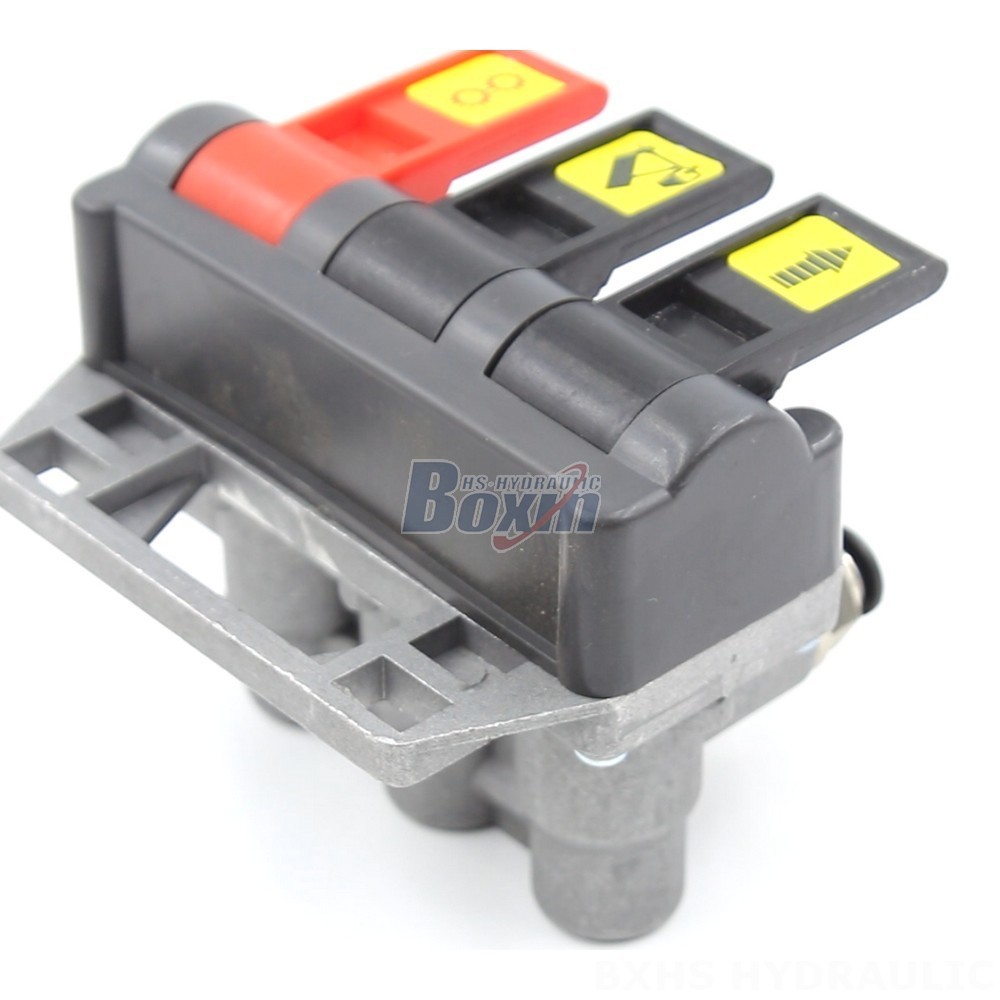

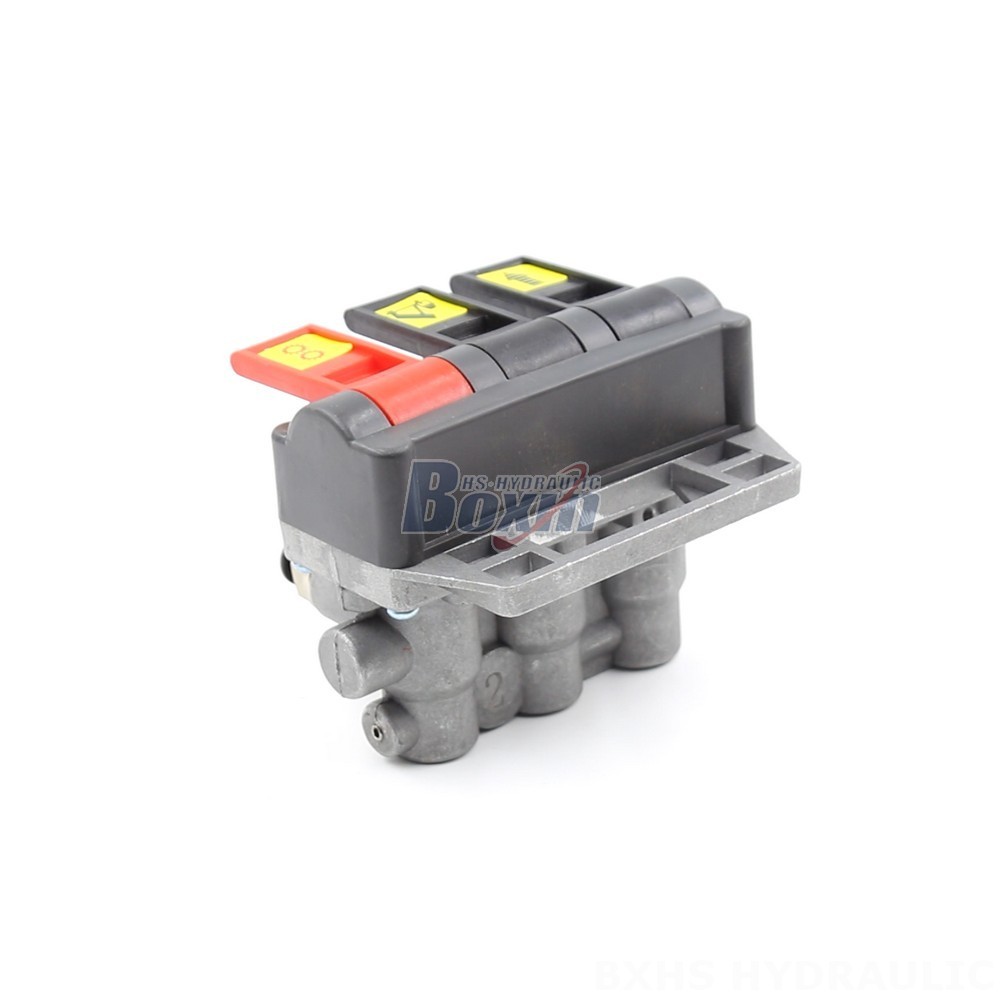

This pneumatic 1 spool hydraulic control valve is designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 160 bar. This valve is available at factory wholesale prices with fast shipping.
| Řada TC-4 Hydraulický řídicí ventil Parametry | |
|---|---|
| Metoda řízení | Pneumatický |
| Šoupátko | 1 cívka |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 16 L/min (4,2 US gpm) |
| Maximální tlak | Tlak 1 MPa (145 psi) |
| Vstupní port | G1/4 |
| Výstupní port | G1/4 |
| Velikost portu | G1/4 |
This TC-4 series pneumatic 1 spool hydraulic control valve offers a reliable and efficient solution for controlling hydraulic systems. Its monoblock design ensures durability and ease of installation. With a rated flow of 40 L/min and a maximum pressure of 160 bar, it can handle demanding applications. The valve operates within a wide viscosity range of 15 to 75 mm²/s, making it suitable for various hydraulic fluids. Its temperature resistance from -40°C to +80°C ensures reliable performance in a variety of environments. This valve is ideal for use in forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters.
