The SD11 Series Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 70 L/min and a maximum pressure of 250 bar, this valve is capable of handling even the most demanding applications. The valve is constructed from high-quality materials and is built to last.
| Řada SD11 Monoblokový směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Elektrický, Pneumaticky a ručně |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek |
| Rozsah okolní teploty | -40 °C až +60 °C (-40 °F až +140 °F) |
| Typ konstrukce | Blokový ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7 |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
| Jmenovitý průtok | 70 l/min (18,5 US gpm) |
| Maximální tlak | 305 bar (4400 psi), 315 bar (4600 psi) |
| Vstupní port | G3/4, SAE 12 |
| Výstupní port | G3/4, SAE 12 |
| Velikost portu | G3/4, SAE 12 |

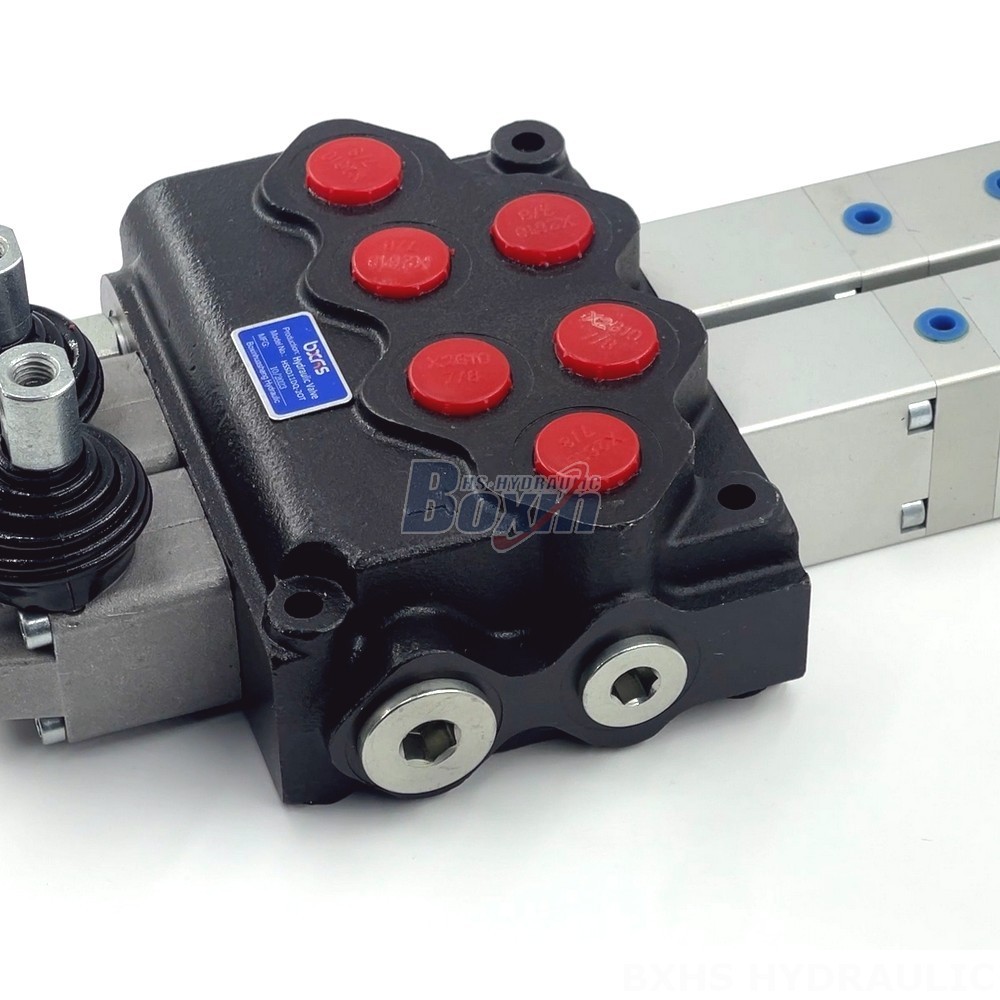

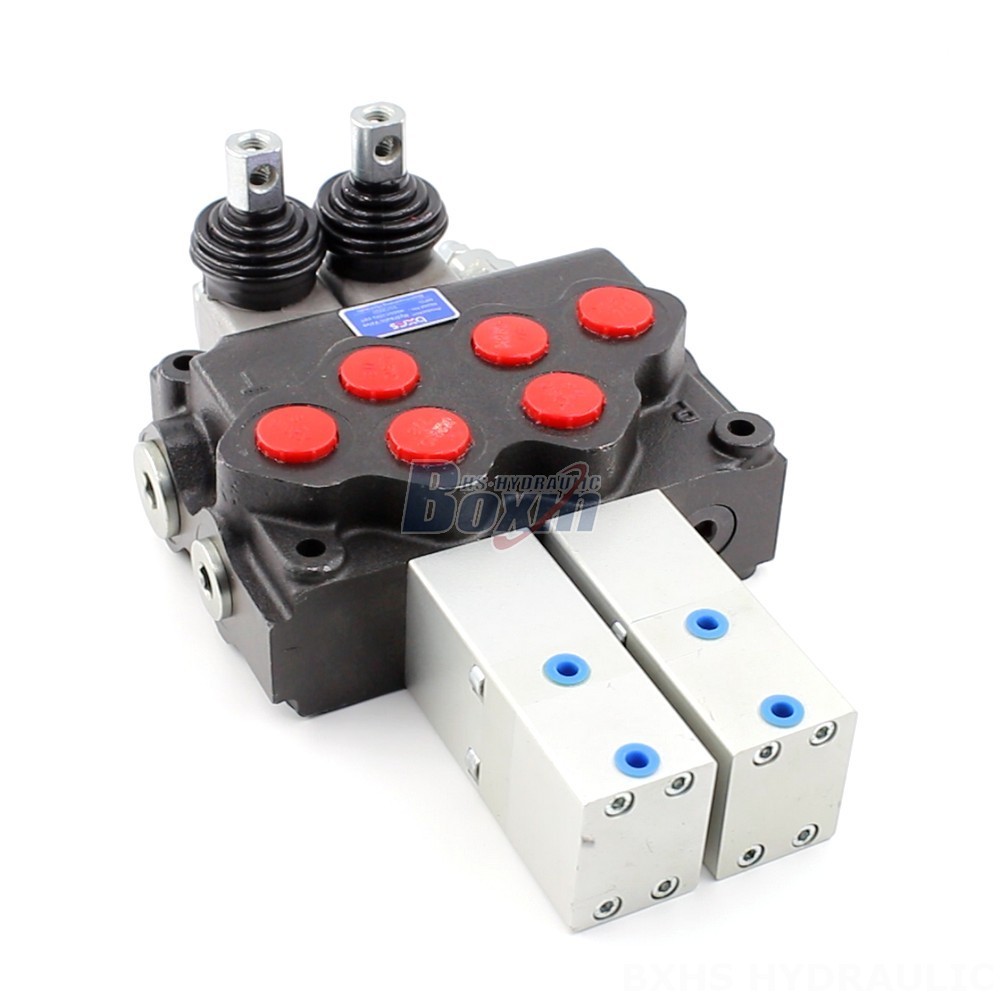

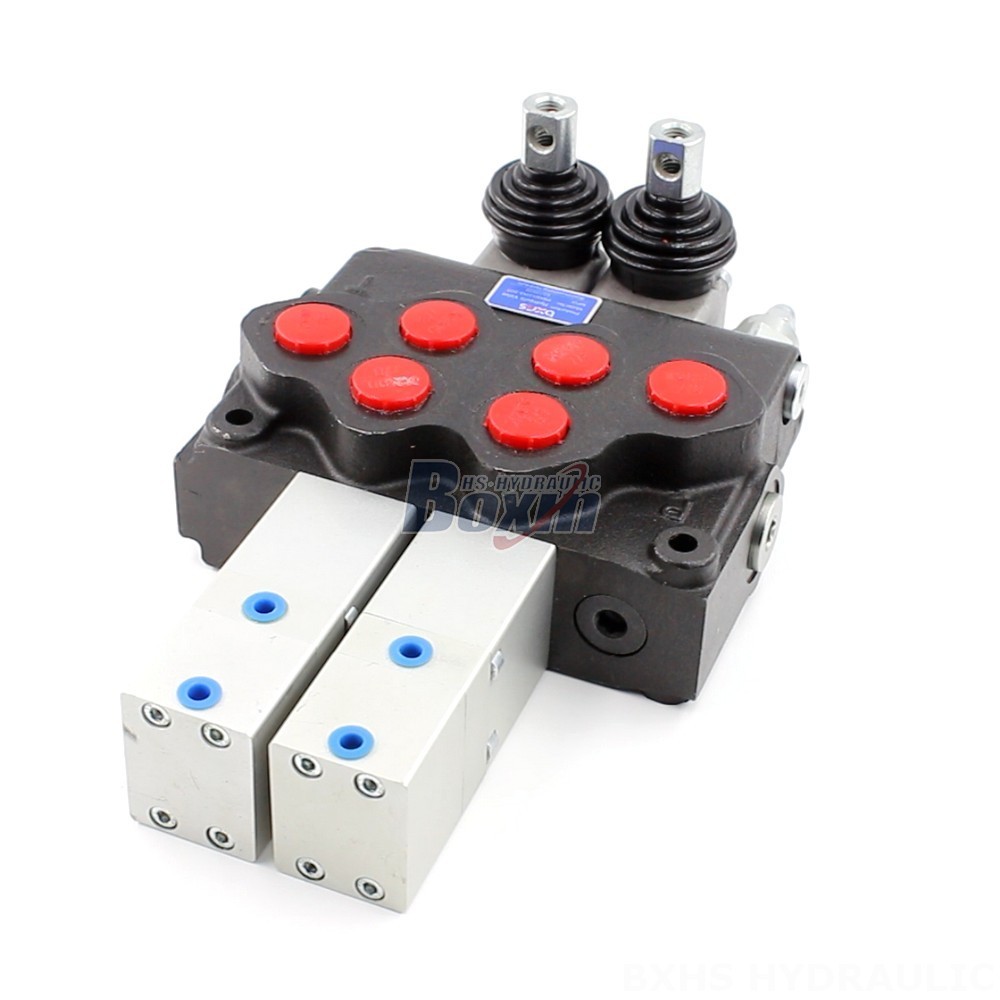

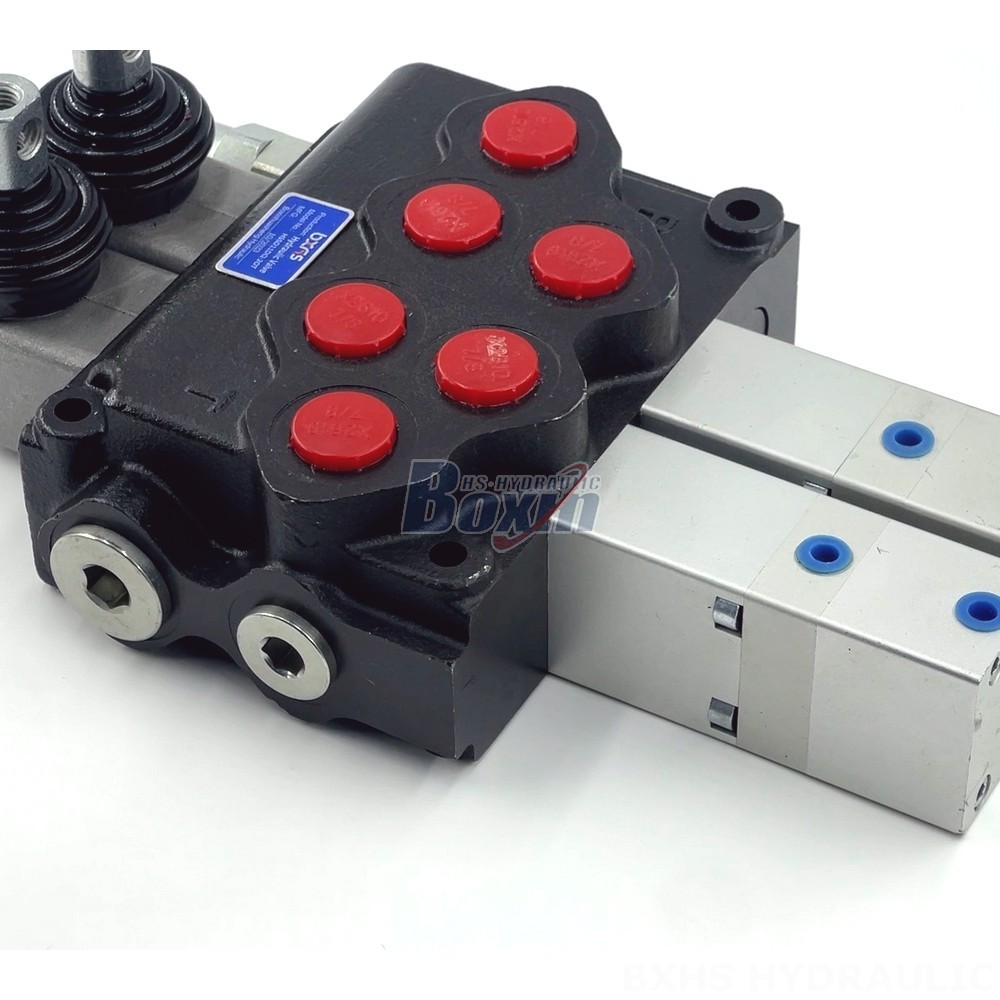

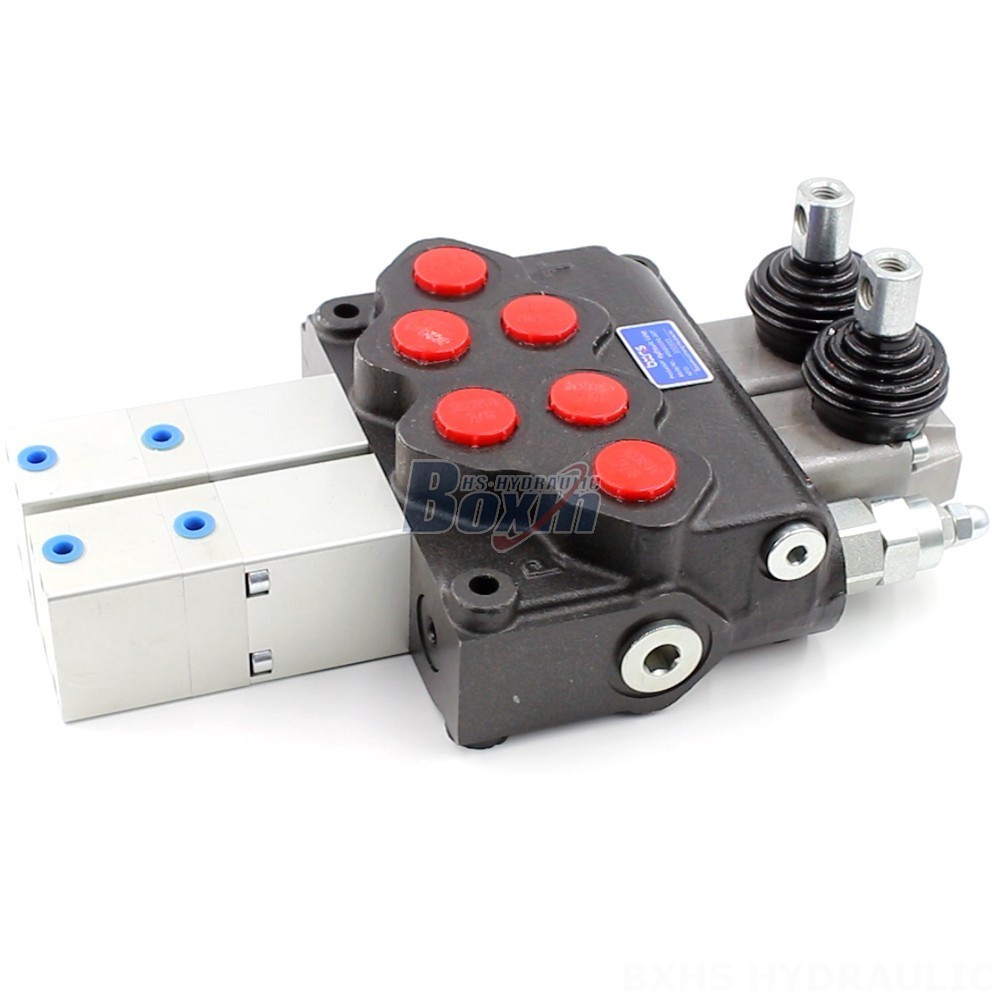

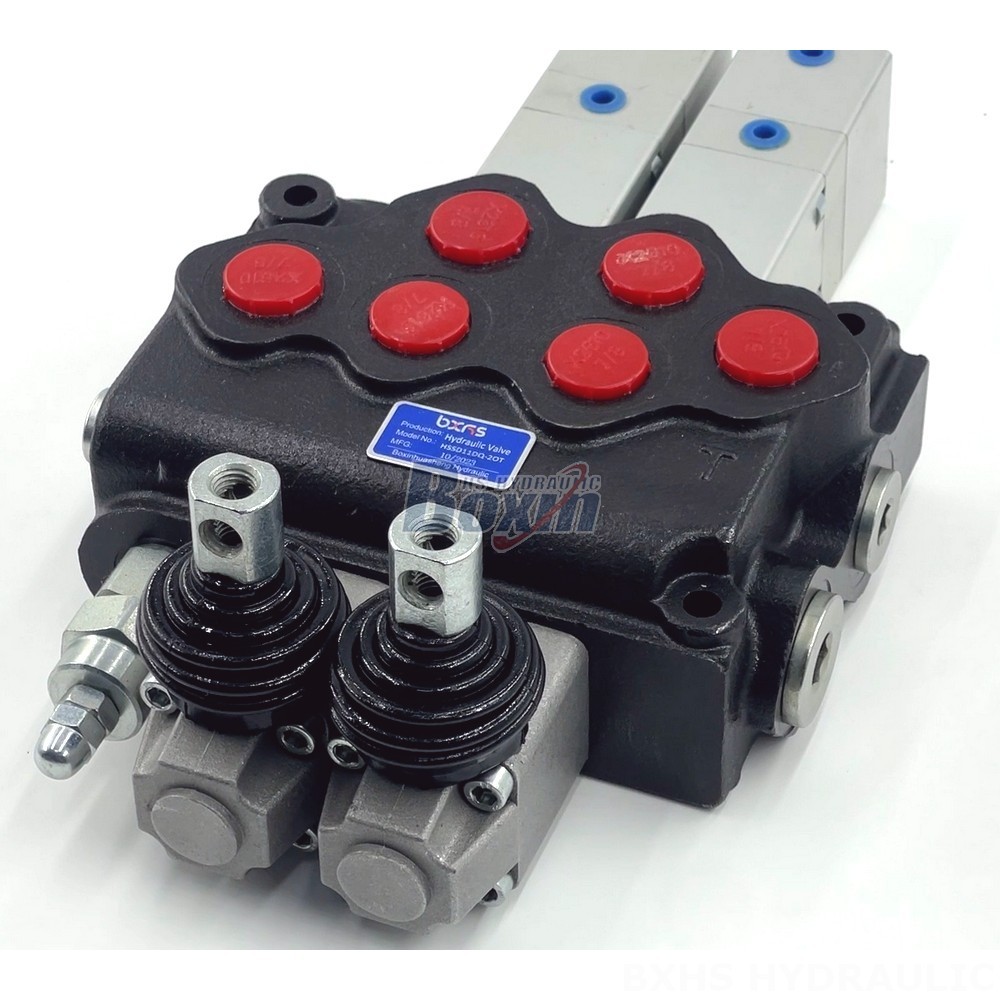

**SD11 Series Pneumatic Directional Control Valve**
The SD11 Series Pneumatic Directional Control Valve is a 2-section, monoblock valve with a rated flow of 70 L/min and a maximum pressure of 250 bar. The valve is constructed from high-quality materials and is built to last. It is ideal for use in a wide range of industrial applications, including:
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
The valve is available with a variety of spool options to meet the specific requirements of your application. It also features a wide operating temperature range of -40°C to +60°C, making it suitable for use in even the most challenging environments.
**Key Features:**
* Rated flow of 70 L/min
* Maximum pressure of 250 bar
* 2-section, monoblock valve
* Wide operating temperature range of -40°C to +60°C
* Variety of spool options available
* Compact and lightweight design
* Easy to install and maintain
