What is the primary application of the Precision Engineered P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump?

The Precision Engineered P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

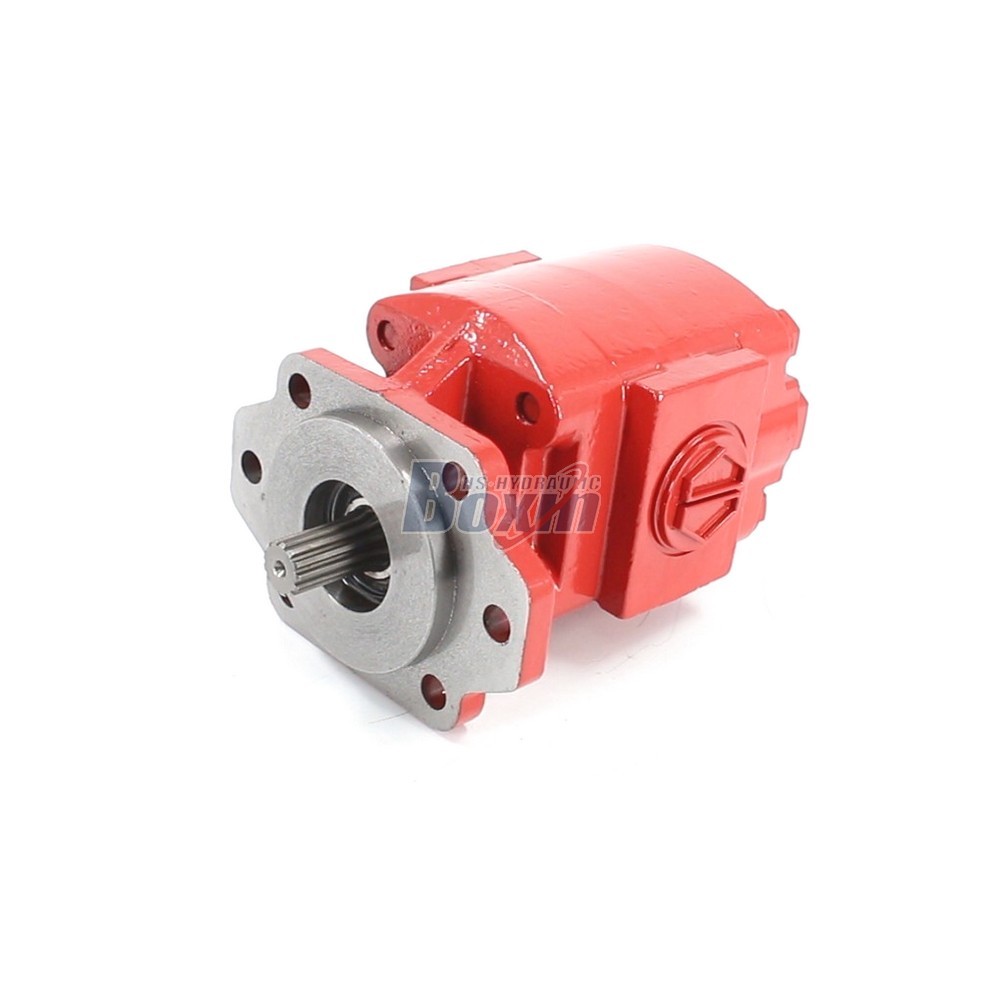

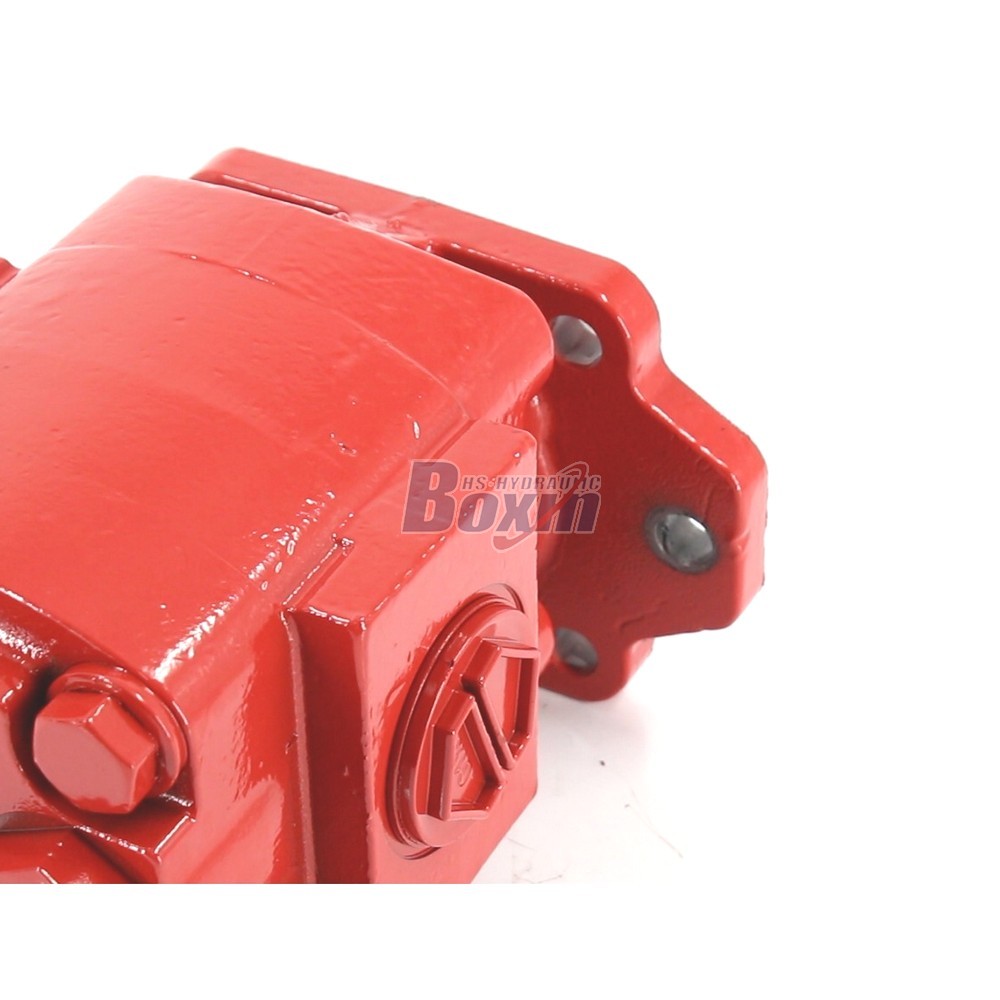

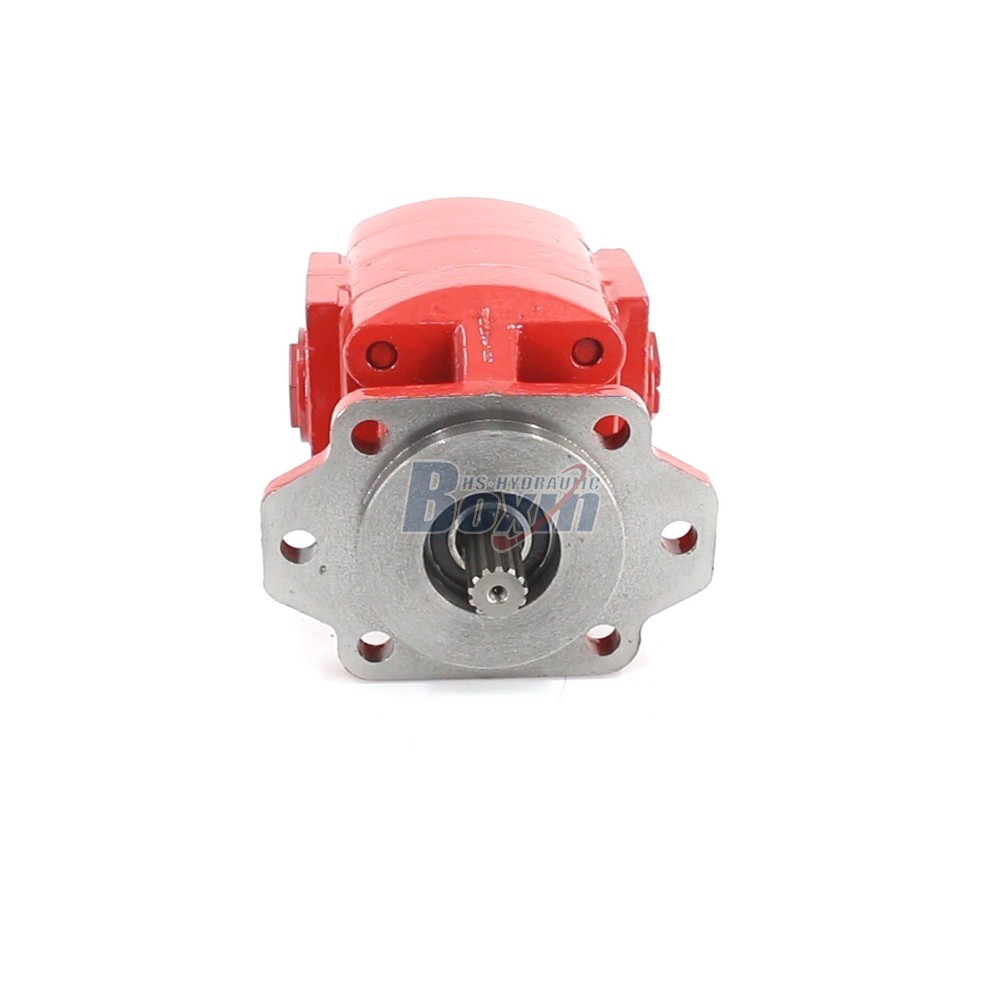

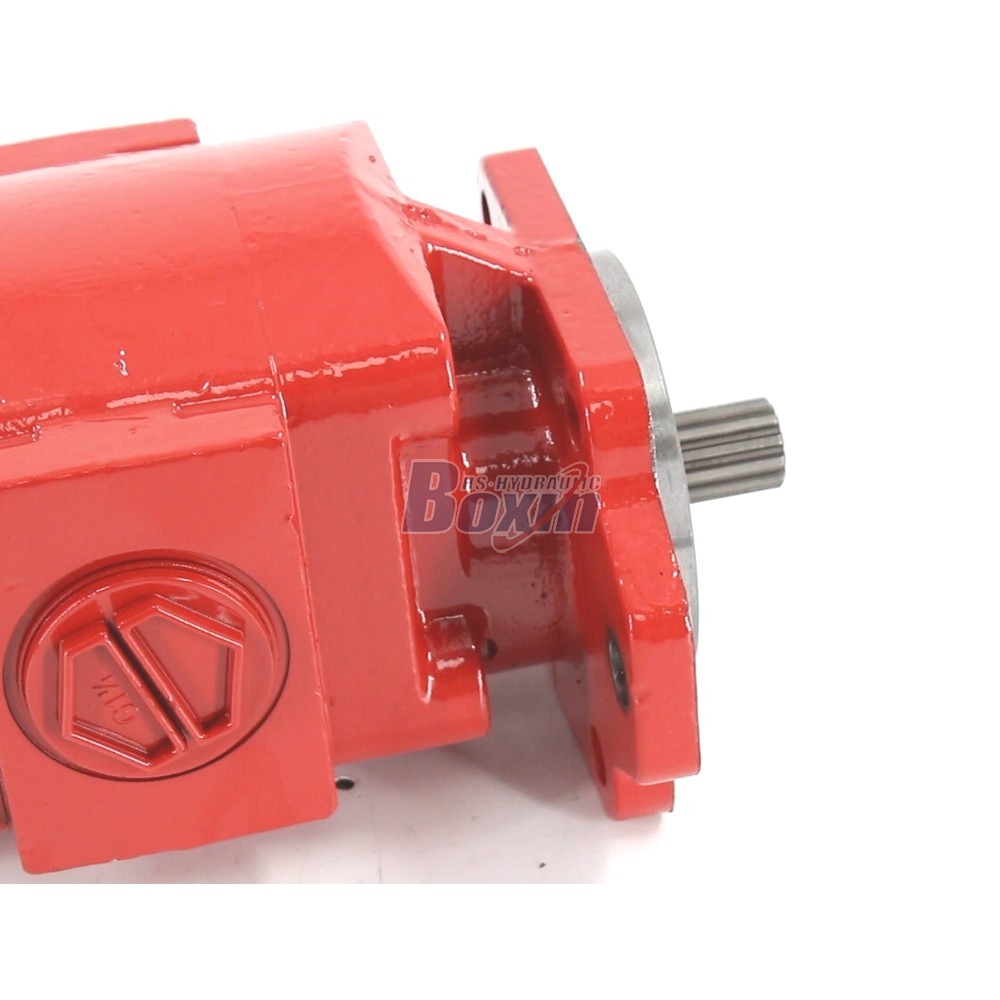

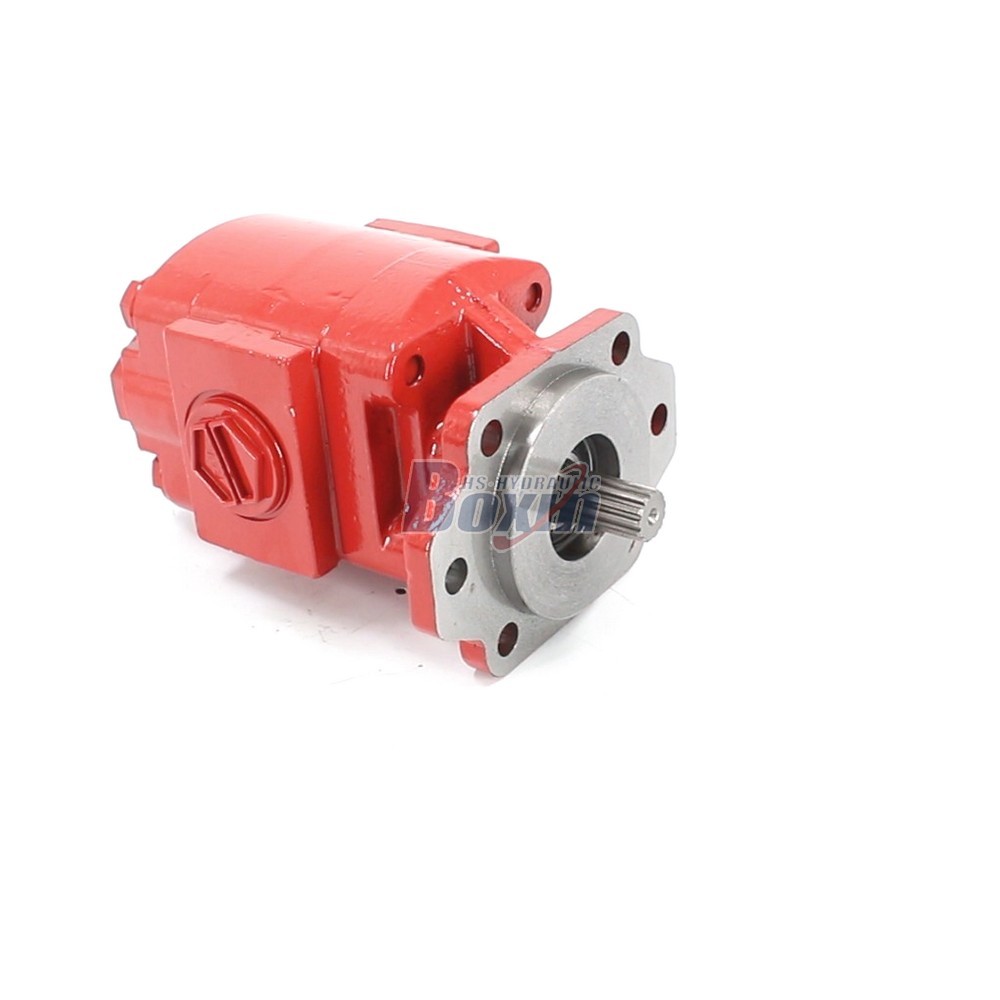

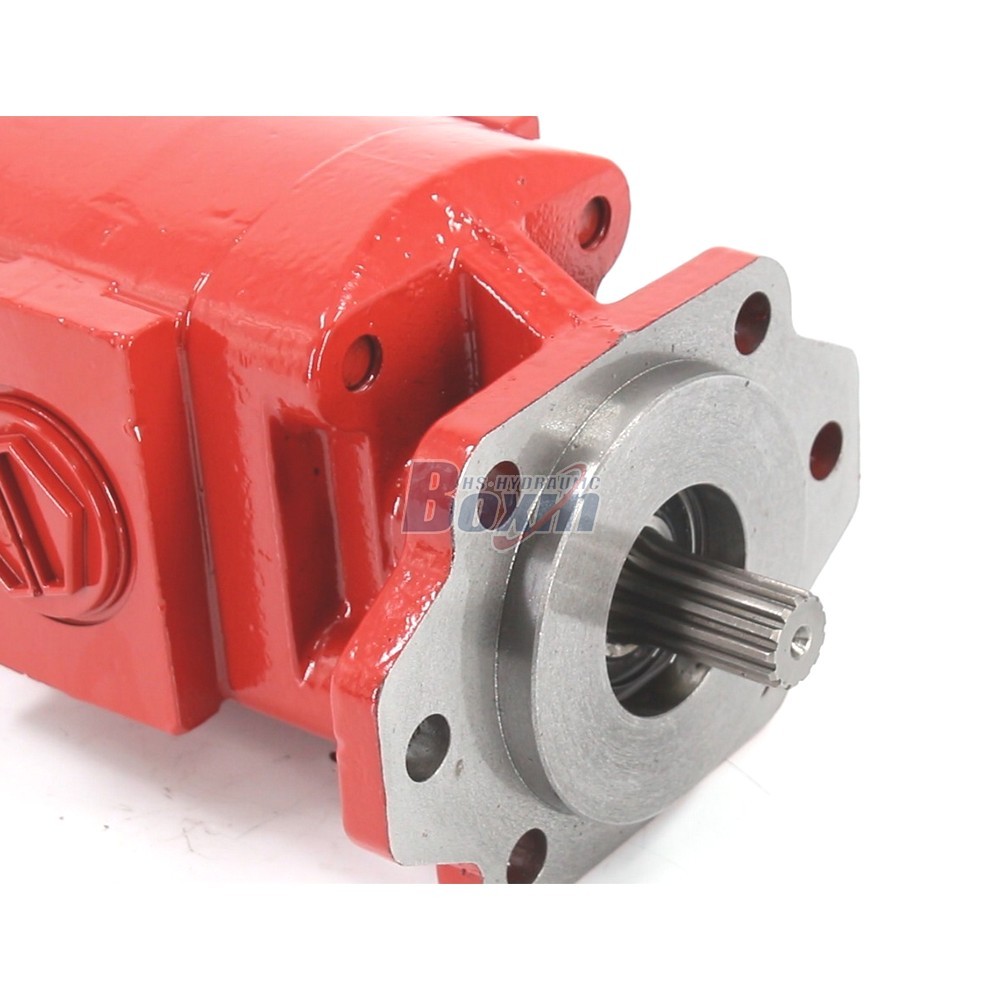

Precision Engineered P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump

Name: Precision Engineered P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump
Brand: Boxinhuasheng
SKU: BXHS-59948
Availability: InStock

Zdvihový objem:64,6 cm³/ot

Jmenovitý tlak:16 MP (2320 psi)

Maximální tlak:17 MP (2465 psi)

Maximální otáčky:2200 ot./min.

Směr otáčení:Obousměrný

Značka:BXHS

Typ produktu:Hydraulické čerpadlo s ozubenými koly

Produktová řada:Řada P21 Hydraulické čerpadlo s ozubenými koly

Velikost balení:45*25*18

Hrubá hmotnost:16.00 kg

Dostupnost: Skladem

Popis

Precision Engineered P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump

Precision Engineered P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump drawing image

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for forklifts and construction machinery. Backed by a Professional Manufacturer with 25+ years of experience and IATF 16949 certification, it ensures reliable OEM/ODM solutions and Factory Direct Sales quality.

Řada P21 Hydraulické čerpadlo s ozubenými koly Parametry
Zdvihový objem	64,6 cm³/ot
Jmenovitý tlak	16 MP (2320 psi)
Maximální tlak	17 MP (2465 psi)
Jmenovité otáčky	600 ot/min
Maximální otáčky	2400 ot./min.
Směr otáčení	Obousměrný
Materiál	Litina
Konstrukce	Vnější zubové čerpadlo
Verze příruby	Příruba A - oválná, B-Čtvercový příruba, ISO-4 Montážní otvory, UNI-3 Montážní otvory, SAE přírubové spojení
Typ hřídele	X: Evolutová drážka

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 64.6 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa, ensuring stable power output for heavy-duty applications.
- Operates efficiently at a rated speed of 2000 r/min (max 2200 r/min) with bidirectional rotation capability, offering versatile installation options for diverse hydraulic systems.

**2. Versatile P21 Series Gear Pump Applications**
- Specifically engineered for material handling and earth-moving equipment, including forklifts, telehandlers, skid steer loaders, and backhoe loaders.
- Compatible with agricultural and industrial vehicles like tractors, sprayers, and waste compactors, providing a direct replacement for international mainstream brands with perfect fitment.

**3. Reliable Bidirectional Gear Pump Quality Control**
- Manufactured in our 68,000 sqm facility with 260+ vertical machining centers, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity before shipment.
- Certified under IATF 16949 and CE standards, with SGS professional detection and 25+ autonomous patents, guaranteeing zero-defect performance and long service life.

**4. Customizable OEM/ODM Available Solutions**
- Supported by 35+ senior engineers with 10+ years of experience, we offer full customization including appearance, casting modifications, and exclusive logo laser marking for your Private Label needs.
- As a China Wholesale hub, we provide flexible OEM/ODM services to meet specific technical requirements, helping distributors build their own brand identity with Factory Direct support.

**5. Secure Factory Direct Sales & Logistics**
- Enjoy Wholesale Direct Sales advantages from a source factory with an annual capacity of 1,500,000 units, ensuring timely delivery and competitive pricing for bulk orders.
- Products are protected with anti-rust treatment and heavy-duty wooden crates/pallets, ensuring safe global transit and making us the preferred partner for Exported Worldwide projects.
