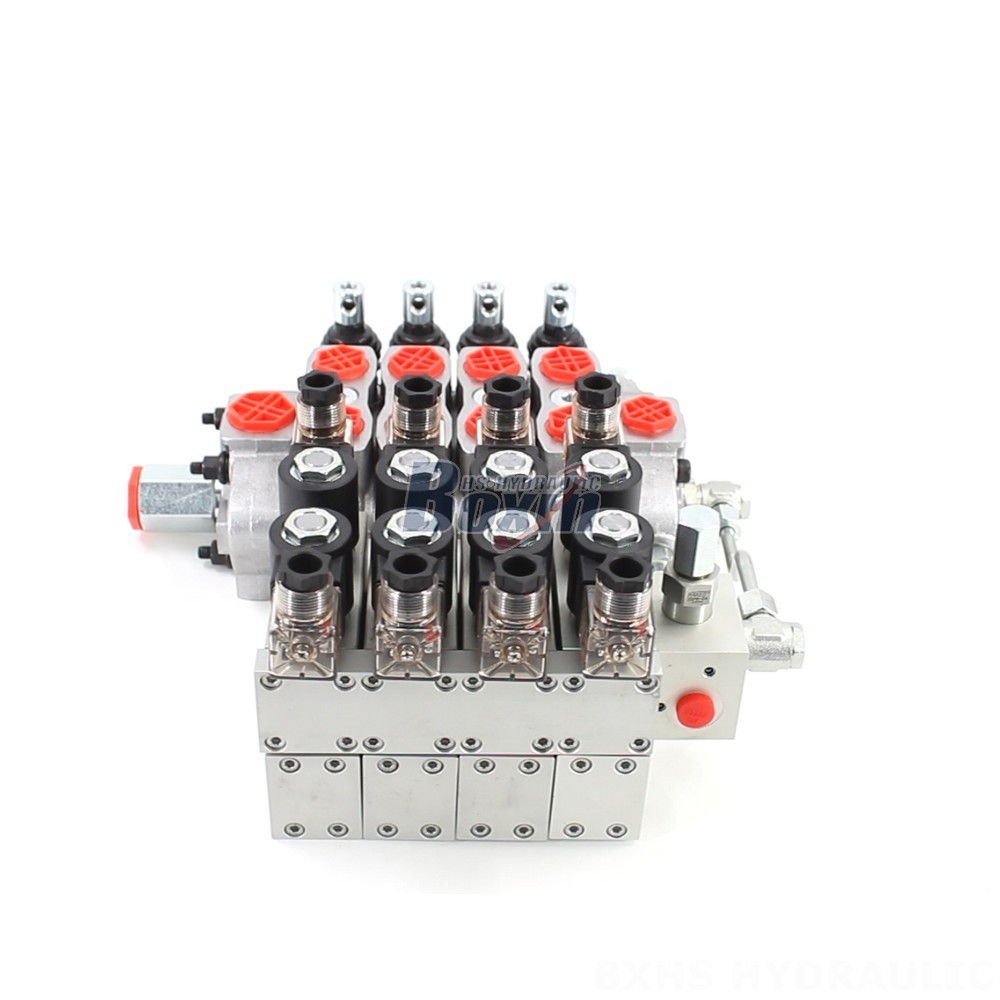

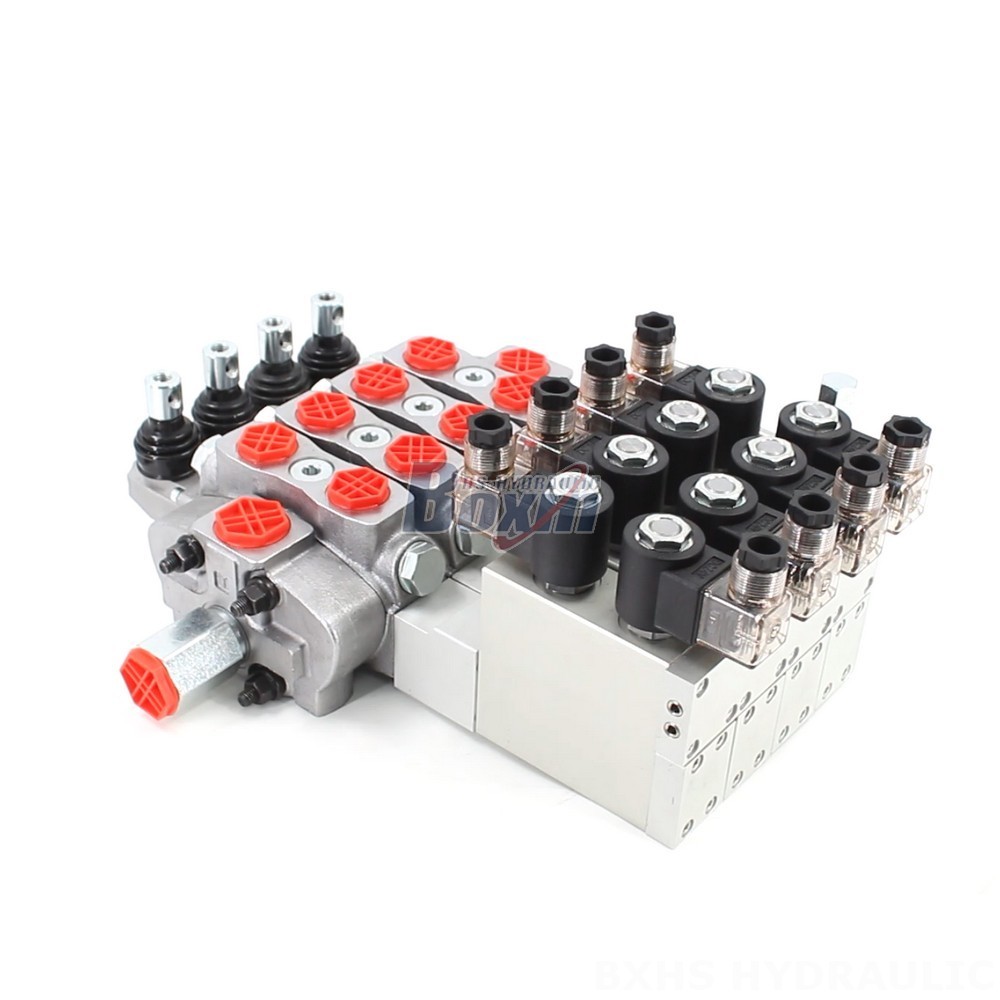

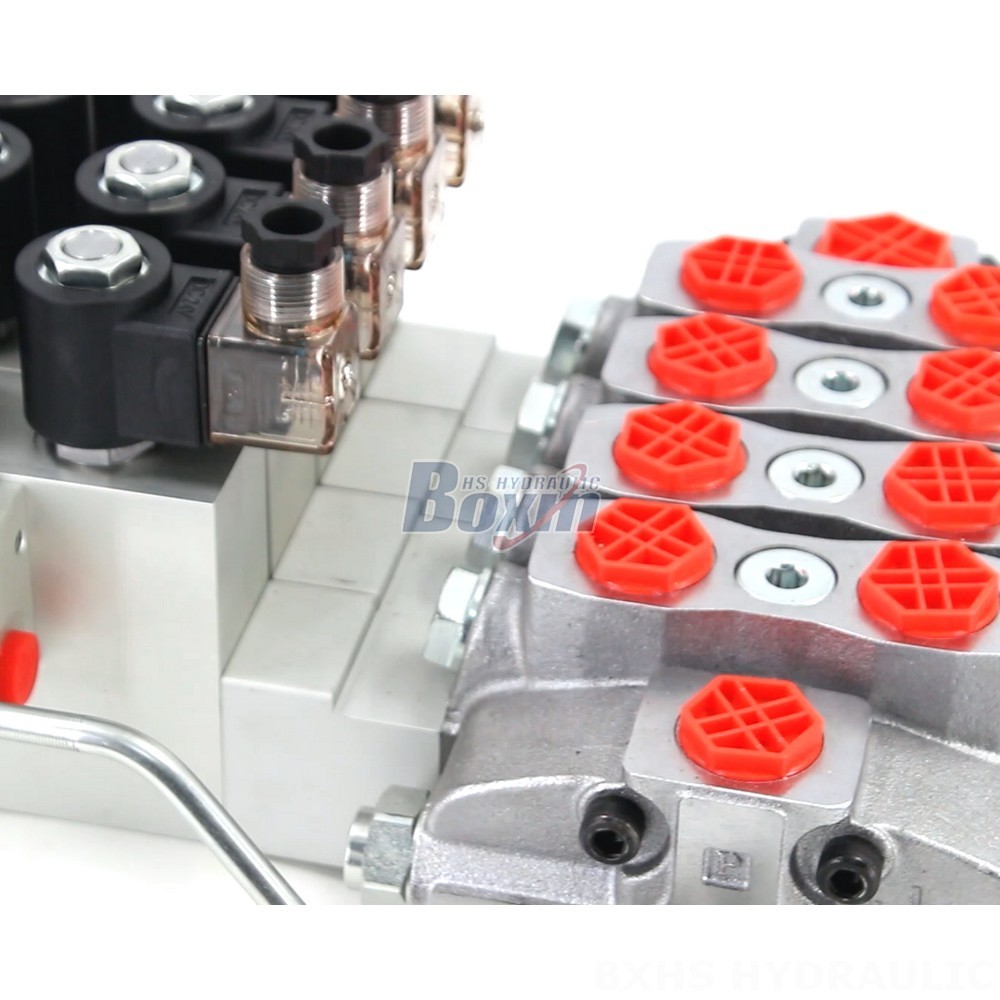

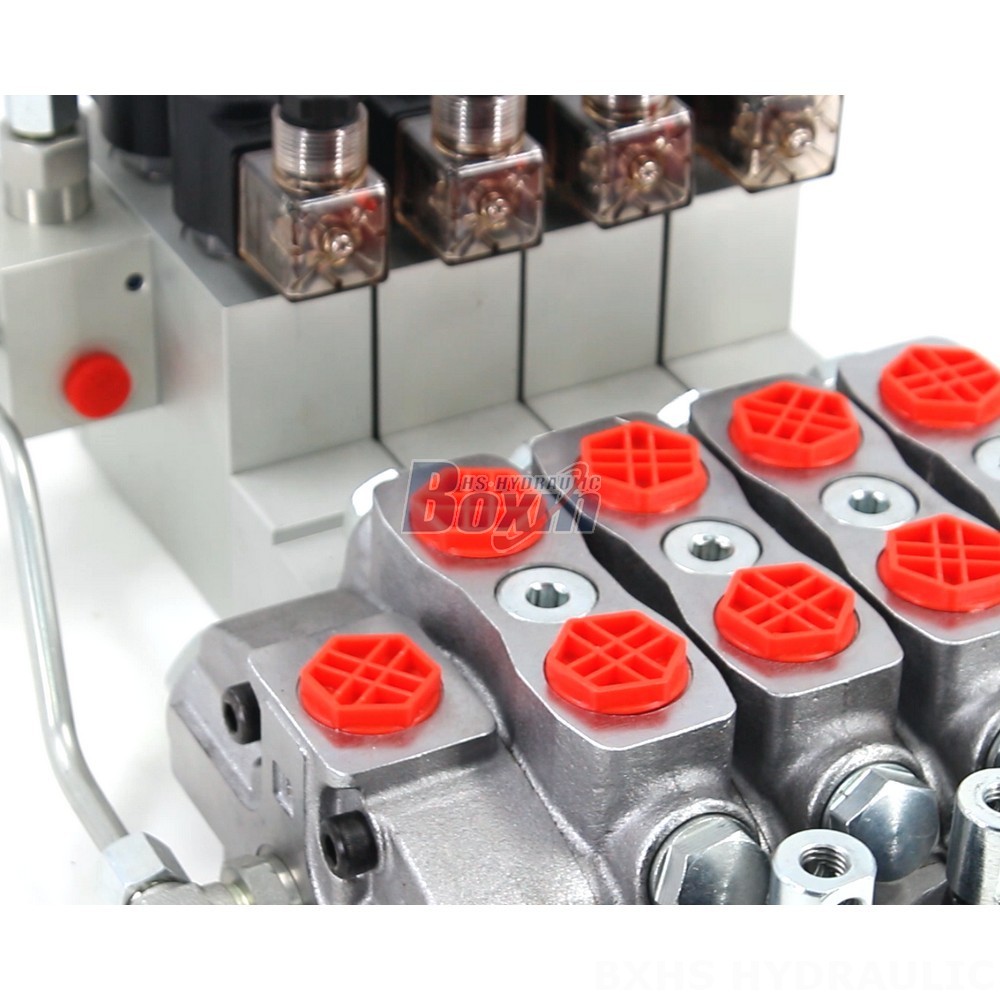

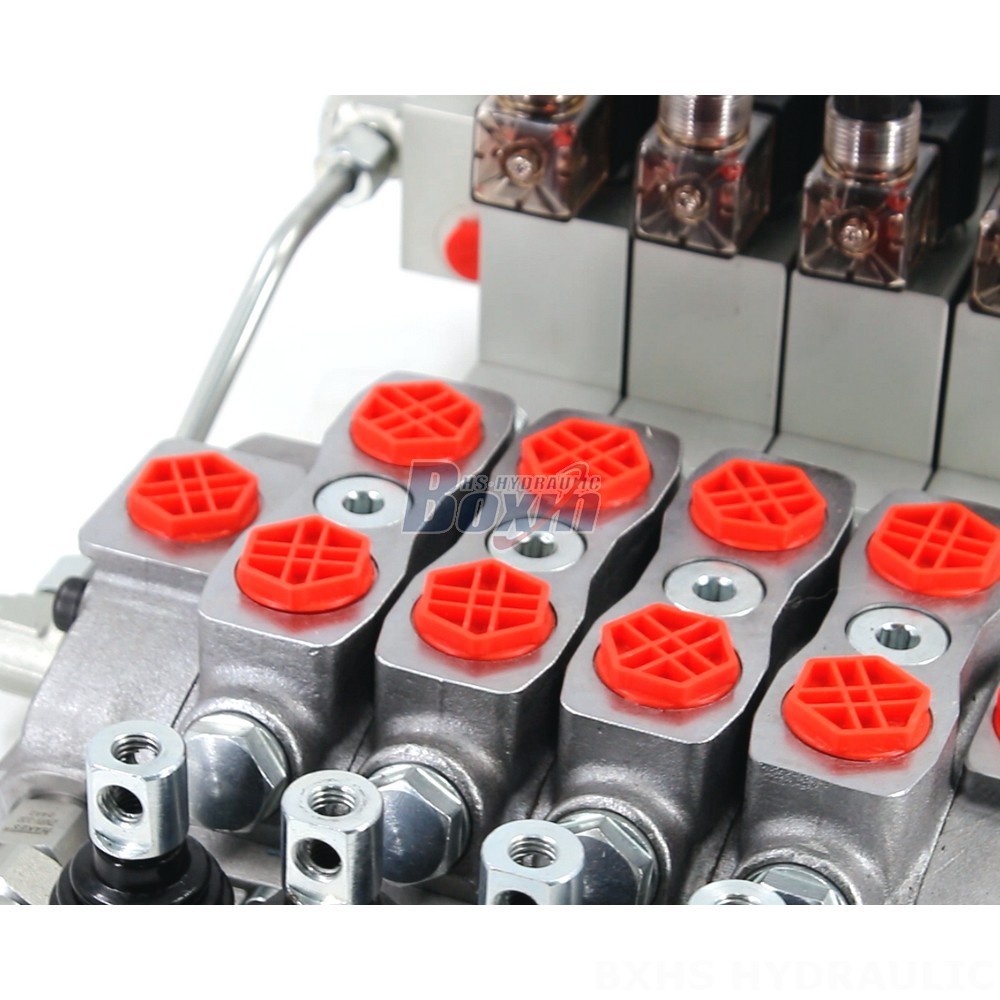

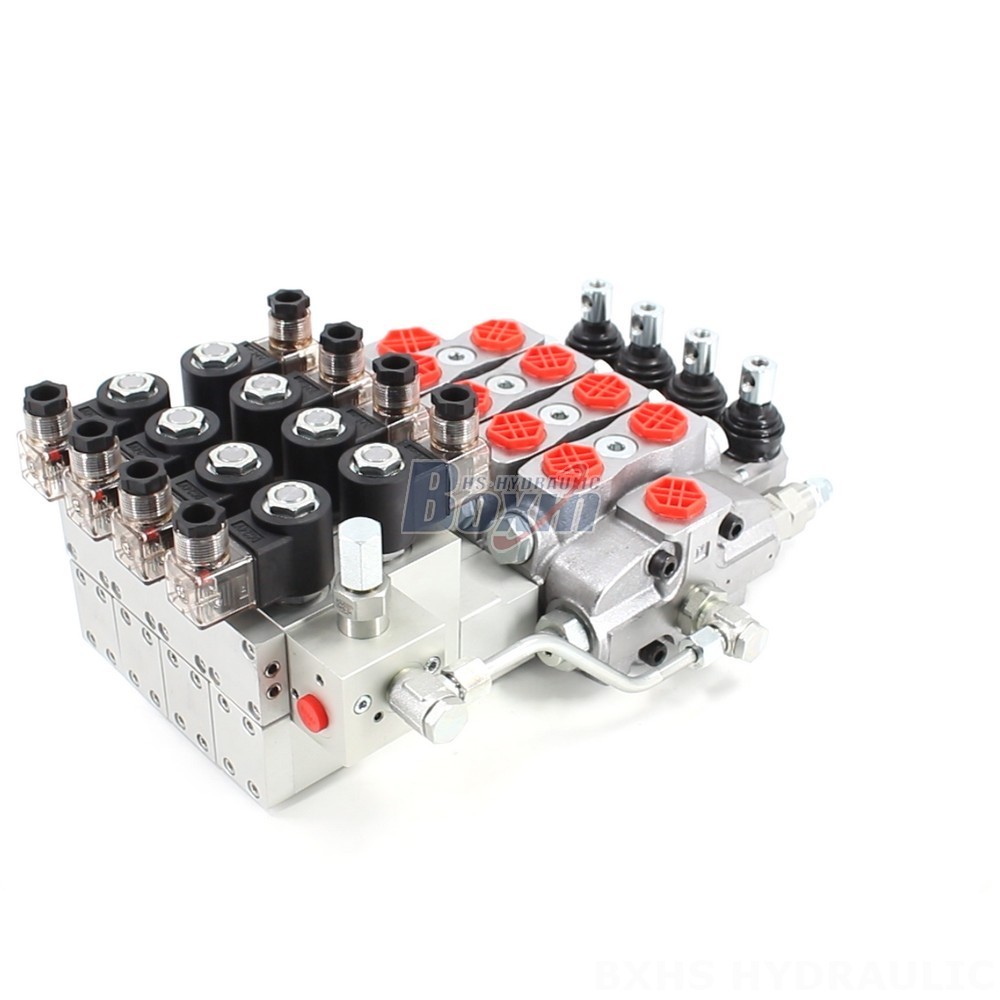

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

Metoda řízení:Elektrohydraulický

Šoupátko:4 cívky

Jmenovitý průtok:90 l/min (23,8 US gpm)

Maximální tlak:315 bar (4600 psi)

Vstupní port:G1/2

Výstupní port:G3/4

Velikost portu:G1/2

Značka:BXHS

Typ produktu:Sekční směrový ventil

Produktová řada:Řada SD8 Sekční směrový ventil

Velikost balení:40*35*20

Hrubá hmotnost:28.00 kg

Dostupnost: Skladem

545 Zobrazení hledají tento produkt

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct drawing image

High-quality SD8-PG2 electro-hydraulic 4-spool sectional directional valve, offering 90 L/min flow rate and 350 bar max pressure. Ideal for material handling, construction, and agricultural applications. Factory direct pricing and OEM/private label options available.

Řada SD8 Sekční směrový ventil Parametry
Metoda řízení Ruční, Pneumatický, Elektropneumatický, Elektrohydraulický, Solenoidový, Hydraulický, Hydraulické a manuální, Kabel, Joystick, Solenoidový a joystick, Ruční a joystick, Elektromotor
Šoupátko 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek, 8 cívek, 9 cívek, 10 cívek
Rozsah okolní teploty -40 °C až +80 °C (-40 °F až +176 °F)
Typ konstrukce Sekční ventil
Sekce Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7, Sekce 8, Sekce 9, Sekce 10
Rozsah provozní viskozity 12 - 400 mm²/s (12 cSt až 400 cSt)
Jmenovitý průtok 90 l/min (23,8 US gpm)
Maximální tlak 315 bar (4600 psi)
Vstupní port G1/2, G3/4, M22×1.5, SAE 10
Výstupní port G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Velikost portu G1/2, M22×1.5, SAE 10

The SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve is a high-performance hydraulic component manufactured by our factory. We offer factory direct pricing, ensuring competitive advantage for our customers. This robust valve boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi) or 250 bar (3600 psi), making it suitable for a wide range of applications, including material handling, construction and earth moving, industrial vehicles, and agriculture. Specific applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, backhoe loaders, mini-excavators, midi-excavators, harvesters, and balers. This 4-section, electro-hydraulic sectional valve operates reliably within a temperature range of -40°C to +80°C (-40°F to +176°F) and a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt).

**We are a leading hydraulic product manufacturer offering:**
* **Manufacturing:** High-quality production of the SD8-PG2 and other hydraulic valves.
* **OEM (Original Equipment Manufacturing):** We provide custom designs and manufacturing to meet your specific requirements. Partner with us to integrate our valves seamlessly into your equipment.
* **Private Labeling:** Brand your own hydraulic valves with your company logo and specifications.
* **Customization:** Tailor the valve's specifications to match your unique application needs.
* **Wholesale:** Bulk orders available at competitive factory-direct prices.

**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies

Partner with us to access high-quality, reliable hydraulic valves at competitive prices. Contact us today to discuss your needs and explore potential collaborations. We are a factory direct supplier offering competitive pricing, high-quality products, and flexible OEM and private labeling options. Choose a reliable and experienced hydraulic valve manufacturer – choose us.
