The SDS180 Manual 2 Spool Sectional Directional Valve is a versatile and high-performance hydraulic valve designed for a wide range of applications in industries such as material handling, construction, and agriculture. With its robust construction, precise control, and durability, it offers reliable operation and enhanced system efficiency.
| Řada SDS180 Sekční směrový ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Hydraulický |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek, 7 cívek |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Typ konstrukce | Sekční ventil |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6, Sekce 7, Sekce 8, Sekce 9, Sekce 10 |
| Rozsah provozní viskozity | 12 - 400 mm²/s (12 cSt až 400 cSt) |
| Jmenovitý průtok | 160 l/min (42,2 US gpm) |
| Maximální tlak | 315 bar (4600 psi), 350 bar (5100 psi) |
| Vstupní port | G3/4, G1, SAE 12 |
| Výstupní port | G1, SAE 16 |
| Velikost portu | G3/4, G1, SAE 12 |

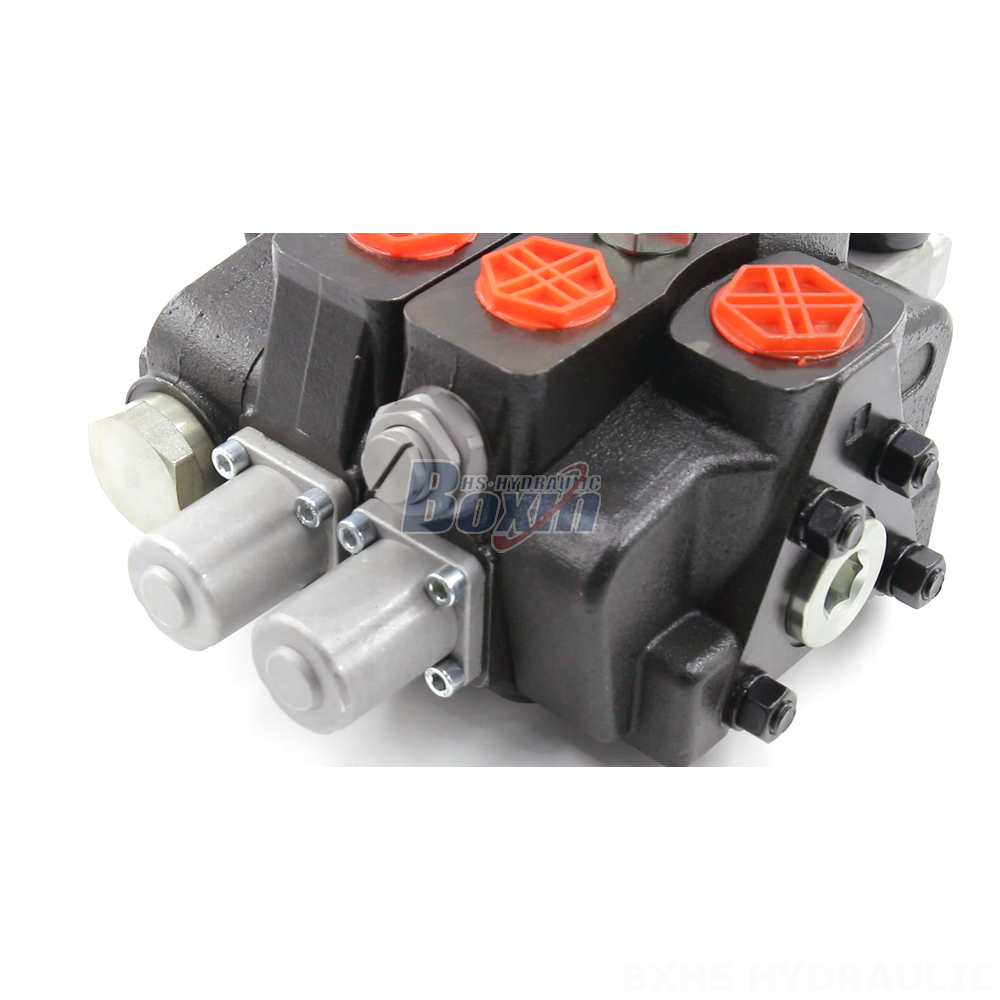

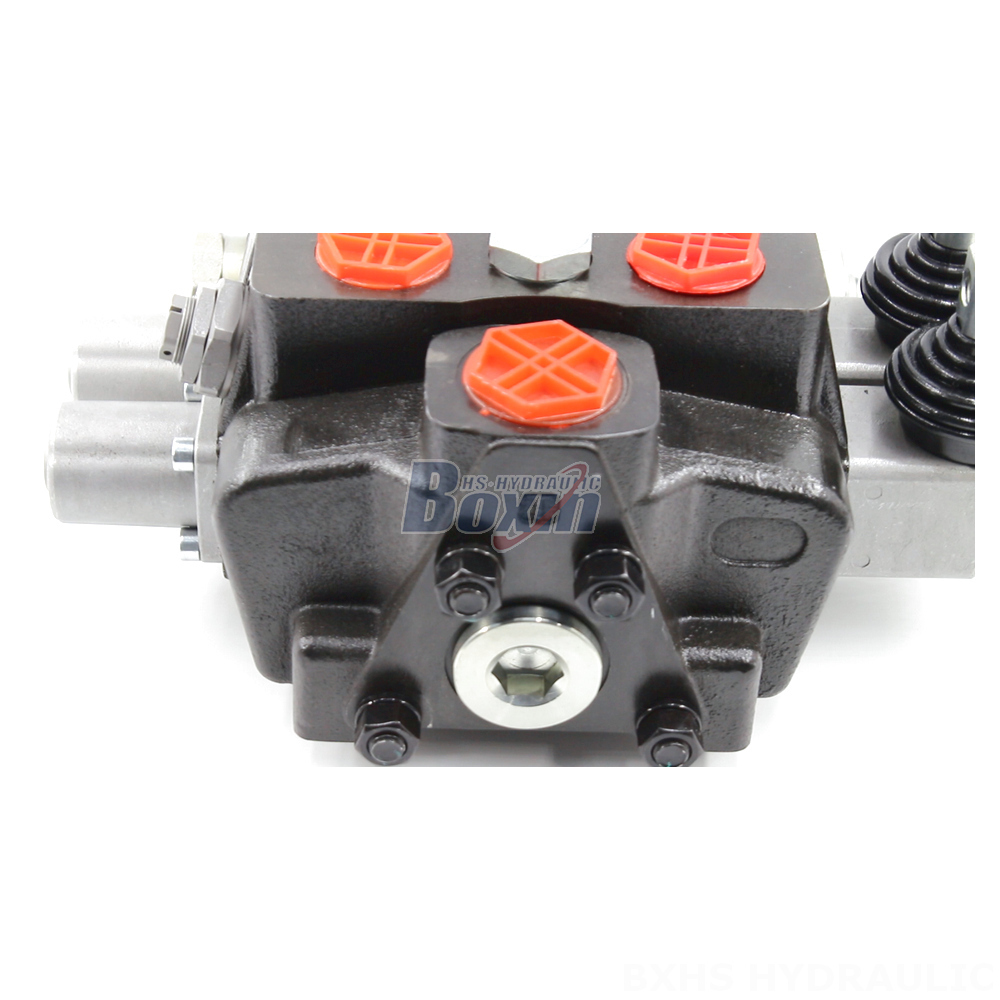

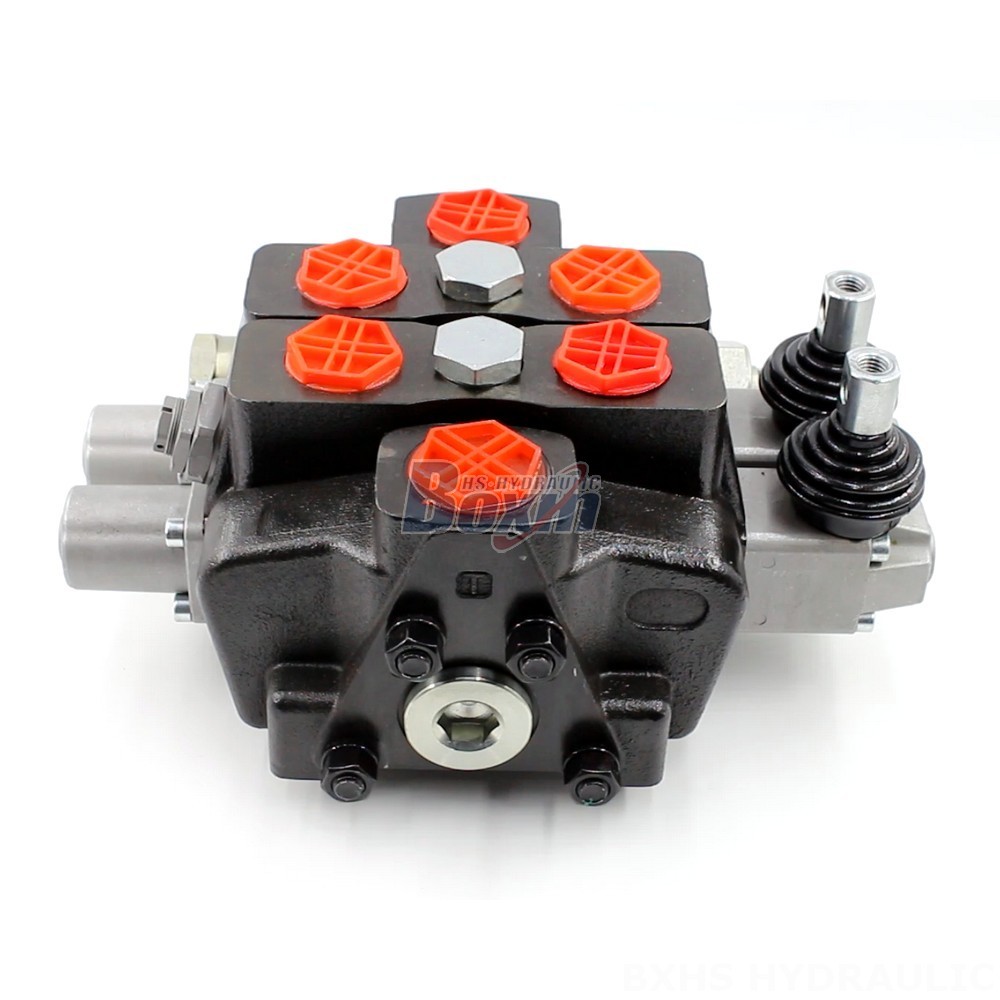

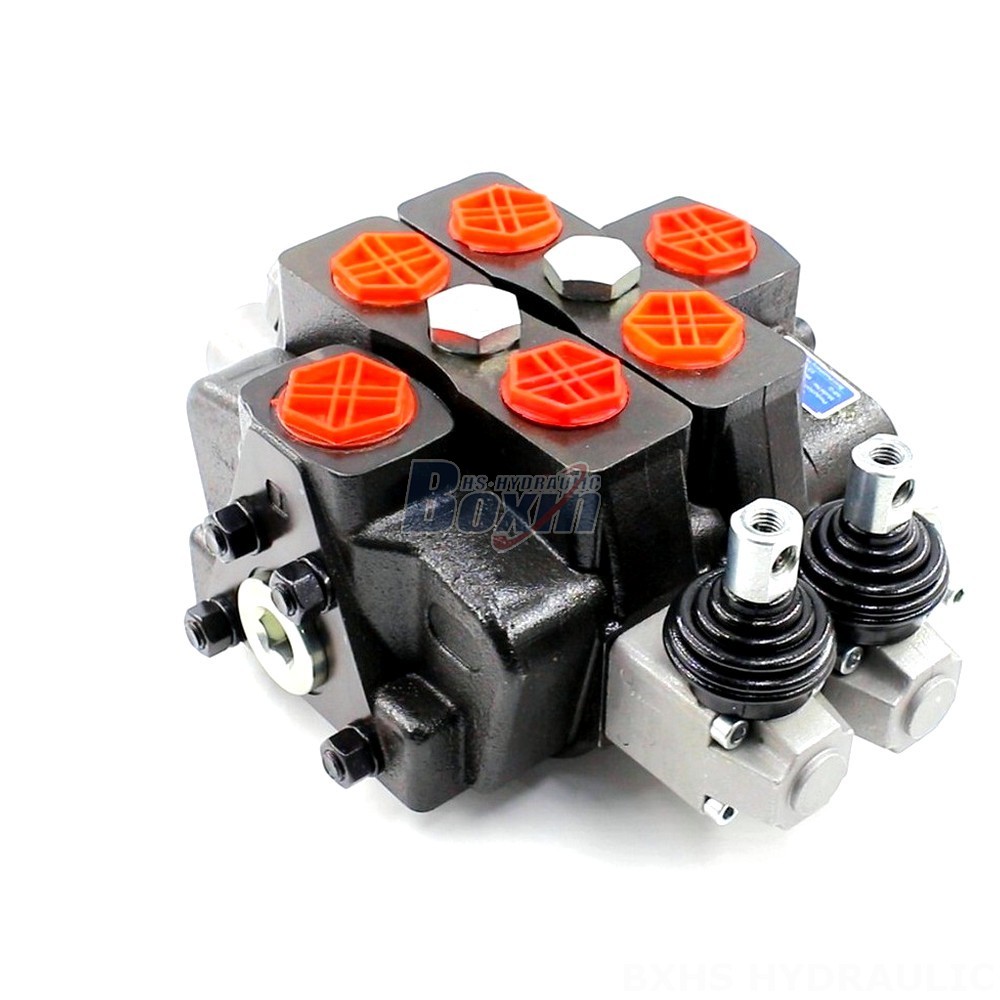

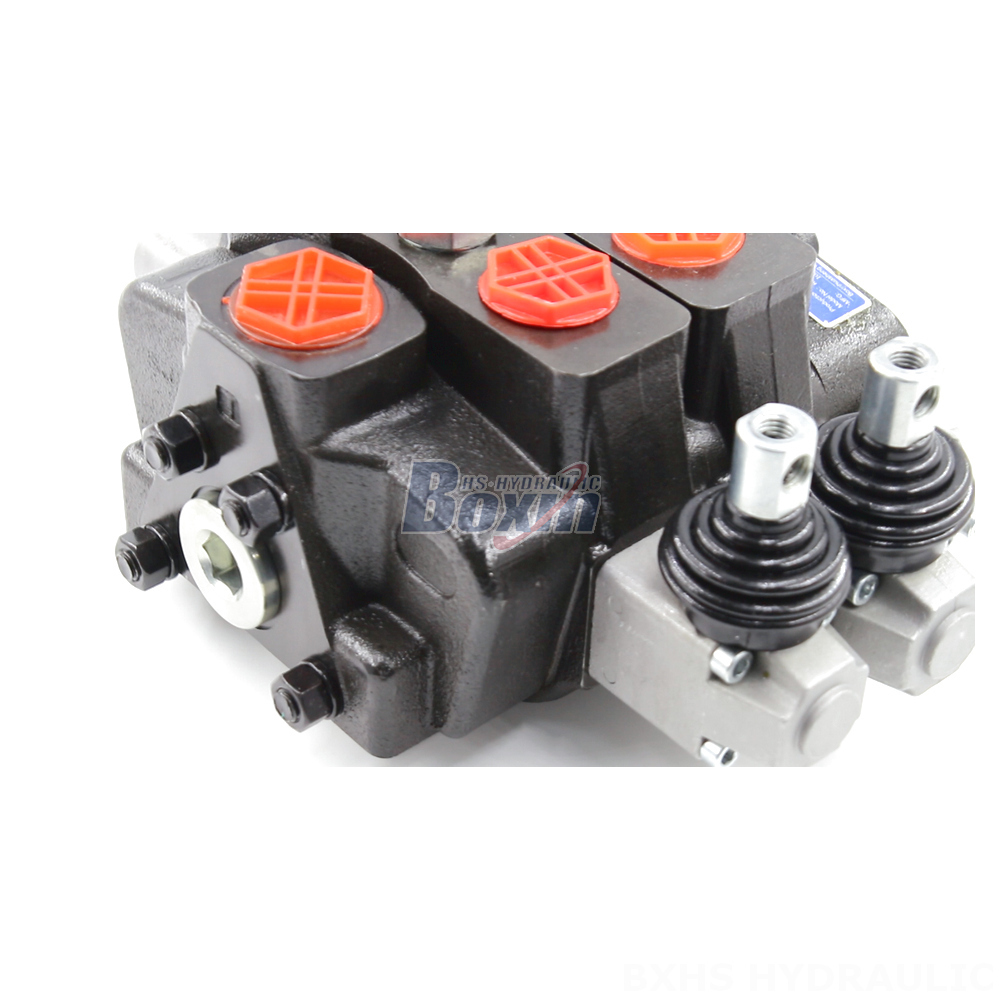

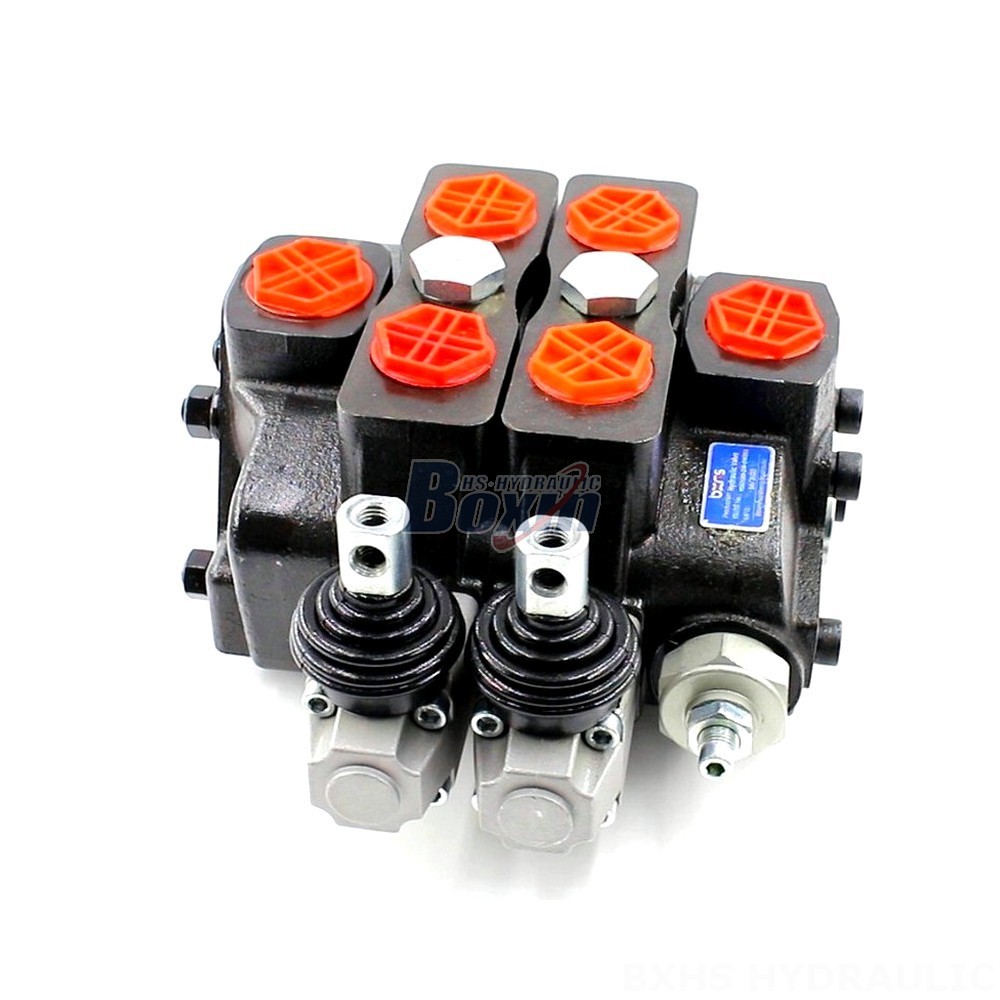

**Product Name:** SDS180 Manual 2 Spool Sectional Directional Valve
**Product Description:**
The SDS180 Manual 2 Spool Sectional Directional Valve is a 2-section, manually controlled hydraulic valve that provides precise and efficient flow control in hydraulic systems. It features a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for demanding applications.
**Key Features:**
* Manual control for precise and responsive operation
* 2-spool design for versatile flow control
* Sectional valve construction for modularity and flexibility
* Rated flow of 160 L/min (42.2 US gpm)
* Maximum pressure of 350 bar (5100 psi)
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt)
* Wide range of applications in material handling, construction, and agriculture
* Applicable models include telehandlers, forklifts, cranes, stackers, and excavators
