Seeking Distributors and Wholesalers for P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Zdvihový objem:64,6 cm³/ot

Jmenovitý tlak:16 MP (2320 psi)

Maximální tlak:17 MP (2465 psi)

Maximální otáčky:2400 ot./min.

Směr otáčení:Obousměrný

Značka:BXHS

Typ produktu:Hydraulické čerpadlo s ozubenými koly

Produktová řada:Řada P21 Hydraulické čerpadlo s ozubenými koly

Velikost balení:45*25*18

Hrubá hmotnost:16.00 kg

Dostupnost: Skladem

157 Zobrazení hledají tento produkt

Seeking Distributors and Wholesalers for P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Seeking Distributors and Wholesalers for P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump

Seeking Distributors and Wholesalers for P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump drawing image

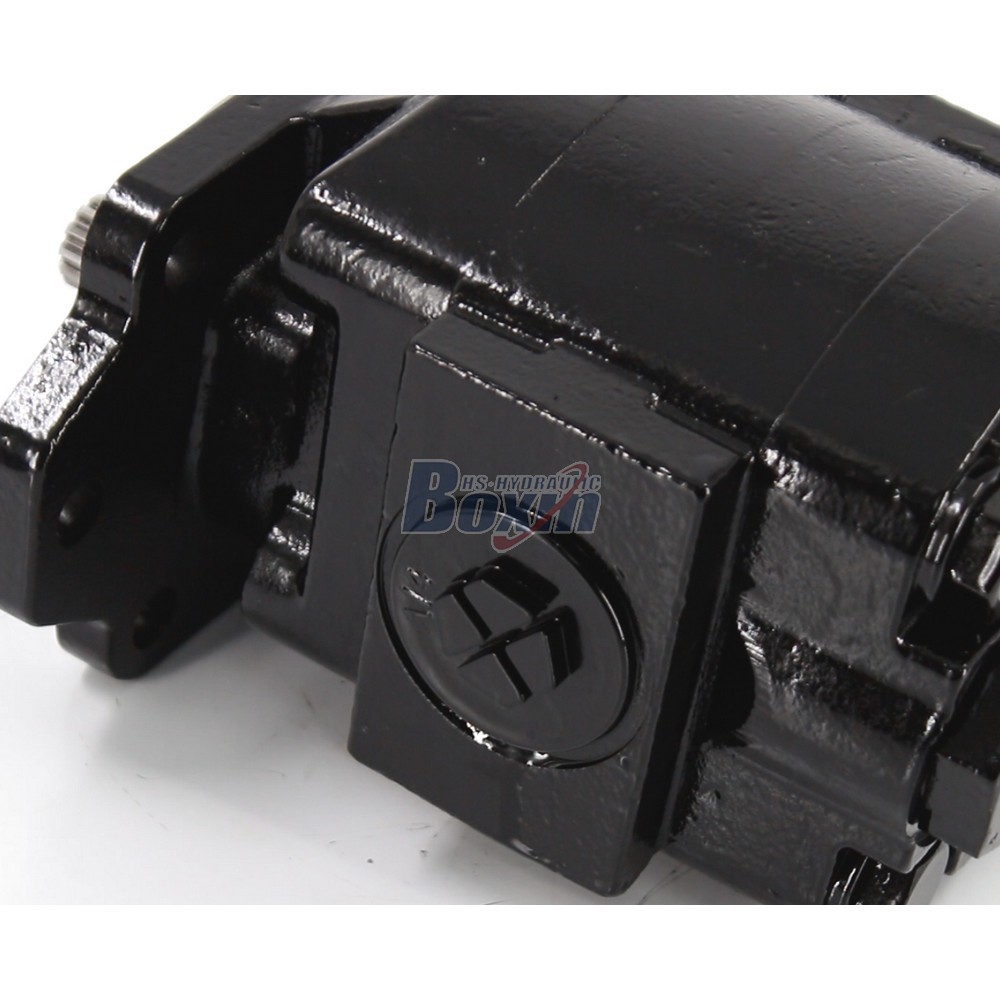

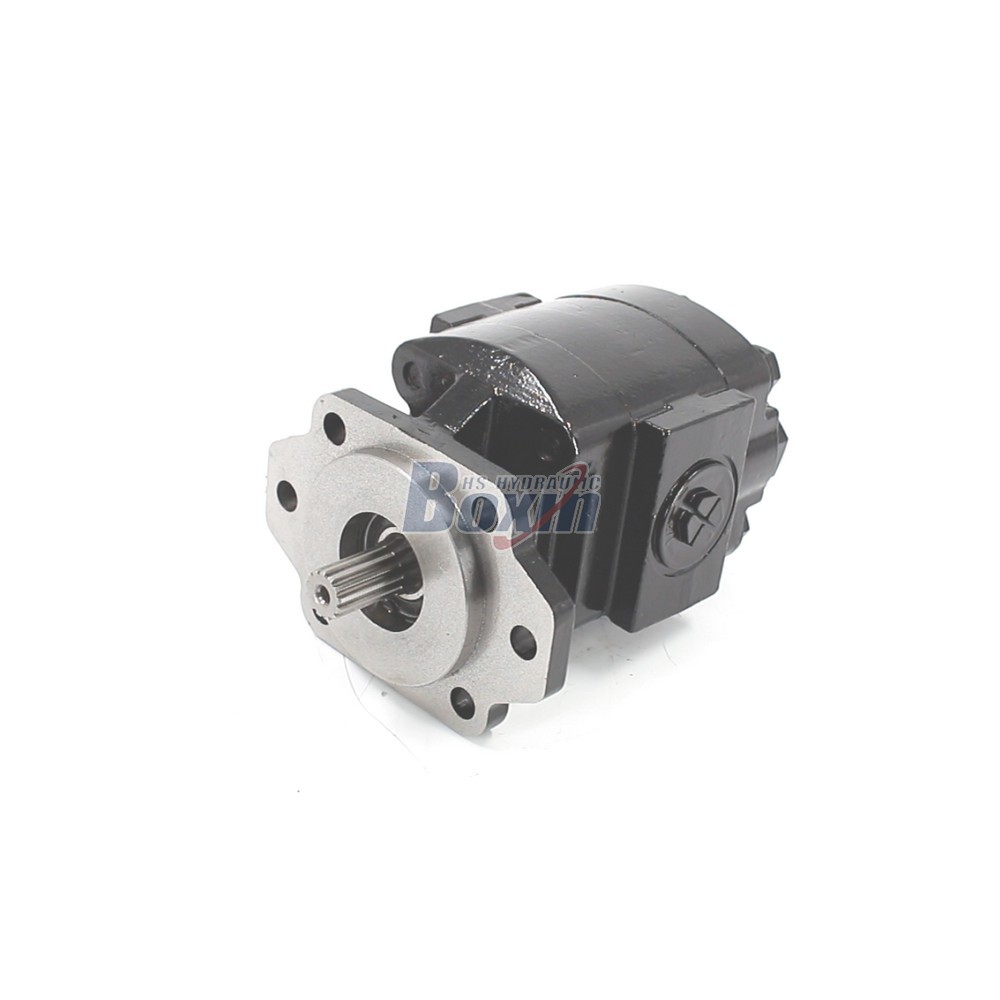

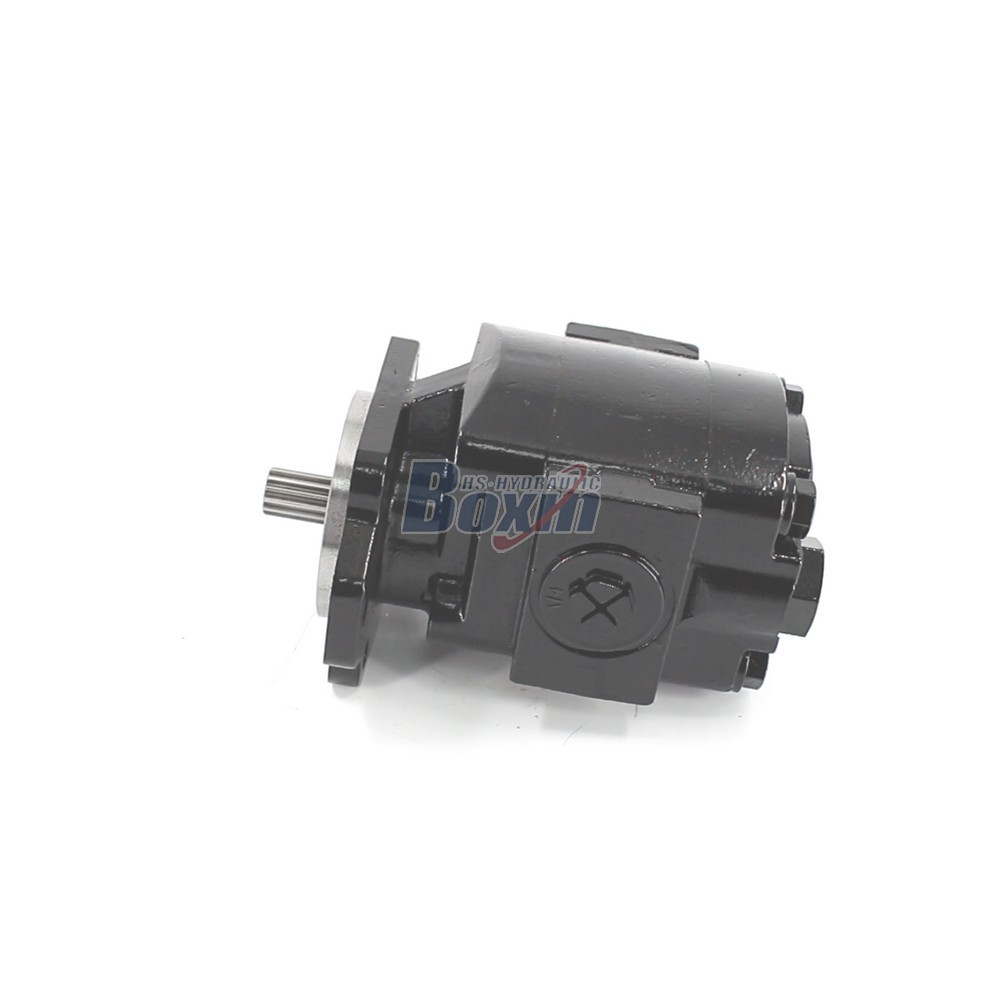

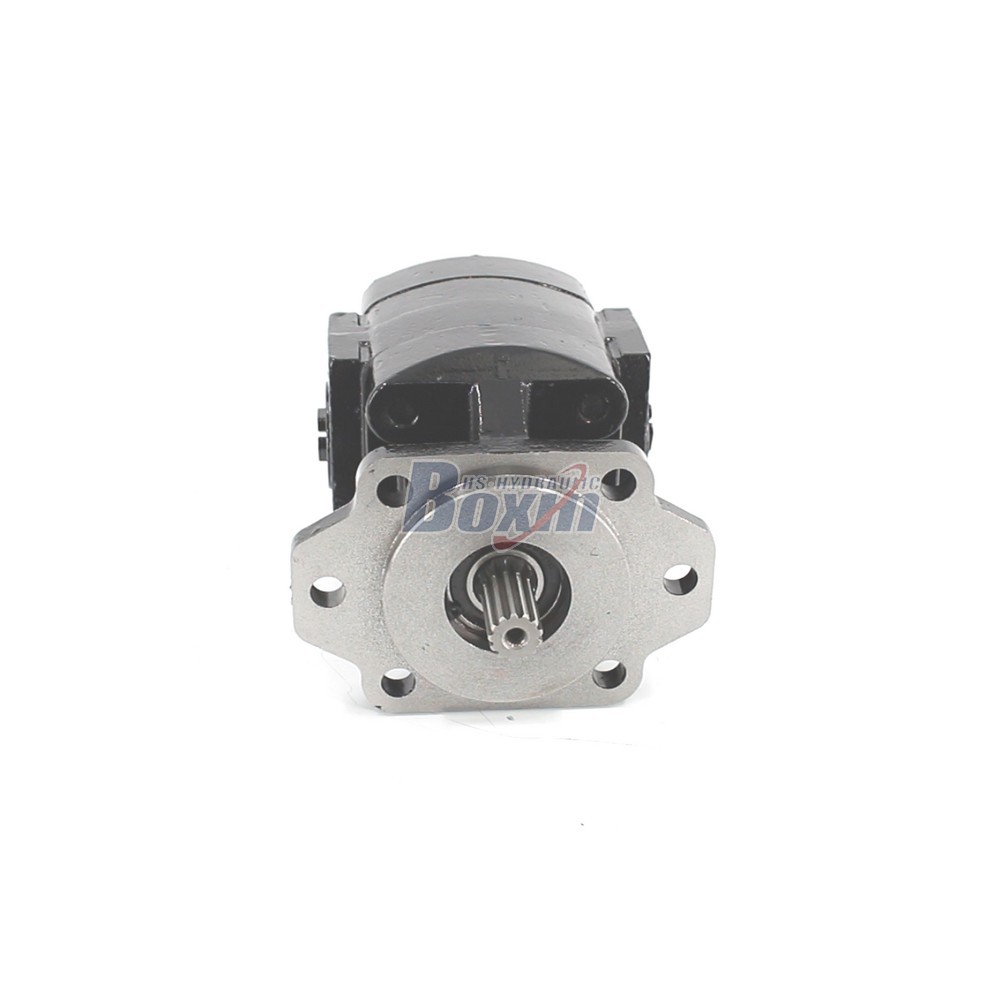

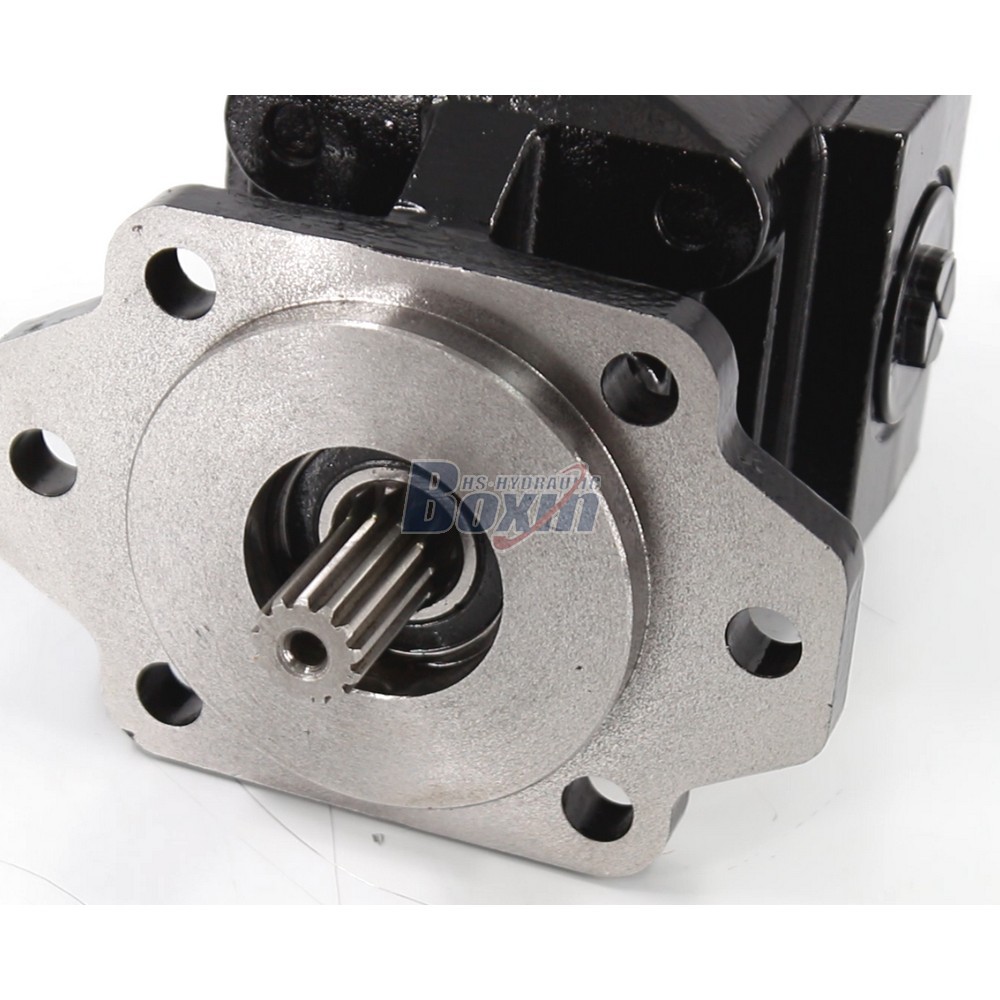

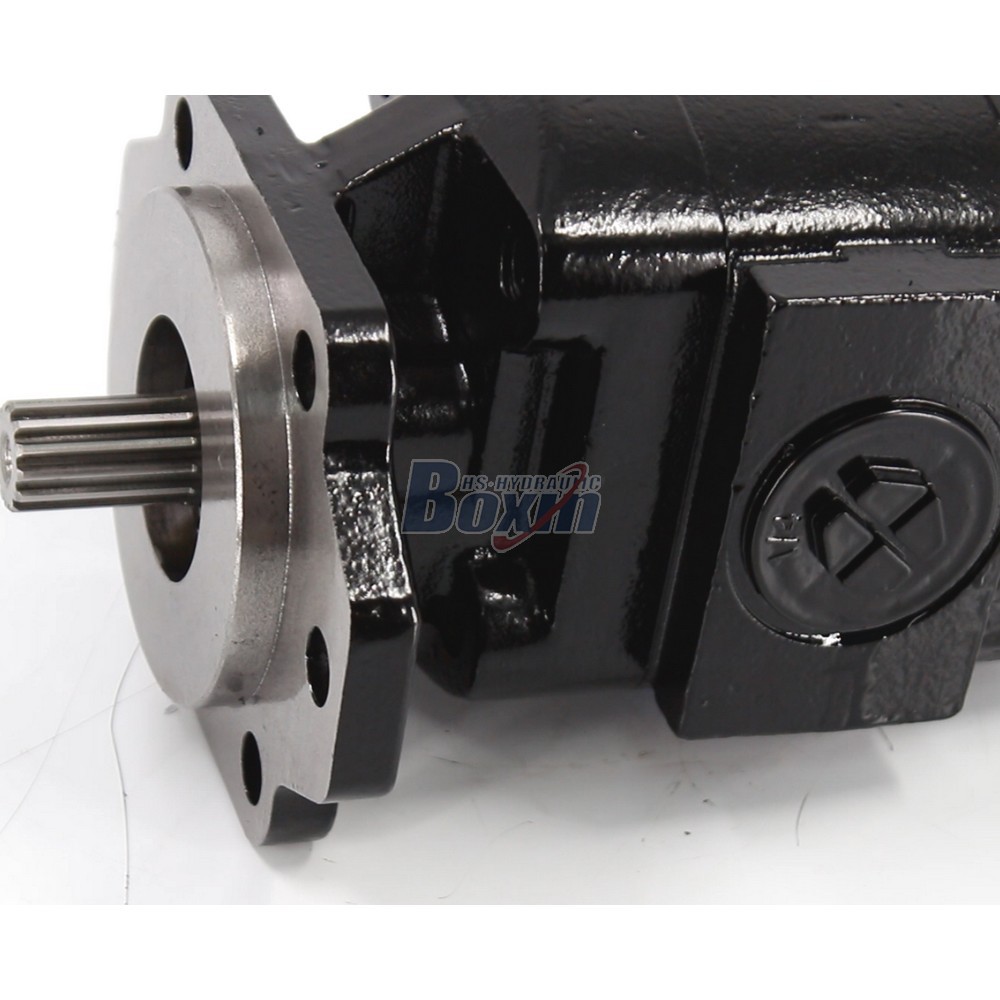

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for wheel loaders and excavators. Manufactured by a 25-year IATF 16949 certified factory with 1.5M annual capacity, it ensures reliable performance for construction and agricultural machinery.

Řada P21 Hydraulické čerpadlo s ozubenými koly Parametry
Zdvihový objem 64,6 cm³/ot
Jmenovitý tlak 16 MP (2320 psi)
Maximální tlak 17 MP (2465 psi)
Jmenovité otáčky 600 ot/min
Maximální otáčky 2400 ot./min.
Směr otáčení Obousměrný
Materiál Litina
Konstrukce Vnější zubové čerpadlo
Verze příruby Příruba A - oválná, B-Čtvercový příruba, ISO-4 Montážní otvory, UNI-3 Montážní otvory, SAE přírubové spojení
Typ hřídele X: Evolutová drážka

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 64.6 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa.
- Supports bidirectional rotation at speeds up to 2400 r/min, ensuring versatile integration into complex hydraulic systems.

**2. Professional Manufacturer with IATF 16949 Certification**
- Backed by 25+ years of expertise, 4 modern factories, and 260+ CNC machining centers for consistent quality.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, guaranteed by CE and SGS certifications.

**3. Versatile P21 Series Gear Pump Applications**
- Specifically engineered for heavy-duty equipment including wheel loaders, backhoes, skid steers, and forklifts.
- Perfectly compatible with major international brands, offering a cost-effective replacement solution for OEMs and distributors.

**4. OEM/ODM Available for Custom Branding**
- Supported by 35+ senior engineers, we offer tailored solutions including custom castings, logos, and private label services.
- Flexible manufacturing allows for specific port configurations and mounting flanges to meet unique project requirements.

**5. Factory Direct Sales with Global Logistics**
- Benefit from wholesale direct sales pricing with an annual production capacity of 1,500,000 units for fast lead times.
- Products are secured with anti-rust treatment and heavy-duty wooden crate packaging, ensuring safe worldwide delivery.
