Výroba a dodávka
Výrobní doba 15-30 dní

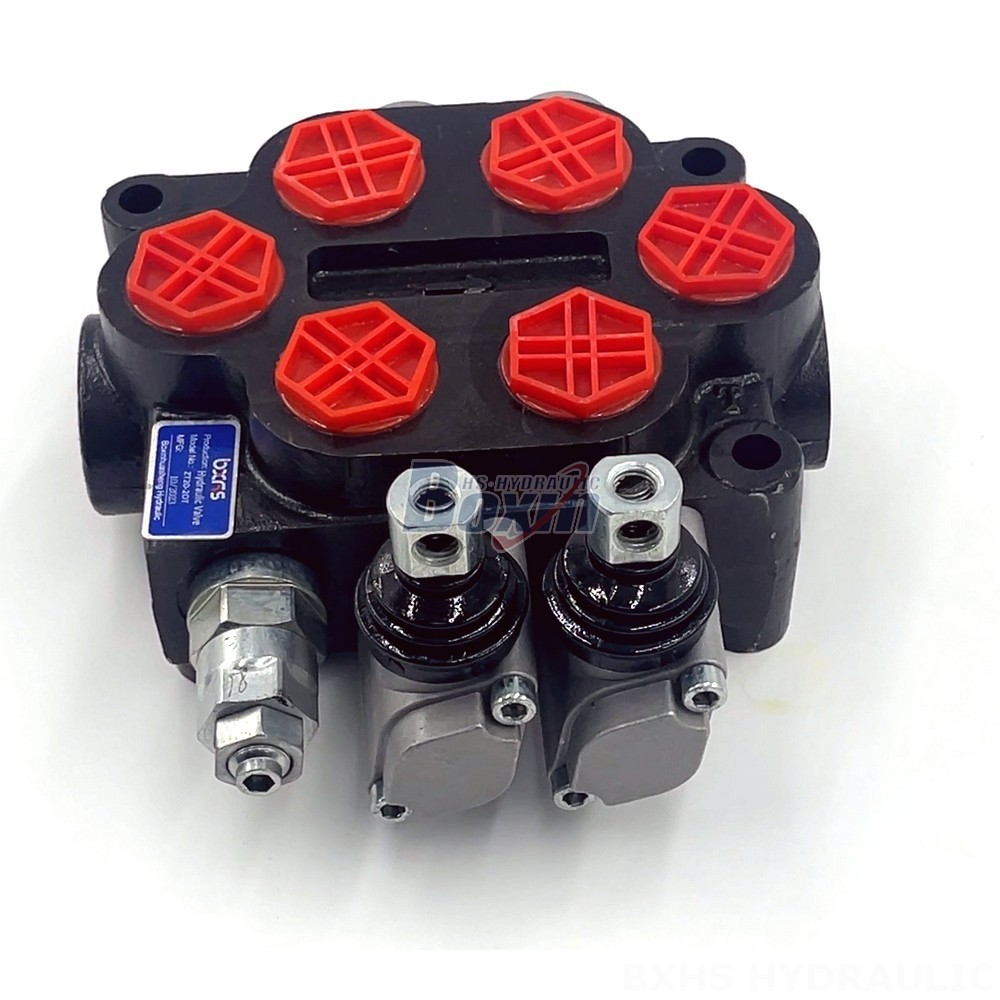

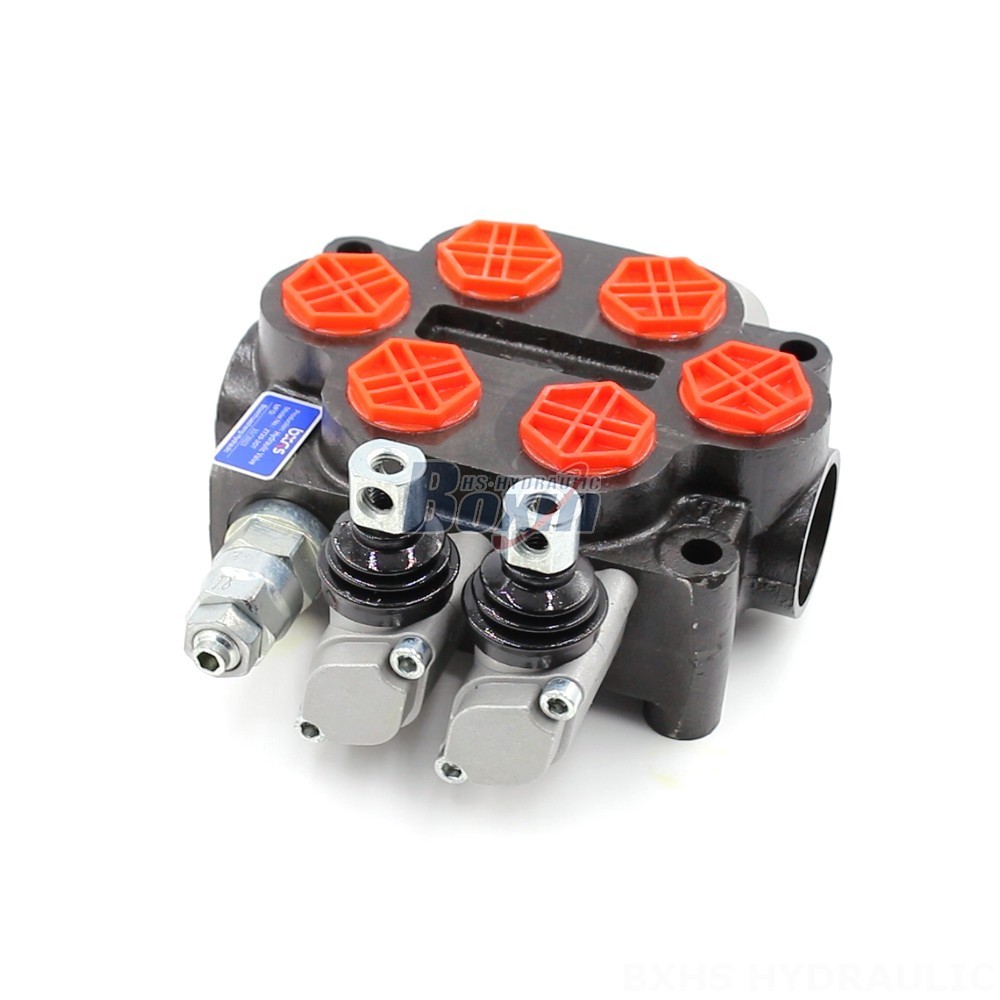

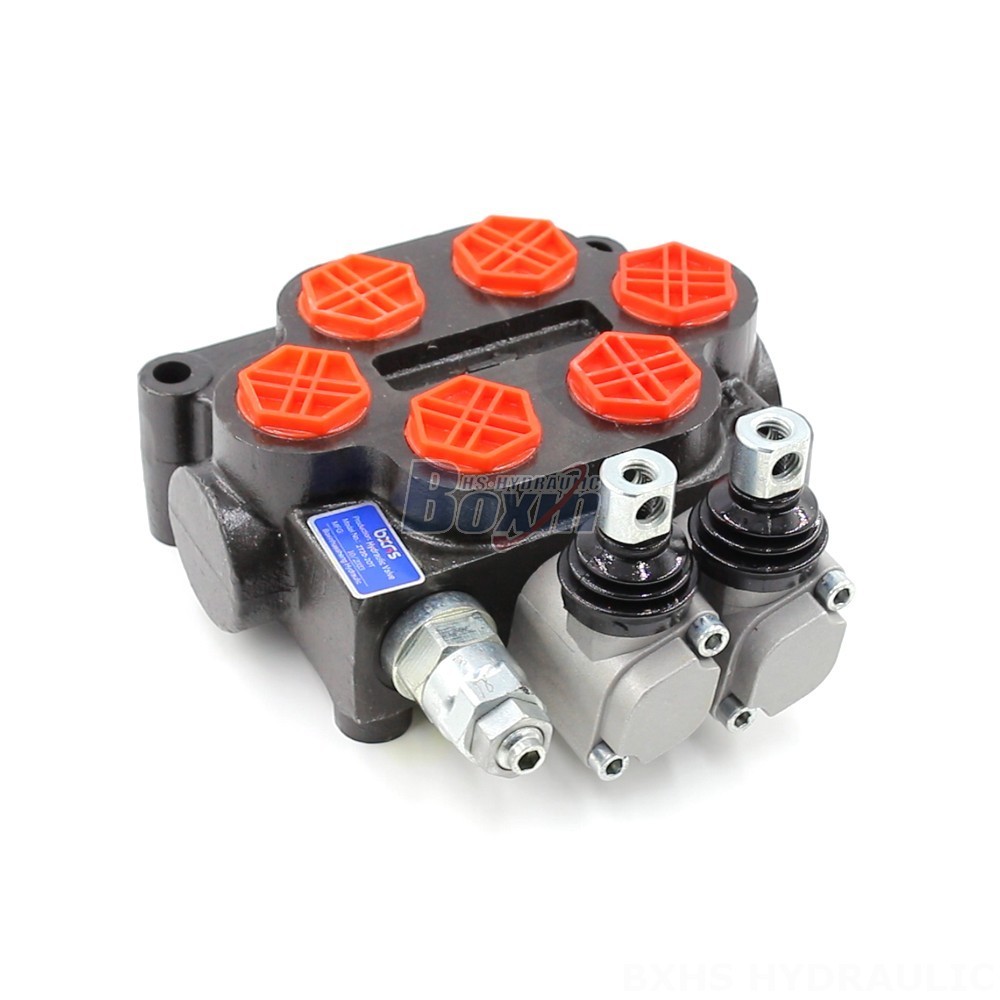

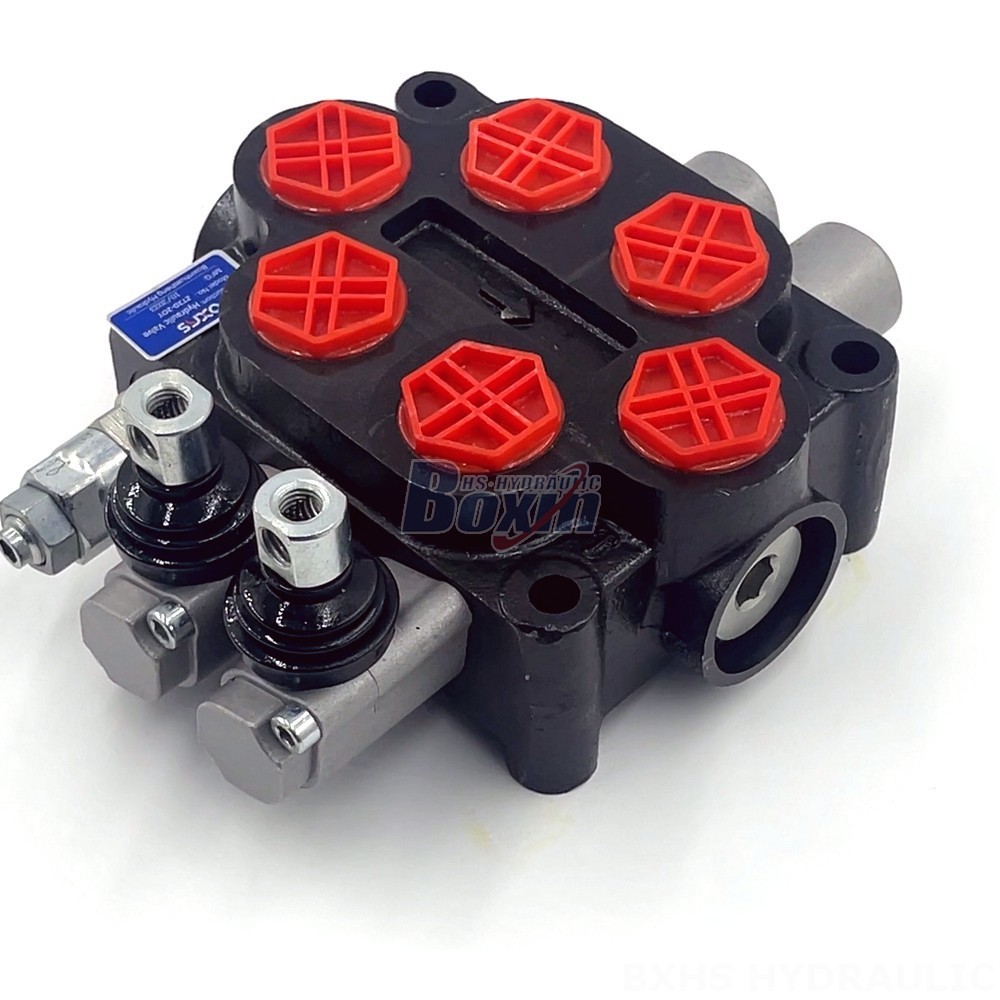

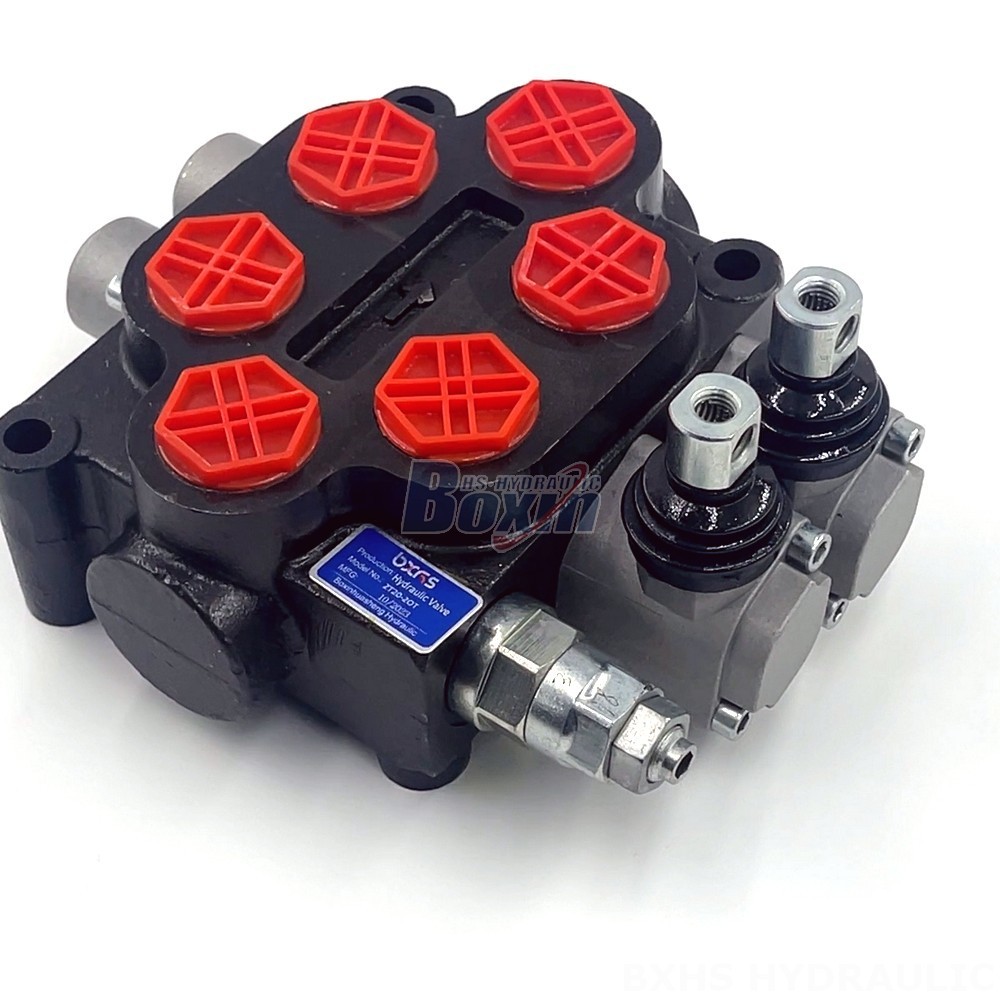

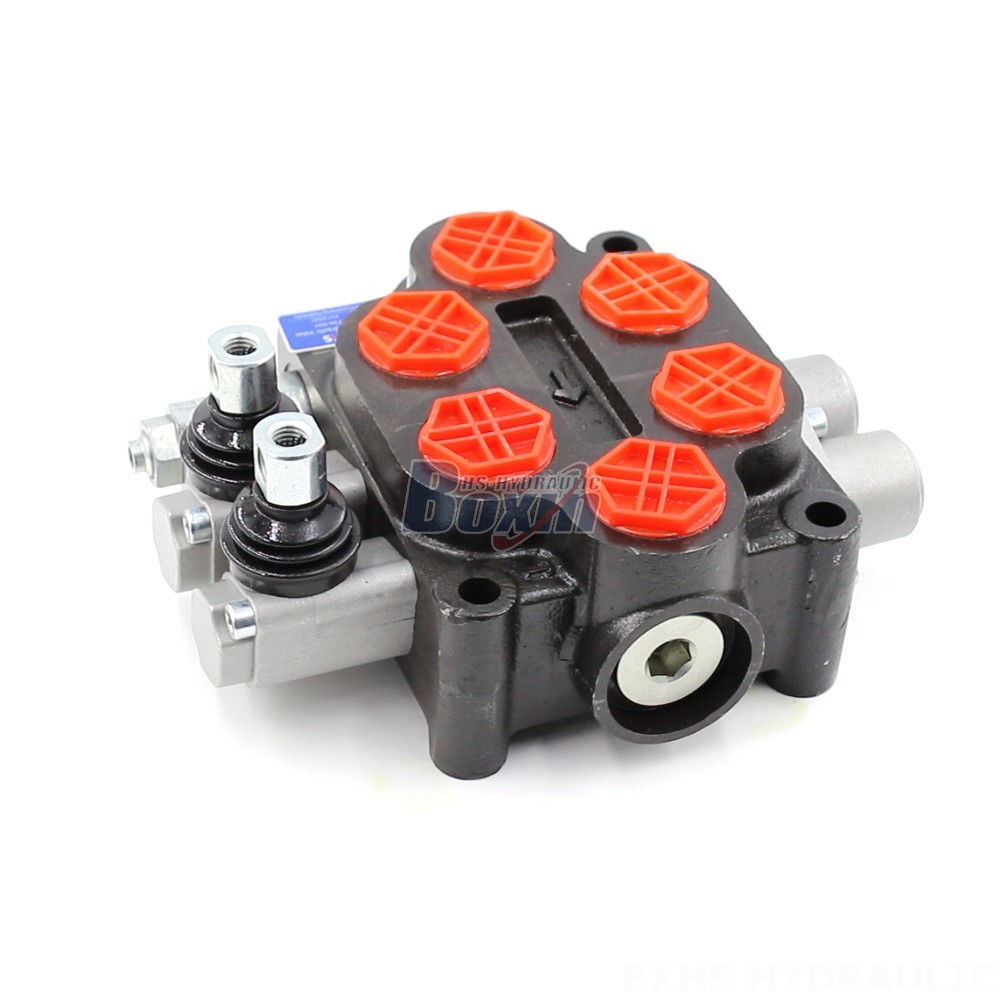

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.
| Řada ZT20 Hydraulický řídicí ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Kabel, Joystick, Ruční a joystick |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek |
| Jmenovitý průtok | 100 l/min (26,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Výstupní port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Velikost portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6 |
| Typ konstrukce | Blokový ventil |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
