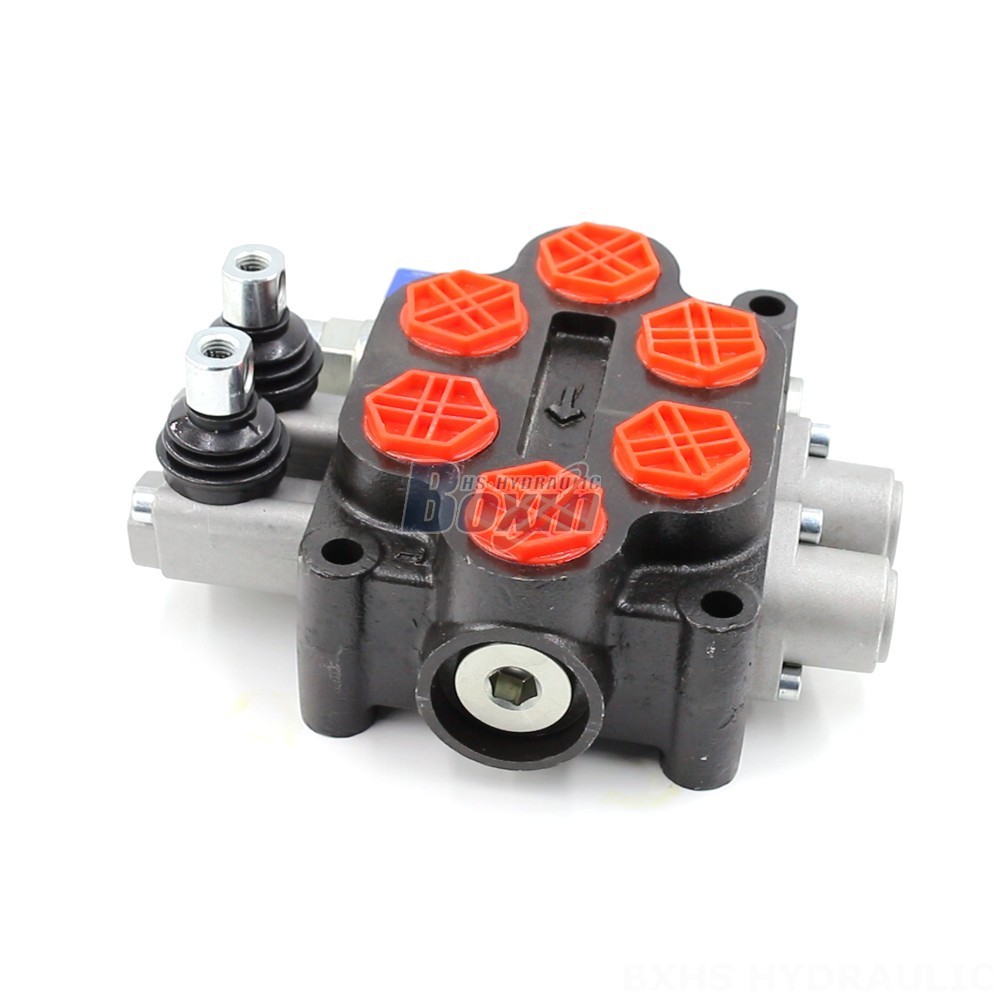

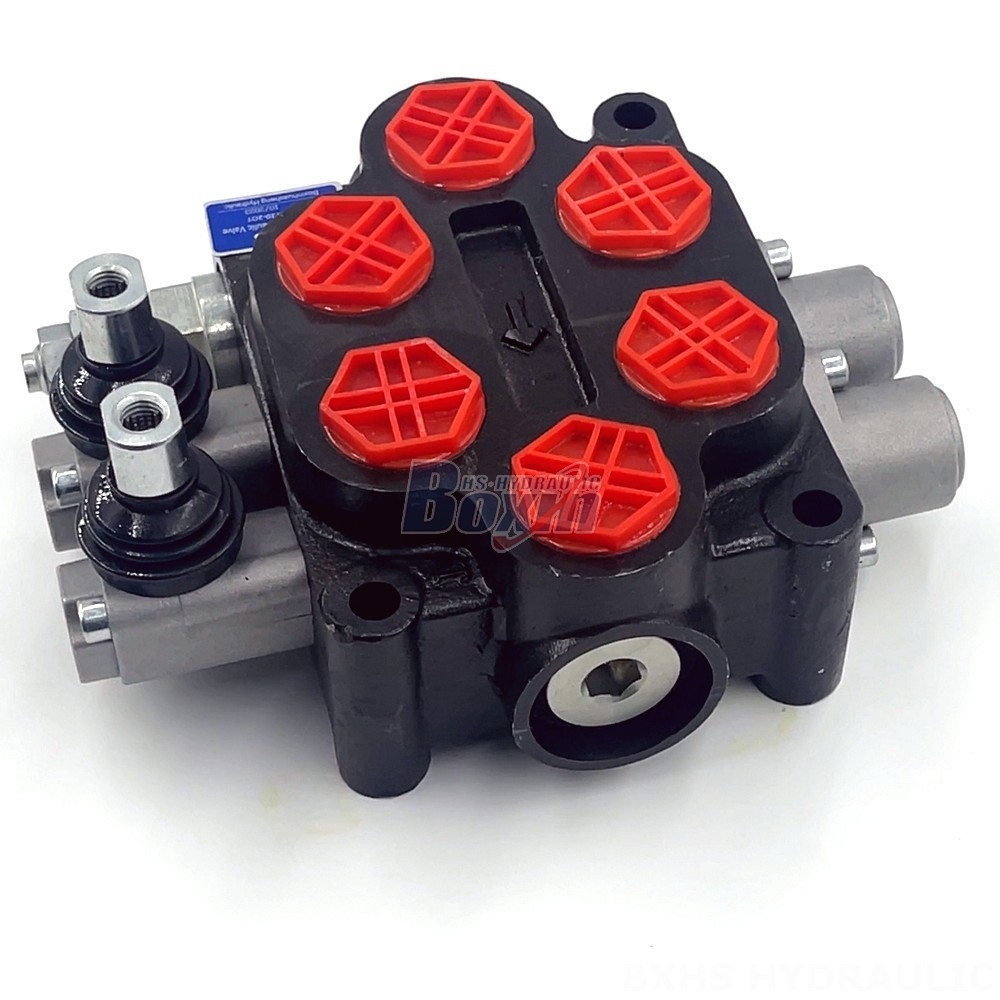

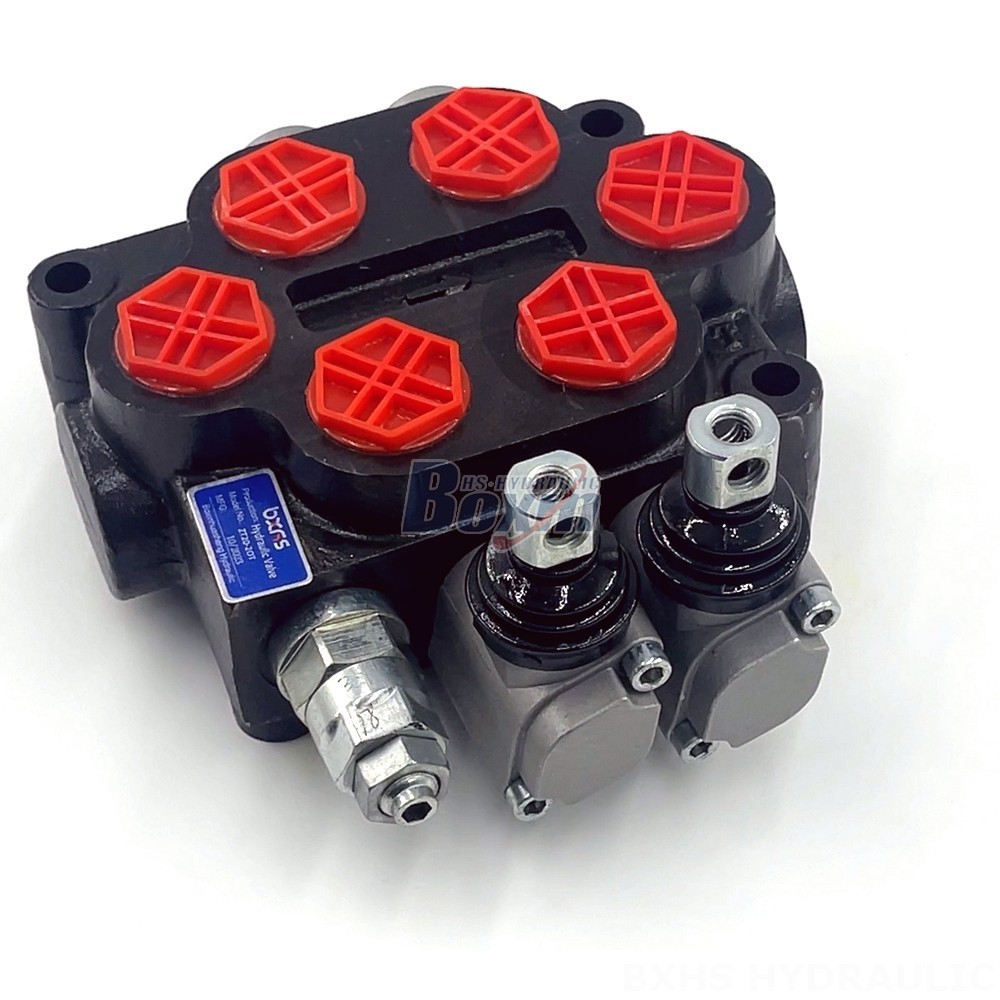

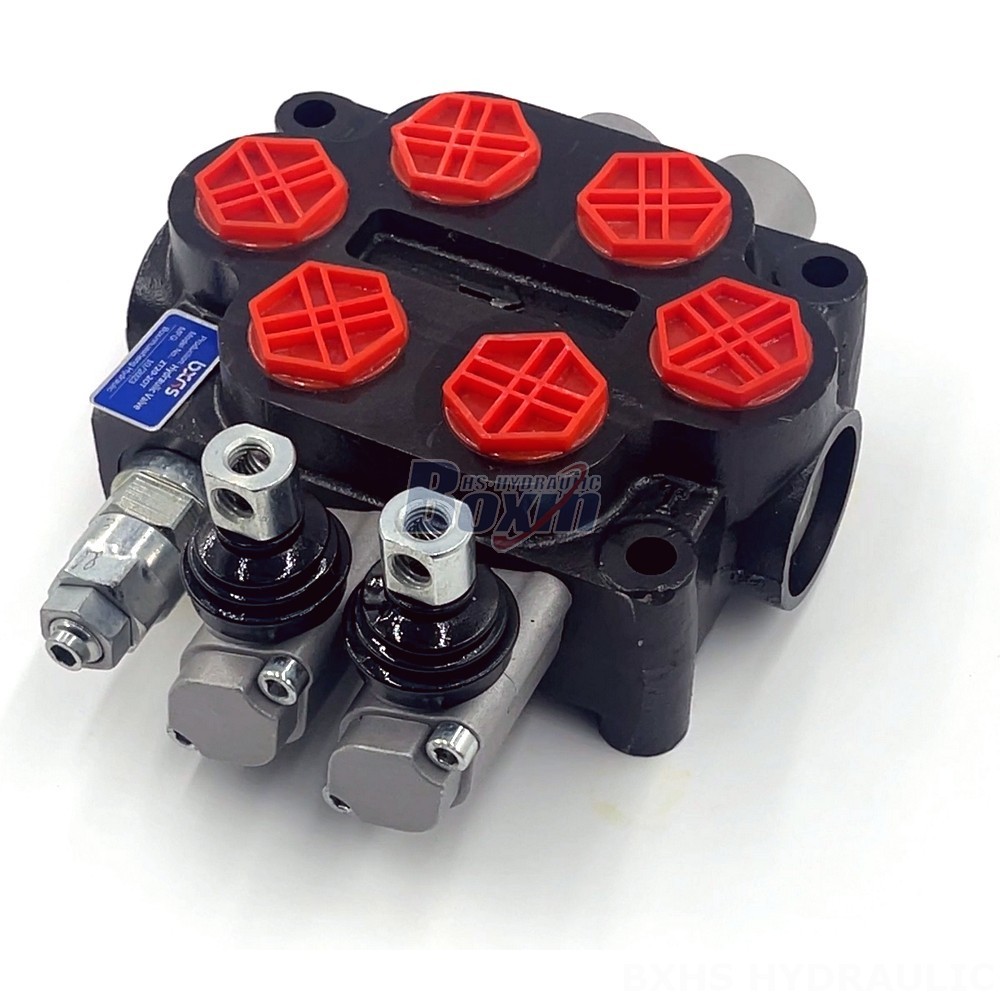

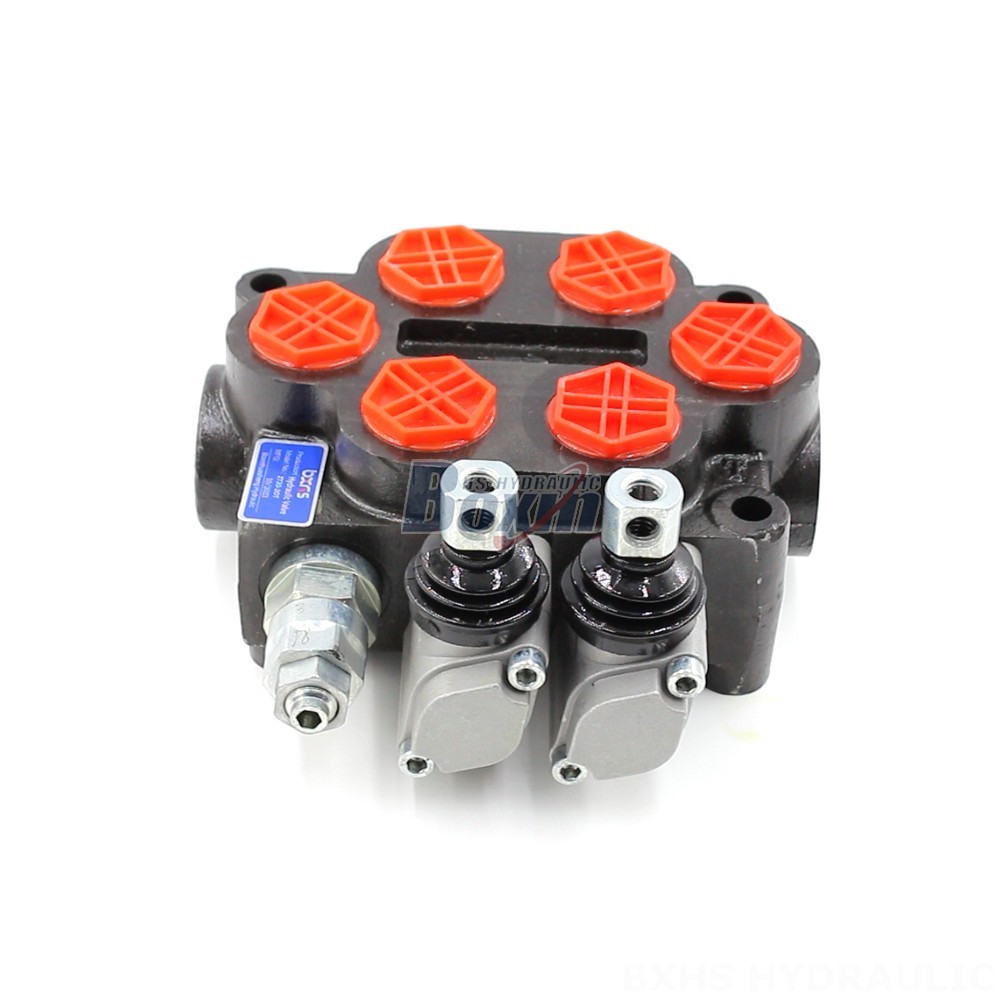

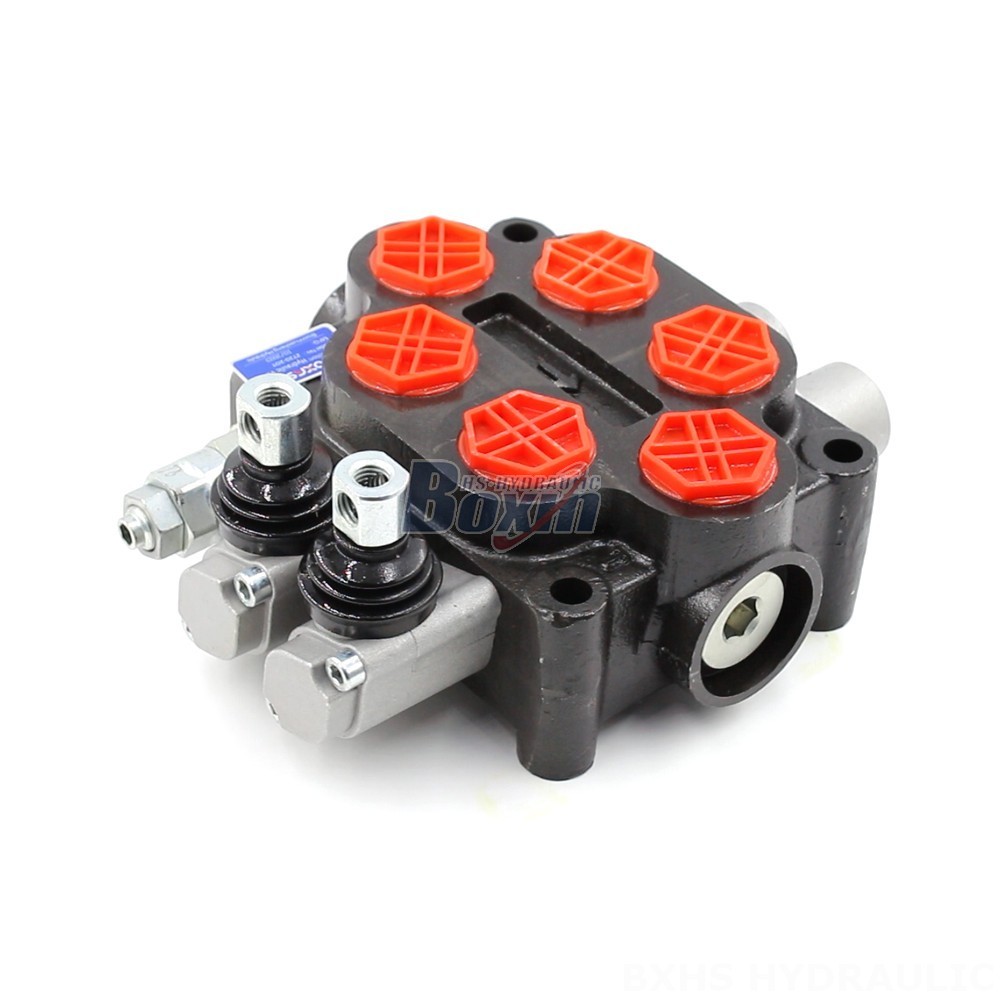

The ZT20 Series Hydraulic Control Valve with Joystick is a high-performance, reliable directional valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock structure, it delivers a rated flow of 100 L/min and a maximum pressure of 250 bar, making it suitable for demanding operations.
| Řada ZT20 Hydraulický řídicí ventil Parametry | |
|---|---|
| Metoda řízení | Ruční, Kabel, Joystick, Ruční a joystick |
| Šoupátko | 1 cívka, 2 cívky, 3 cívky, 4 cívky, 5 cívek, 6 cívek |
| Jmenovitý průtok | 100 l/min (26,5 US gpm) |
| Maximální tlak | 250 bar (3600 psi) |
| Vstupní port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Výstupní port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Velikost portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Sekce | Sekce 1, Sekce 2, Sekce 3, Sekce 4, Sekce 5, Sekce 6 |
| Typ konstrukce | Blokový ventil |
| Rozsah okolní teploty | -40 °C až +80 °C (-40 °F až +176 °F) |
| Rozsah provozní viskozity | 15 - 75 mm²/s (15 cSt až 75 cSt) |
The ZT20 Series Hydraulic Control Valve with Joystick is a 2-section, manual control monoblock valve designed for reliable and efficient hydraulic operations. With a rated flow of 100 L/min (26.5 US gpm) and a maximum pressure of 250 bar (3600 psi), it is capable of handling heavy loads in a variety of demanding applications. The valve features a 2-spool design and operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt). Its robust construction ensures long-lasting performance even in extreme temperatures ranging from -40°C to +80°C (-40°F to +176°F). Designed for a wide range of applications, the ZT20 Series valve is ideal for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
